B1278

DTC B1278 Combination Switch ECU Communication Stop

DESCRIPTION

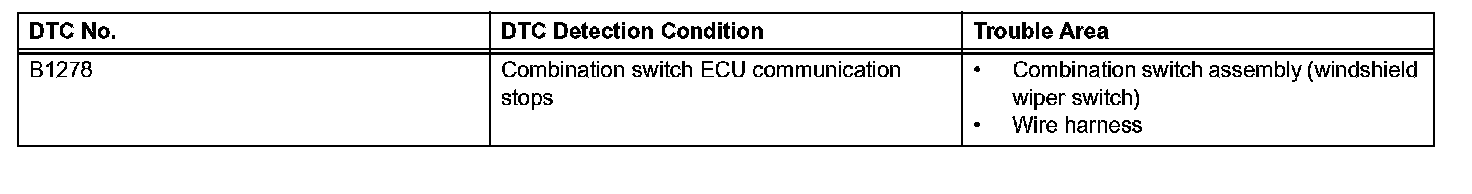

DTC Detection Condition:

This DTC is detected when communication between the combination switch (windshield wiper switch) and network gateway ECU stops for more than 10 seconds.

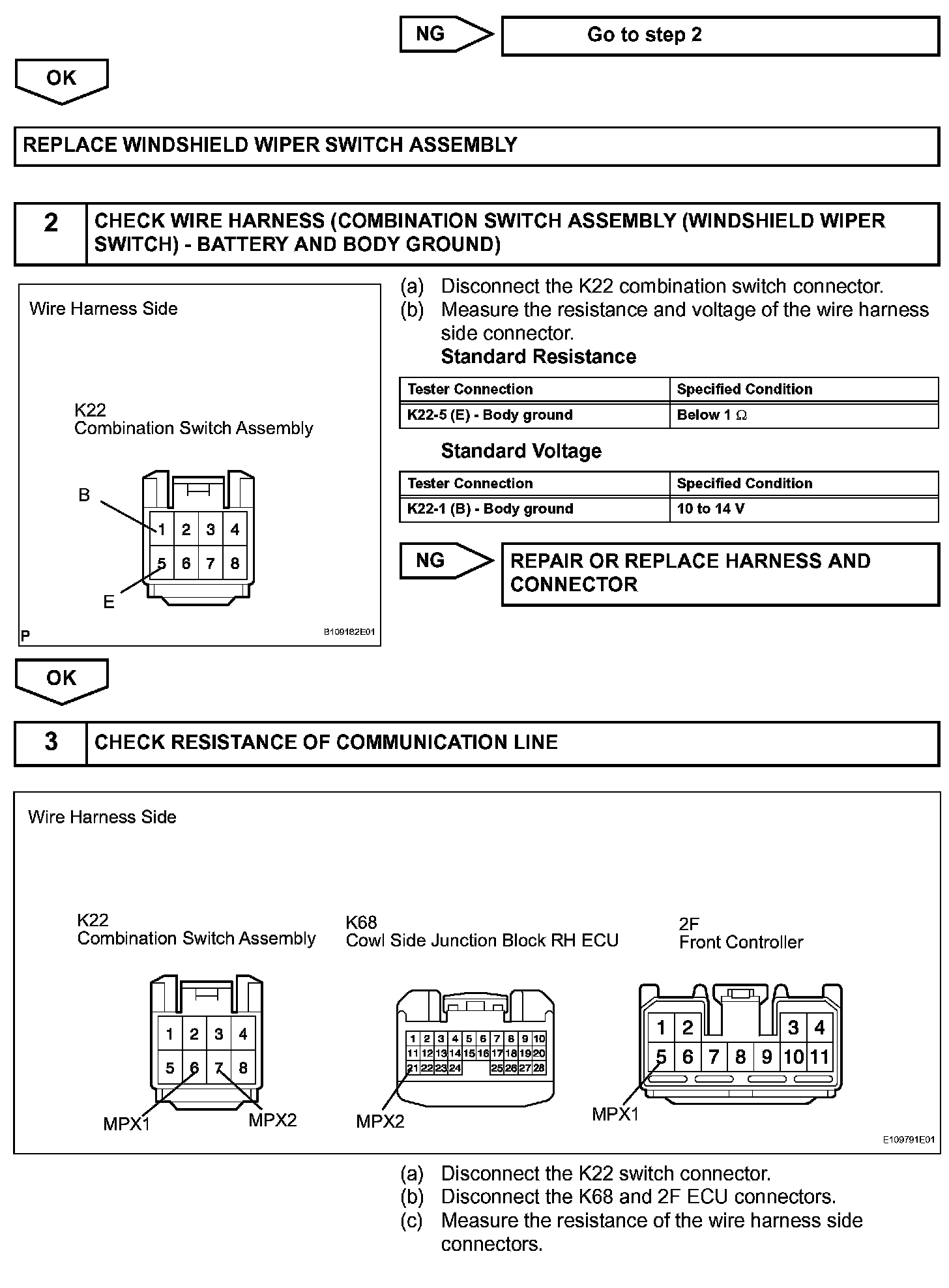

Wiring Diagram:

Step 1:

Step 1(Continued)-3:

Step 3(Continued):

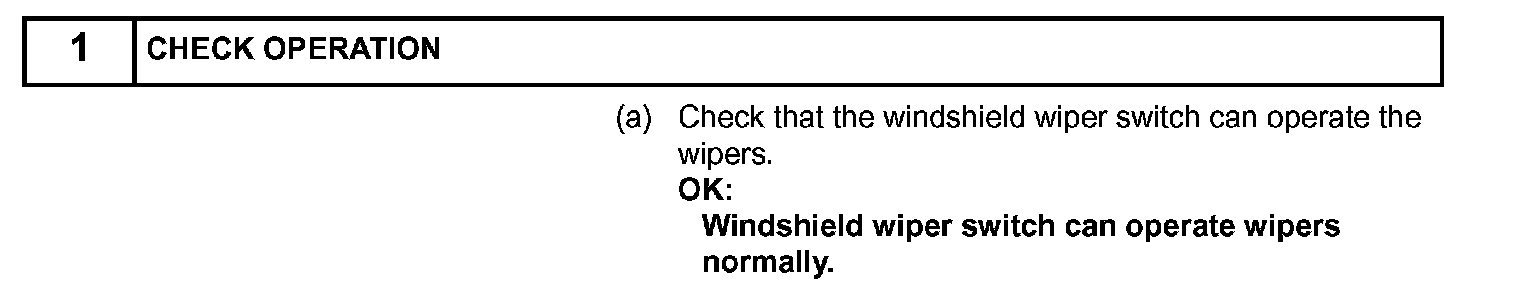

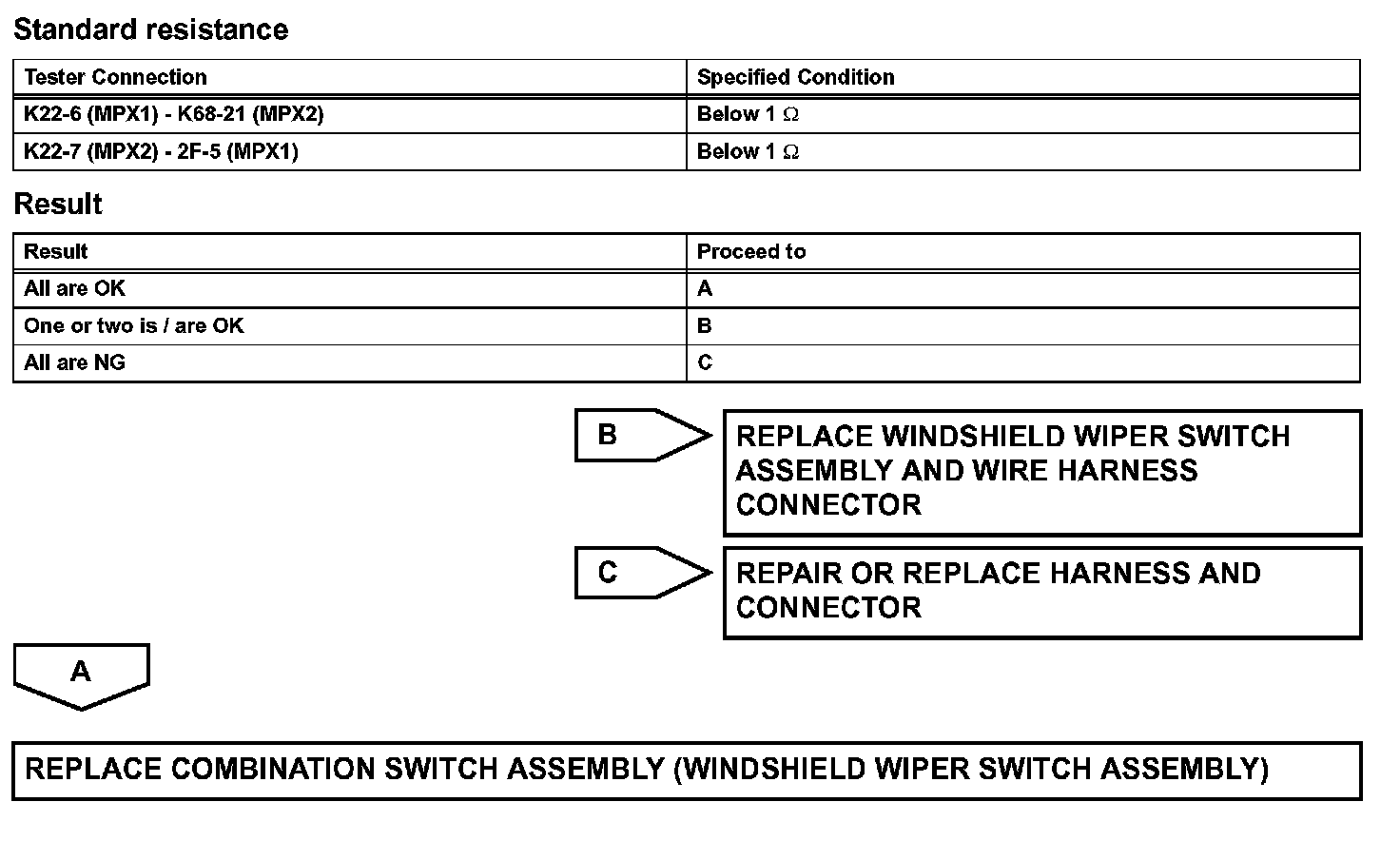

INSPECTION PROCEDURE
