B1273

DTC B1273 Sliding Roof ECU Communication Stop

DESCRIPTION

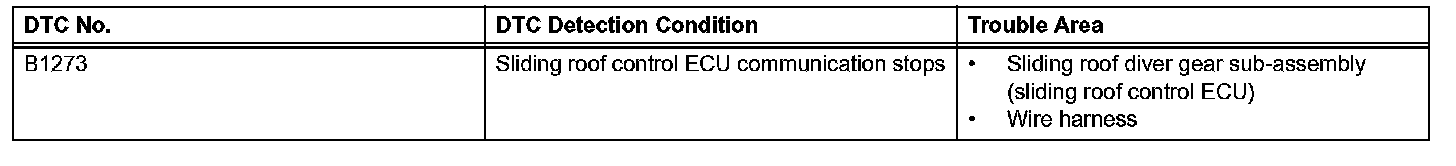

DTC Detection Condition:

This DTC is detected when communication between the sliding roof drive gear (sliding roof control ECU) and network gateway ECU stops for more than 10 seconds.

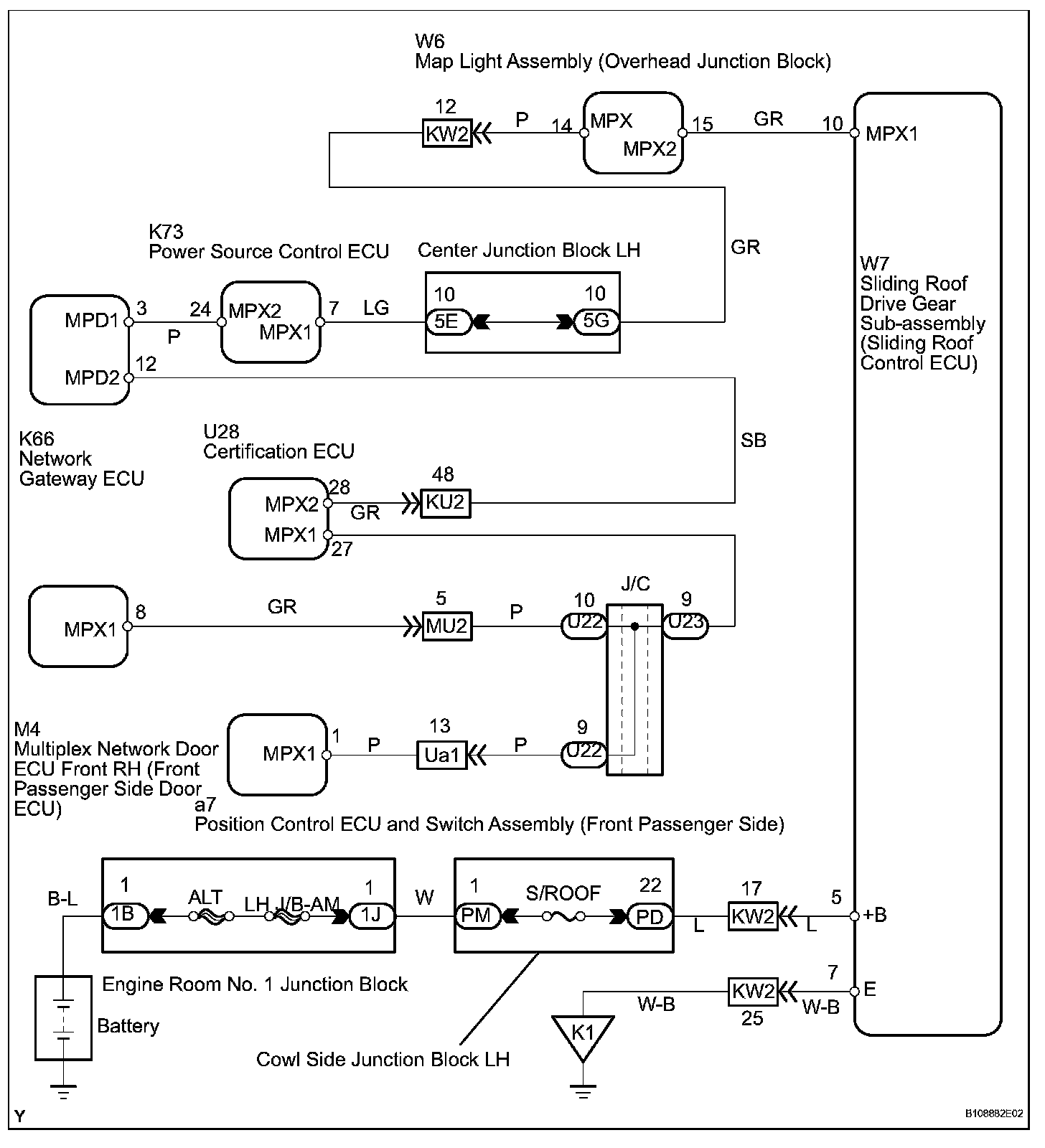

Wiring Diagram:

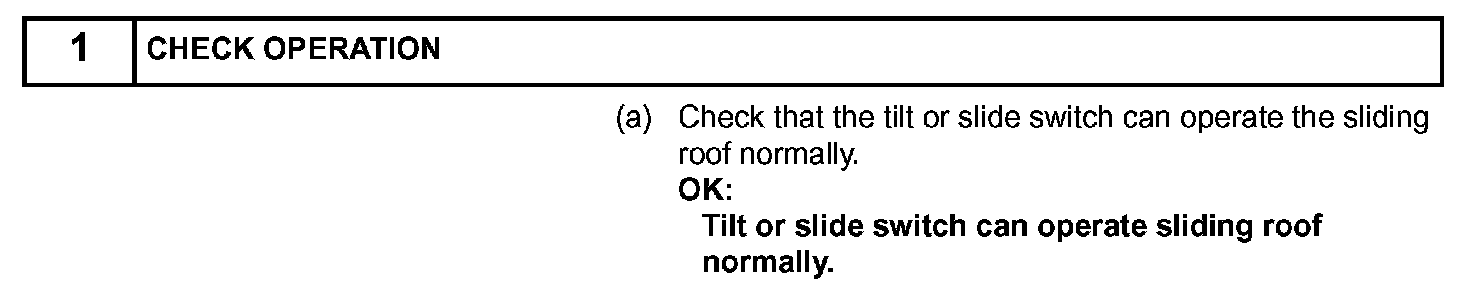

Step 1:

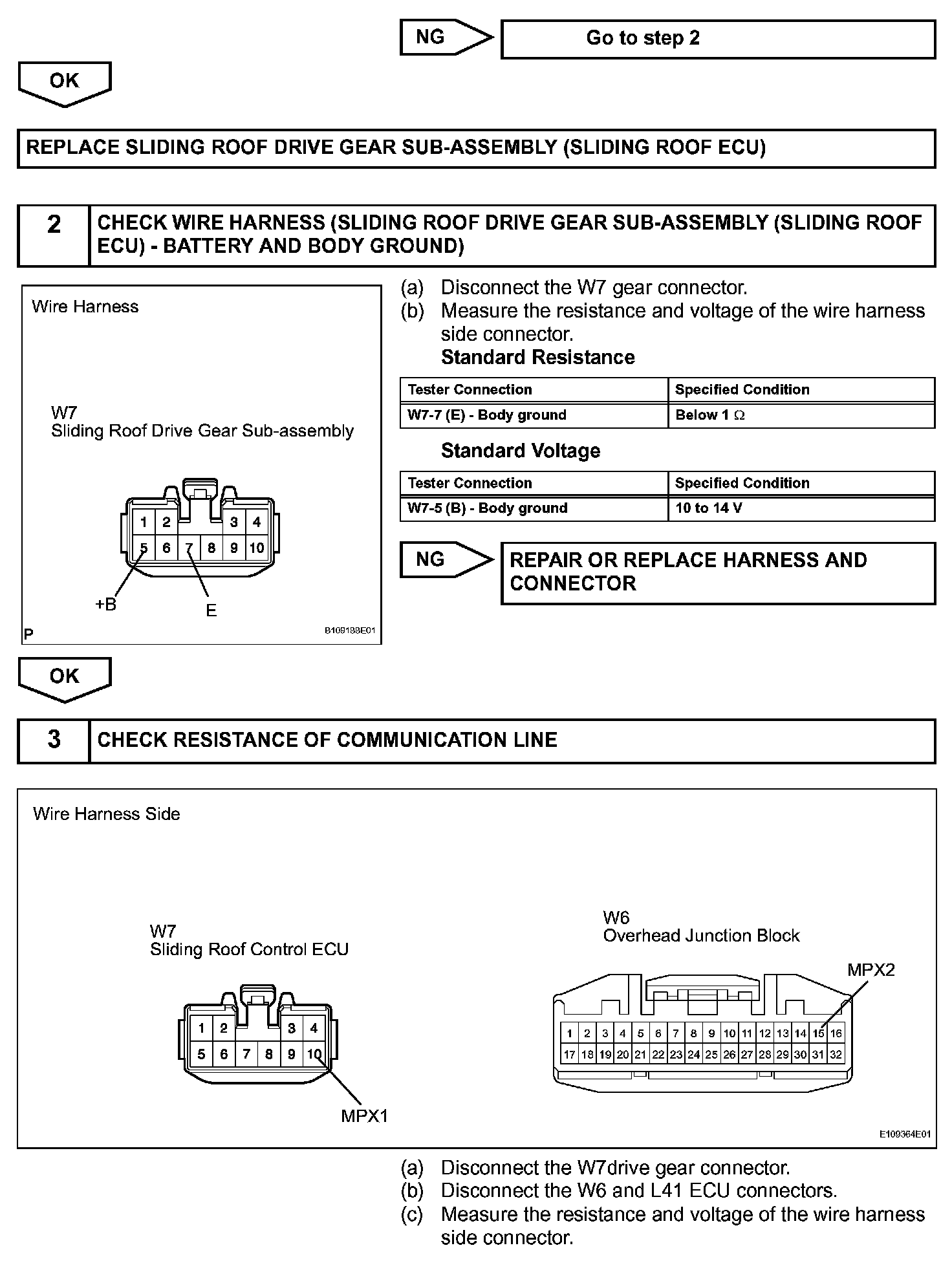

Step 1(Continued)-3:

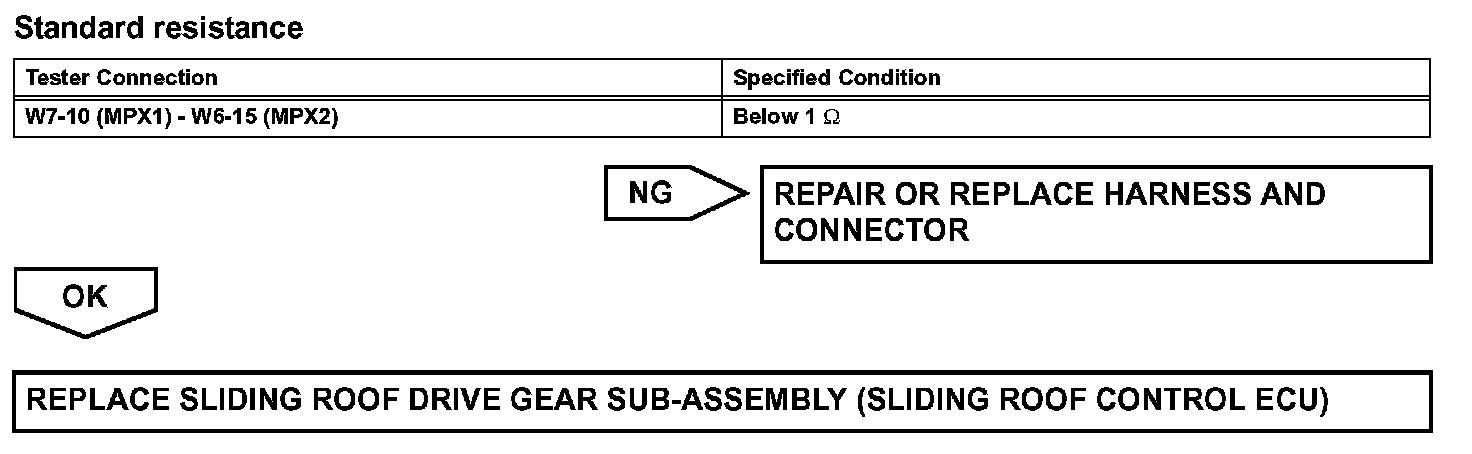

Step 3(Continued):

INSPECTION PROCEDURE
