B1271

DTC B1271 Combination Meter ECU Communication Stop

DESCRIPTION

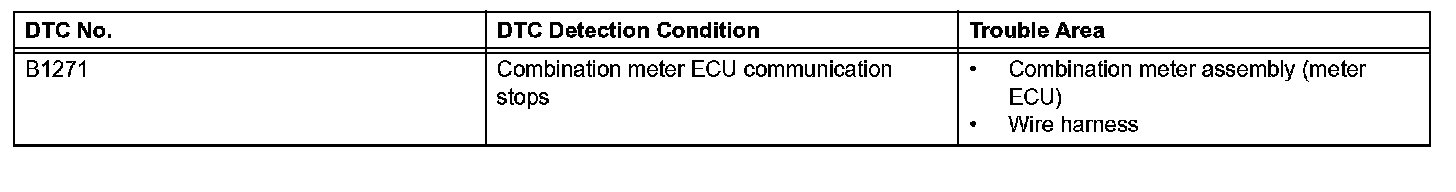

DTC Detection Condition:

This DTC is detected when communication between the combination meter (meter ECU) and network gateway ECU stops for more than 10 seconds.

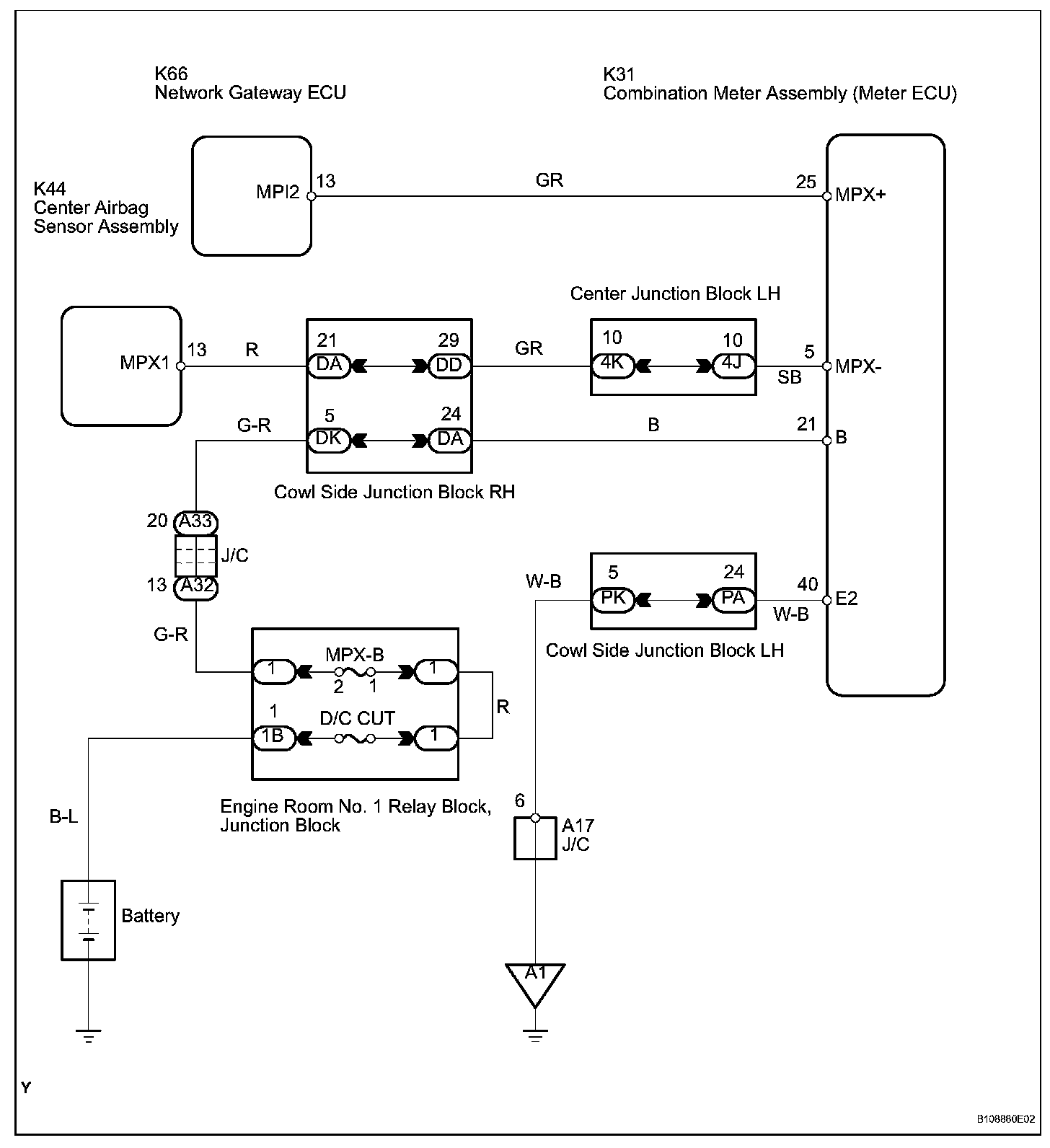

Wiring Diagram:

Step 1:

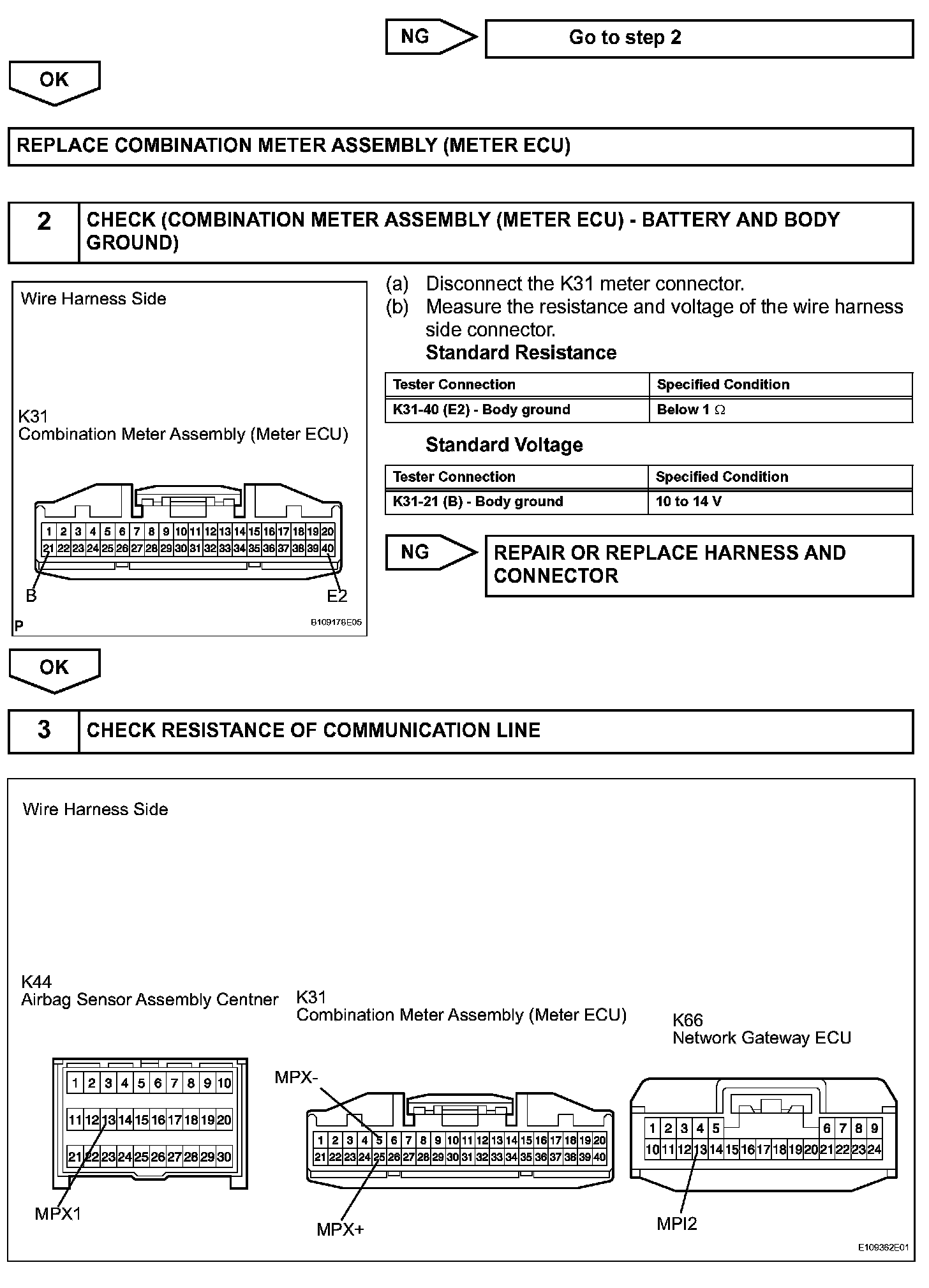

Step 1(Continued)-3:

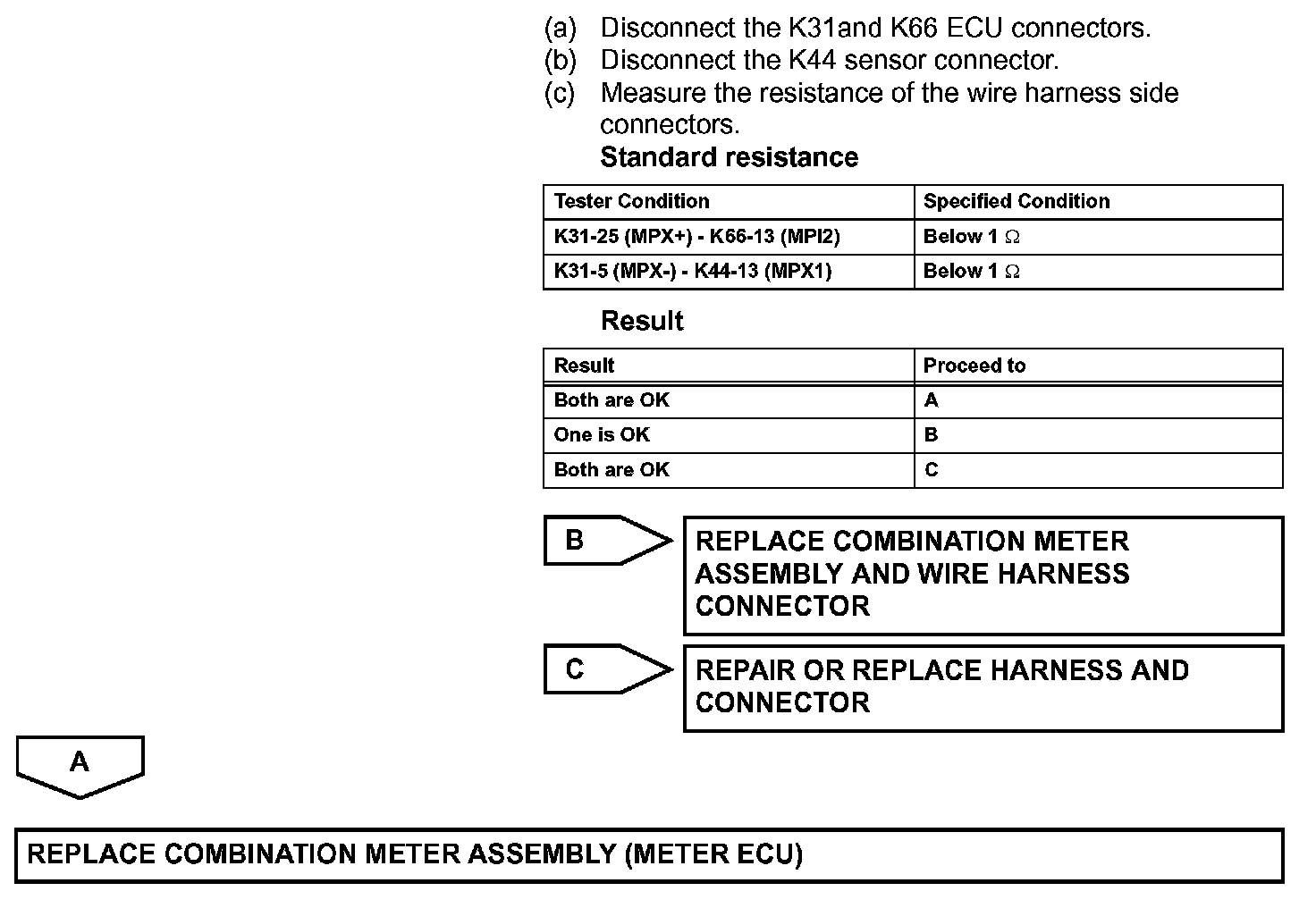

Step 3(Continued):

INSPECTION PROCEDURE
