B1248

DTC B1248 AVC-LAN Communication Impossible

DESCRIPTION

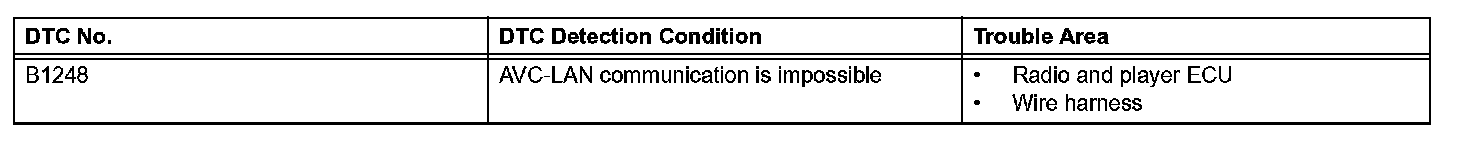

DTC Detection Condition:

This DTC is detected when communication is impossible between the radio and player ECU and gateway ECU.

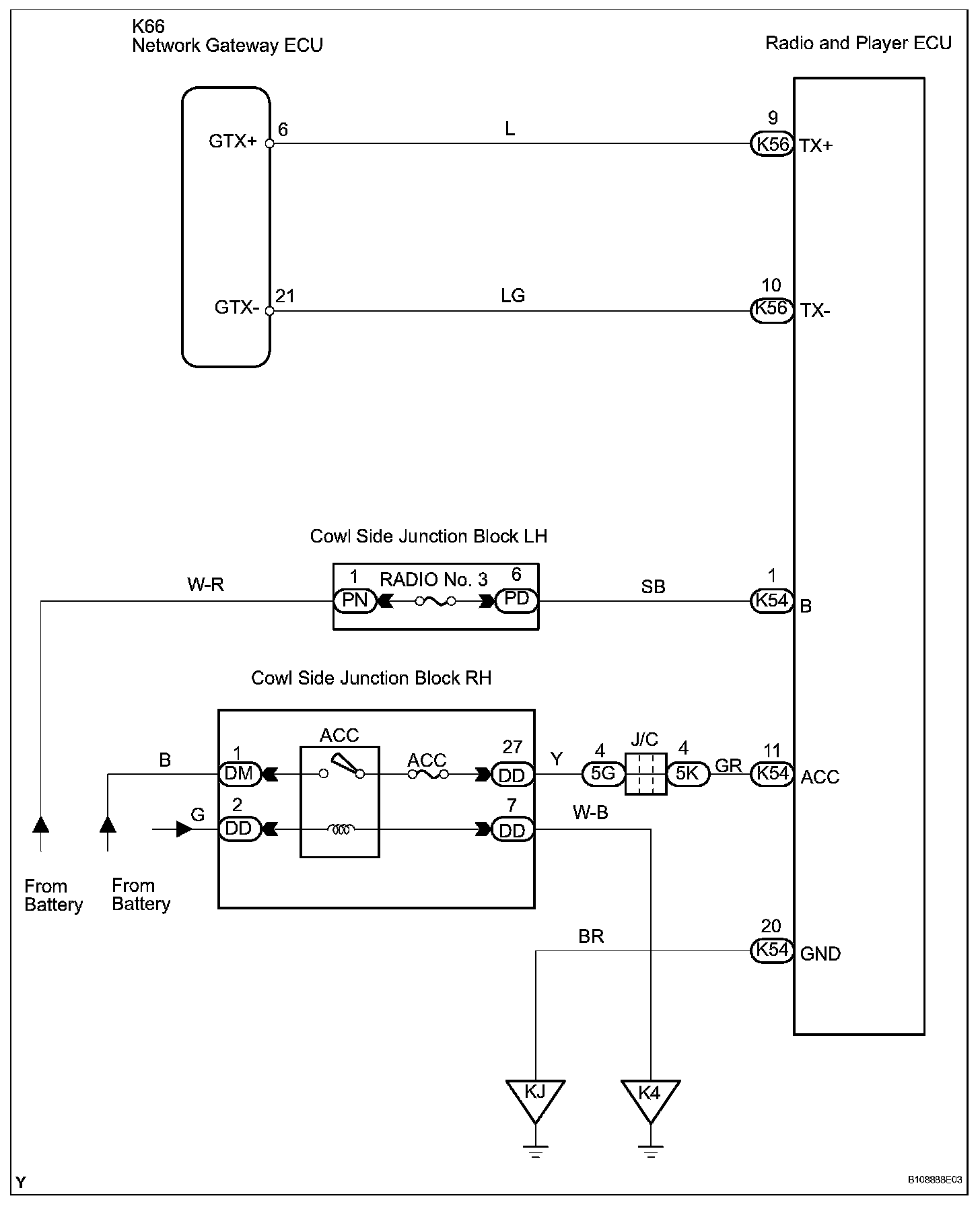

Wiring Diagram:

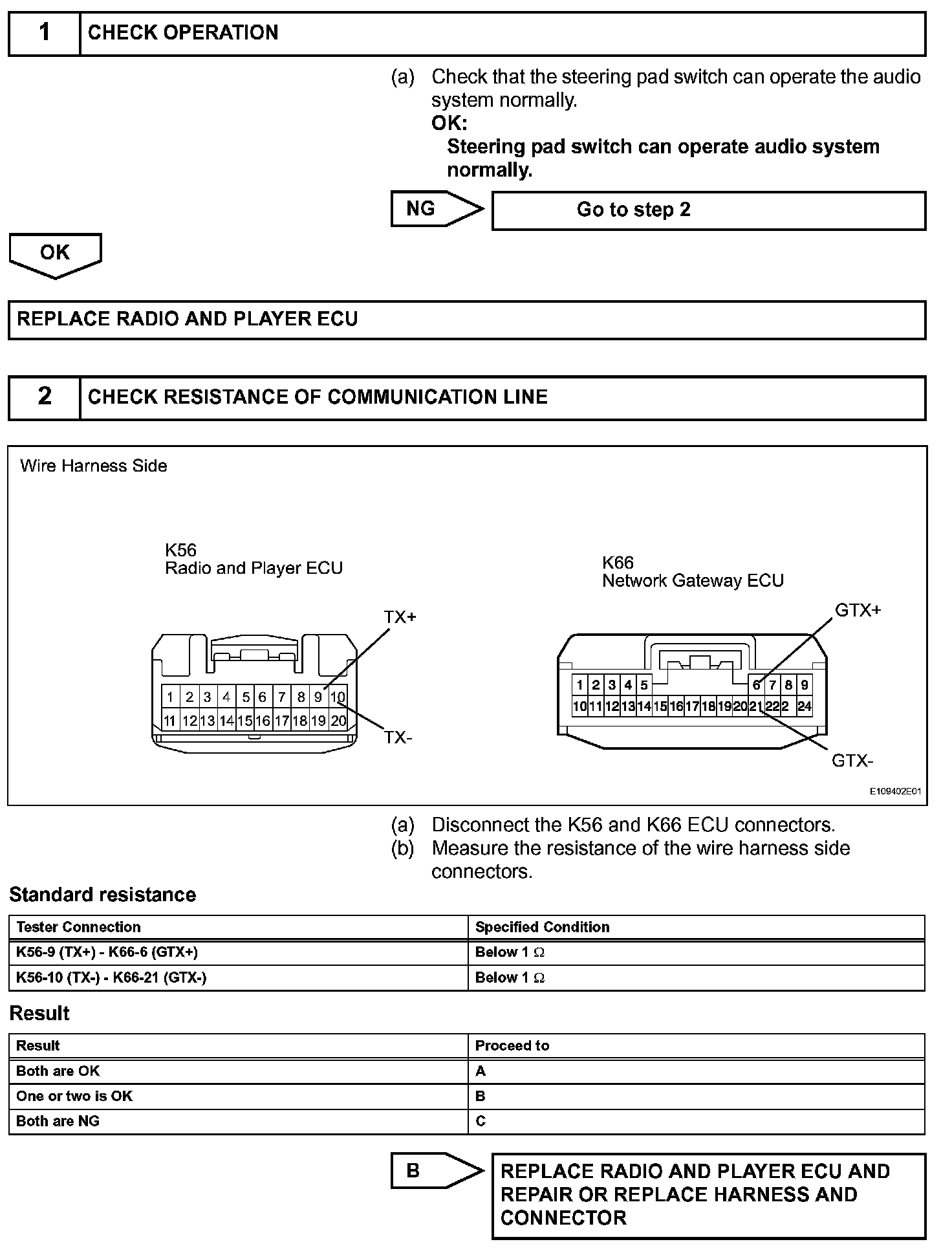

Step 1-2:

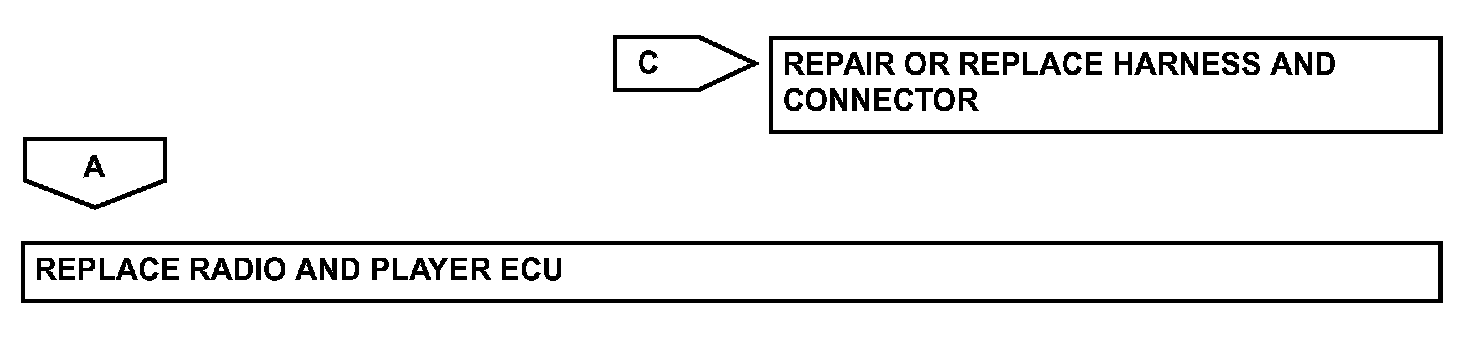

Step 2(Continued):

INSPECTION PROCEDURE
