B1217

DTC B1217 Rear Door ECU LH Communication Stop

DESCRIPTION

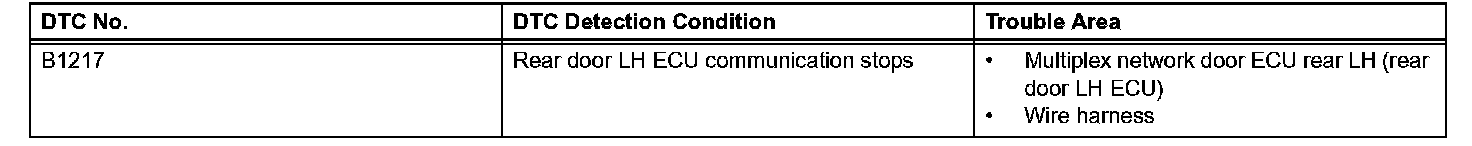

DTC Detection Condition:

This DTC is detected when communication between the multiplex network door ECU rear LH (rear door LH ECU) and gateway ECU stops for more than 10 seconds.

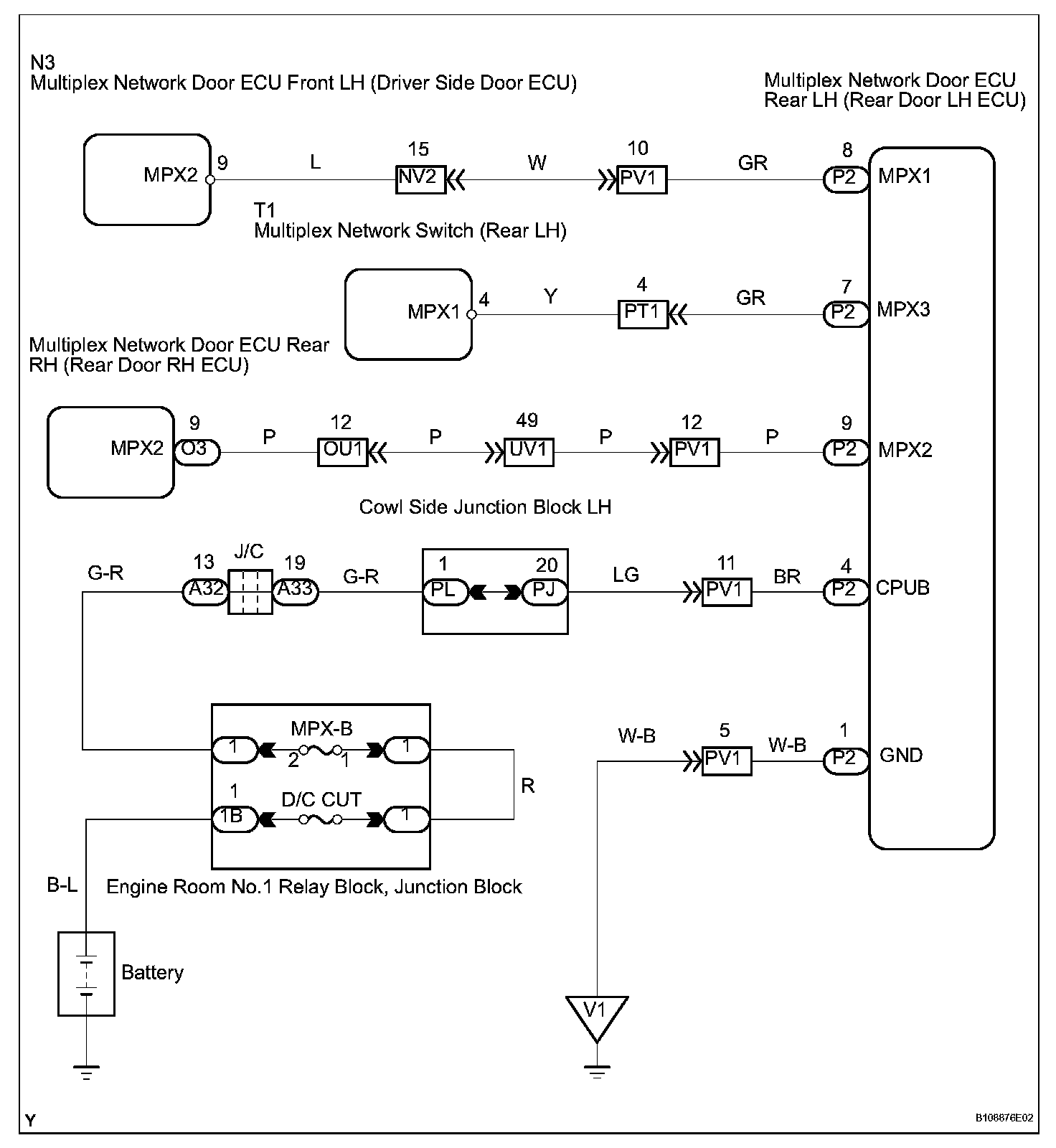

Wiring Diagram:

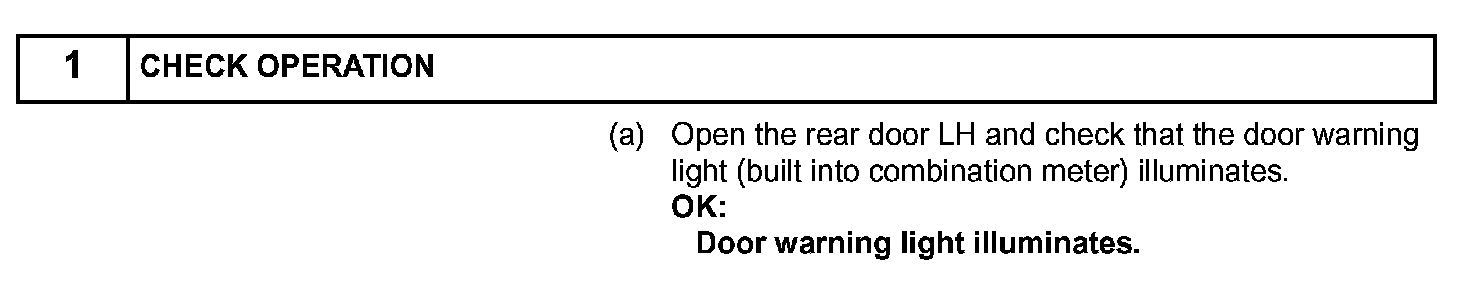

Step 1:

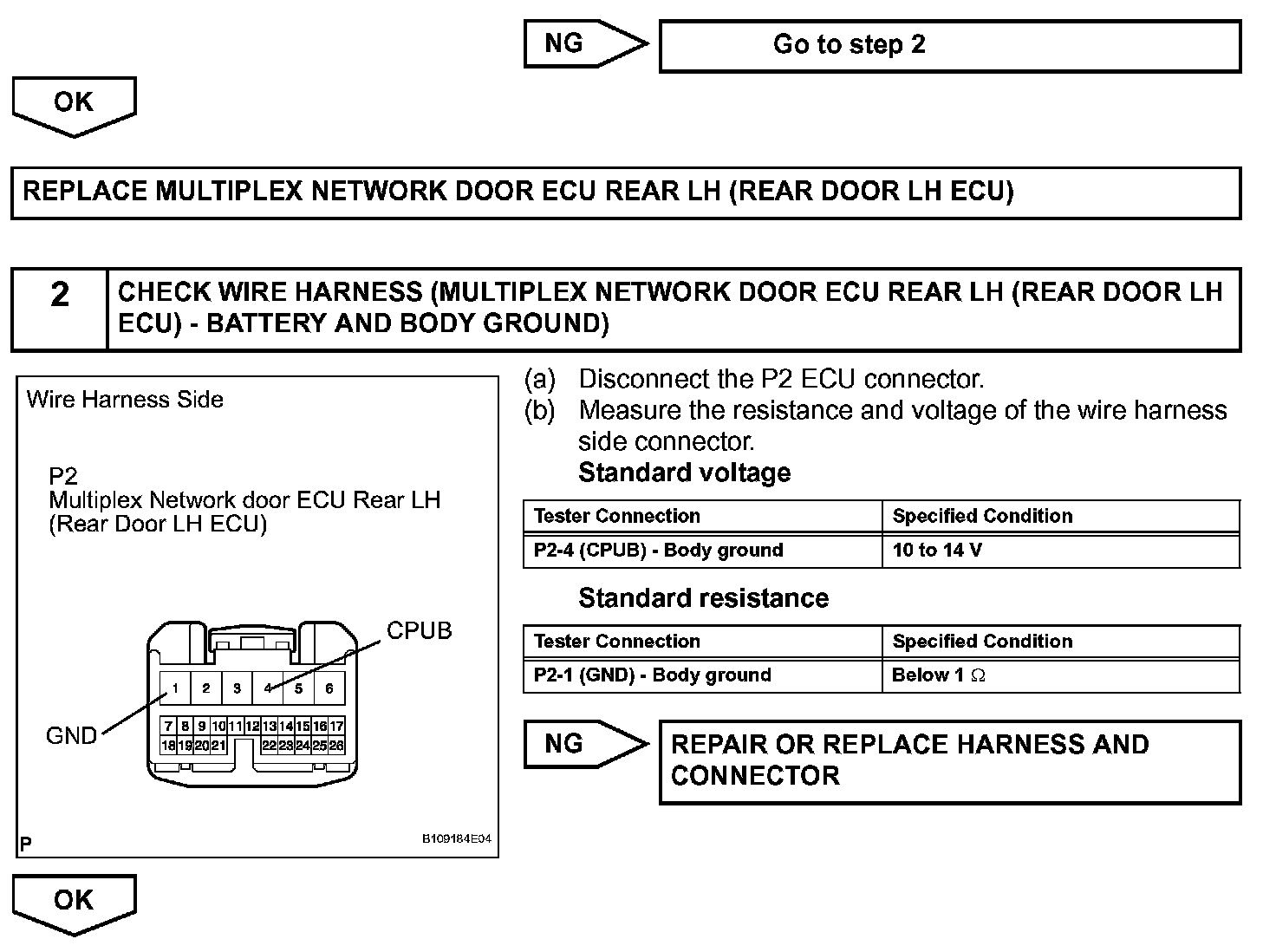

Step 1(Continued)-2:

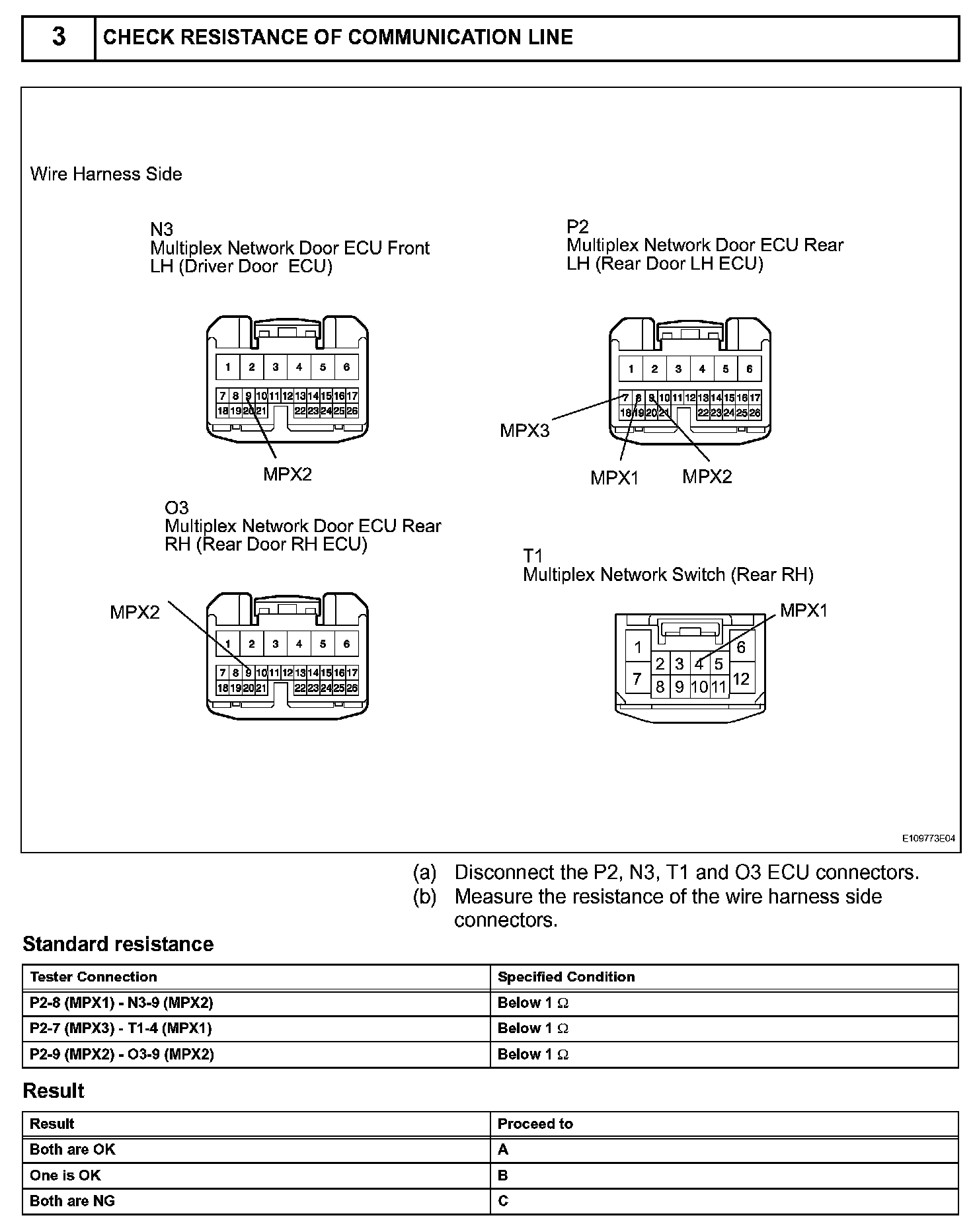

Step 3:

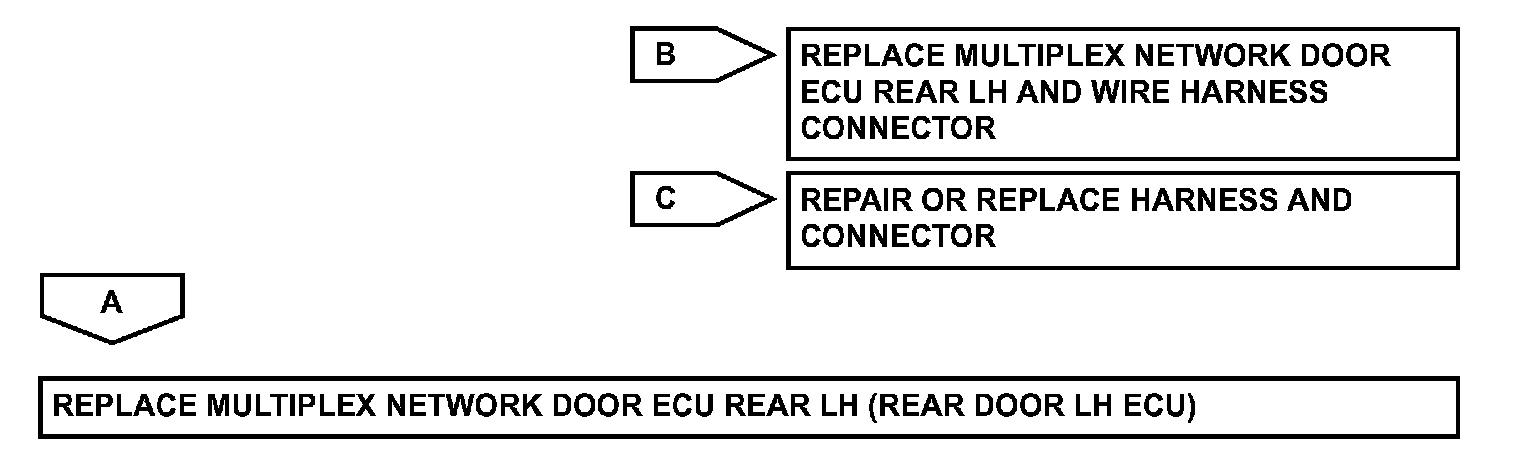

Step 3(Continued):

INSPECTION PROCEDURE
