Rain Drop Sensing Function Does Not Operate
Rain Drop Sensing Function Does Not Operate
RAIN DROP SENSING FUNCTION DOES NOT OPERATE

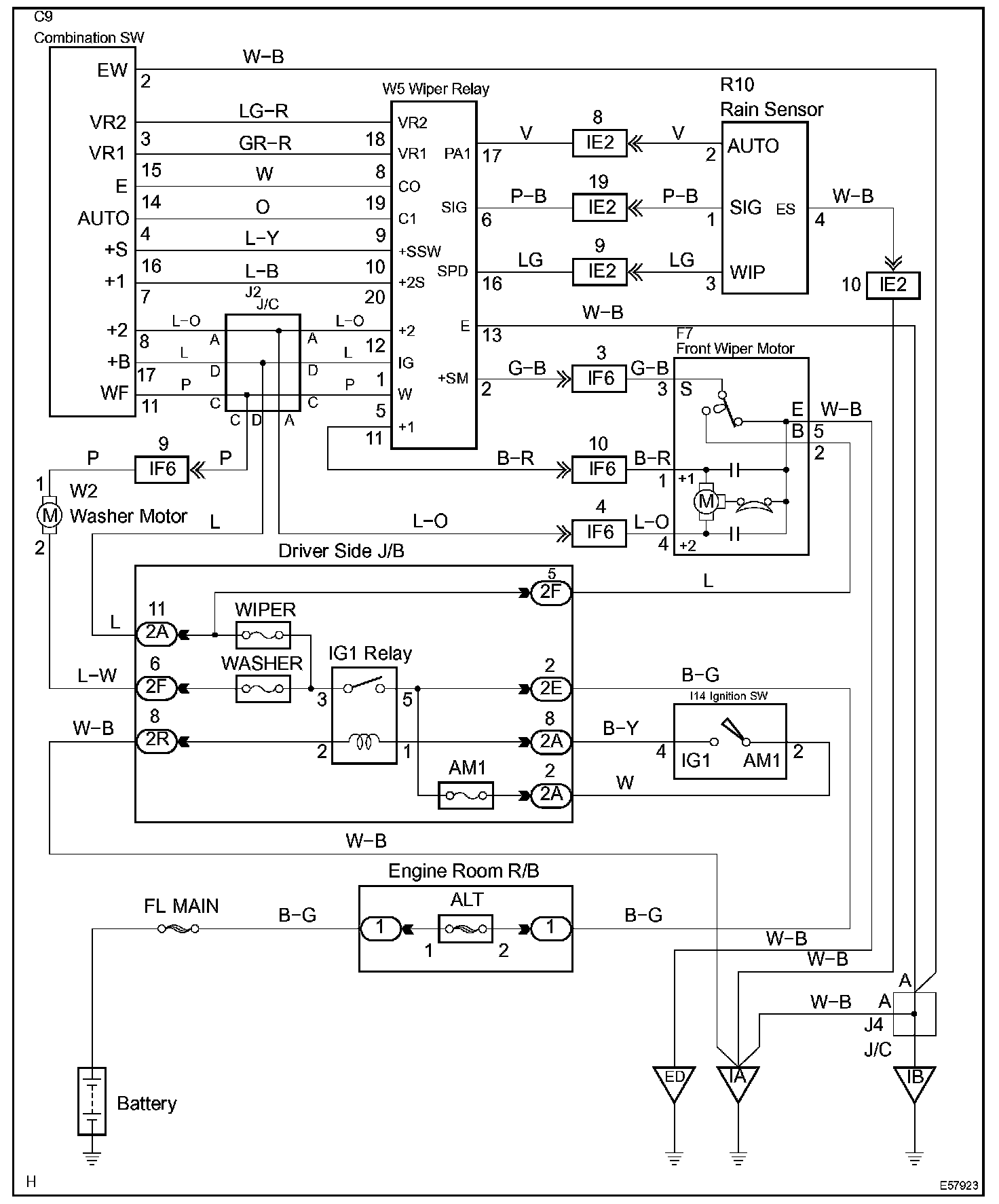

Wiring Diagram:

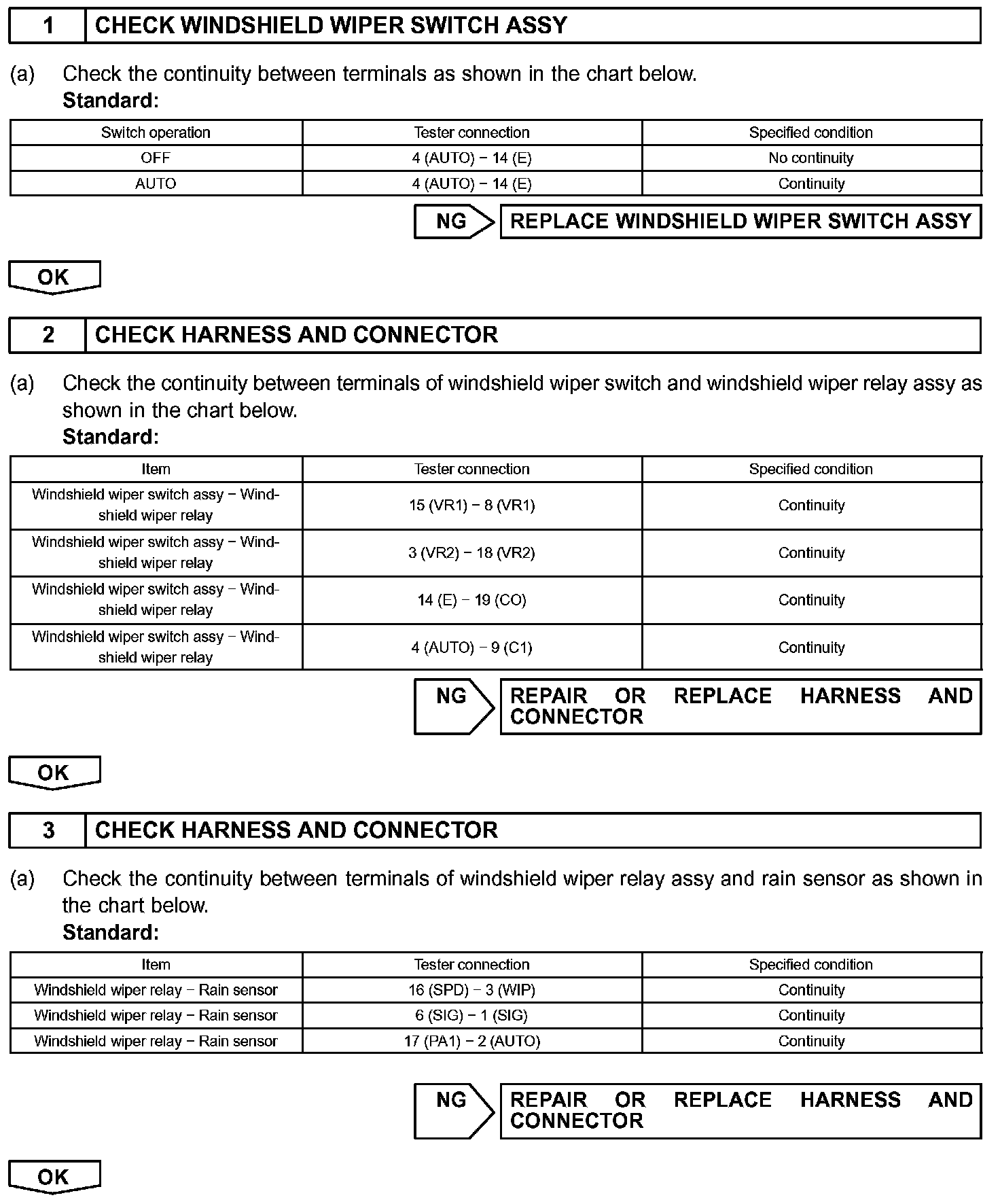

Step 1-3:

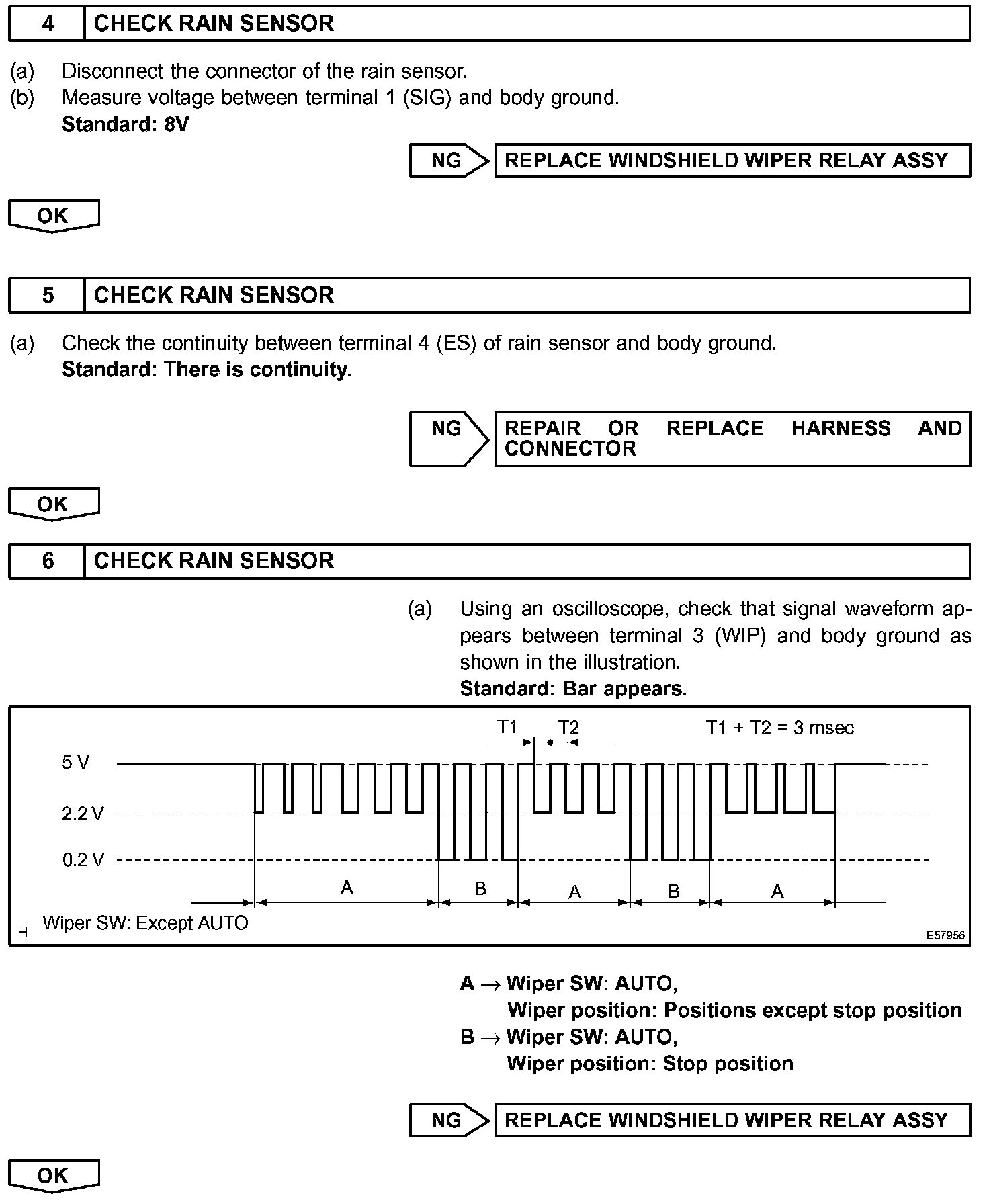

Step 4-6:

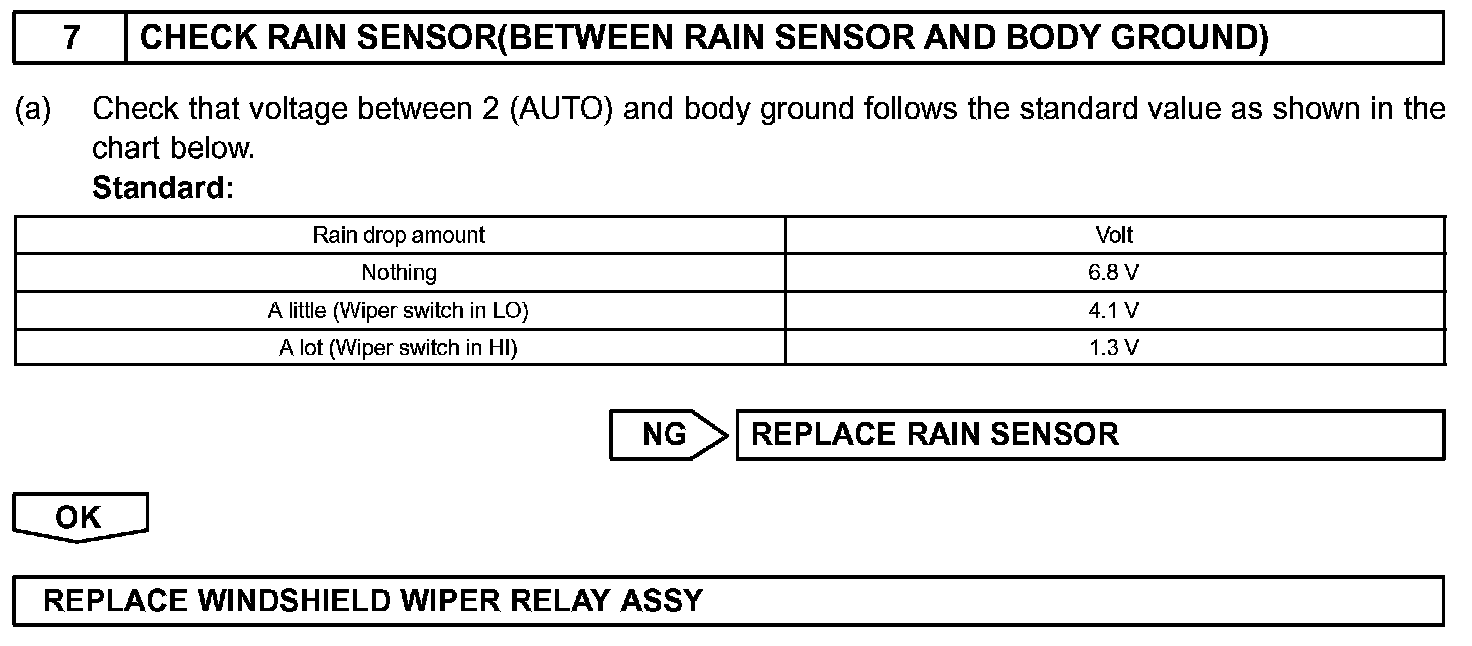

Step 7:
INSPECTION PROCEDURE
