Fail-Safe Function

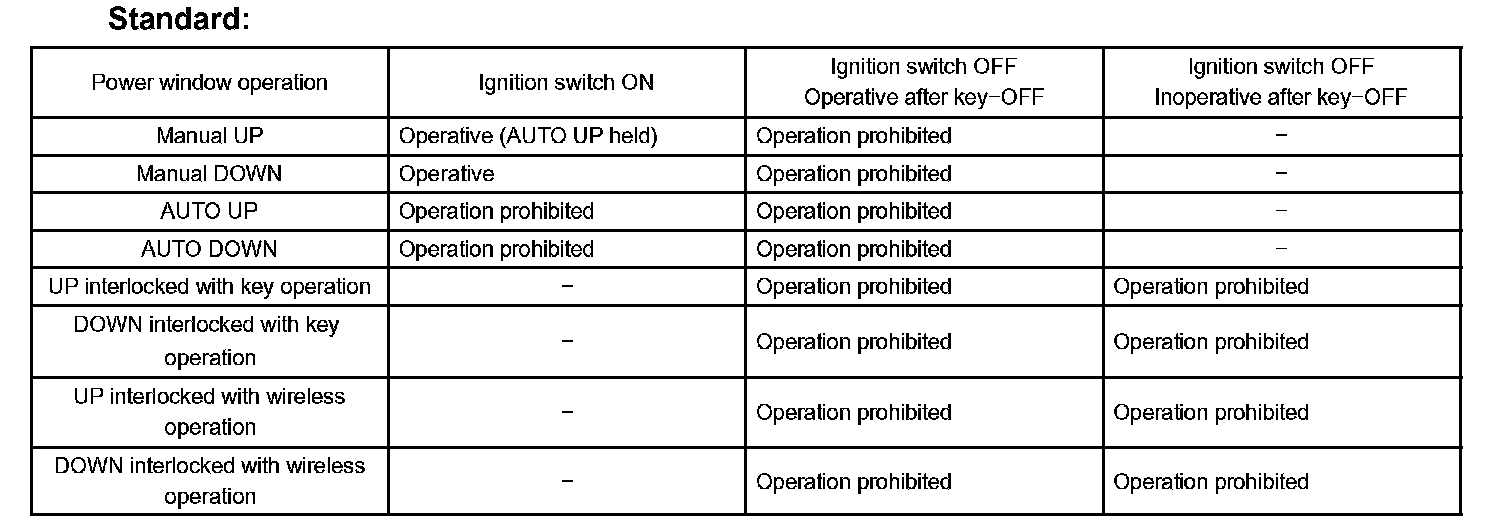

POWER WINDOW FAIL-SAFE FUNCTION




When an abnormality is detected in the limit switch and pulse sensor for operating the jam protection function (DTC: B1231, B1232, B1233, B1234), the given power window operations will be prohibited for fail-safe.

HINT: In case of normal limit switch, prohibition (fail-safe function) will be cancelled by fully opening the door glass of fully closed by manual operation, then AUTO operation will be possible.
