Oscilloscope Patterns and Waveforms

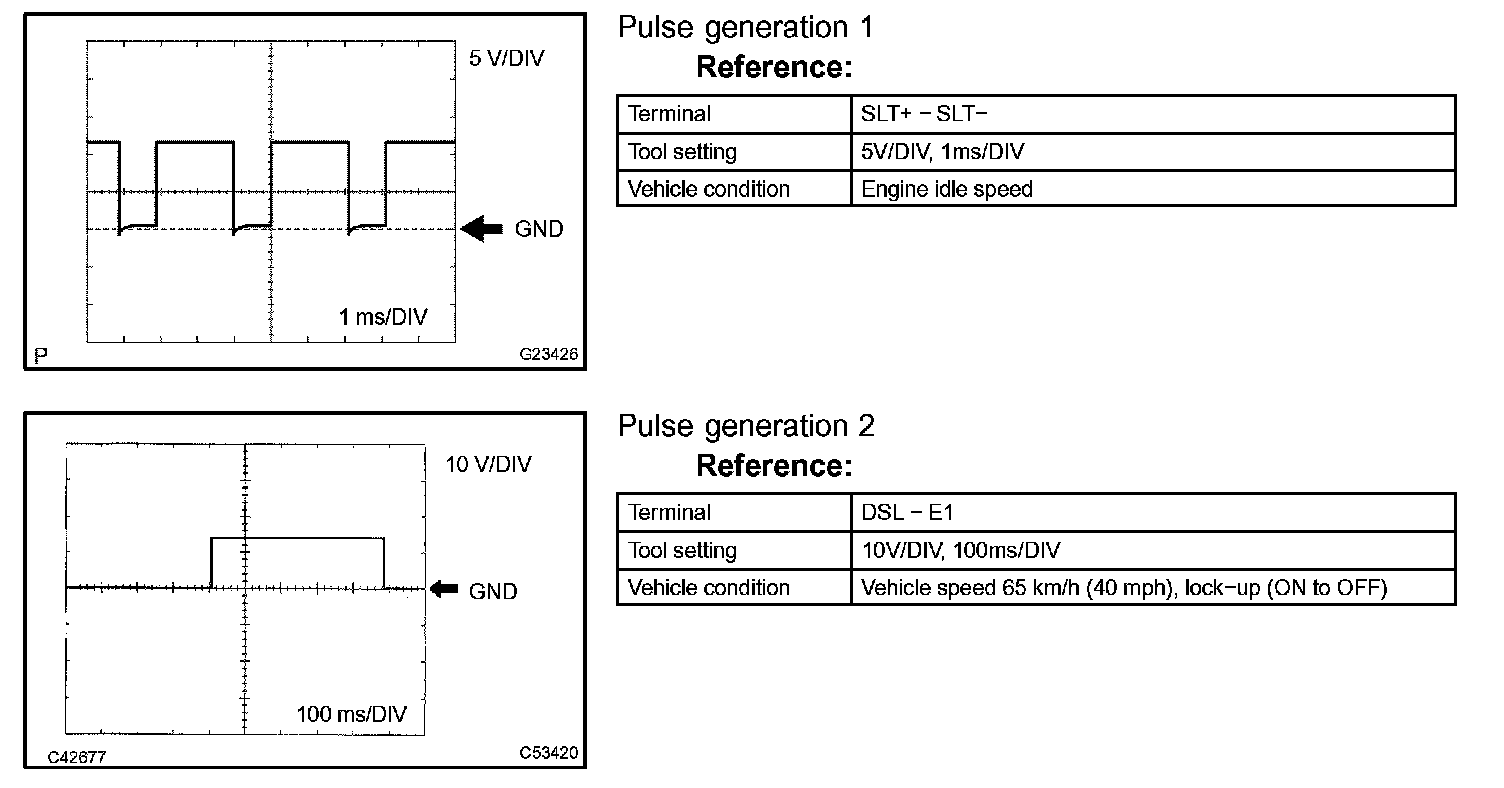

Oscilloscope Waveforms (Part 1):

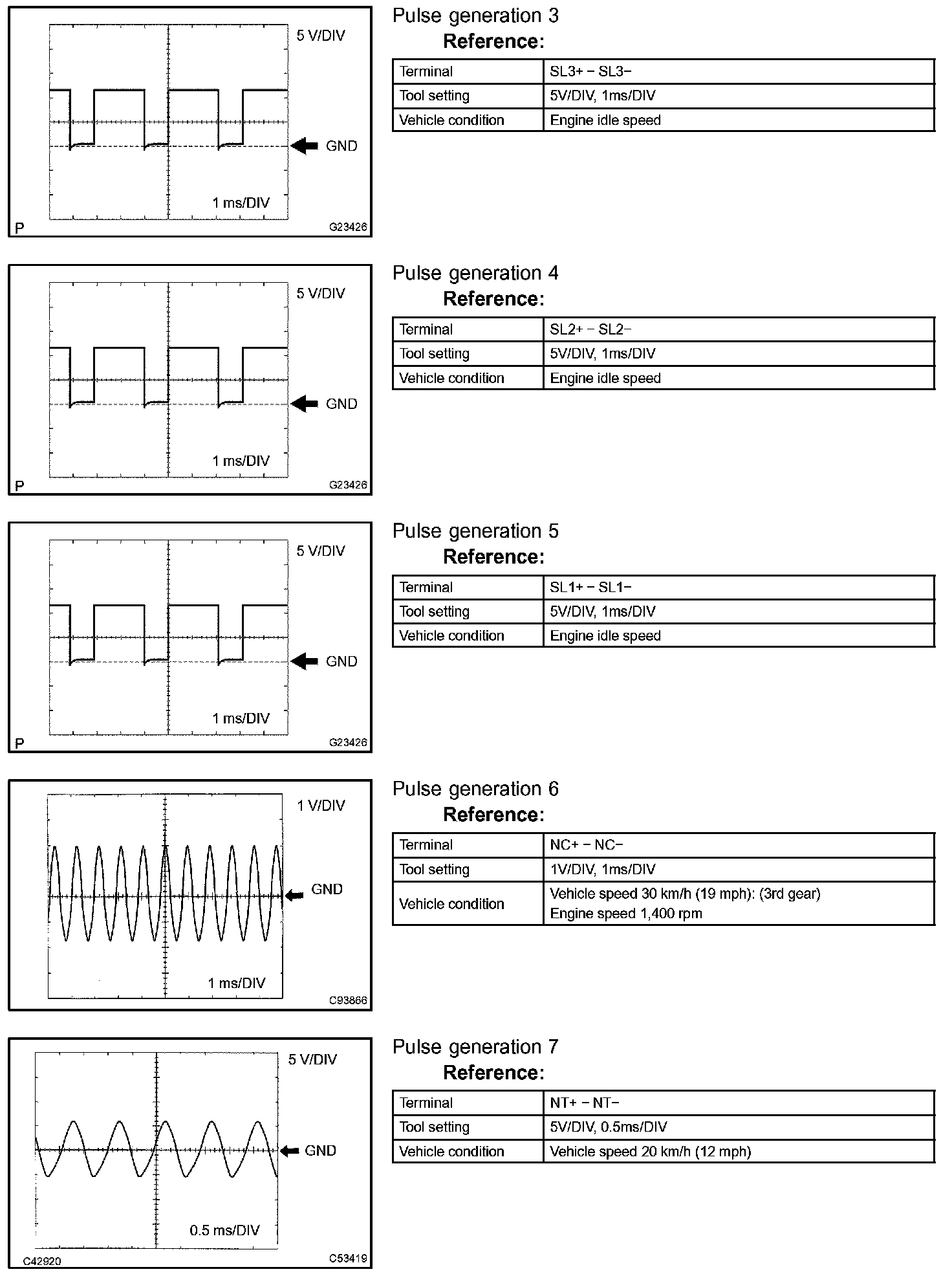

Oscilloscope Waveforms (Part 2):

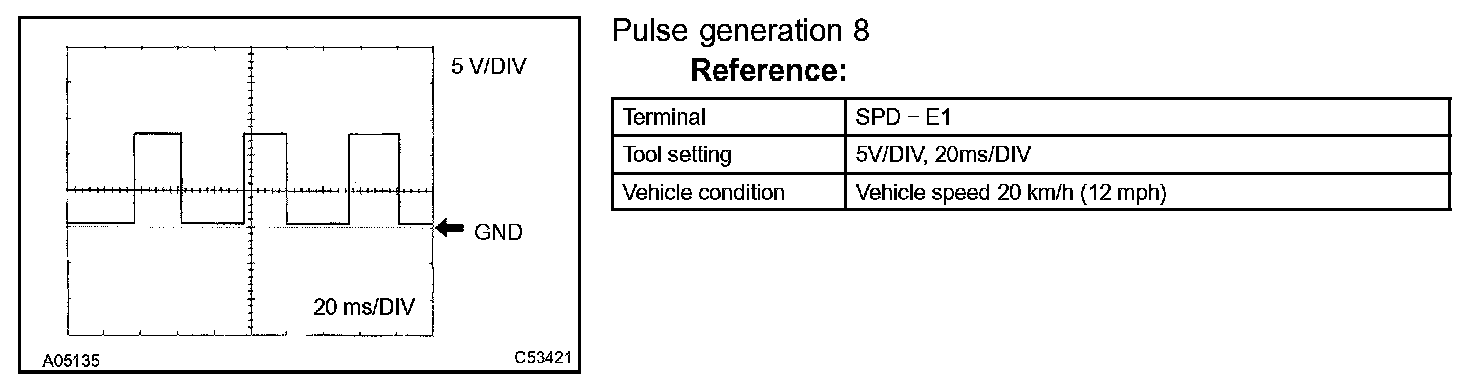

Oscilloscope Waveforms (Part 3):
