Body - Moonroof Initialization Procedure

PRE-DELIVERY SERVICE
PD033-05

August 22, 2005

Title:
INITIALIZATION OF MOON ROOF DURING PDS

Models:
'05 - '06 ES 330

Introduction

The moon roof is controlled by the sliding roof ECU, which detects and memorizes the moon roof position by counting pulses of its motor from the fully "TILT-UP" position as the start position. Once the battery terminal has been disconnected and reconnected, the sliding roof ECU does not detect and memorize the moon roof position, resulting in no functions of the one-touch tilt up and down" "one-touch slide open and close," and "jam protection." Initialize the moon roof position after reconnecting the battery terminal as outlined below.

NOTE:
Any time the battery terminal has been disconnected, initialize the moon roof after reconnecting the battery terminal.

Applicable Vehicles
^ 2005 - 2006 model year ES 330 vehicles.

Initialization Procedure

1. Turn the ignition switch to the "ON" position.

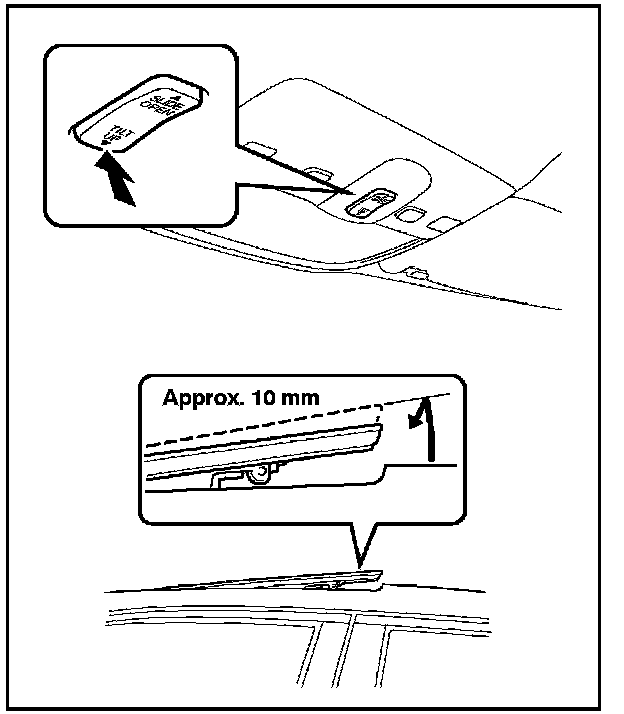

2. Push and hold the moon roof switch to the "TILT-UP" side until the moon roof tilts all the way up and then tilts down slightly (approximately 10 mm [0.39 in.] at rear end).

3. Check for proper operation of the "one-touch slide open and close" and "one-touch tilt up and down" functions by pushing the switch briefly to the "SLIDE OPEN and TILT-UP" positions.

NOTE:
Jam protection function becomes effective through the above initialization procedure.
