Home >> Lexus >> 2006 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data List

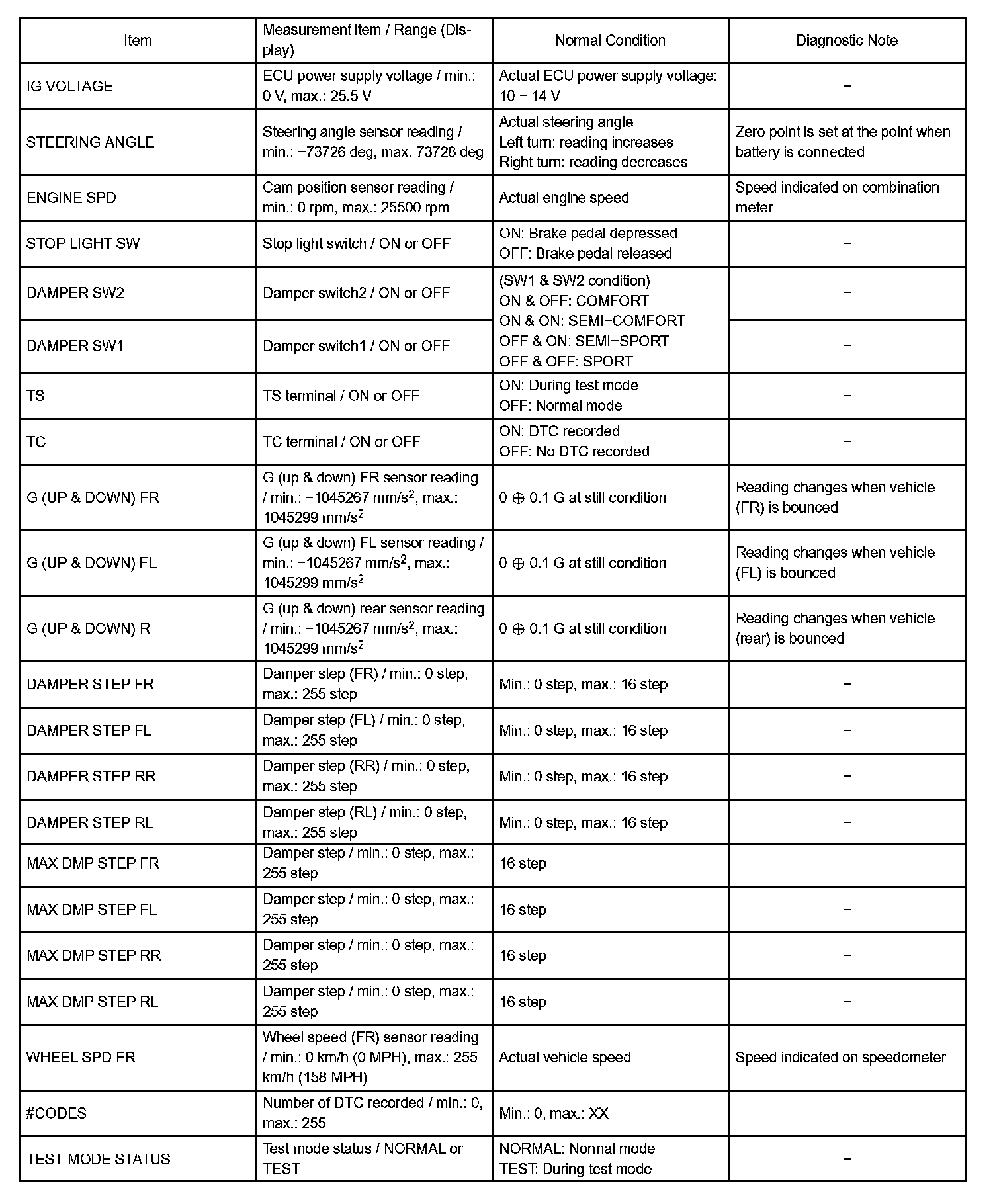

Data List

DATA LIST






HINT: IG must be turned ON to observe data suing a hand-held tester. The vehicle is considered to be placed on a flat level surface.
