Without Scan Tool

CLEAR THE DTC

In case of not using hand-held tester
Clear the DTC




1. Using SST, it connects the terminal Tc and CG of the DLC3.

SST 09843-18040

2. Turn the ignition switch to ON.

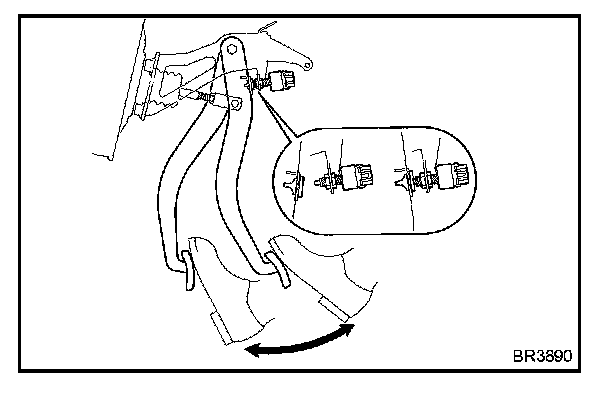

3. Clear DTC stored in ECU by depressing the brake pedal 8 or more times within 5 sec.
4. Check that DTC output the normal code.
5. Remove the SST from the DLC3.

SST 09843-18040

HINT: Disconnecting the battery cable during repairs will not erase the DTC in the ECU.
