Fusible Link: Locations

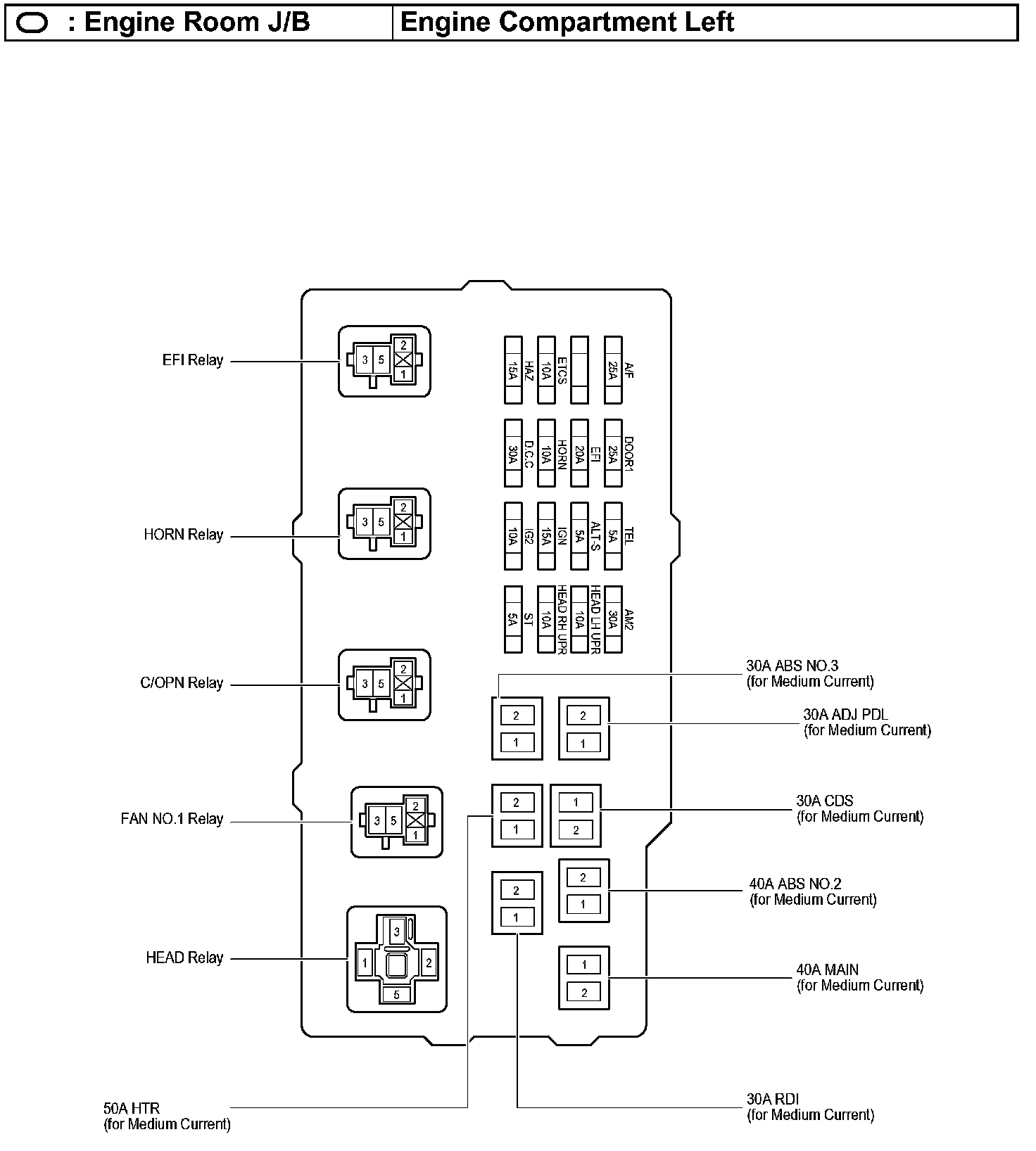

Engine Room R/B:

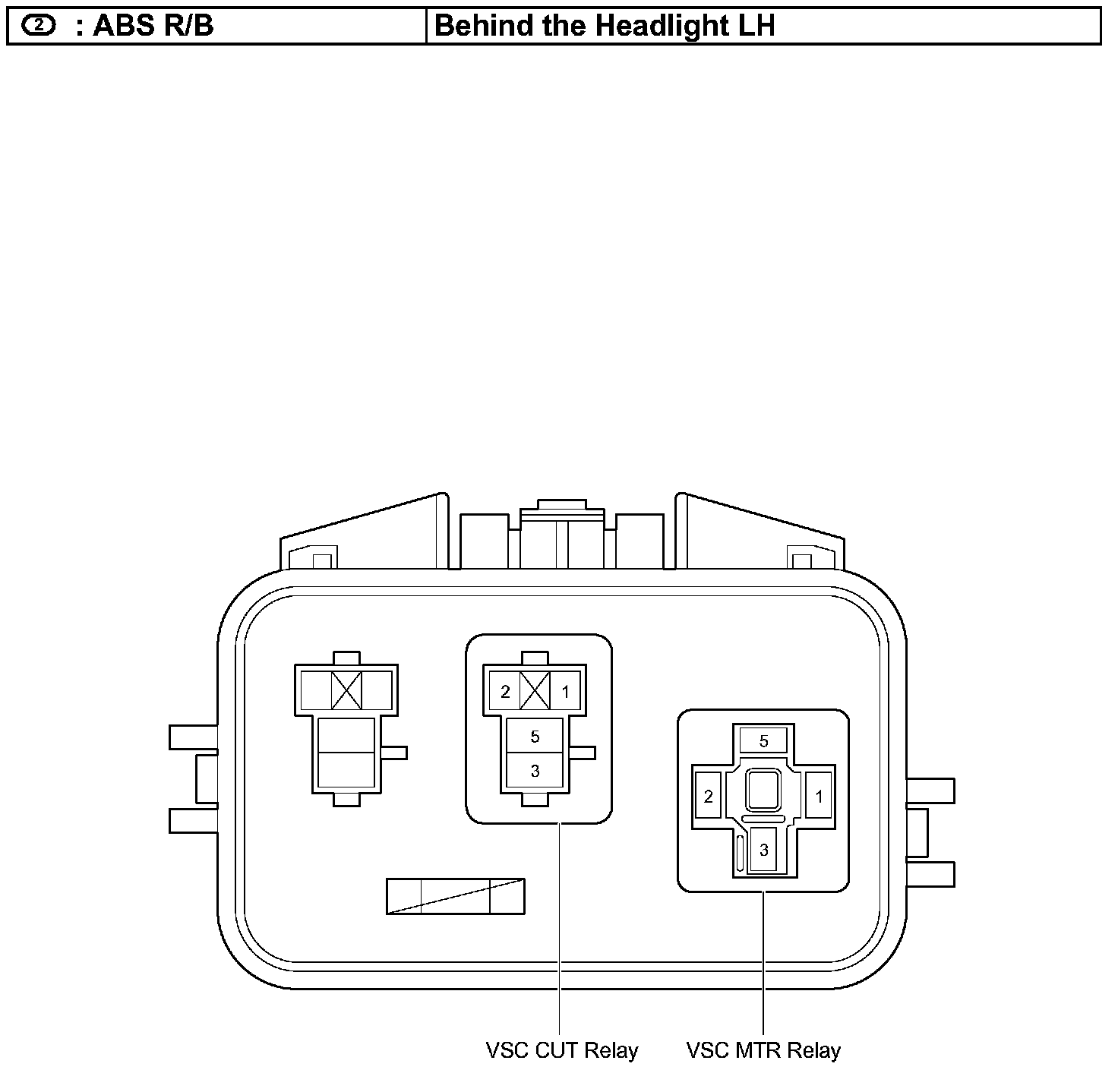

ABS R/B:
Engine Room R/B:

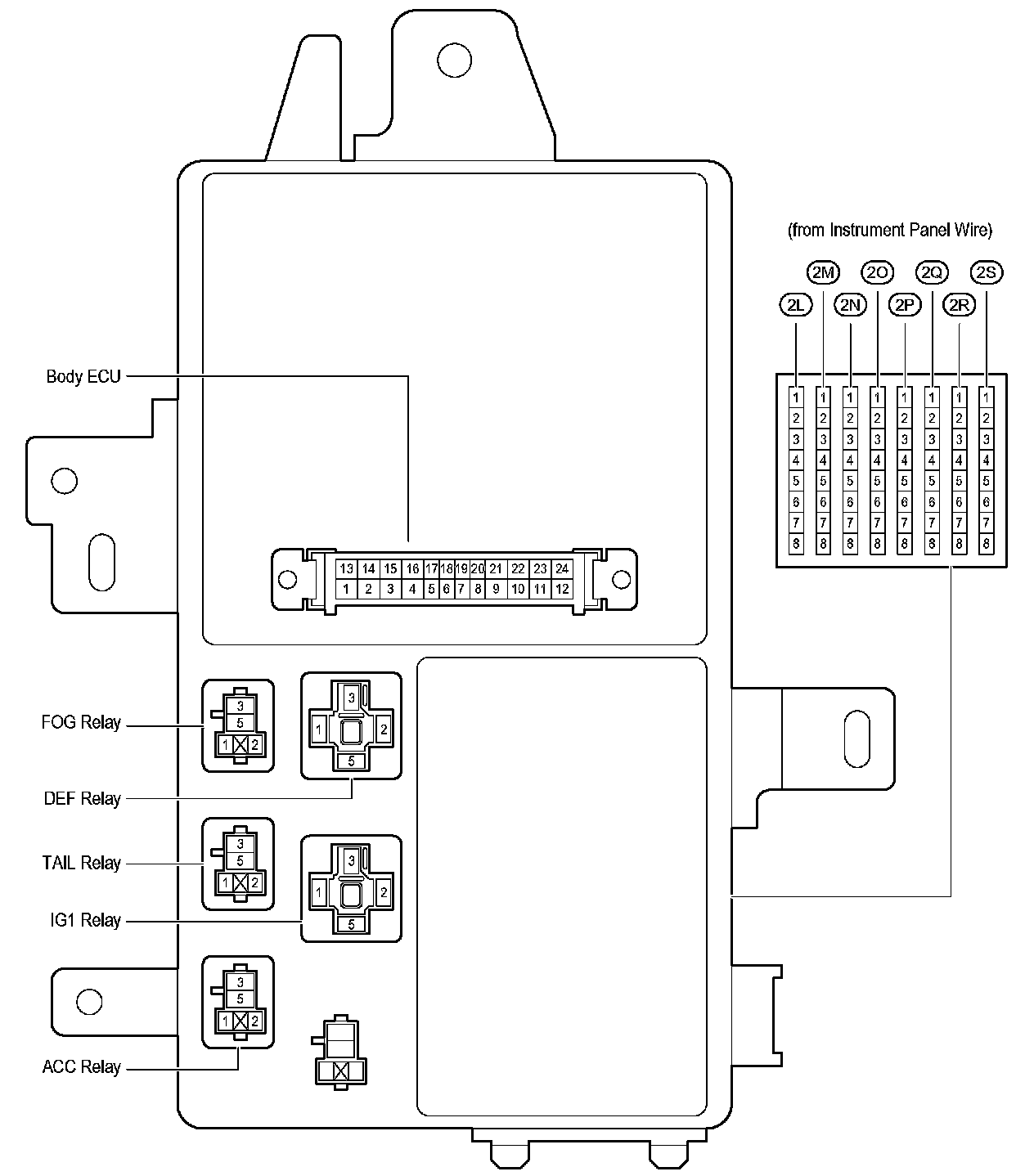

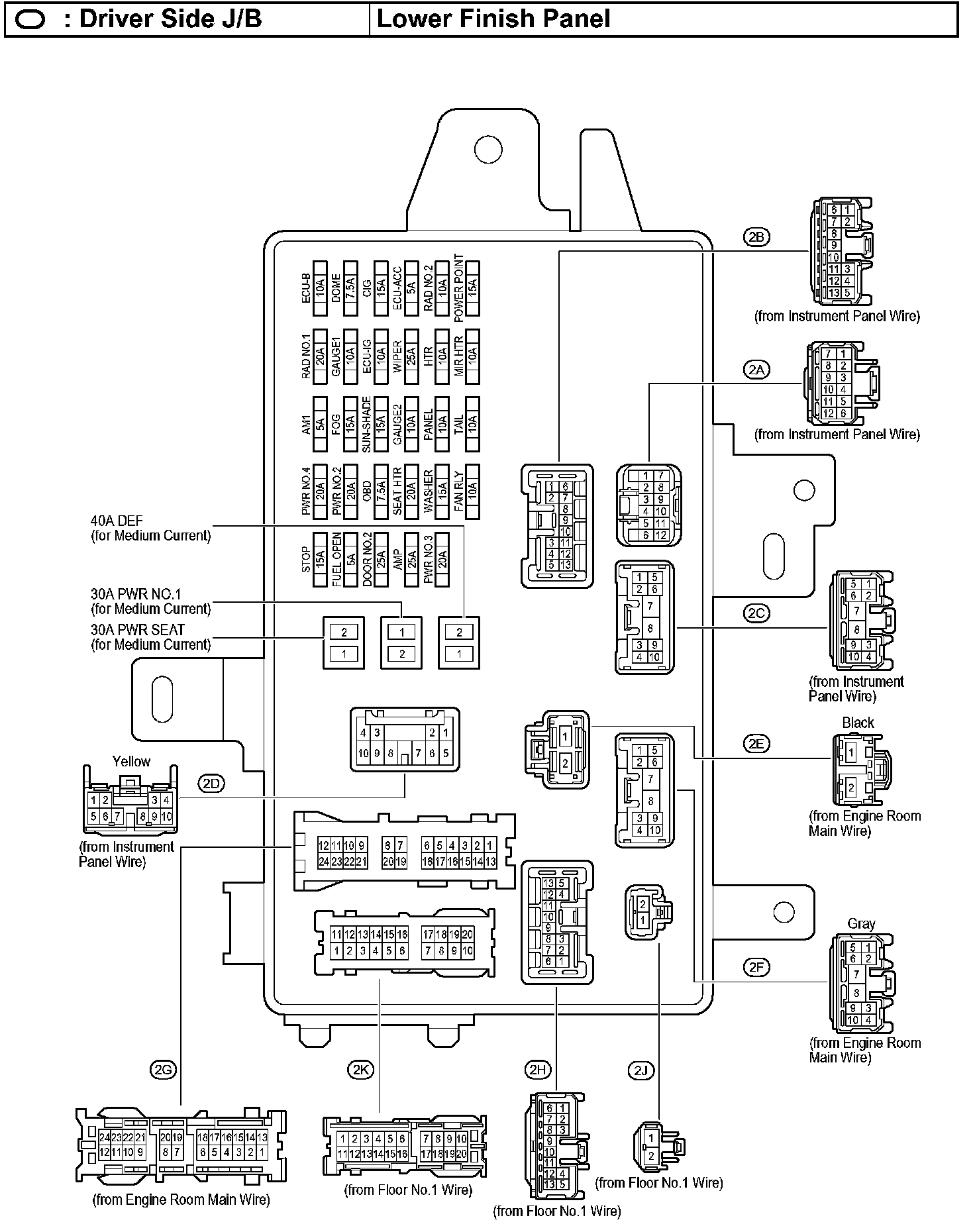

Driver Side J/B:
Driver Side J/B:
Fuse Details

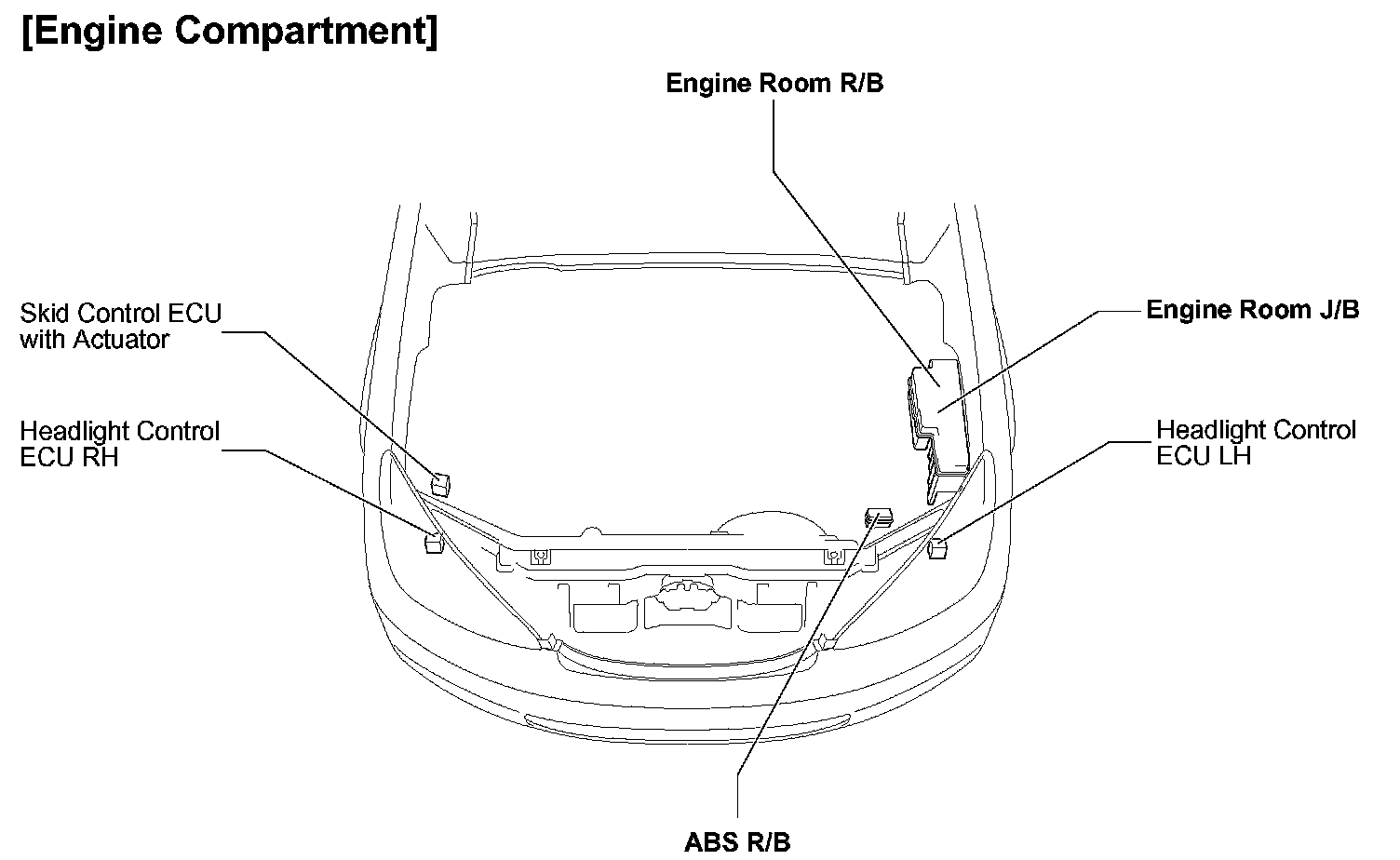

Engine Compartment:

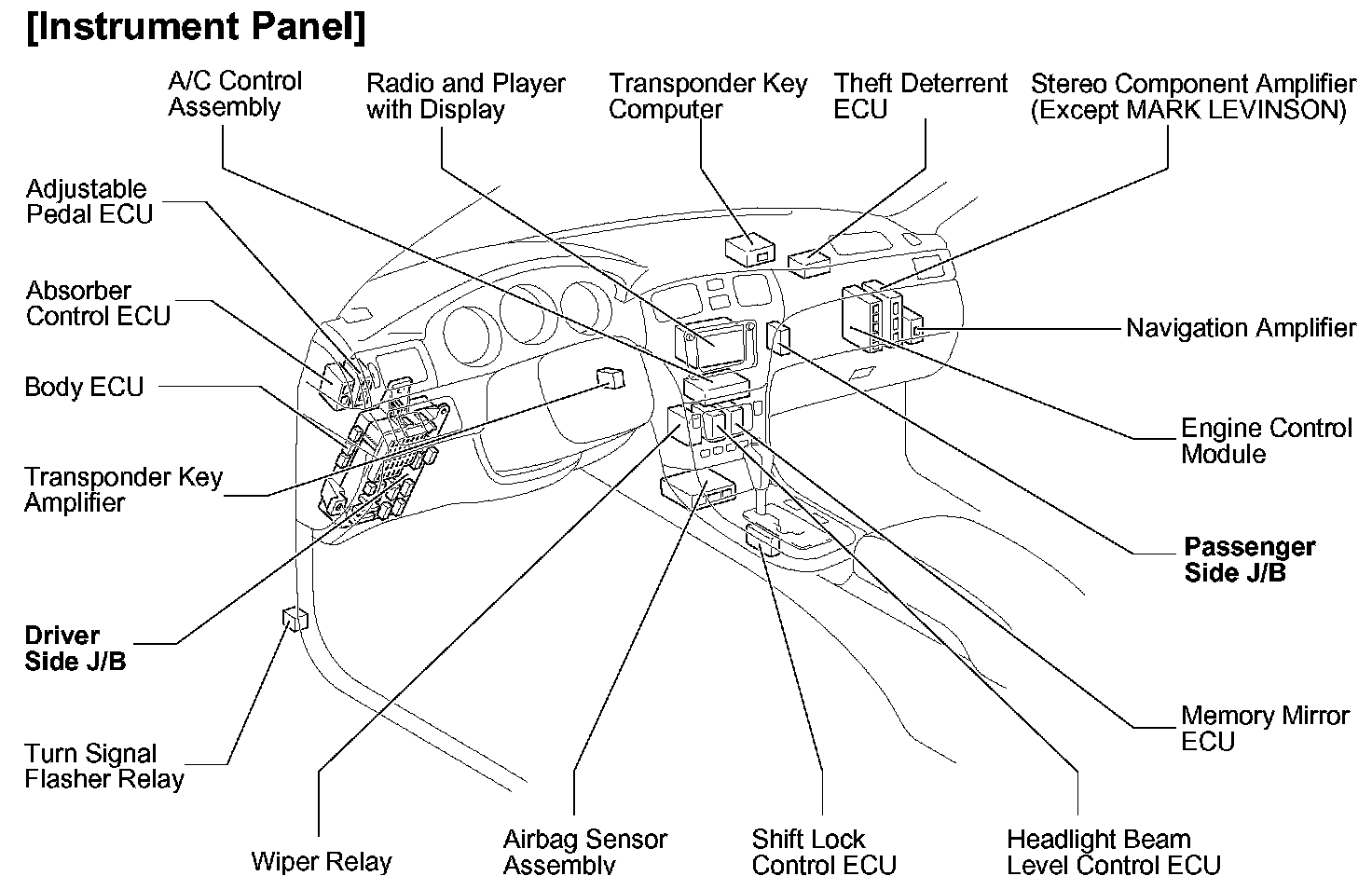

Instrument Panel:

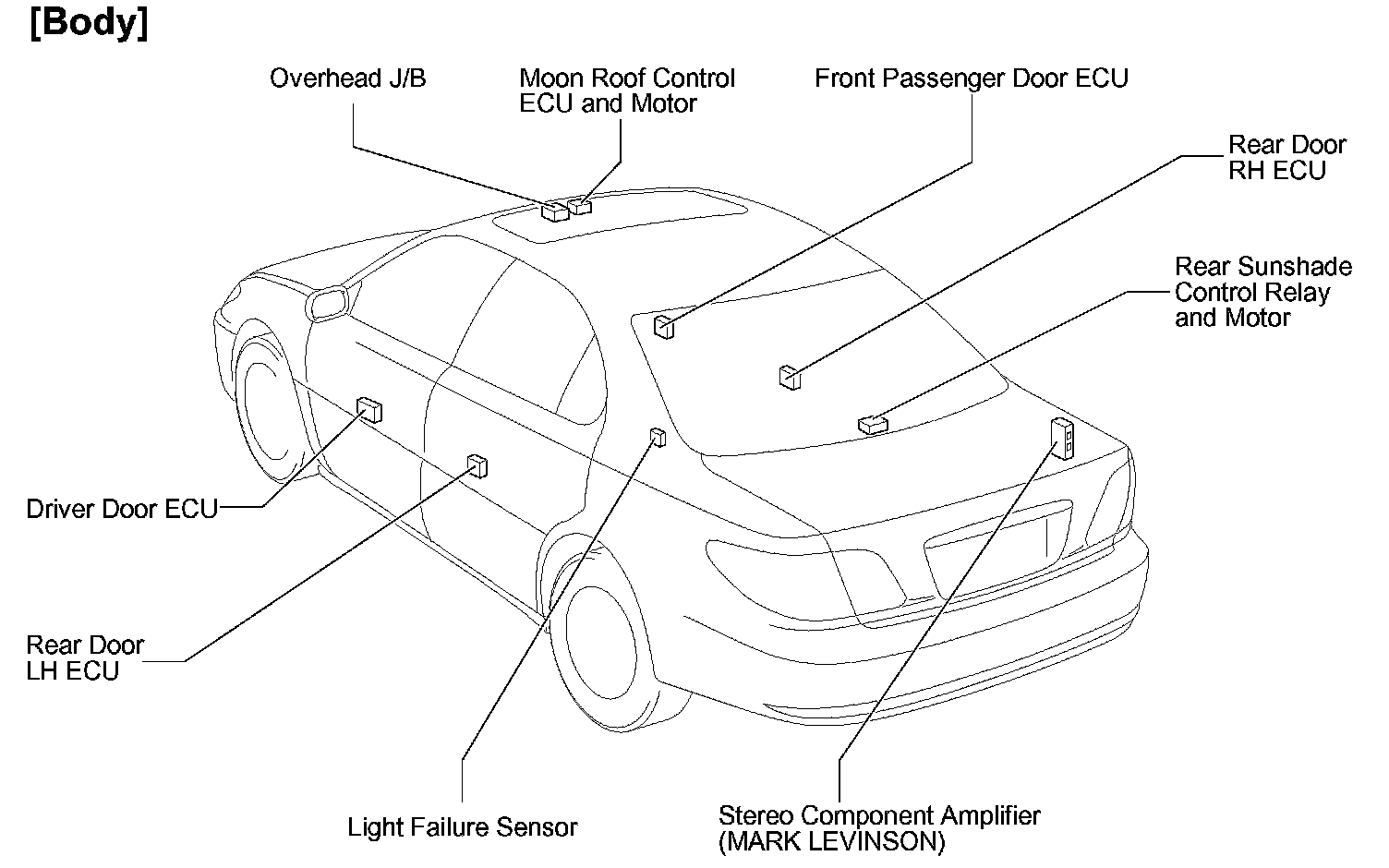

Body:
