Check Mode Procedure

CHECK MODE PROCEDURE

CHECK MODE (SIGNAL CHECK) (USING HAND-HELD TESTER)

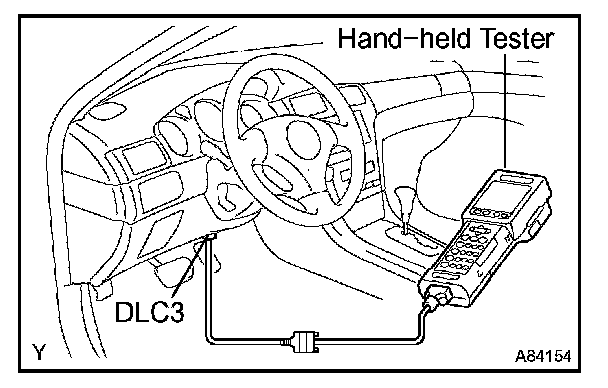

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.
c. Select the "SIGNAL CHECK", and proceed checking with the hand-held tester.
