Pinout Values and Diagnostic Parameters

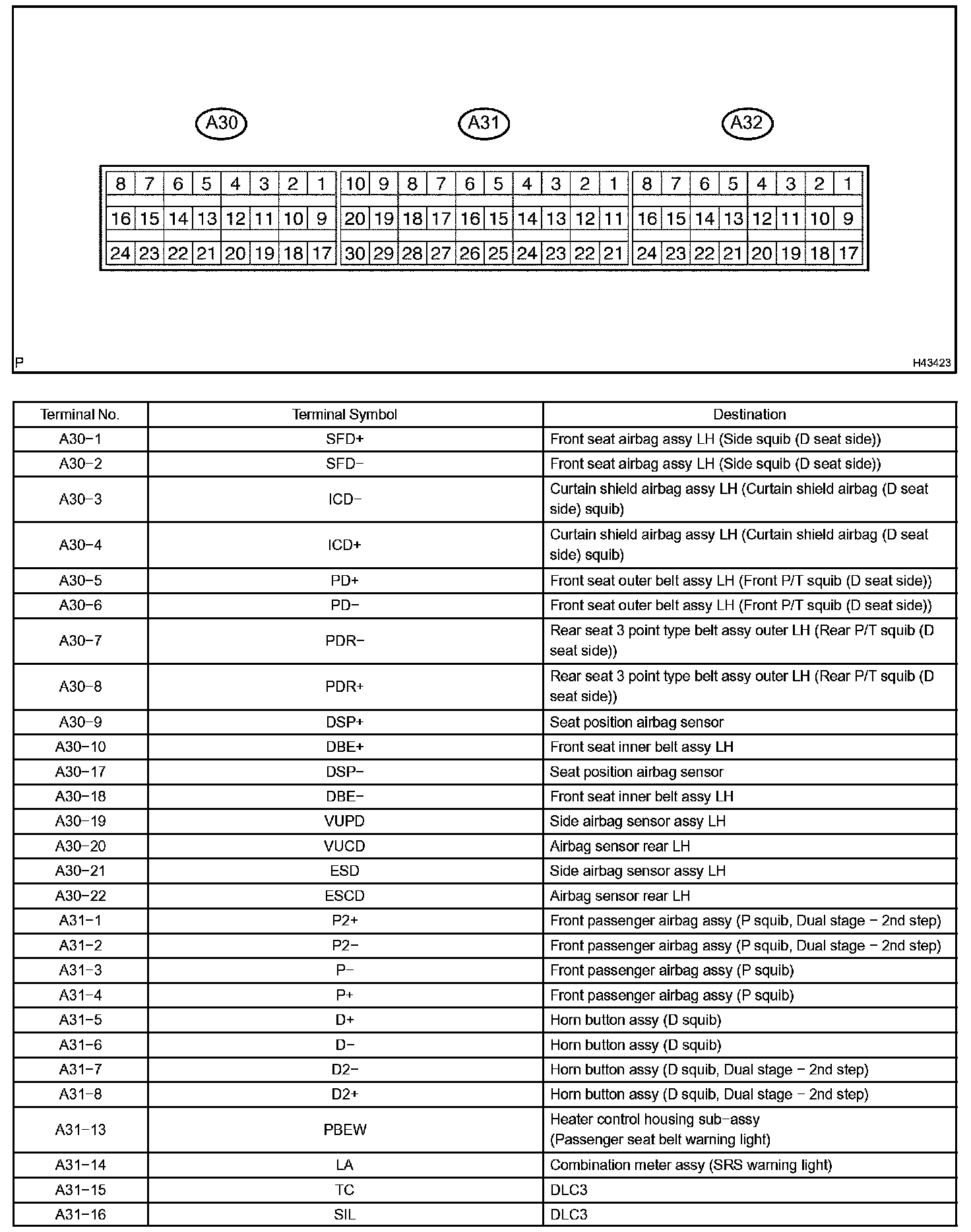

Terminals Of Control Module/Pinouts-Airbag Sensor Assy Center (Part 1):

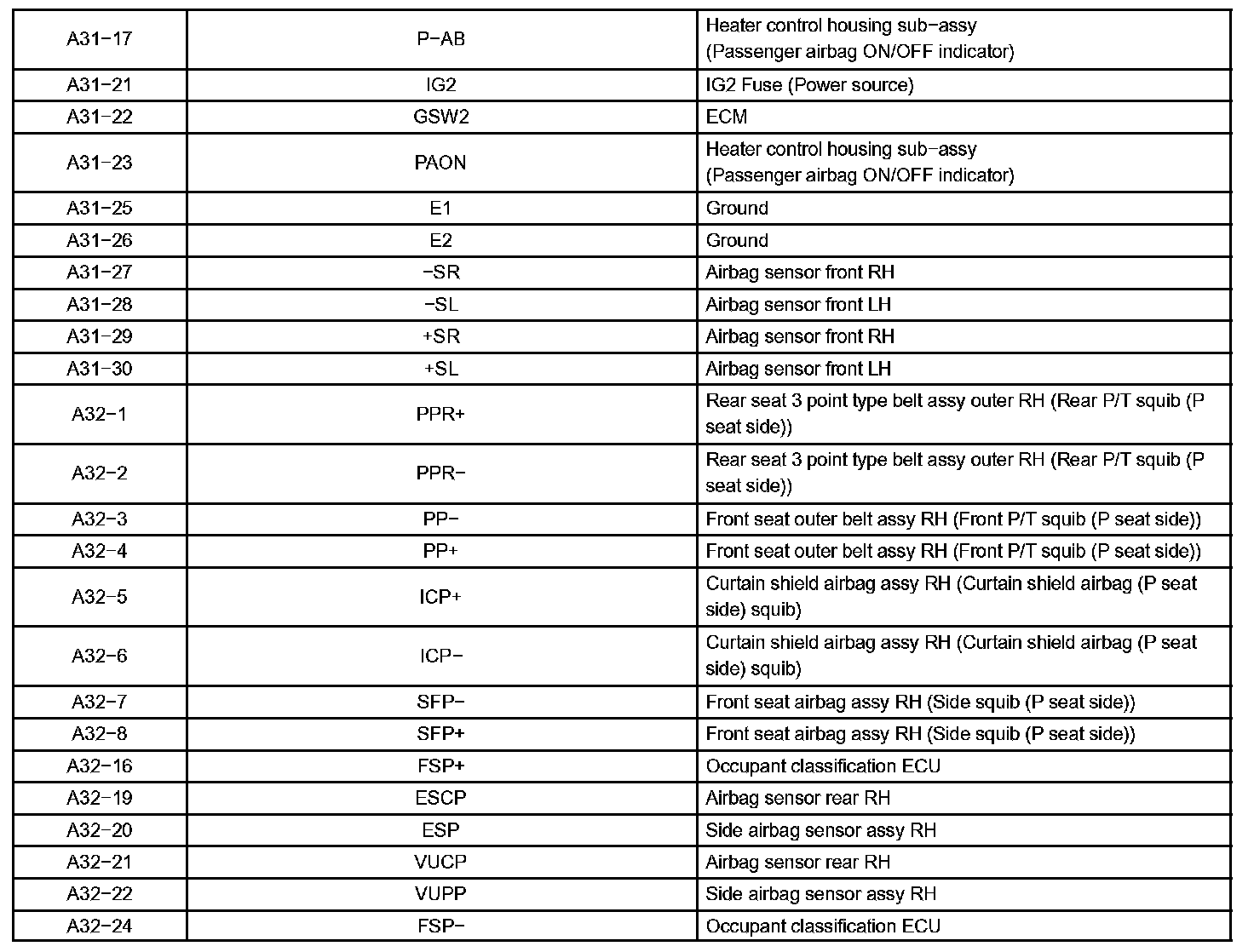

Terminals Of Control Module/Pinouts-Airbag Sensor Assy Center (Part 2):

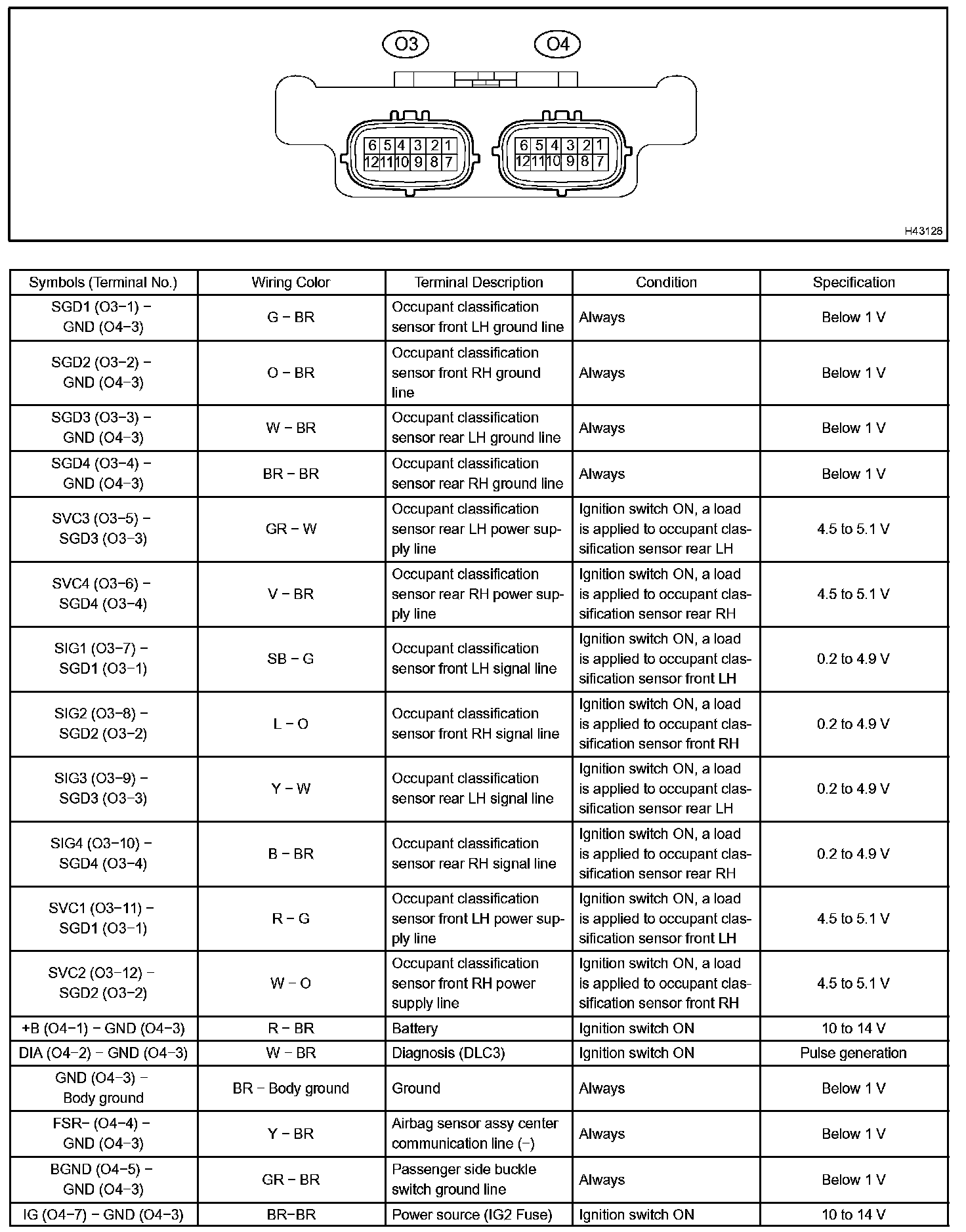

Terminals Of Control Module/Pinouts-Occupant Classification ECU (Part 1):

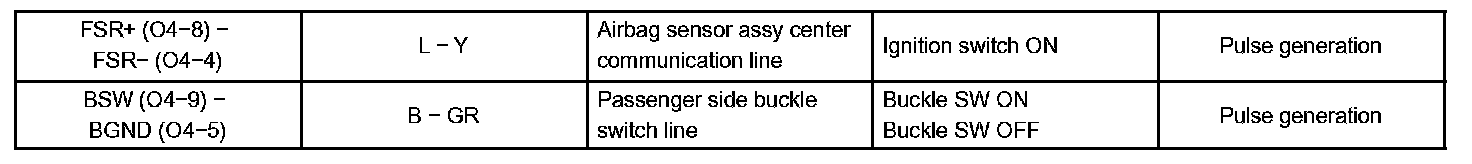

Terminals Of Control Module/Pinouts-Occupant Classification ECU (Part 2):
