Fuel Pump Relay: Testing and Inspection

INSPECT CIRCUIT OPENING RELAY

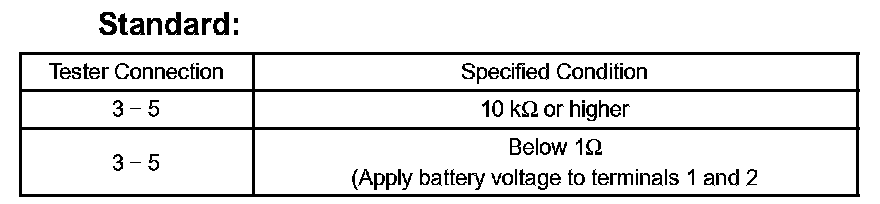

a. Inspect the resistance.

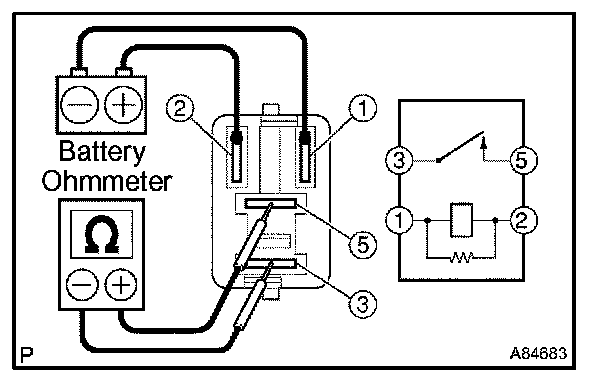

1. Using an ohmmeter, measure the resistance between the terminals.

If the result is not as specified, replace the circuit opening relay.
