Accelerator Pedal: Testing and Inspection

INSPECT ACCELERATOR PEDAL ASSY (NORMAL PEDAL)

a. Inspect the resistance.

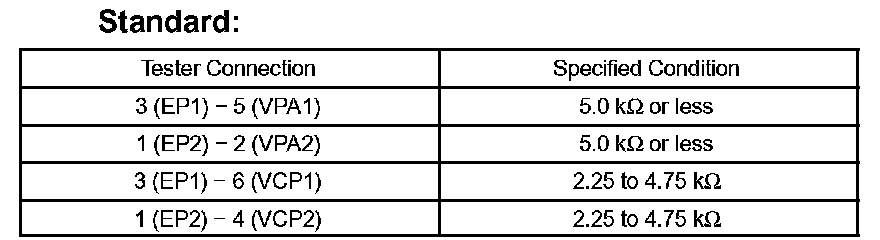

1. Using an ohmmeter, measure the resistance between the terminals.

If the resistance is not specified, replace the accelerator pedal.

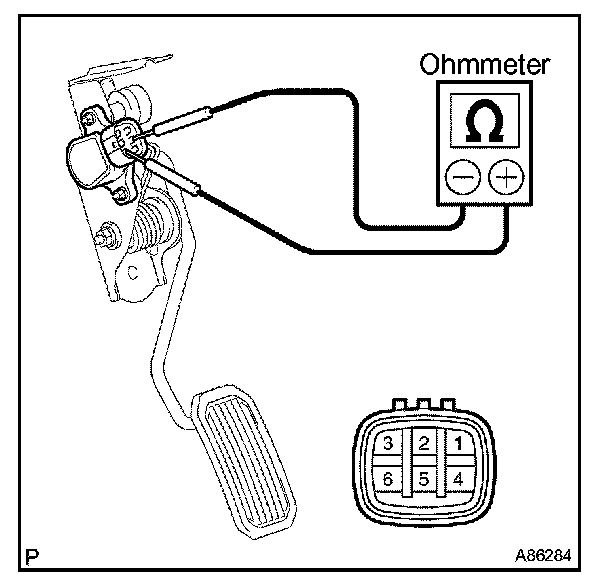

INSPECT ACCELERATOR & BRAKE PEDAL ASSY (POWER PEDAL)

a. Inspect the resistance.

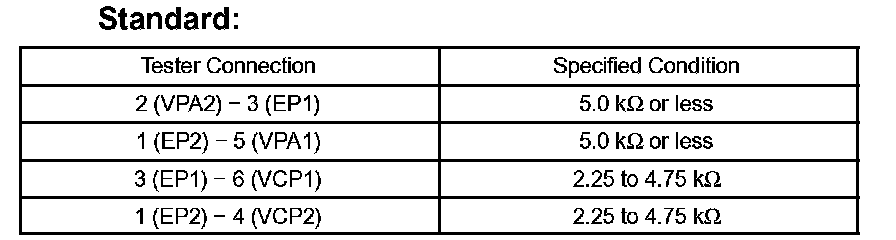

1. Using an ohmmeter, measure the resistance between the terminals.

If the resistance is not specified, replace the accelerator & brake pedal.
