Accelerator Pedal: Service and Repair

REPLACEMENT

1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)

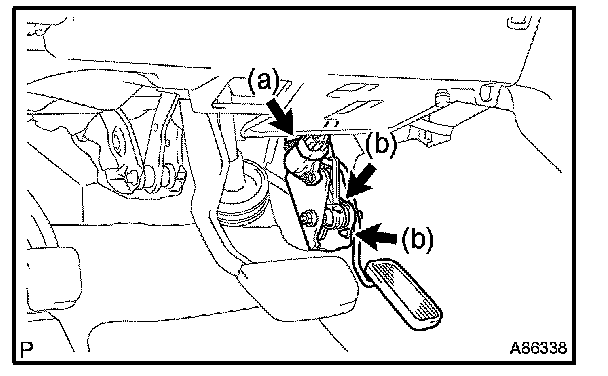

2. REMOVE ACCELERATOR PEDAL ASSY




a. Disconnect the accelerator position sensor connector.
b. Remove the 2 bolts, then remove the accelerator pedal rod.

3. INSTALL ACCELERATOR PEDAL ASSY

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

4. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

5. SYSTEM INITIALIZATION
