Evaporative Emission Control Canister: Service and Repair
CHARCOAL CANISTER ASSY (3MZ-FE)REPLACEMENT
1. DISCHARGE FUEL SYSTEM PRESSURE
2. DISCONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
3. REMOVE REAR SEAT CUSHION ASSY
4. REMOVE REAR FLOOR SERVICE HOLE COVER
5. REMOVE FUEL SUCTION WI PUMP & GAUGE TUBE ASSY
6. DRAIN FUEL
7. REMOVE FLOOR PANEL BRACE REAR
8. REMOVE EXHAUST PIPE ASSY CENTER
9. DISCONNECT PARKING BRAKE CABLE ASSY NO.2
10. DISCONNECT PARKING BRAKE CABLE ASSY NO.3
11. REMOVE FUEL TANK PROTECTOR LOWER CENTER
12. REMOVE FUEL TANK ASSY
13. REMOVE CHARCOAL CANISTER ASSY

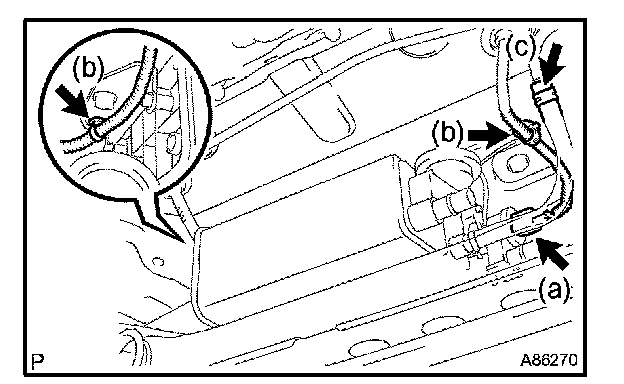

(a) Disconnect the VSV connector.
(b) Remove the 2 wire harness clamps.
(c) Disconnect the fuel hose No.1.

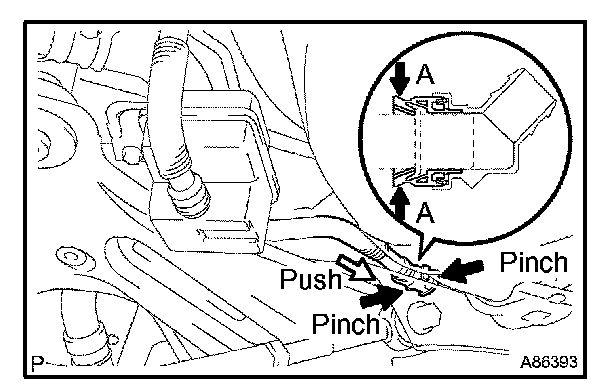

(d) Disconnect the fuel tank vent hose.
(1) Deeply push the quick connector to release the lock pin.
(2) Pinch portion A.
(3) Pull out the fuel tank vent hose.

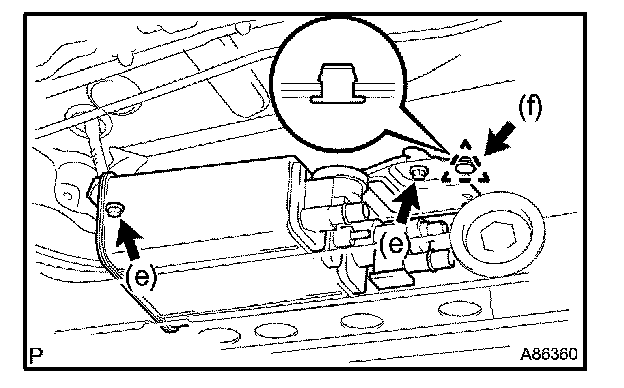

(e) Remove the 2 bolts.
(f) Unfasten the claw, then remove the charcoal canister.
14. REMOVE FUEL EMISSION TUBE FUEL HOSE
(a) Remove the fuel emission tube fuel hose.
15. INSTALL FUEL EMISSION TUBE FUEL HOSE
16. INSTALL CHARCOAL CANISTER ASSY
(a) Install the charcoal canister with the 2 bolts.
Torque: 40 N-m (400 kgf-cm, 29 ft-lbf)

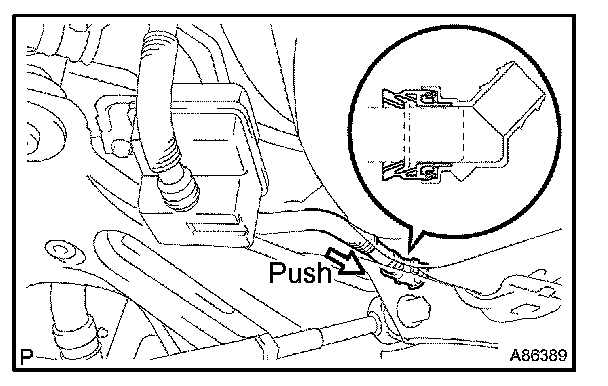

(b) Connect the fuel tank vent hose.
(1) Push in the quick connector to the pipe until the quick connector makes a "click" sound.
NOTICE:
- Check the connected part for damage or foreign objects.
- After connecting, check if the quick connector and pipe are securely connected by pulling on them.
(c) Connect the fuel hose No.1.
(d) Install the 3 wire harness clamps.
(e) Connect the VSV connector.
17. INSTALL FUEL TANK ASSY
18. INSTALL FUEL TANK PROTECTOR LOWER CENTER
19. INSTALL PARKING BRAKE CABLE ASSY NO.3
20. INSTALL PARKING BRAKE CABLE ASSY NO.2
21. INSTALL EXHAUST PIPE ASSY CENTER
22. INSTALL FUEL SUCTION WI PUMP & GAUGE TUBE ASSY
23. CONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
Torque: 5.4 N-m (55 kgf-cm, 48 in.-lbf)
24. ADD FUEL
25. CHECK FOR FUEL LEAKS
26. CHECK FOR EXHAUST GAS LEAKS
27. INSTALL REAR FLOOR SERVICE HOLE COVER
28. INSTALL REAR SEAT CUSHION ASSY
29. INSTALL FLOOR PANEL BRACE REAR
30. SYSTEM INITIALIZATION
