Engine Control Part 6

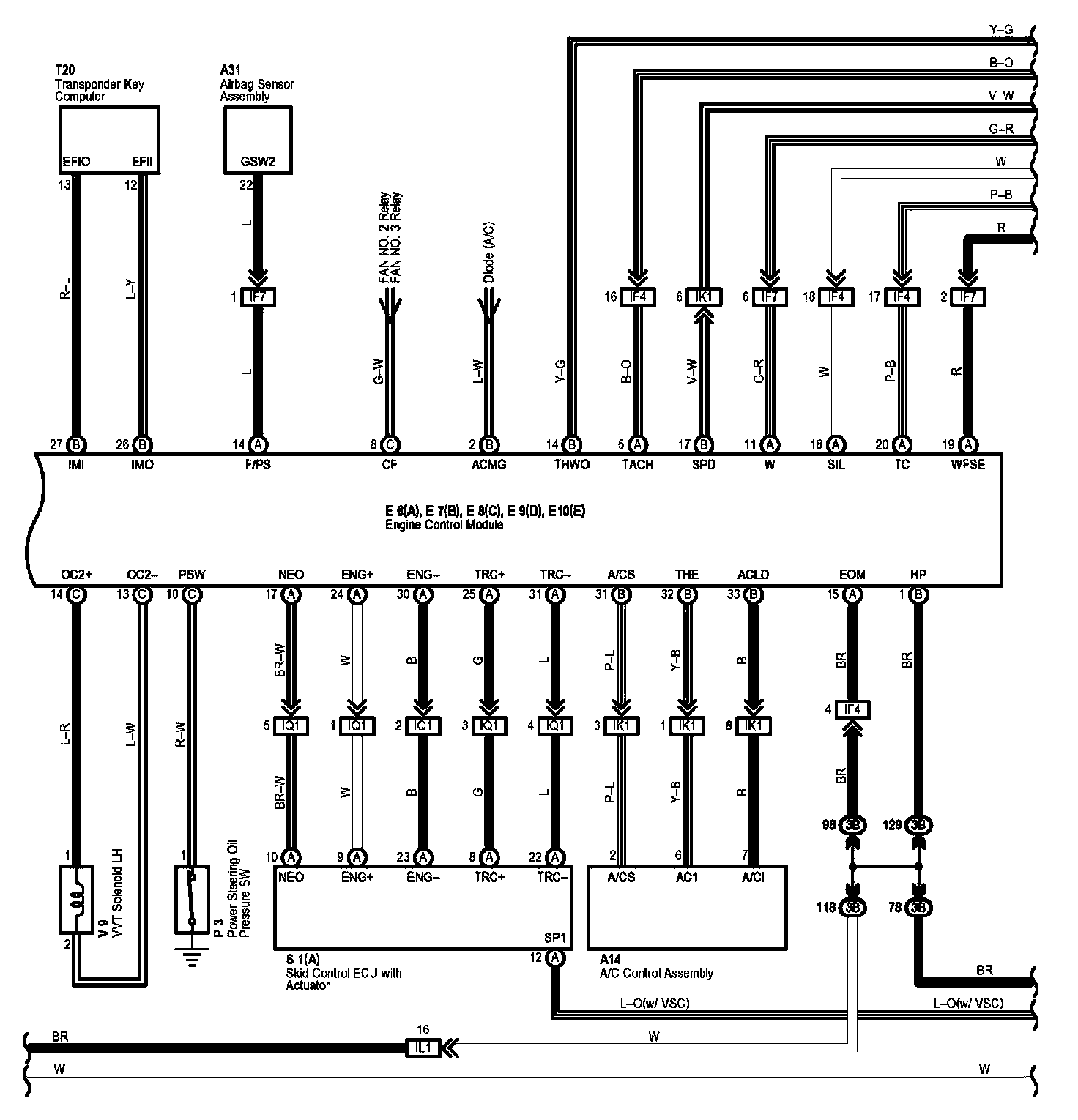

Engine Control Part 6:

Diagram Legend:

Next Diagram Engine Control Part 7

Previous Diagram Engine Control Part 5

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at vehicle Locations. Locations

Connector Views: The connector views for connector referred to within these diagrams can be found at the vehicle level Connector Views. Connector Views
