ACIS CONTROL CIRCUIT

CIRCUIT DESCRIPTION

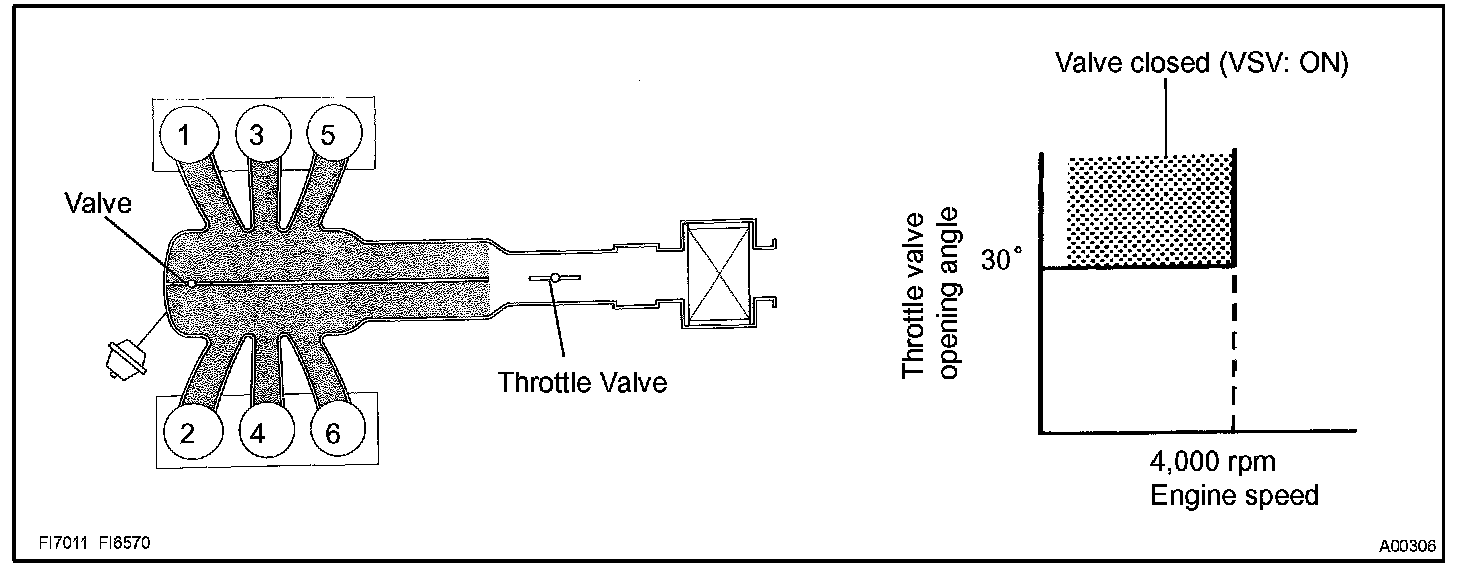

The ECM opens and closes the Intake Air Control valve in response to engine speed (RPM/NE).This system improves intake manifold tuning for better efficiency at low and high engine rpm. When the engine speed is 4,000 rpm or less and the throttle valve opening angle is 30 degree or more, the ECM turns the VSV ON or OFF to operate the intake air control valve.

HINT: ACIS stands for Acoustic Control Induction System.

Wiring Diagram:

INSPECTION PROCEDURE

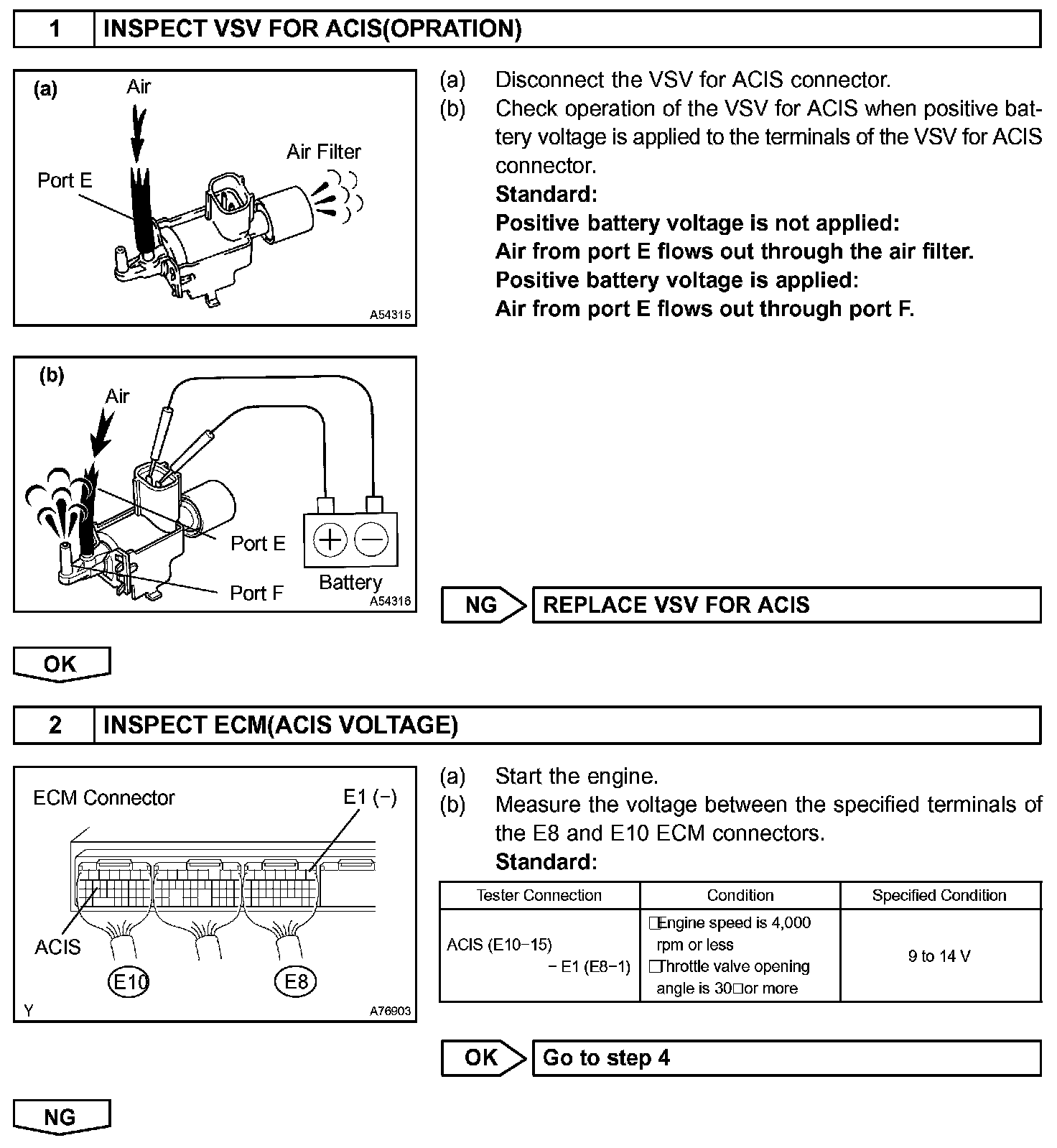

Step 1-2:

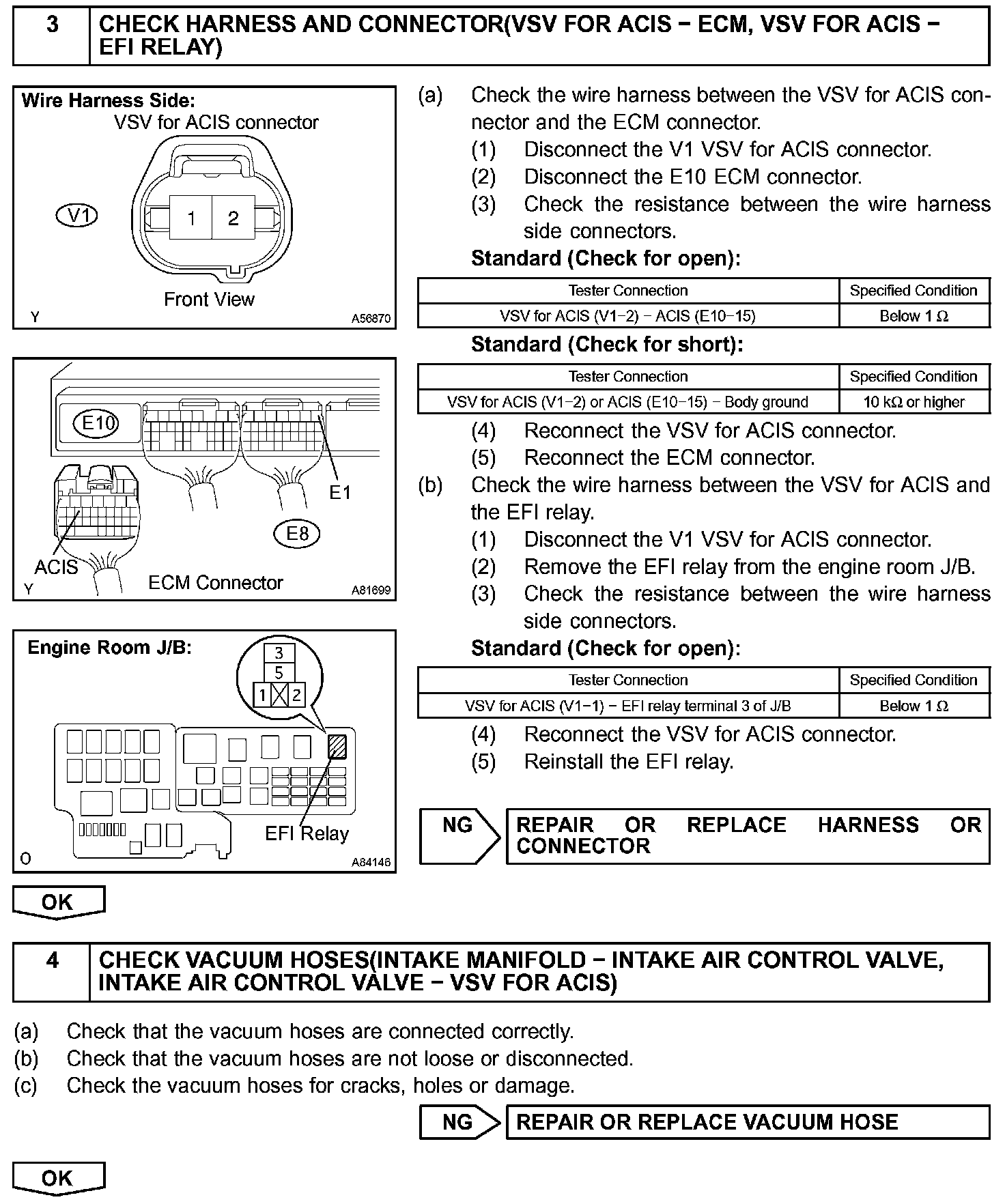

Step 3-4:

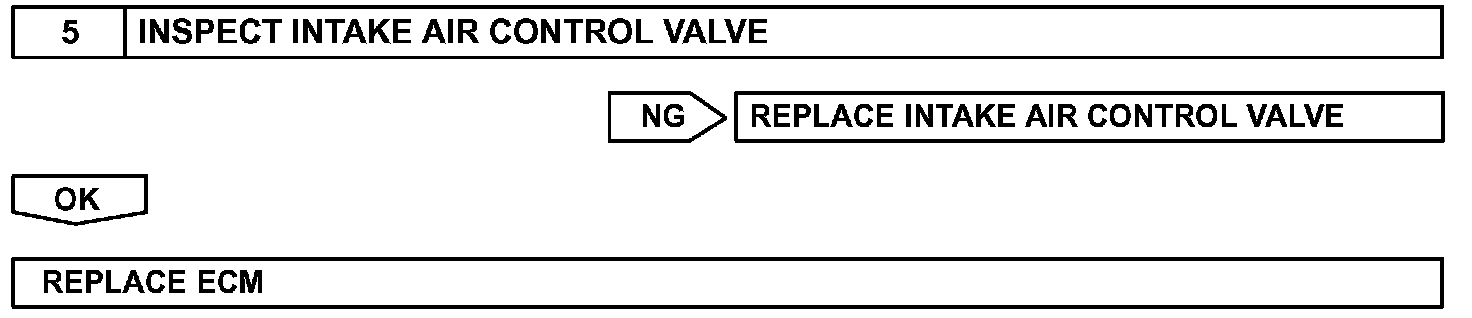

Step 5:

Hand held tester:

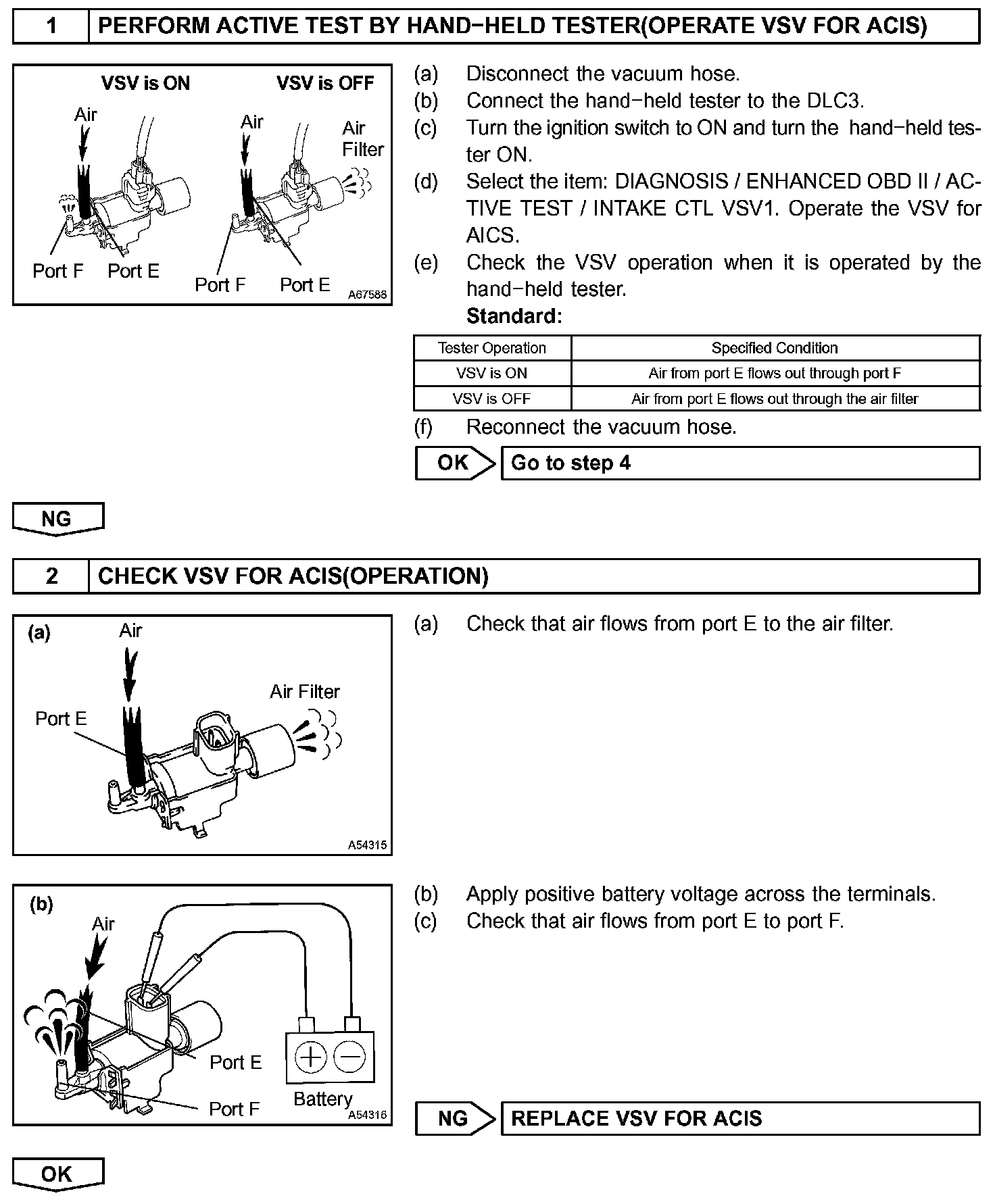

Step 1-2:

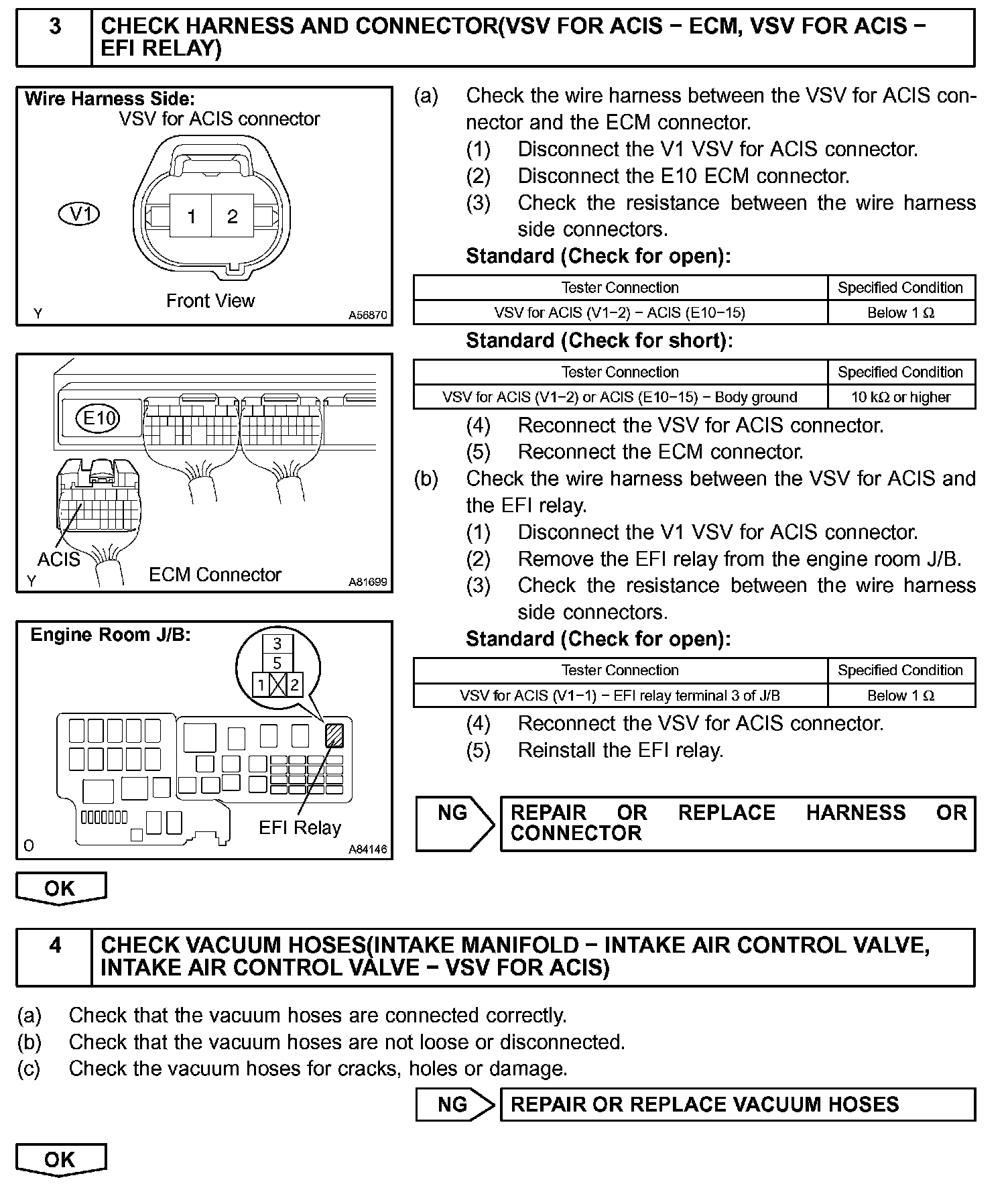

Step 3-4:

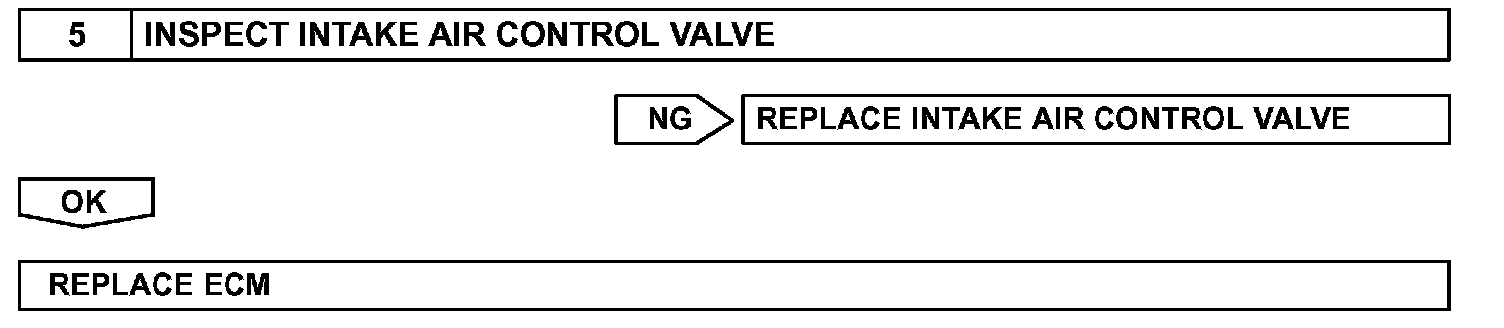

Step 5:

OBD II scan tool (excluding hand held tester):
