Home >> Lexus >> 2006 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

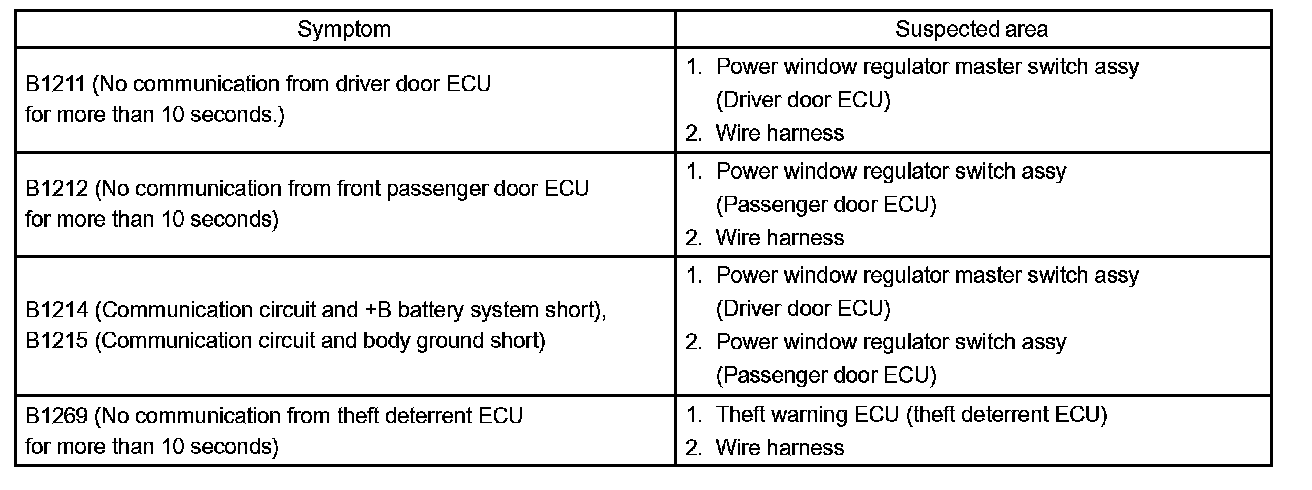

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table:






NOTE: Confirm the problem symptom and make an inspection depending on the applicable flowchart.
