Check CAN Bus Line
CHECK CAN BUS LINECIRCUIT DESCRIPTION
When any DTC for the CAN communication is output, first measure the resistance between the terminals of DLC3 to specify the trouble area.

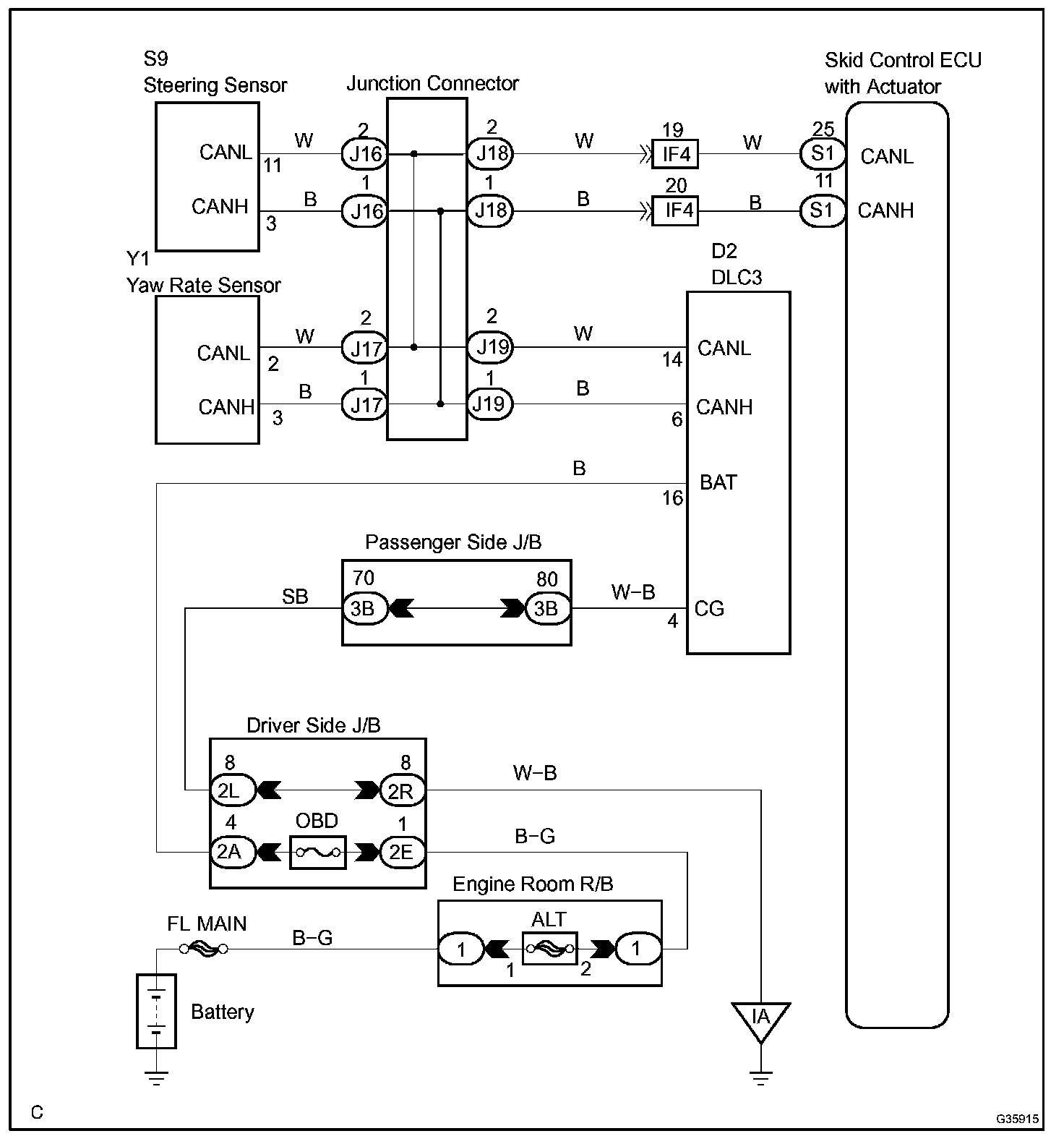

Wiring Diagram:

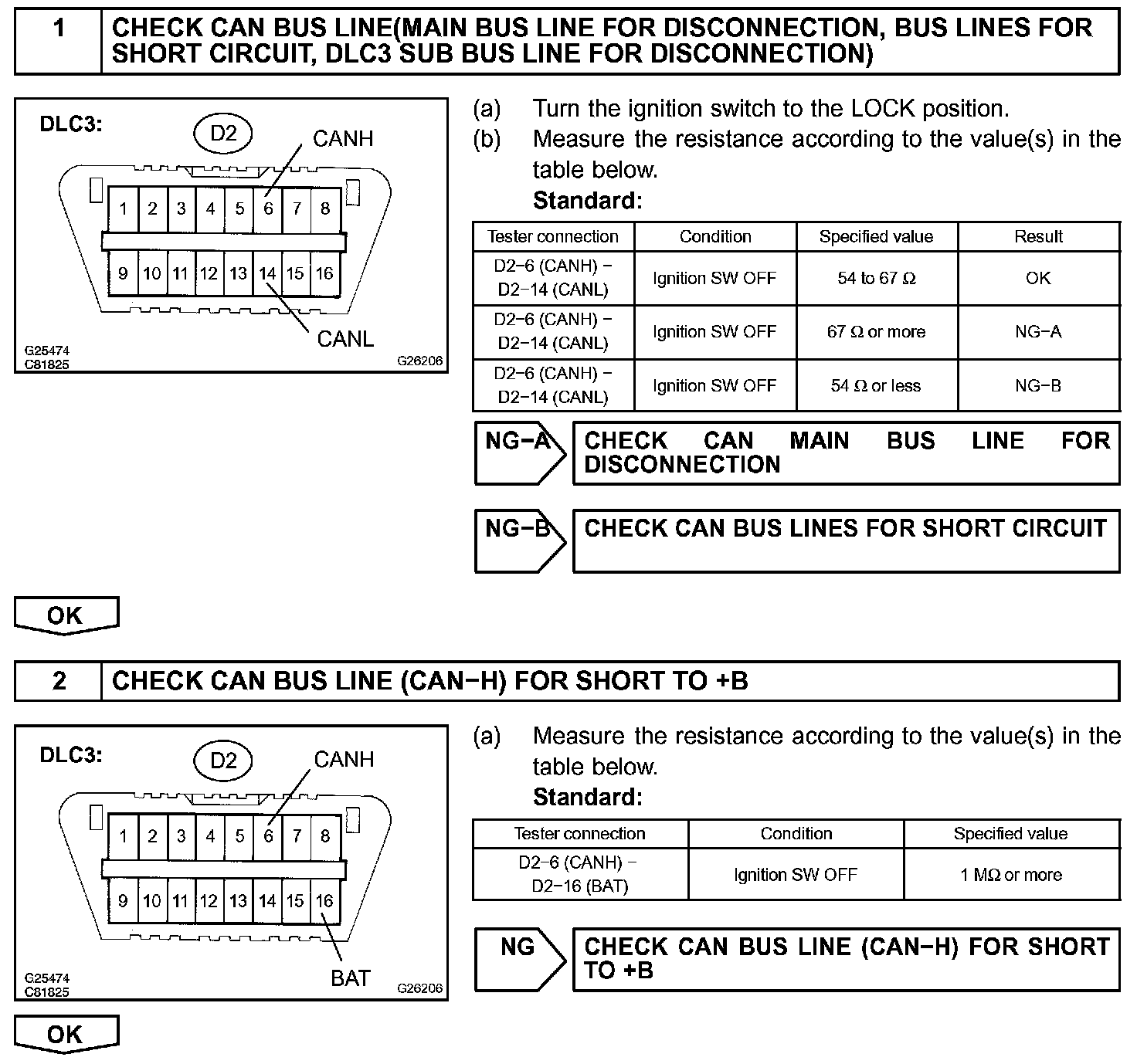

Step 1-2:

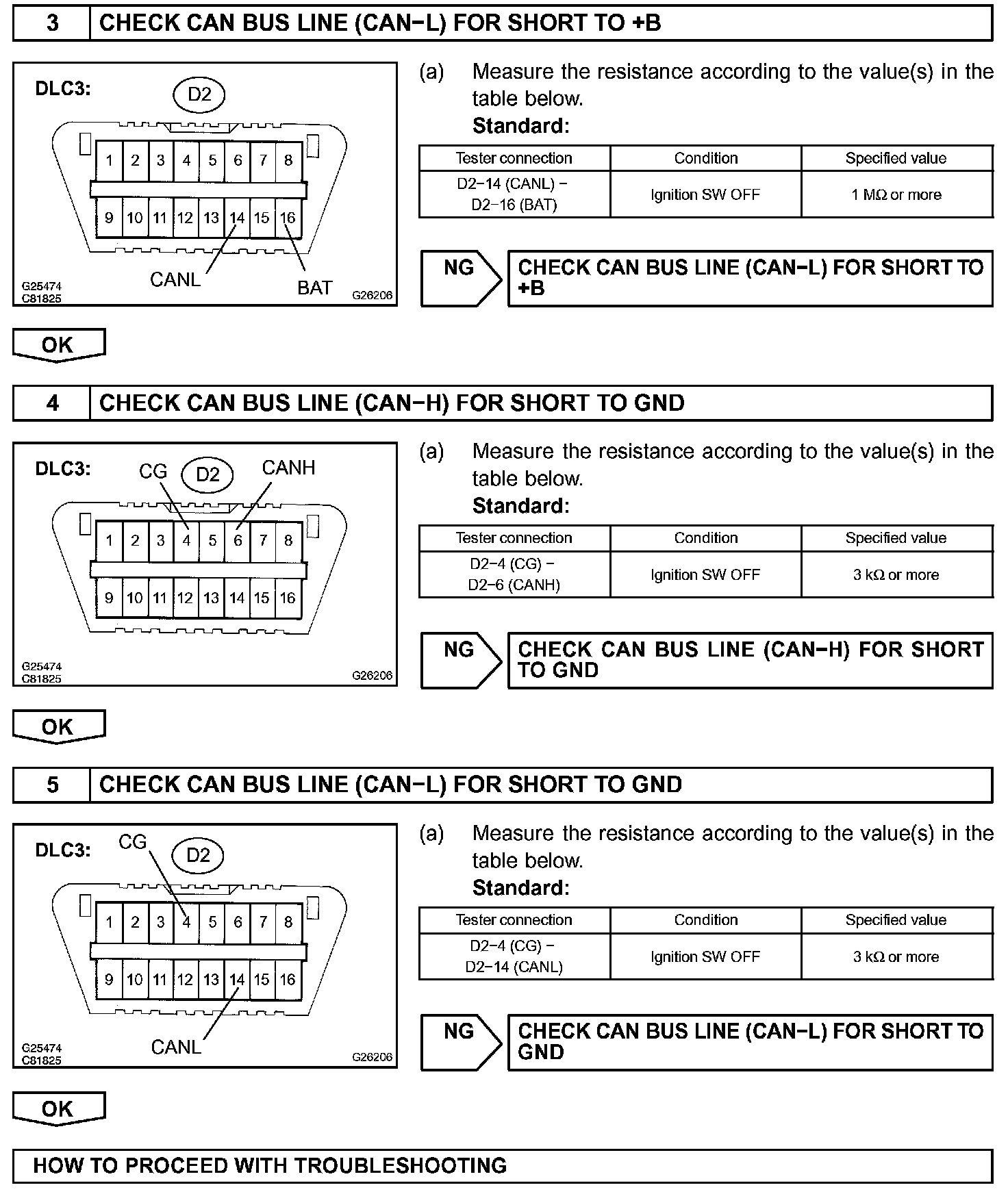

Step 3-5:
INSPECTION PROCEDURE
