Engine Control Module: Service and Repair
REPLACEMENT1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
4. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER

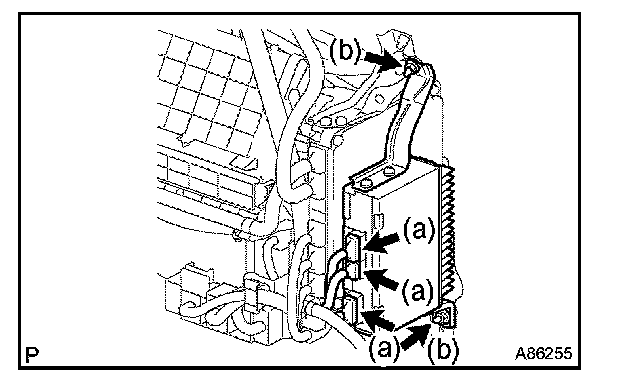

5. REMOVE STEREO COMPONENT AMPLIFIER ASSY
a. Disconnect the 3 stereo component amplifier connectors.
b. Remove the 2 nuts, then remove the stereo component amplifier.

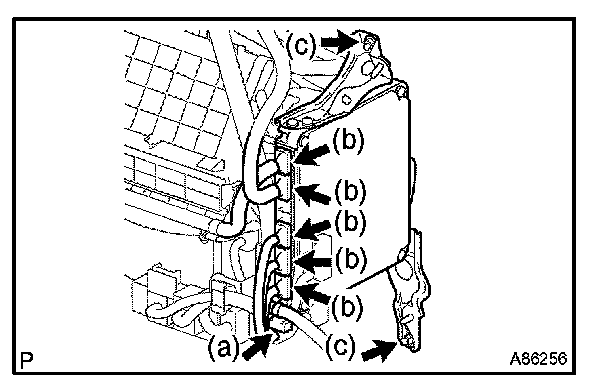

6. REMOVE ECM
a. Remove the wire harness clamp.
b. Disconnect the 5 ECM connectors.
c. Remove the 2 nuts, then remove the ECM.

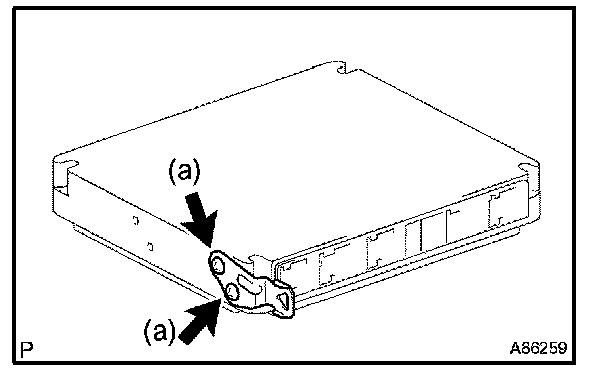

7. REMOVE ECM BRACKET
a. Remove the 2 screws, then remove the ECM bracket.

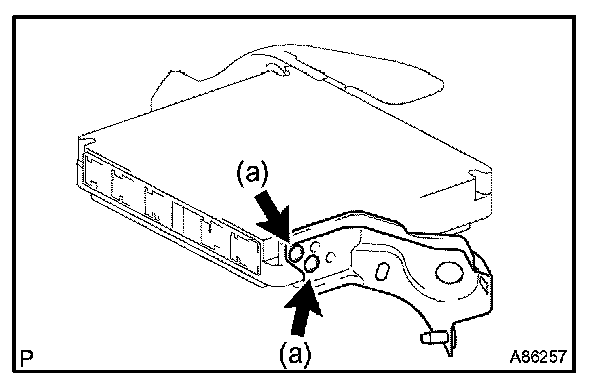

8. REMOVE ECM BRACKET NO.2
a. Remove the 2 screws, then remove the ECM bracket No. 2.
9. REMOVE ECM BRACKET NO.3
a. Remove the 2 screws, then remove the ECM bracket No 3.
10. INSTALL ECM BRACKET NO.3
11. INSTALL ECM BRACKET NO.2
12. INSTALL ECM BRACKET
13. INSTALL ECM
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
14. INSTALL STEREO COMPONENT AMPLIFIER ASSY
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
15. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER
16. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
17. INSTALL FRONT DOOR SCUFF PLATE RH
18. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
19. RESET MEMORY
20. SYSTEM INITIALIZATION
