Home >> Lexus >> 2006 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Maintenance >> Fuses and Circuit Breakers >> Fuse >> Application and ID >> Engine Room J/B

Engine Room J/B

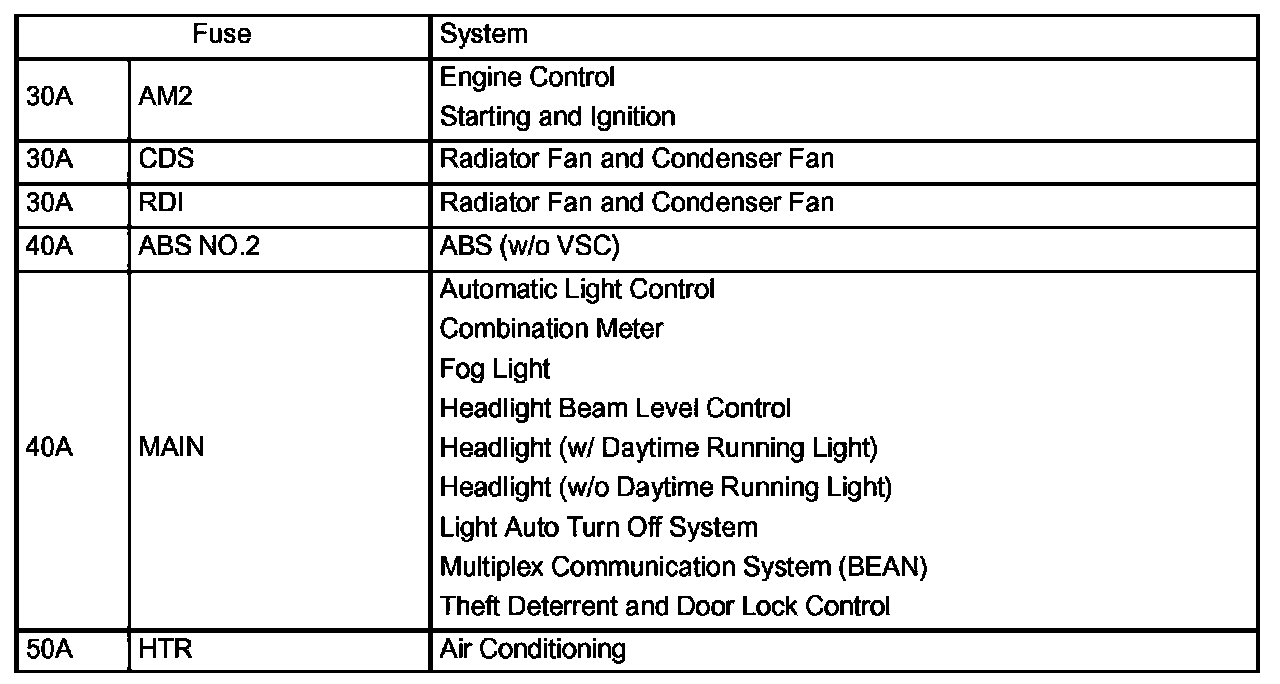

Engine Room J/B Part 1:



Engine Room J/B Part 2:
