Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse
>>
Application and ID
>>

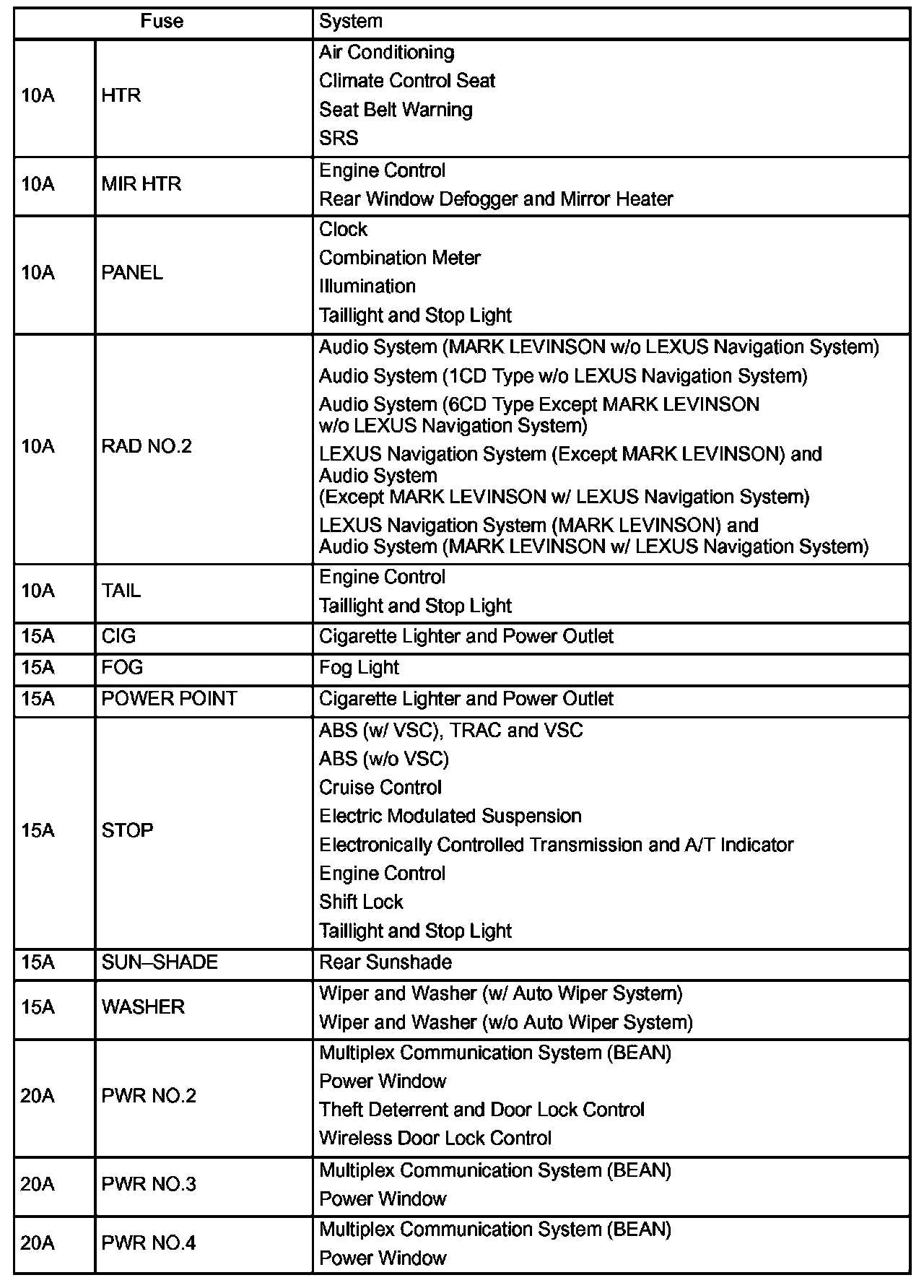

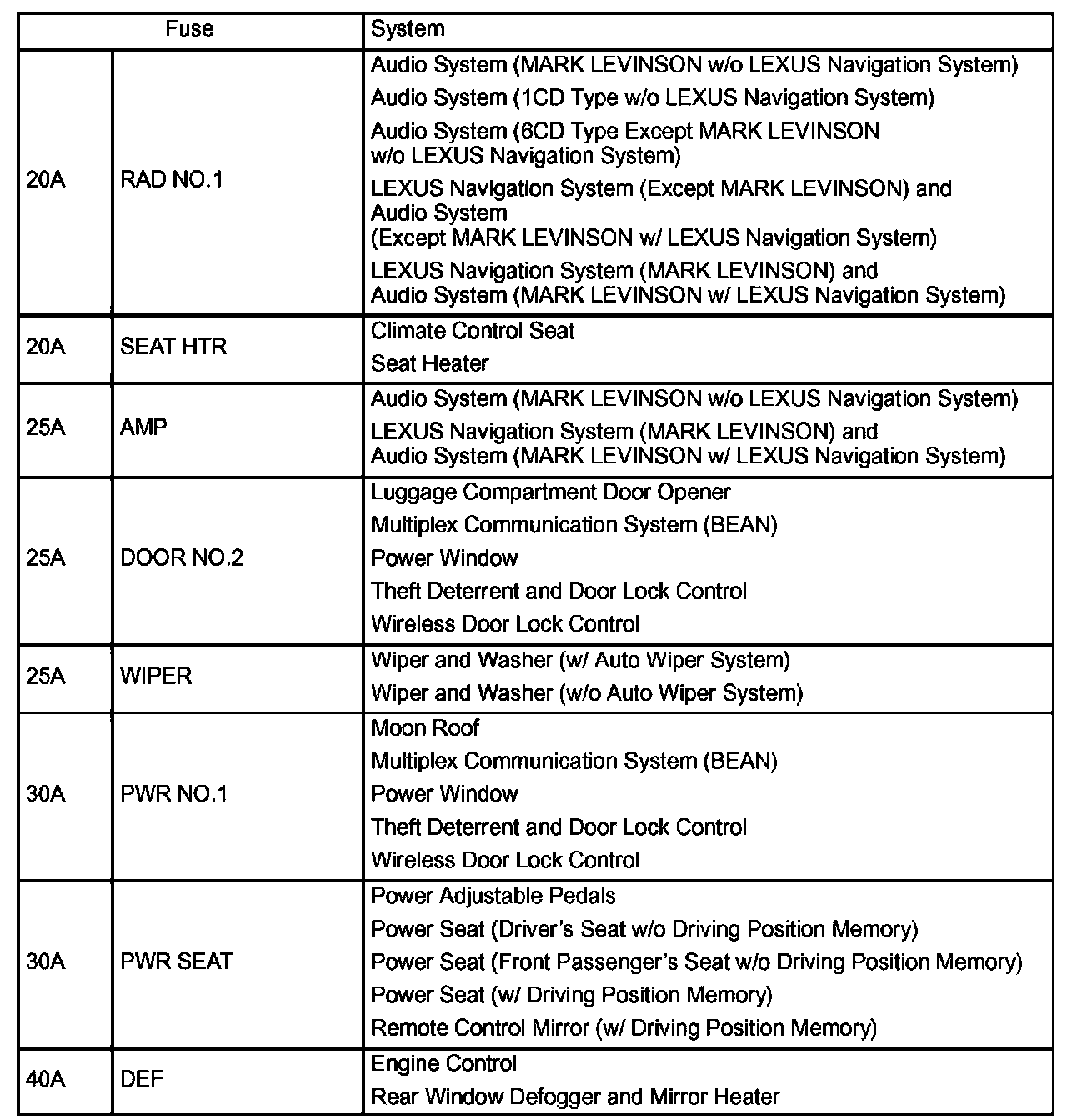

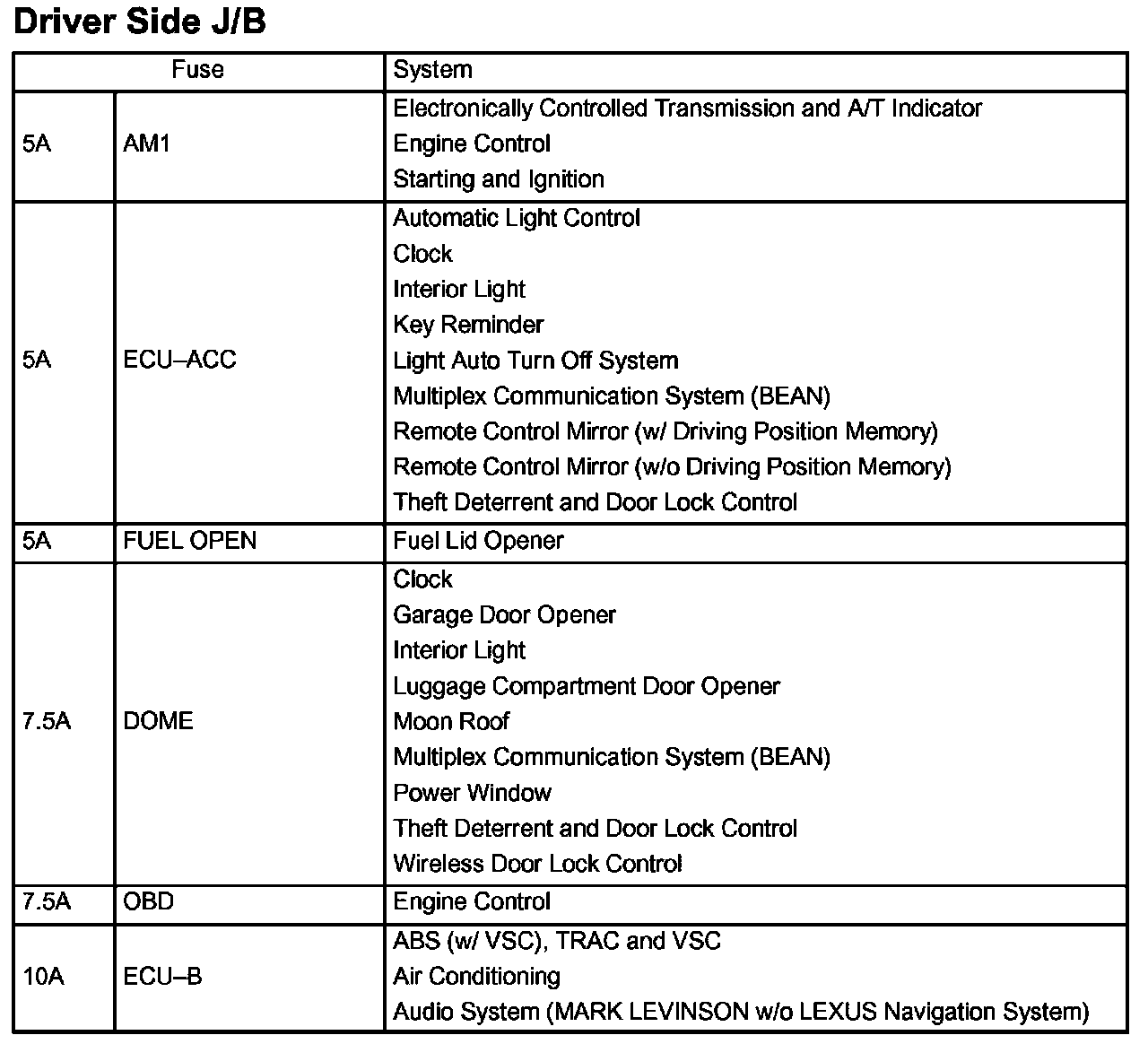

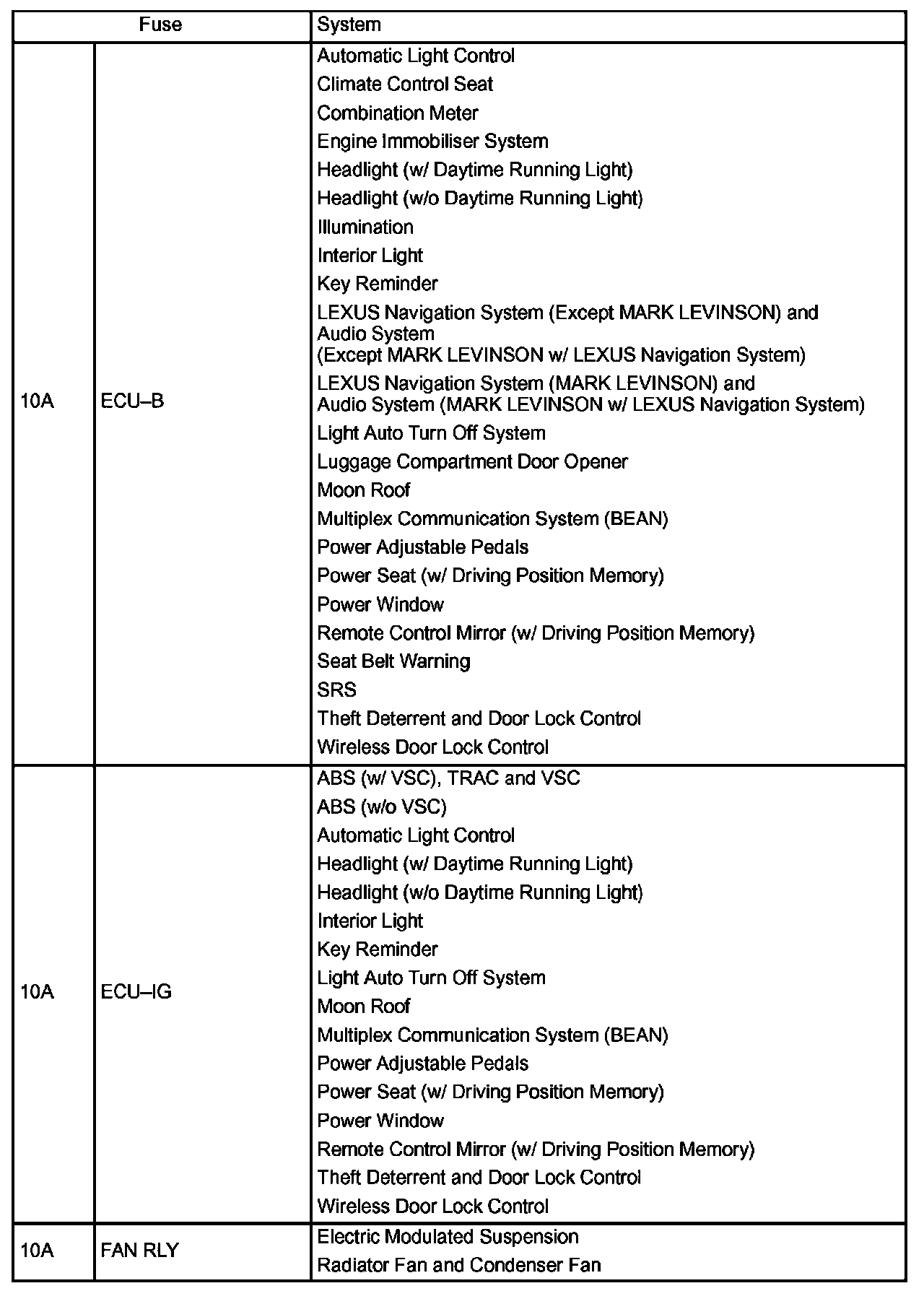

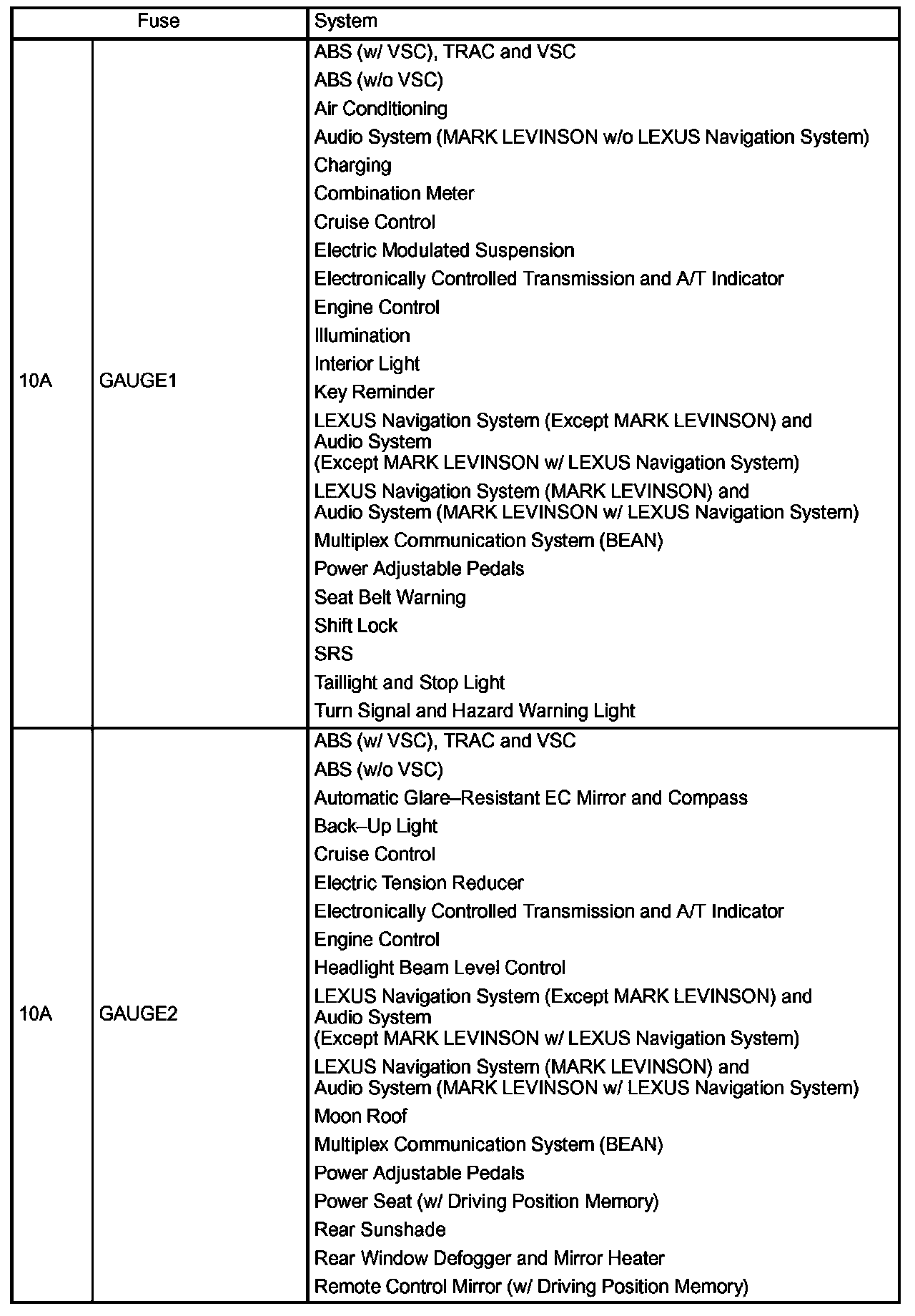

Driver Side J/B
Driver Side J/B
Driver Side J/B Part 1:
Driver Side J/B Part 2:
Driver Side J/B Part 3:
Driver Side J/B Part 4:
Driver Side J/B Part 5:
