Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

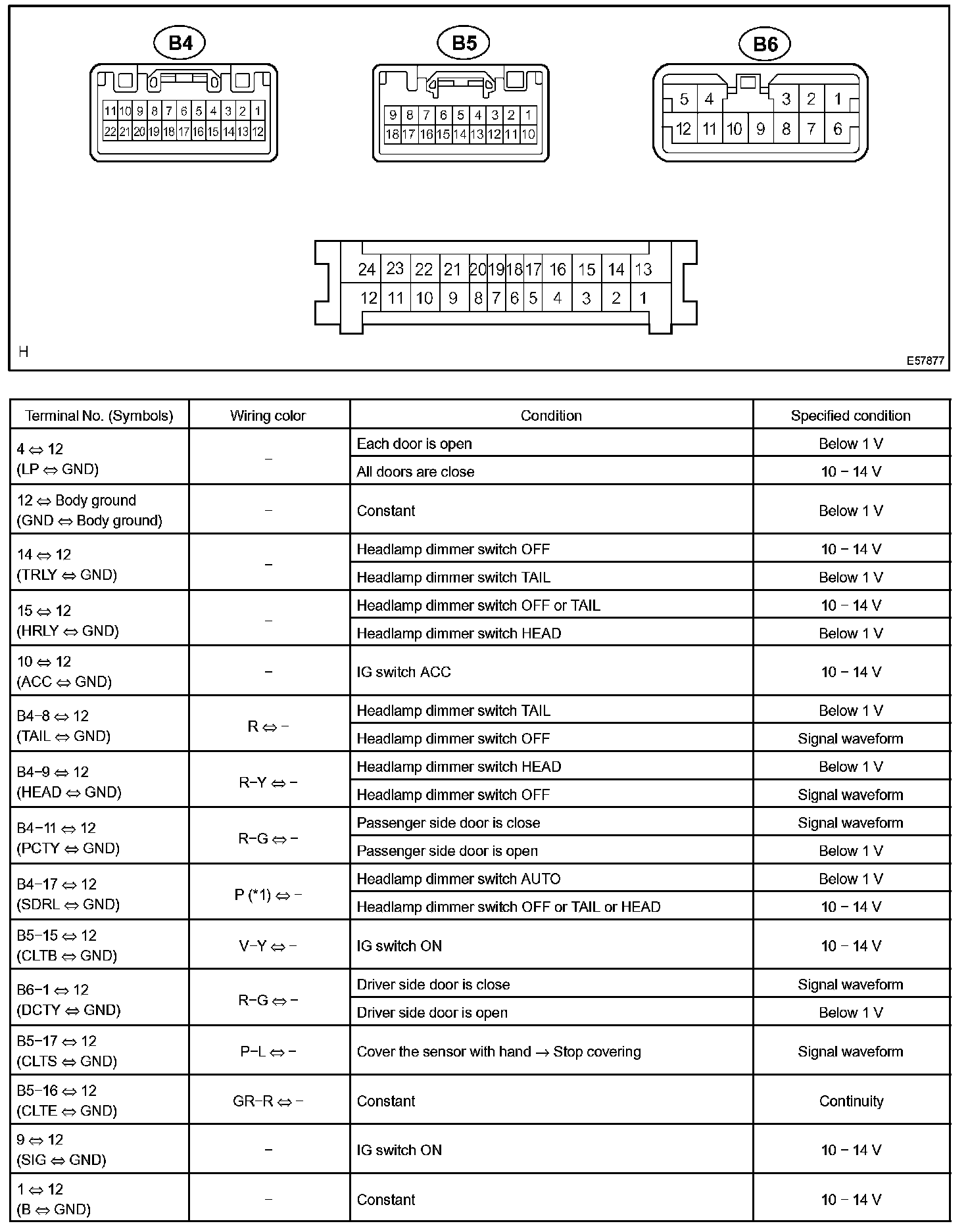

Terminals Of Control Module/Pinouts-Multiplex Network Body Computer (Part 1):

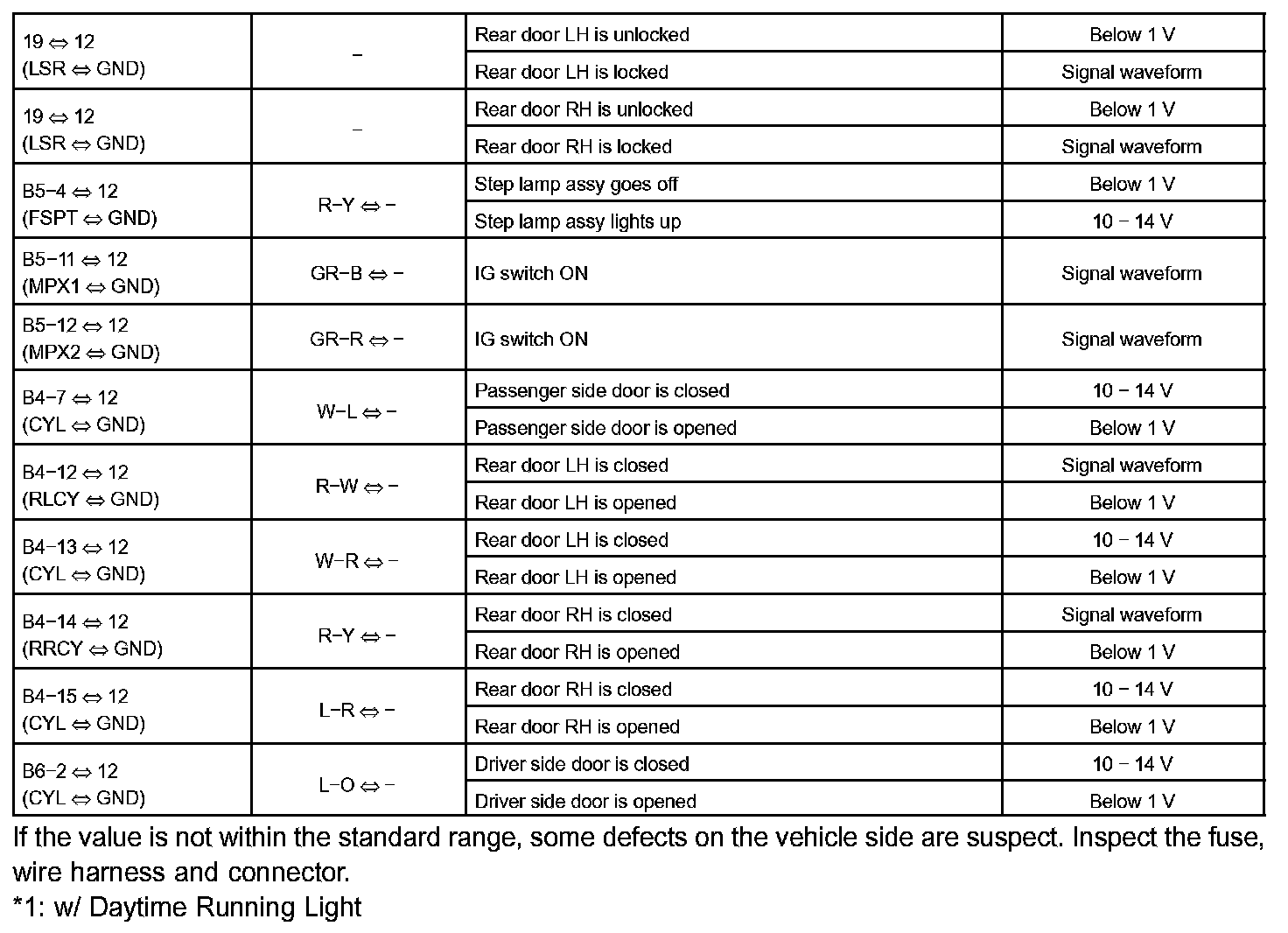

Terminals Of Control Module/Pinouts-Multiplex Network Body Computer (Part 2):

1. Multiplex Network Body Computer

Terminals Of Control Module/Pinouts-Headlight Beam Level Control ECU:

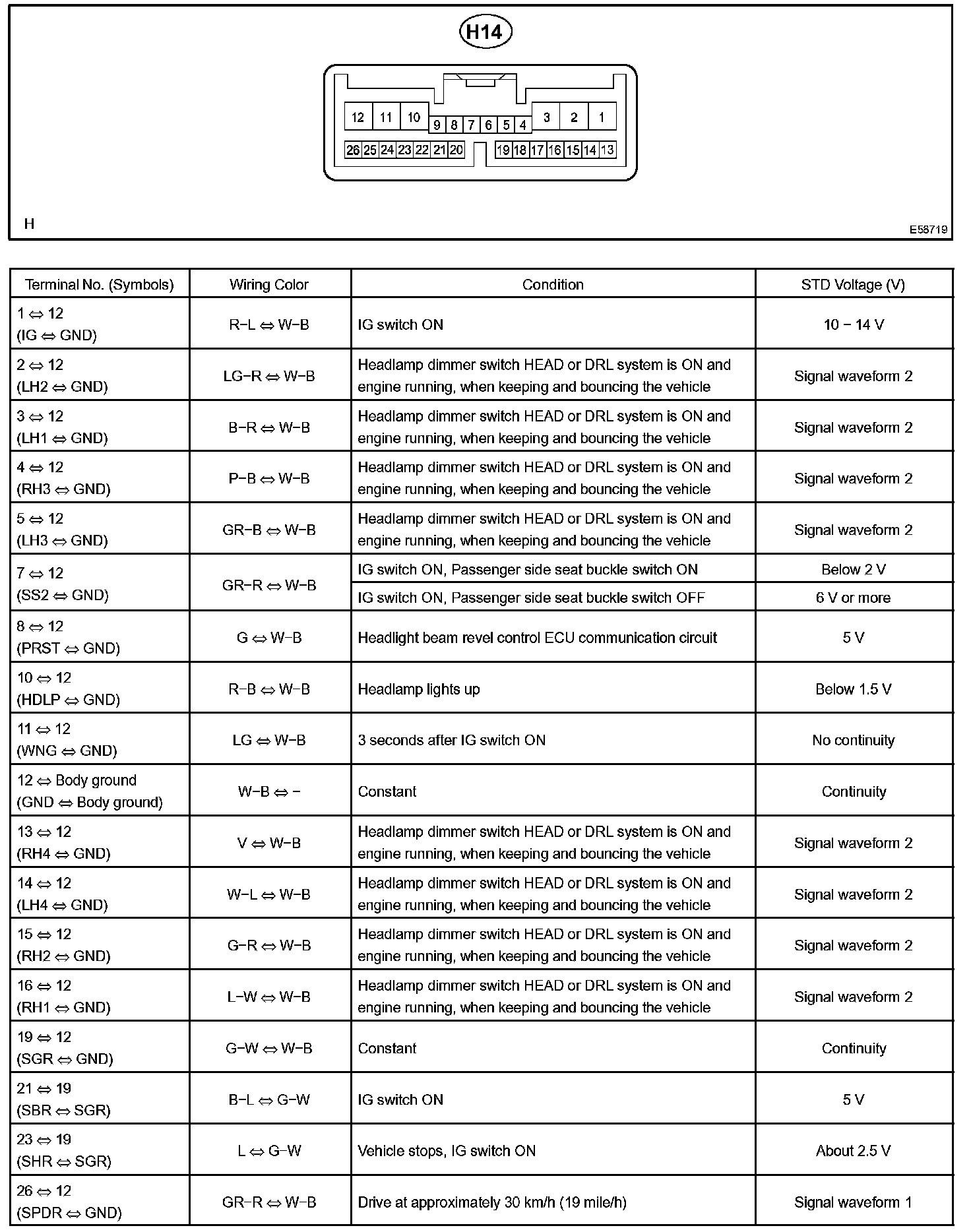

2. Headlight Beam Level Control ECU:




a. Signal waveform 1

HINT:
- Terminal: SPDR - GND
- Gauge set: 5 V / DIV.2 ms / DIV
- Condition: Drive at about 30 km/h (19 mile/h)

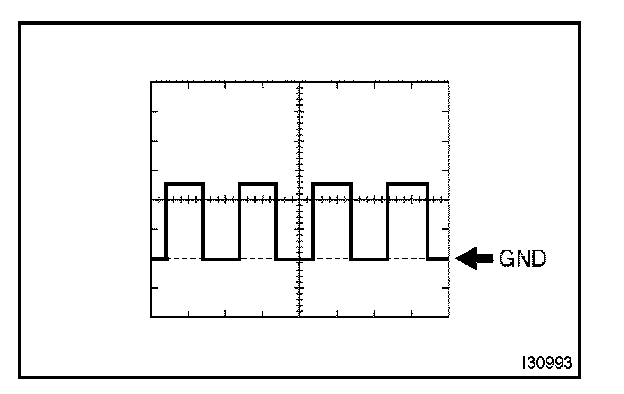

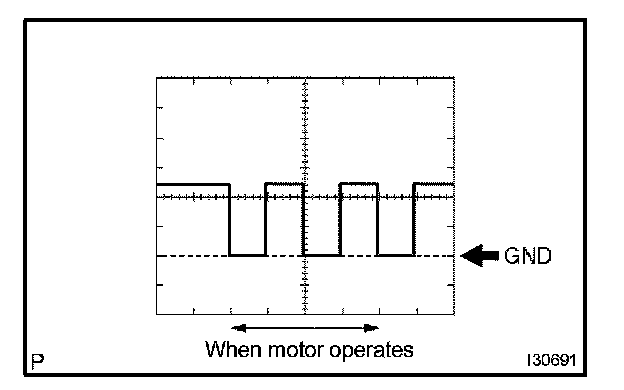

b. Signal waveform 2

HINT:
- Terminal: RH+. RHT. RH-. RHE - RHG
LH+. LHT. LH-. LHE - LHG
- Gauge set: 5 V / DIV. 10 ms / DIV
- Condition: Light control switch HEAD or DRL system is ON and engine running, when keeping and bouncing the vehicle

If the value is not within the standard range, some defects on the vehicle side are suspect. Inspect the fuse, wire harness and connector.

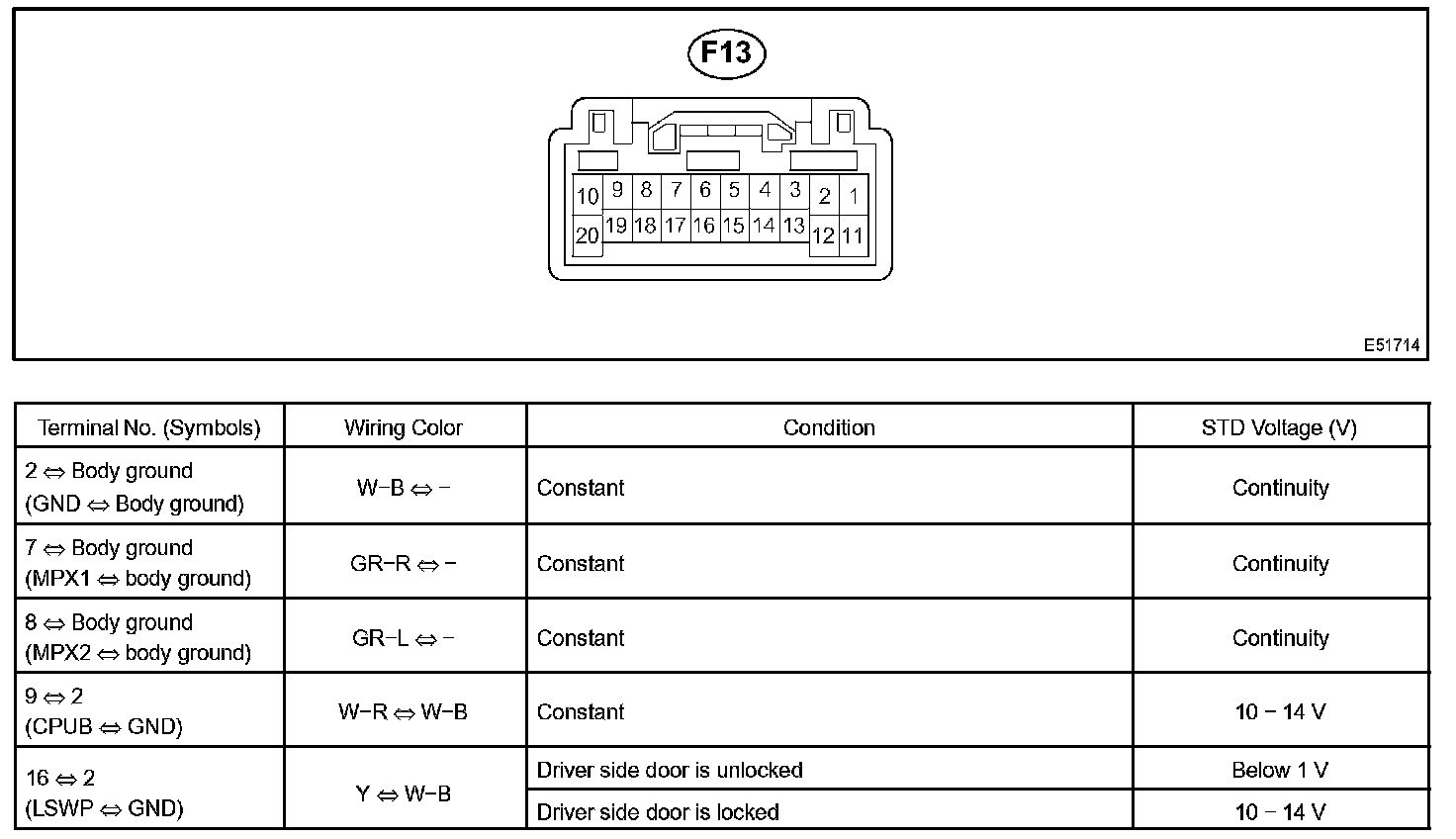

Terminals Of Control Module/Pinouts-Power Regulator Master Switch Assy:

3. Power Window Regulator Master Switch Assy

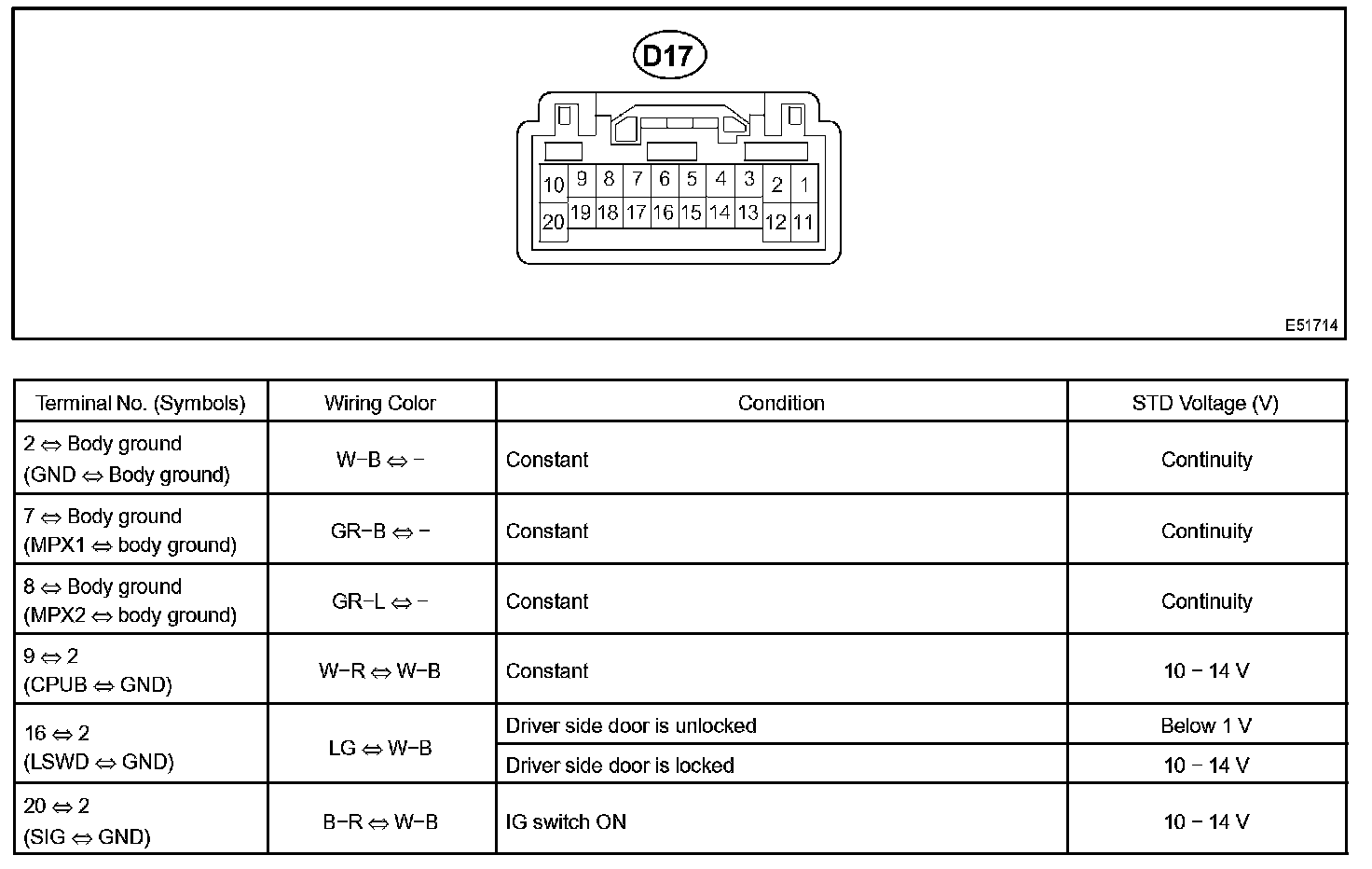

Terminals Of Control Module/Pinouts-Power Window Regulator Switch Assy:

4. Power Window Regulator Switch Assy
