Fail Safe Function

FAIL-SAFE FUNCTION

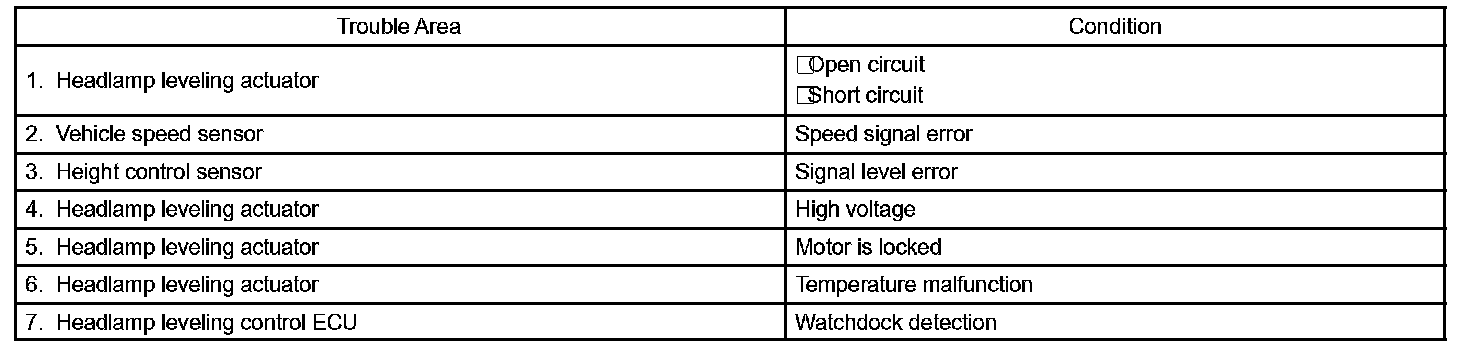

a. Headlamp Leveling Control ECU

HINT: The Headlamp Leveling Control ECU performs the fail-safe when detecting troubles. At this the warning Indicator light on the combination meter lights up.

(Refer to "HINT" in DIAGNOSTIC TROUBLE CODE CHART as for details of pattern the warning indicator light comes on or blinks.)

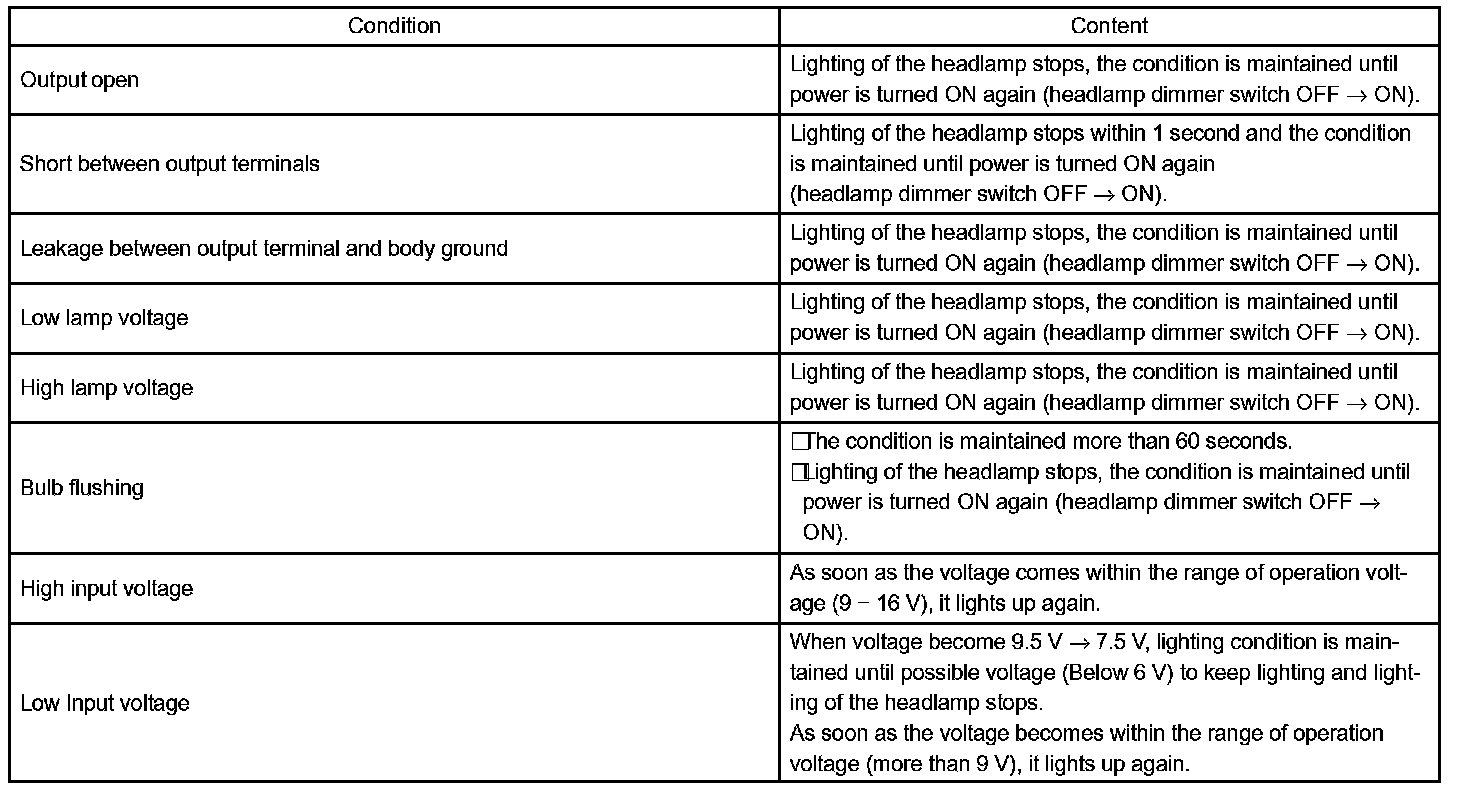

b. Light Control Computer
