Step Lamp Assy Does Not Light Up

STEP LAMP ASSY DOES NOT LIGHT UP

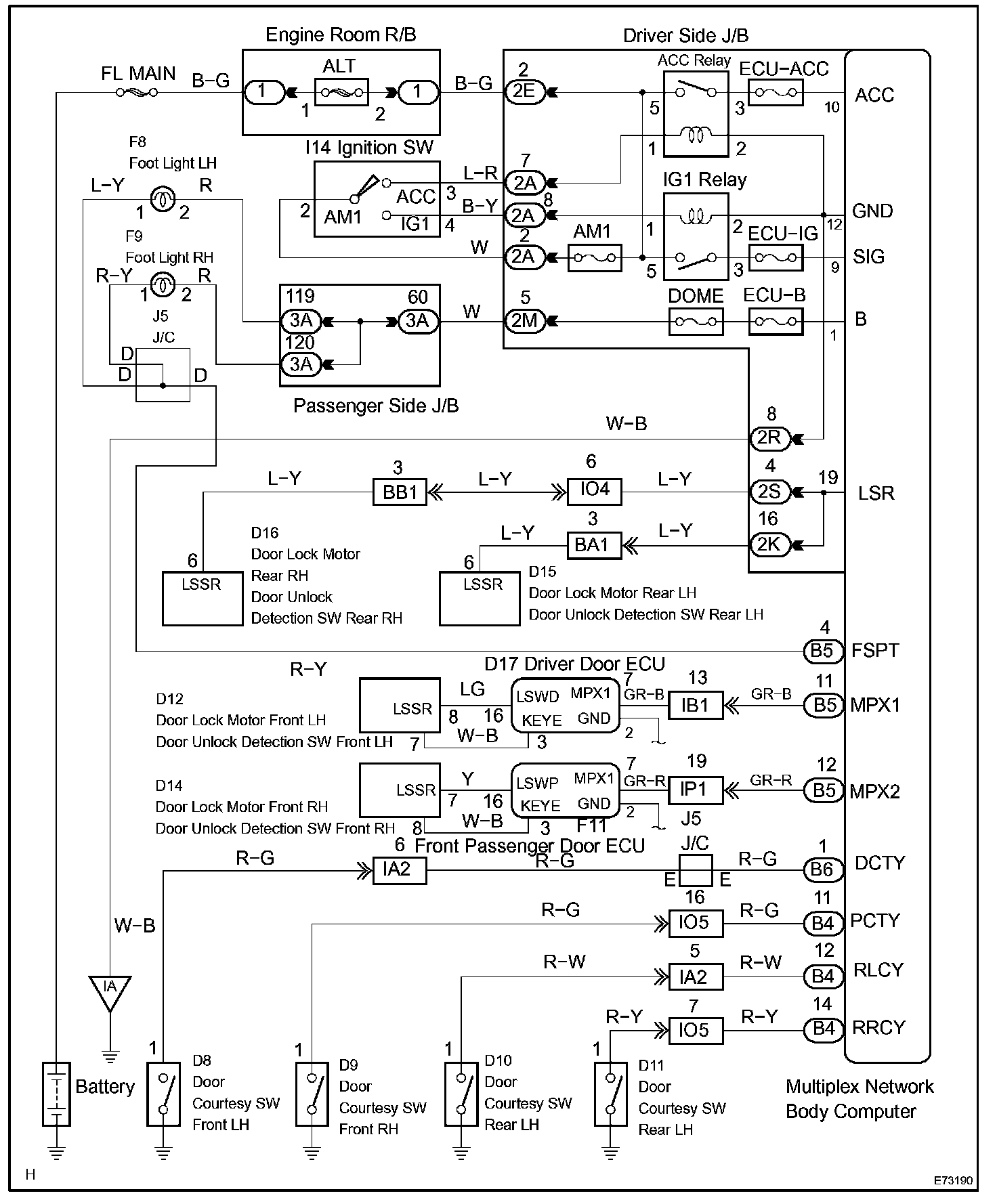

Wiring Diagram:

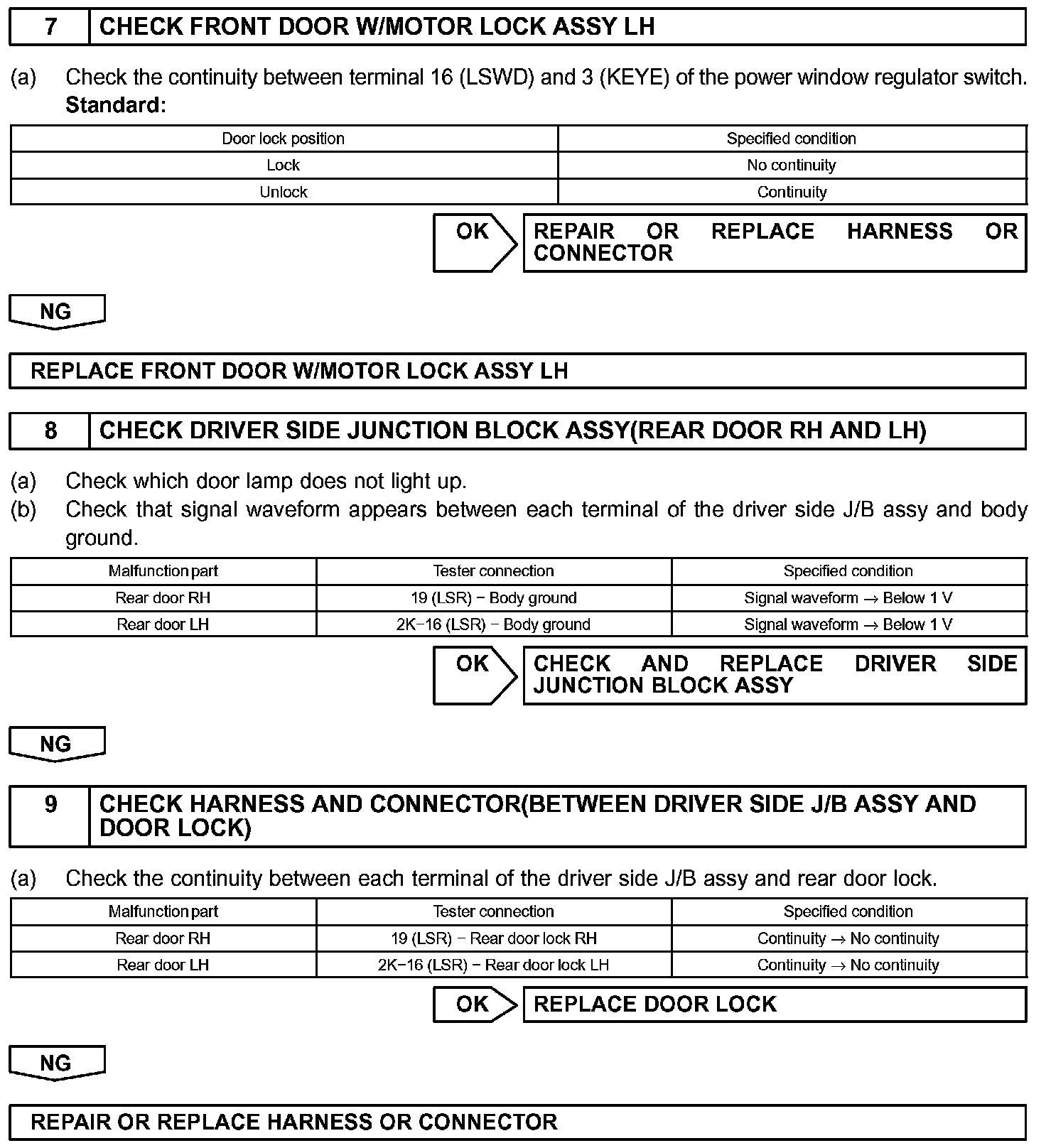

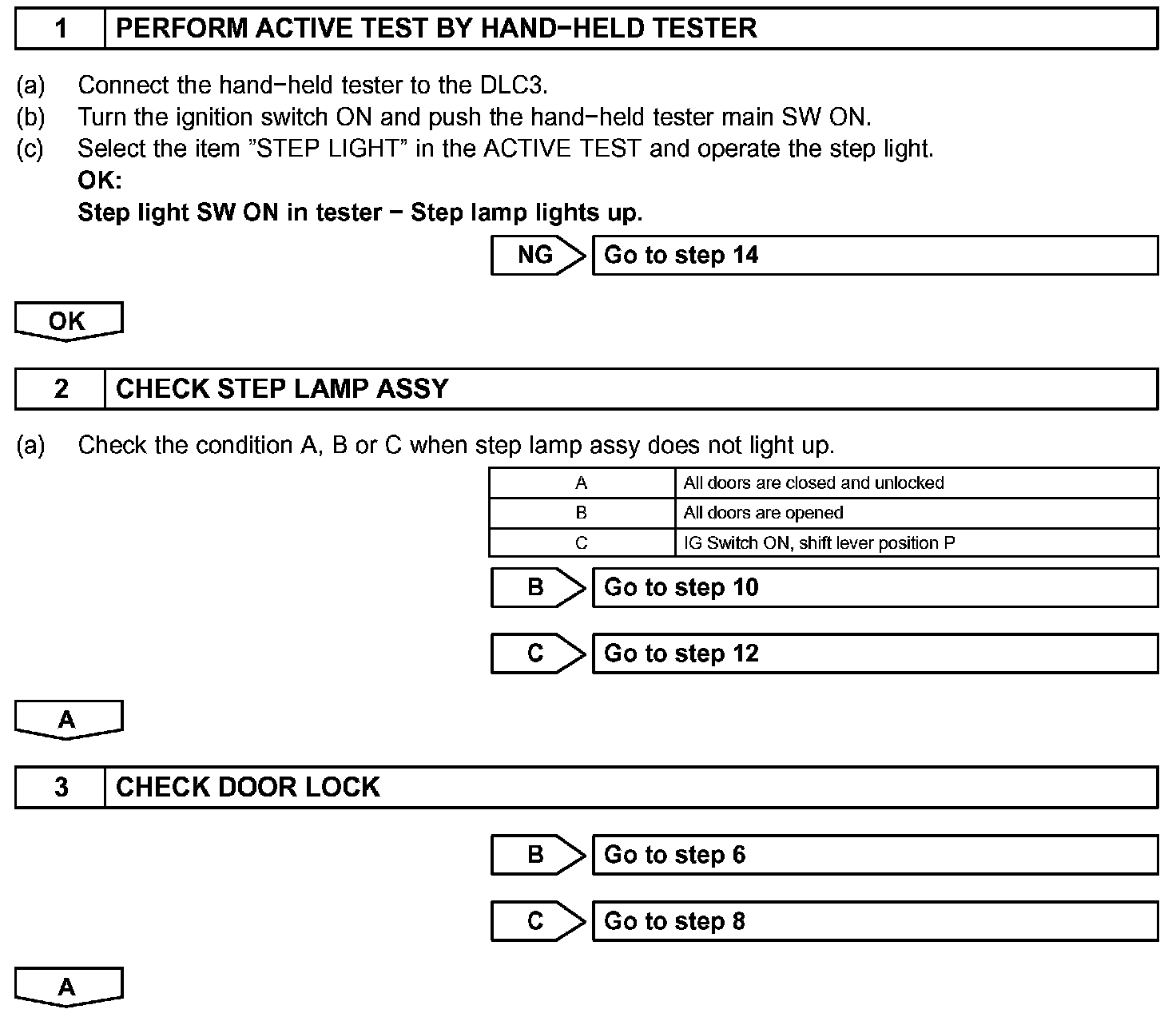

Step 1-3:

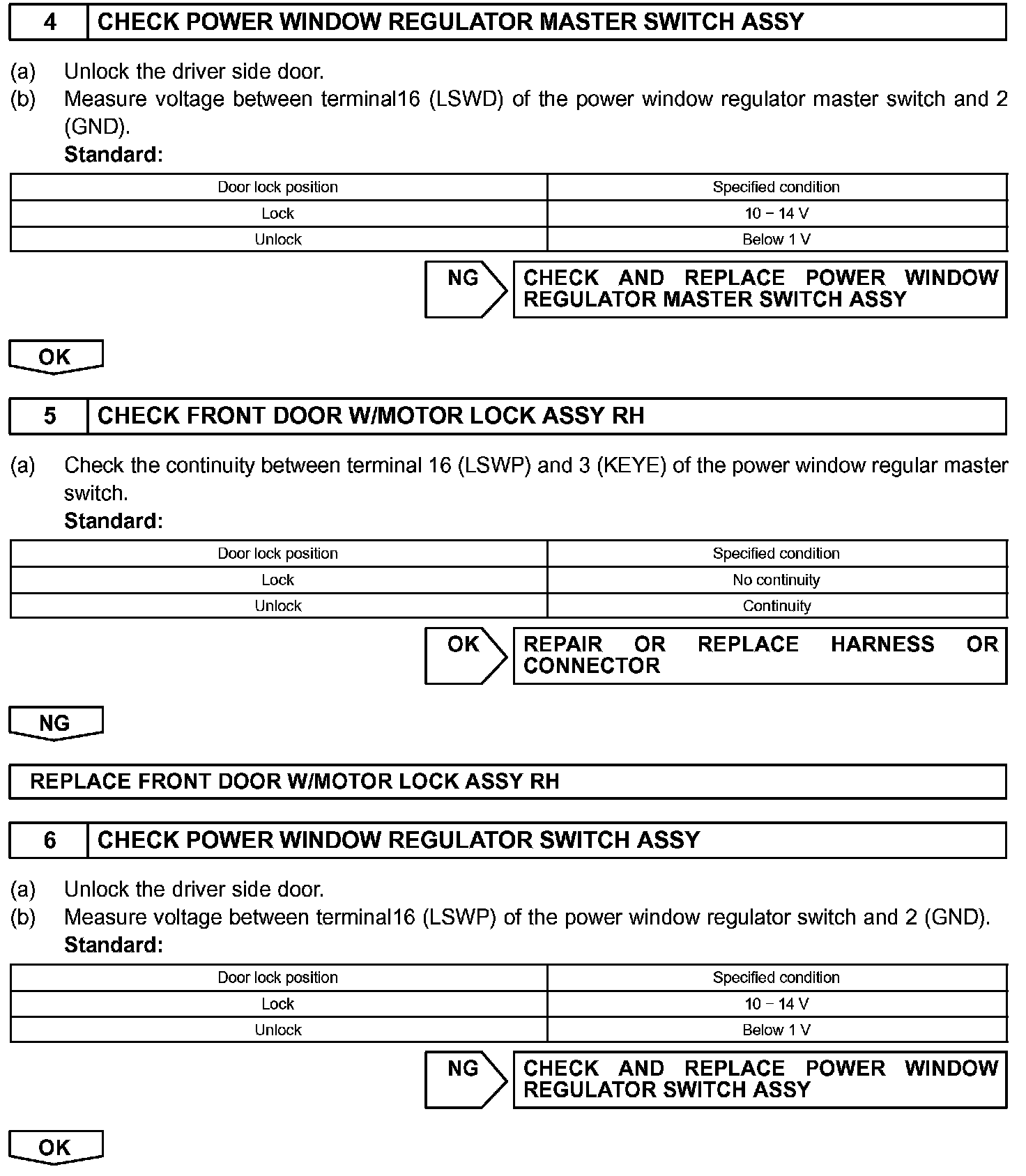

Step 4-6:




Step 7-9:

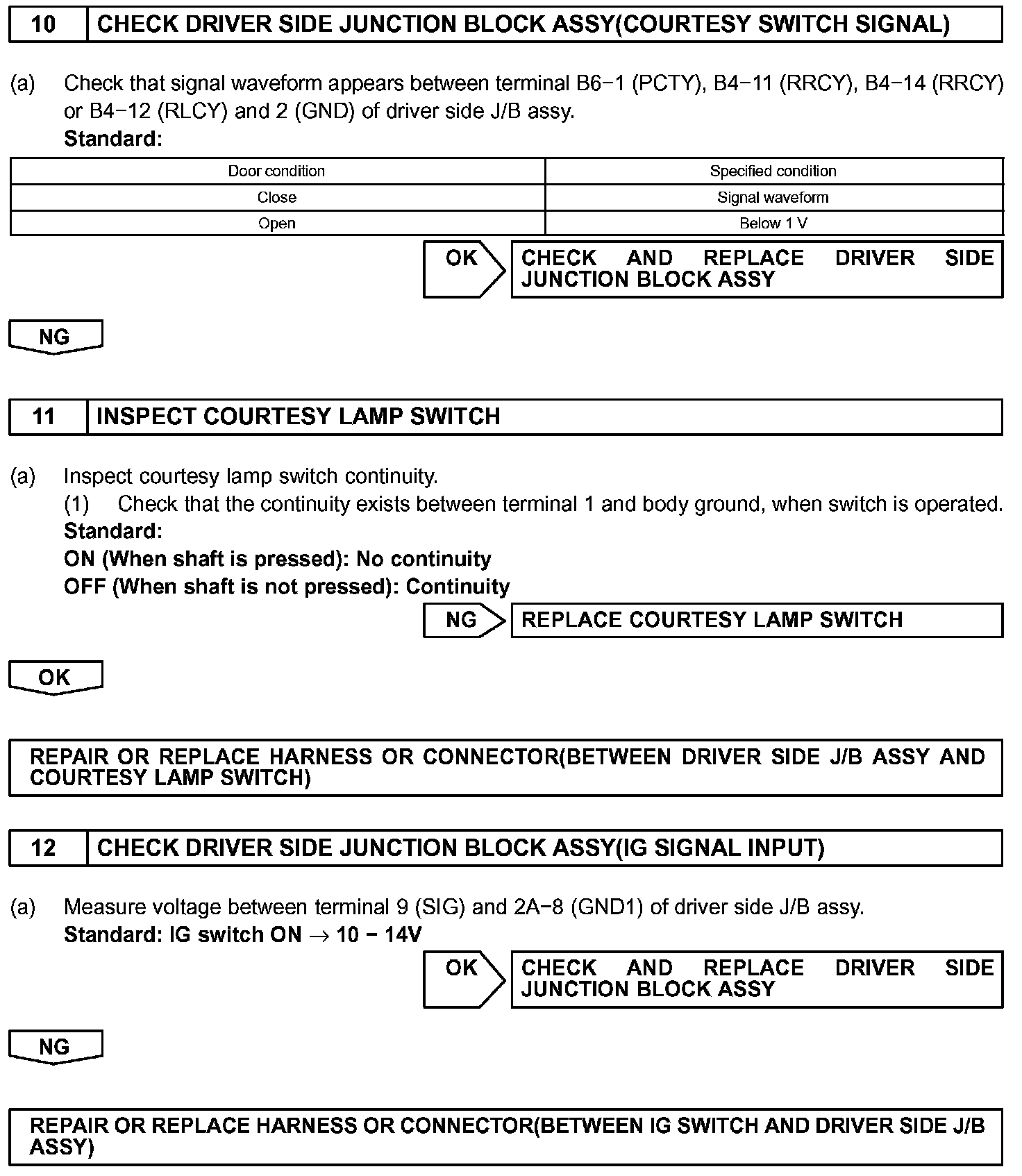

Step 10-12:

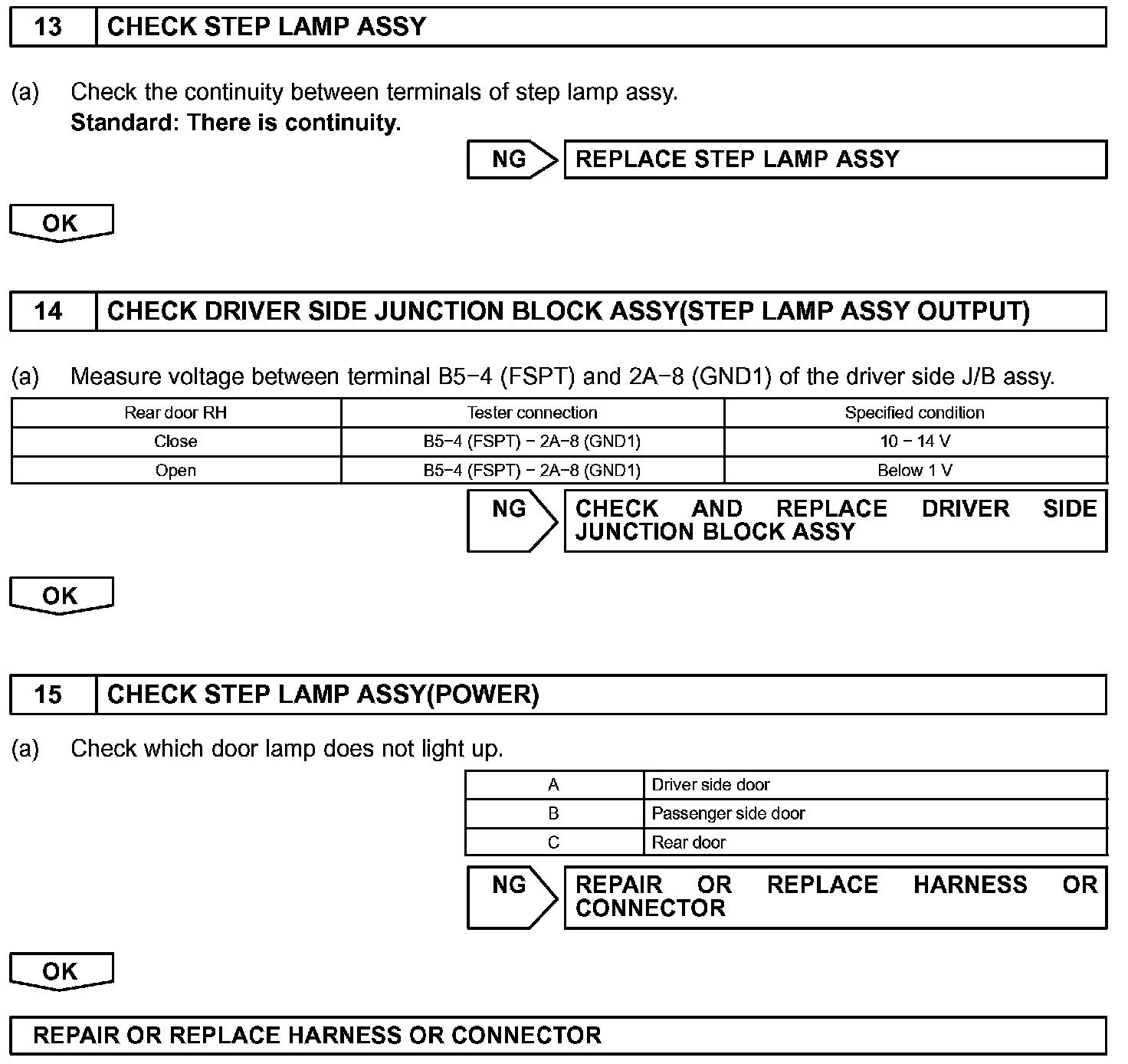

Step 13-15:




INSPECTION PROCEDURE
