Lighting and Horns
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Room Lamp Assy No.1 Does Not Light Up
Room Lamp Assy No.1 Does Not Light Up
ROOM LAMP ASSY NO.1 DOES NOT LIGHT UP

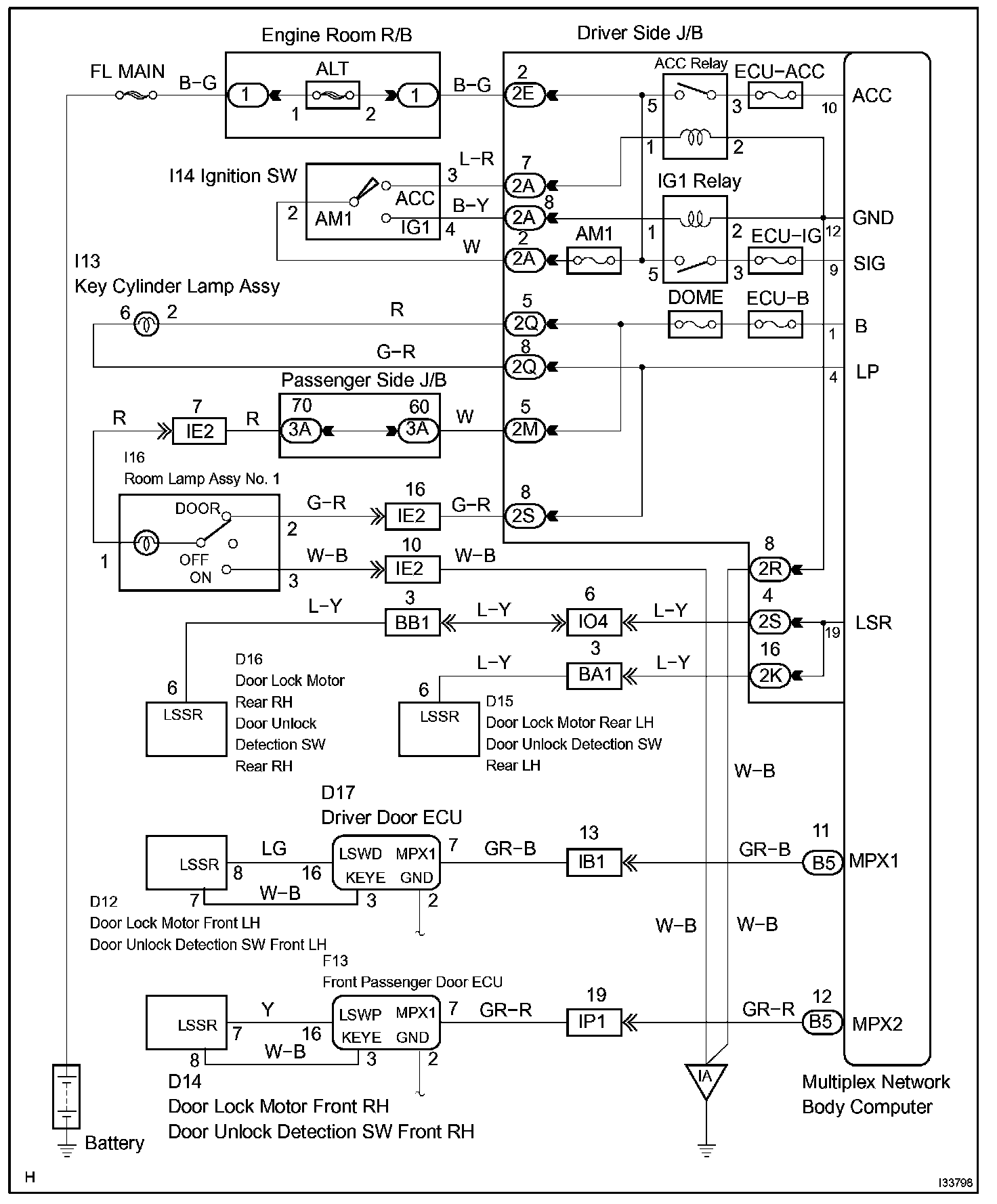

Wiring Diagram:

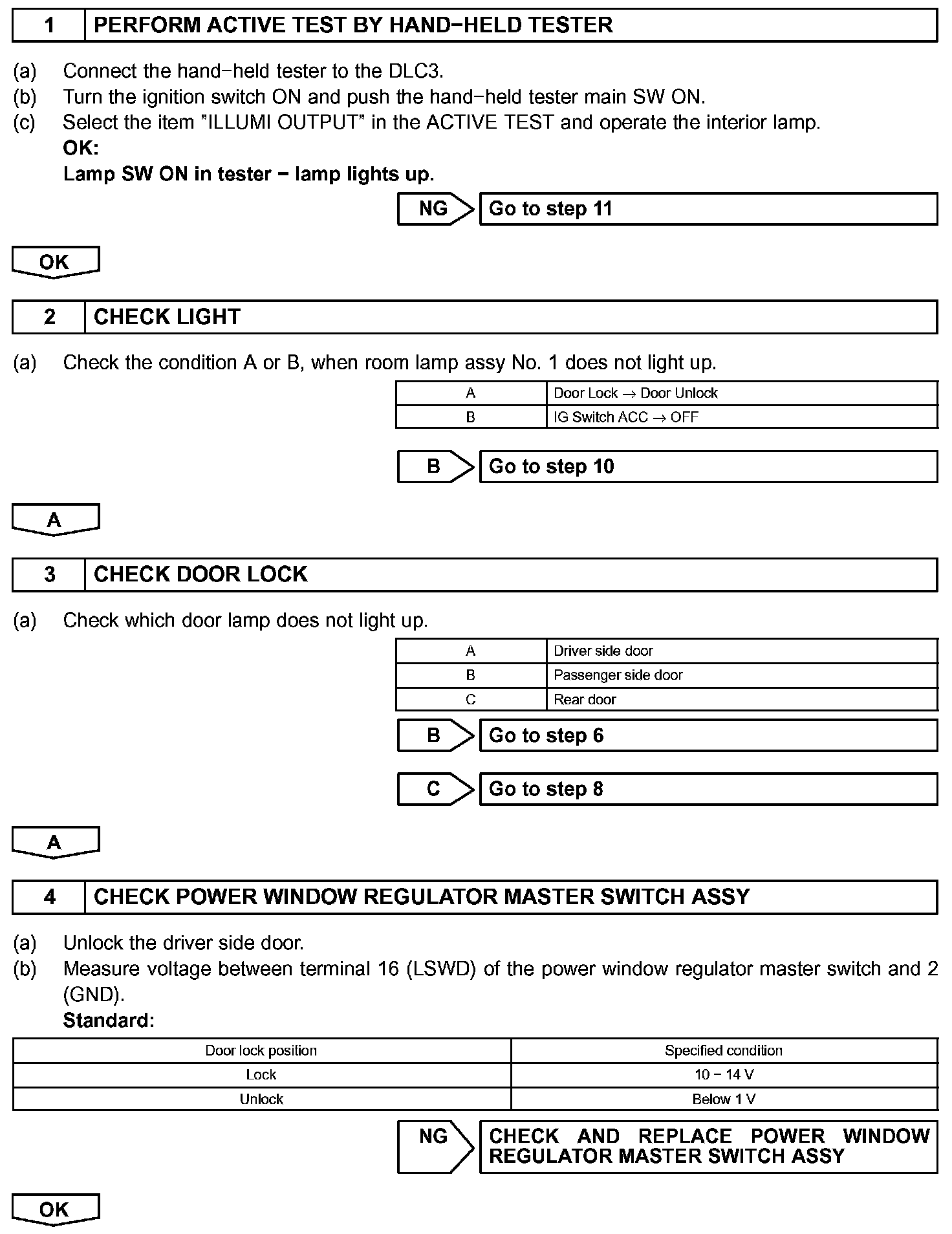

Step 1-4:

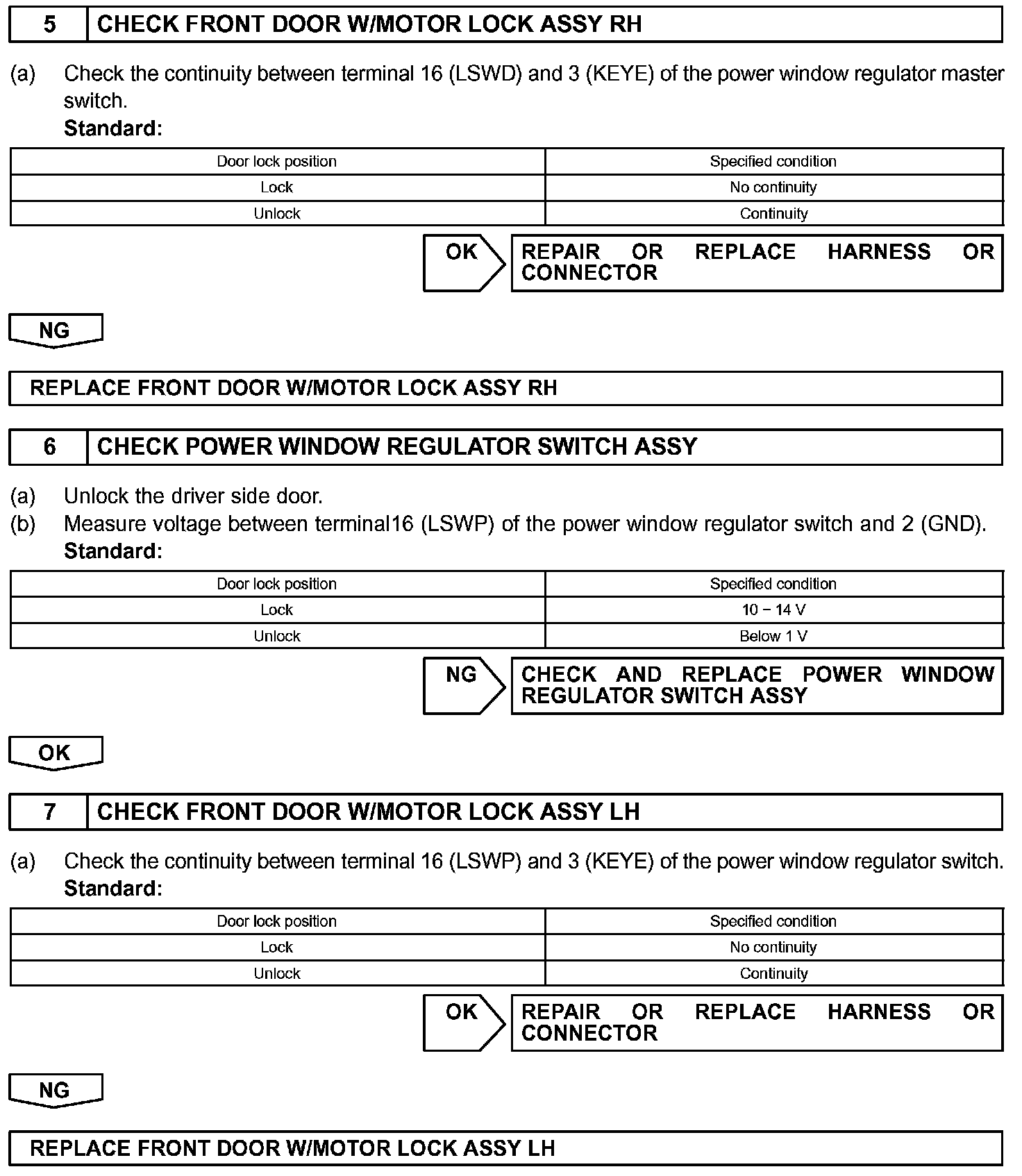

Step 5-7:

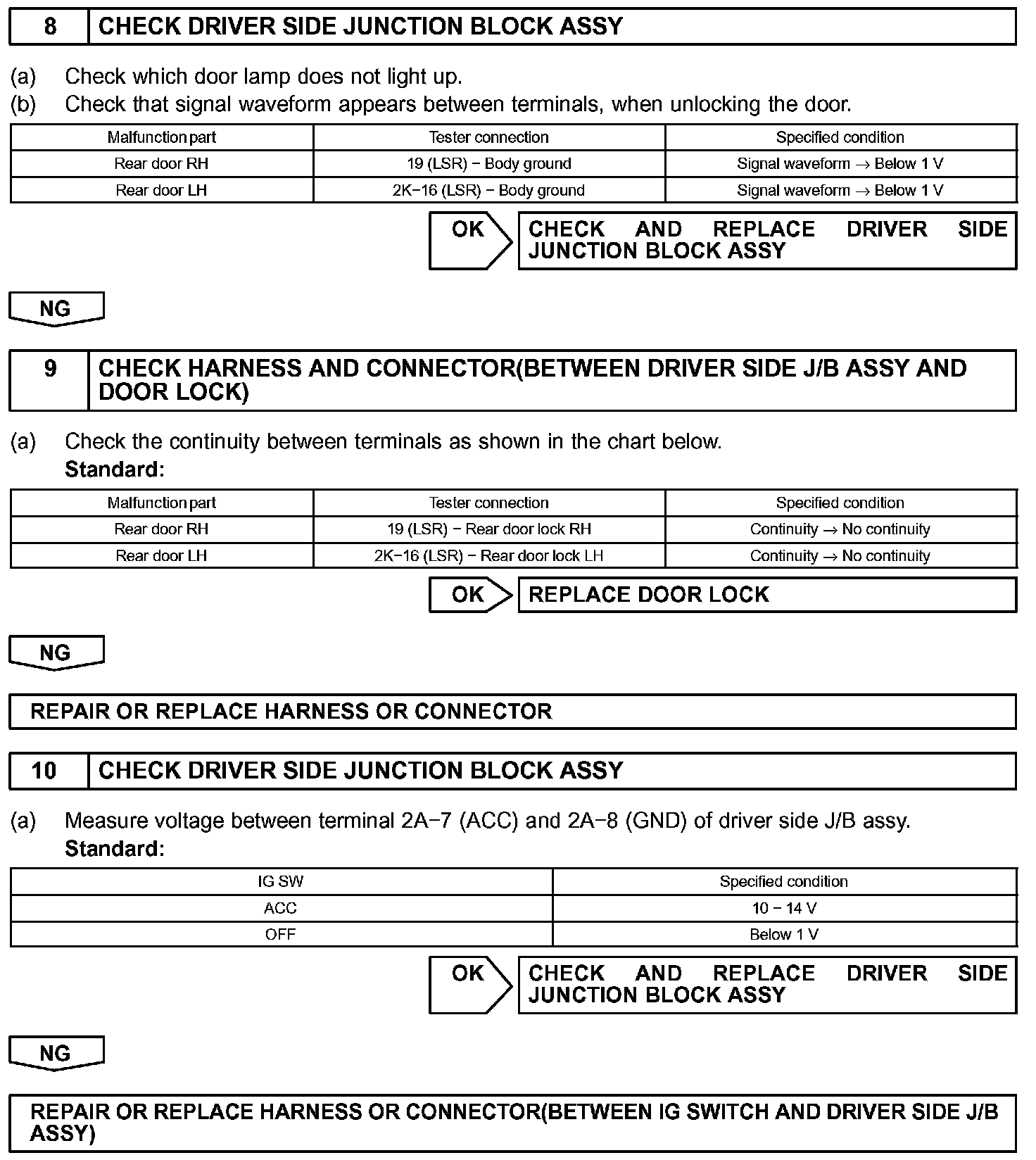

Step 8-10:

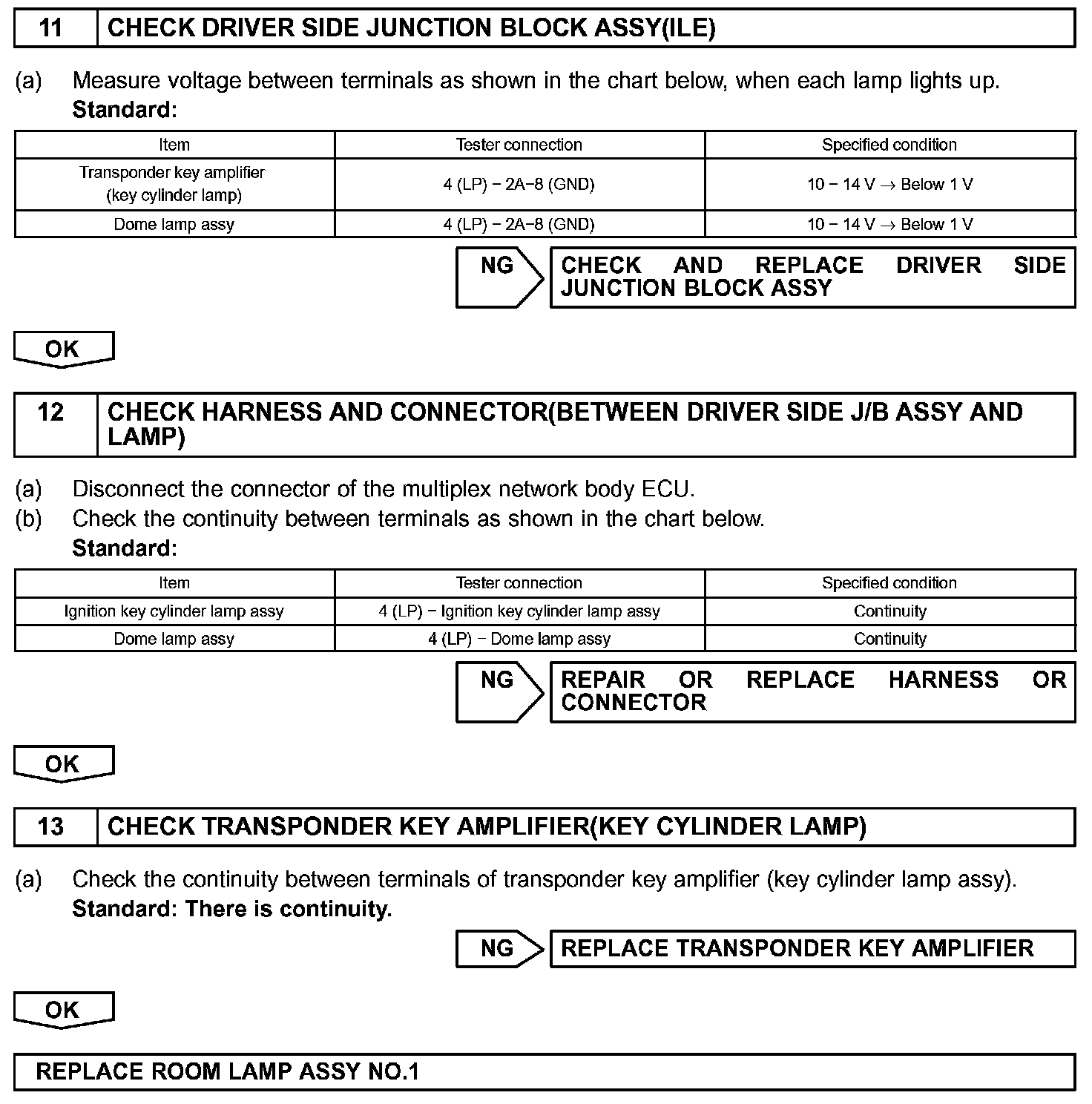

Step 11-13:
INSPECTION PROCEDURE
