Room Lamp Assy No.1 Does Not Go Off
Room Lamp Assy No.1 Does Not Go Off
ROOM LAMP ASSY NO.1 DOES NOT GO OFF

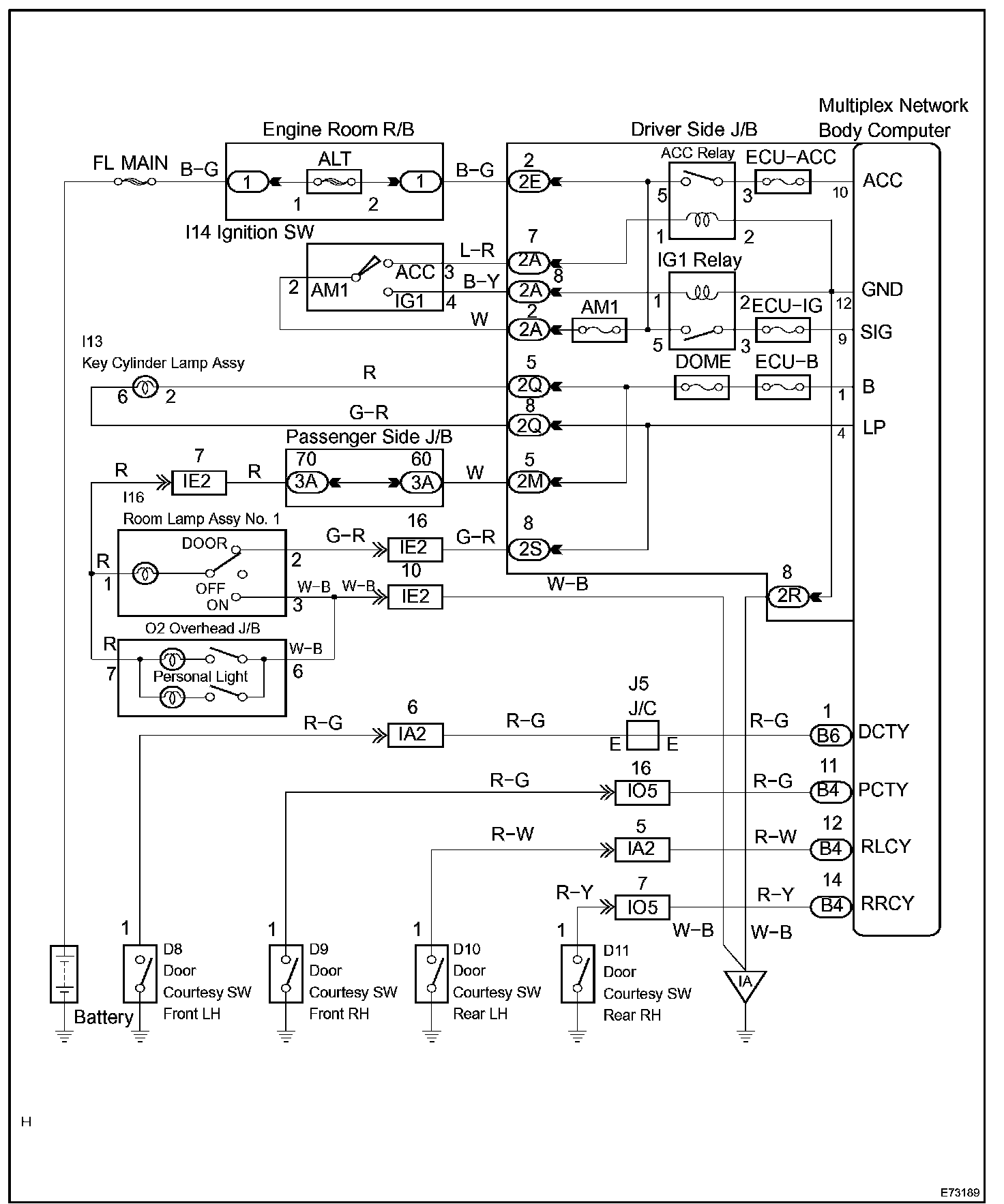

Wiring Diagram:

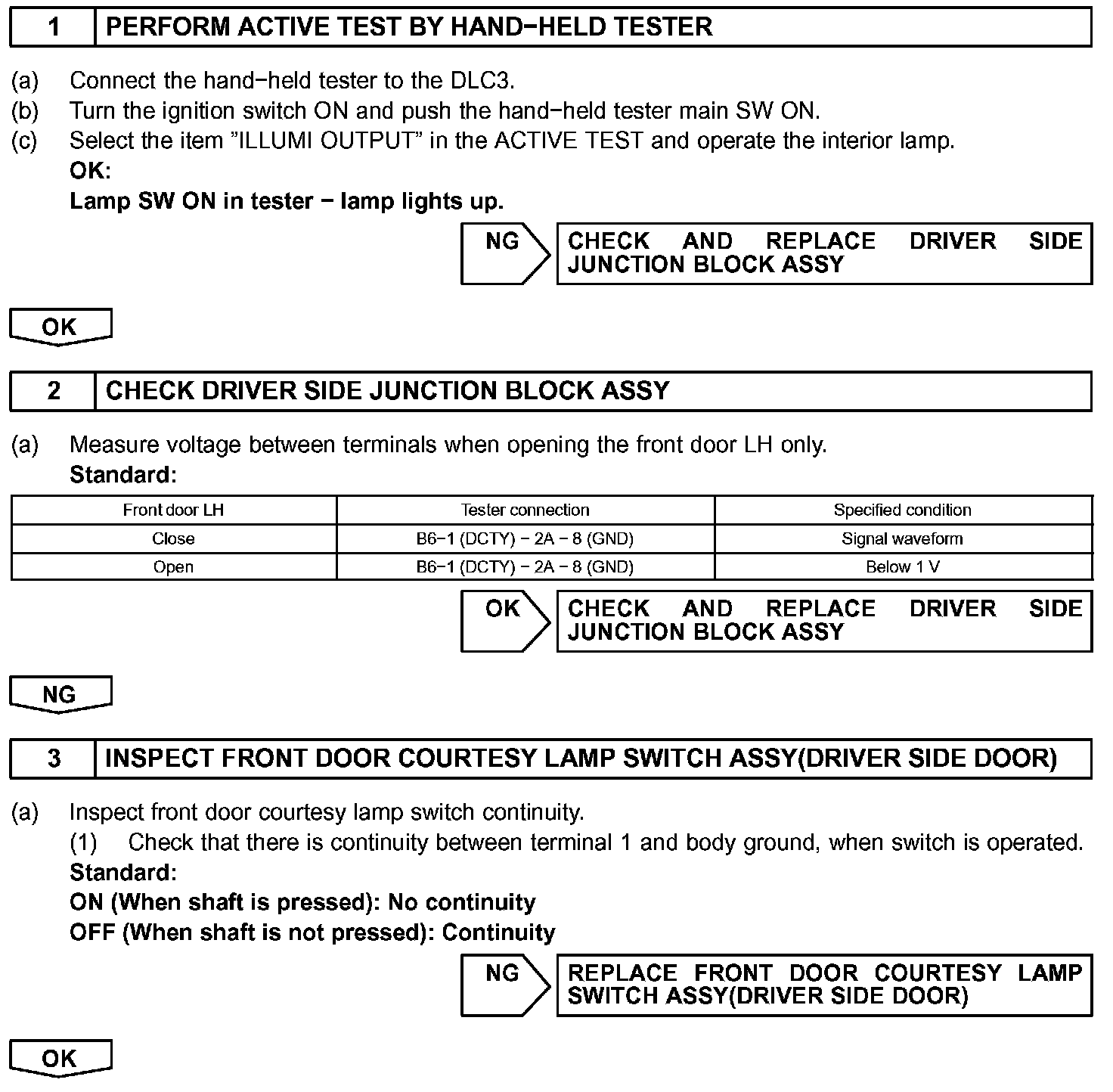

Step 1-3:

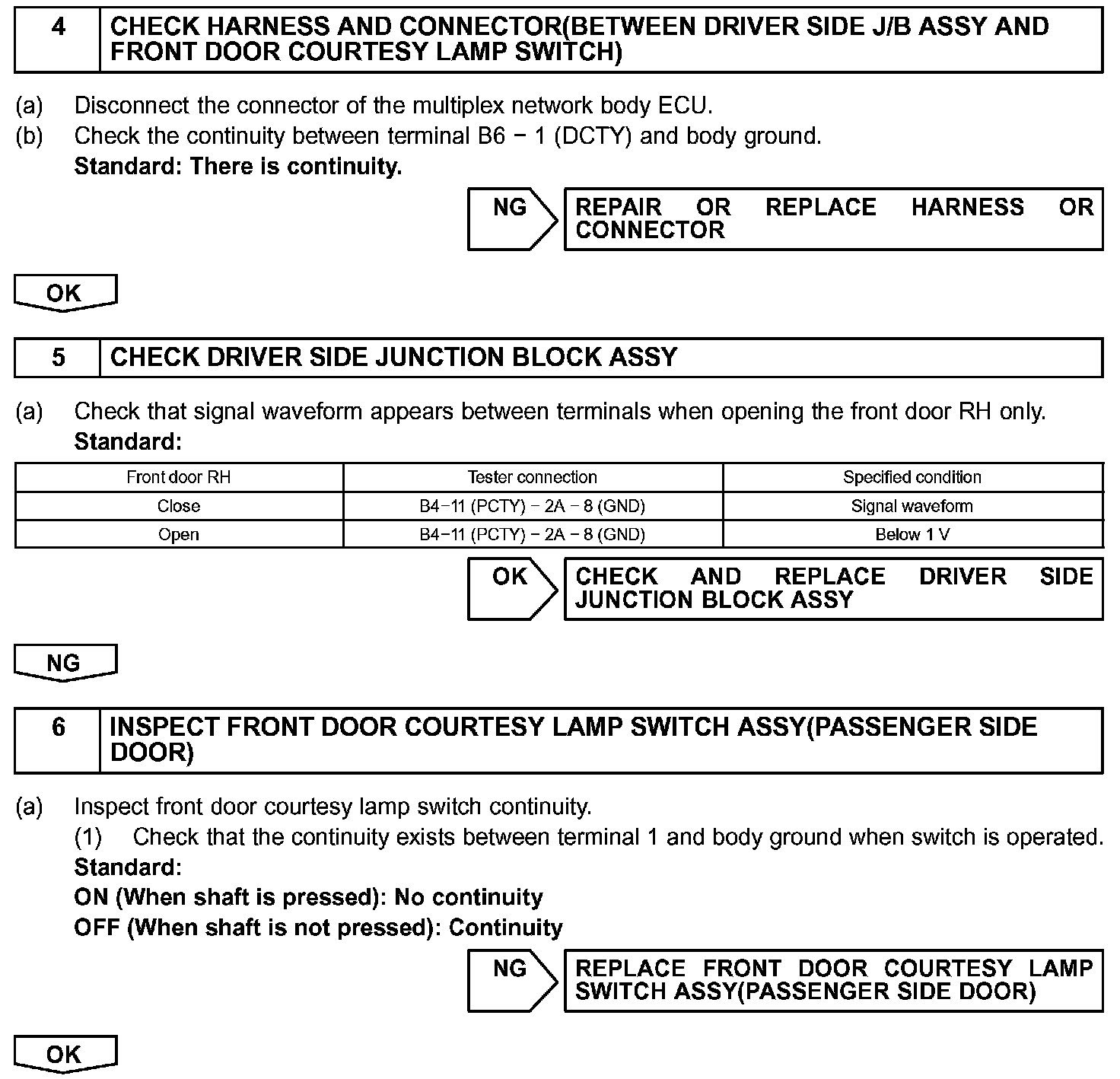

Step 4-6:

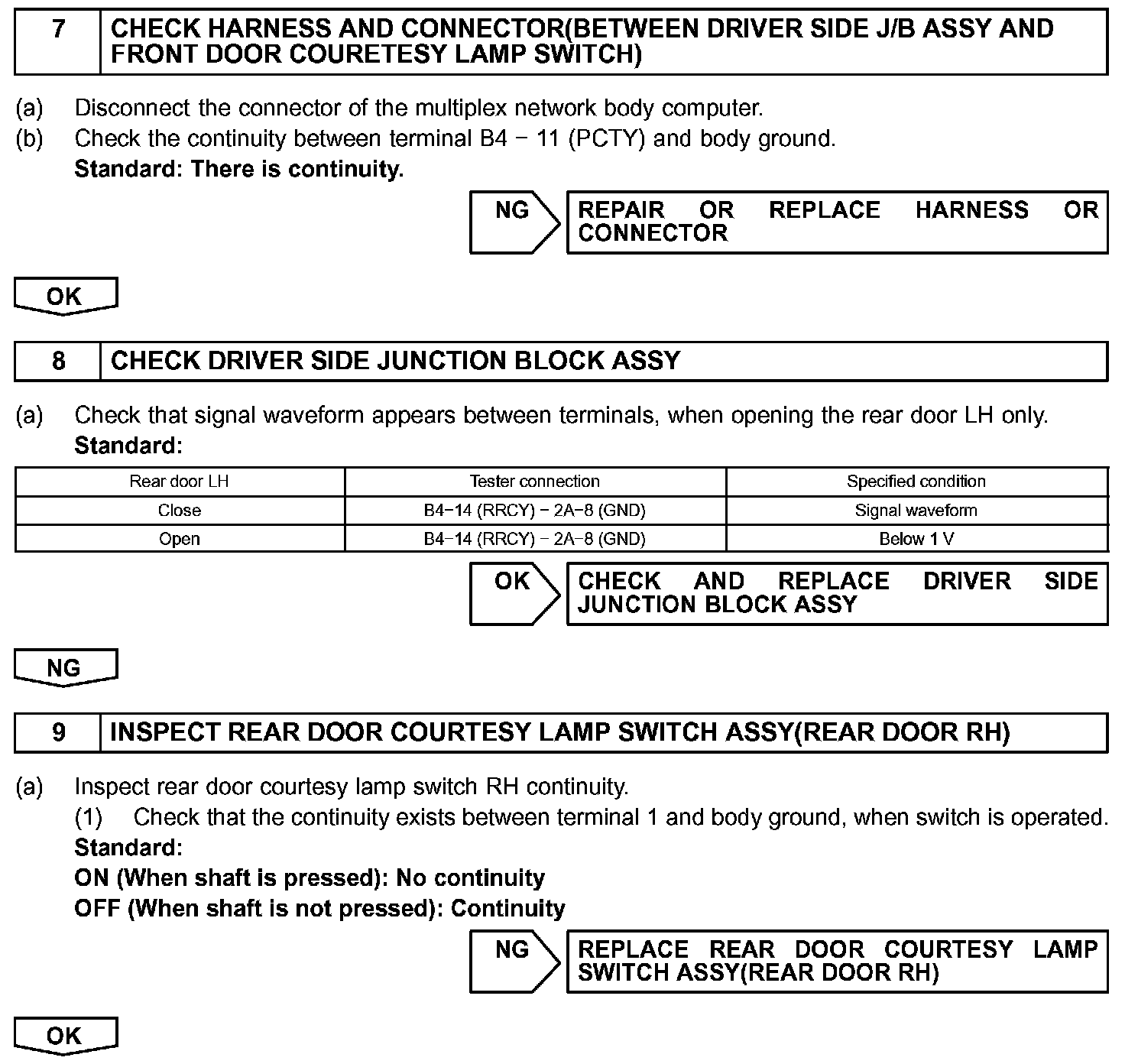

Step 7-9:

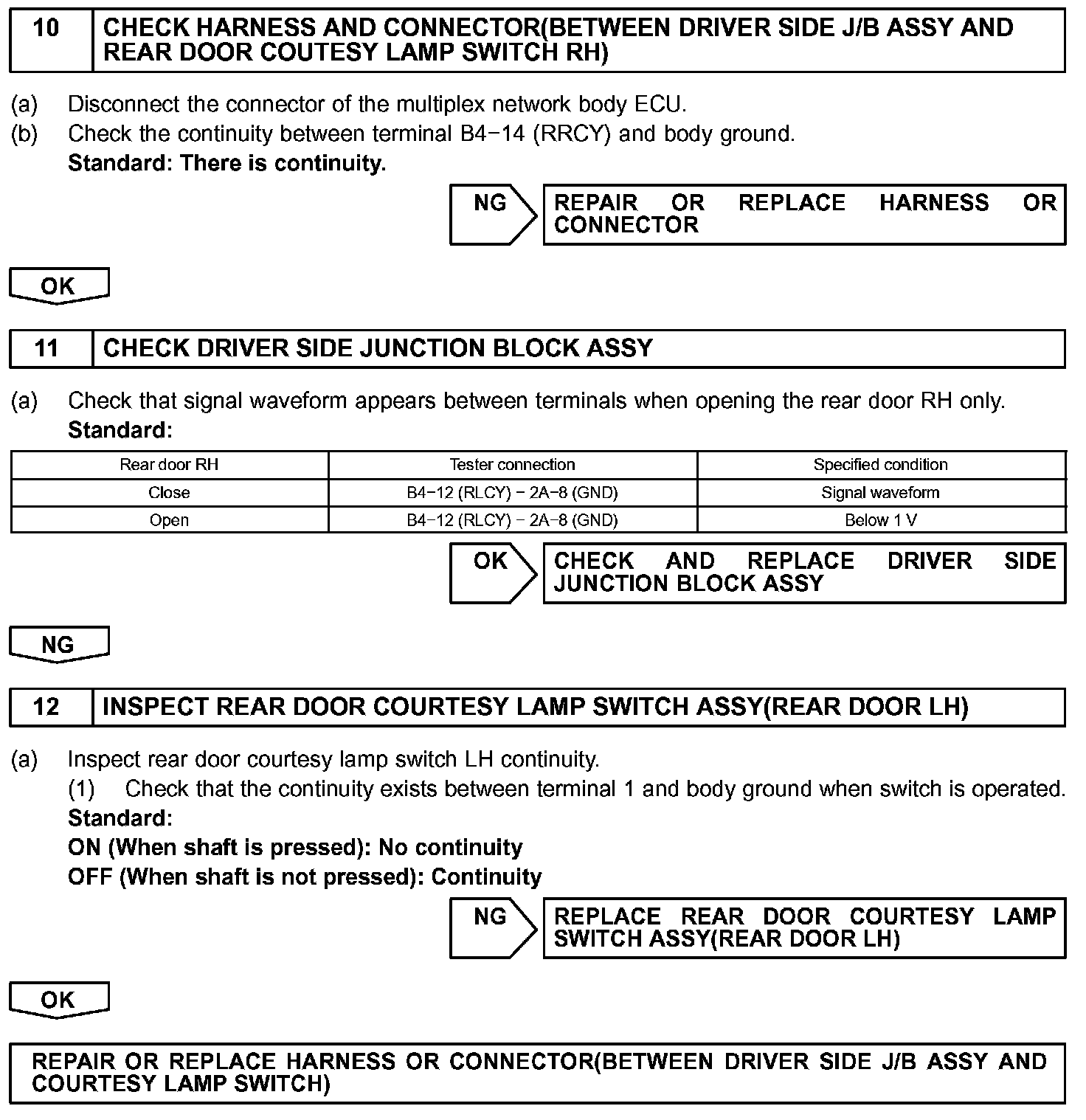

Step 10-12:
INSPECTION PROCEDURE
