Light Auto Turn Off System Light Does Not Operate
Light Auto Turn Off System Light Does Not Operate
LIGHT AUTO TURN OFF SYSTEM LIGHT DOES NOT OPERATE

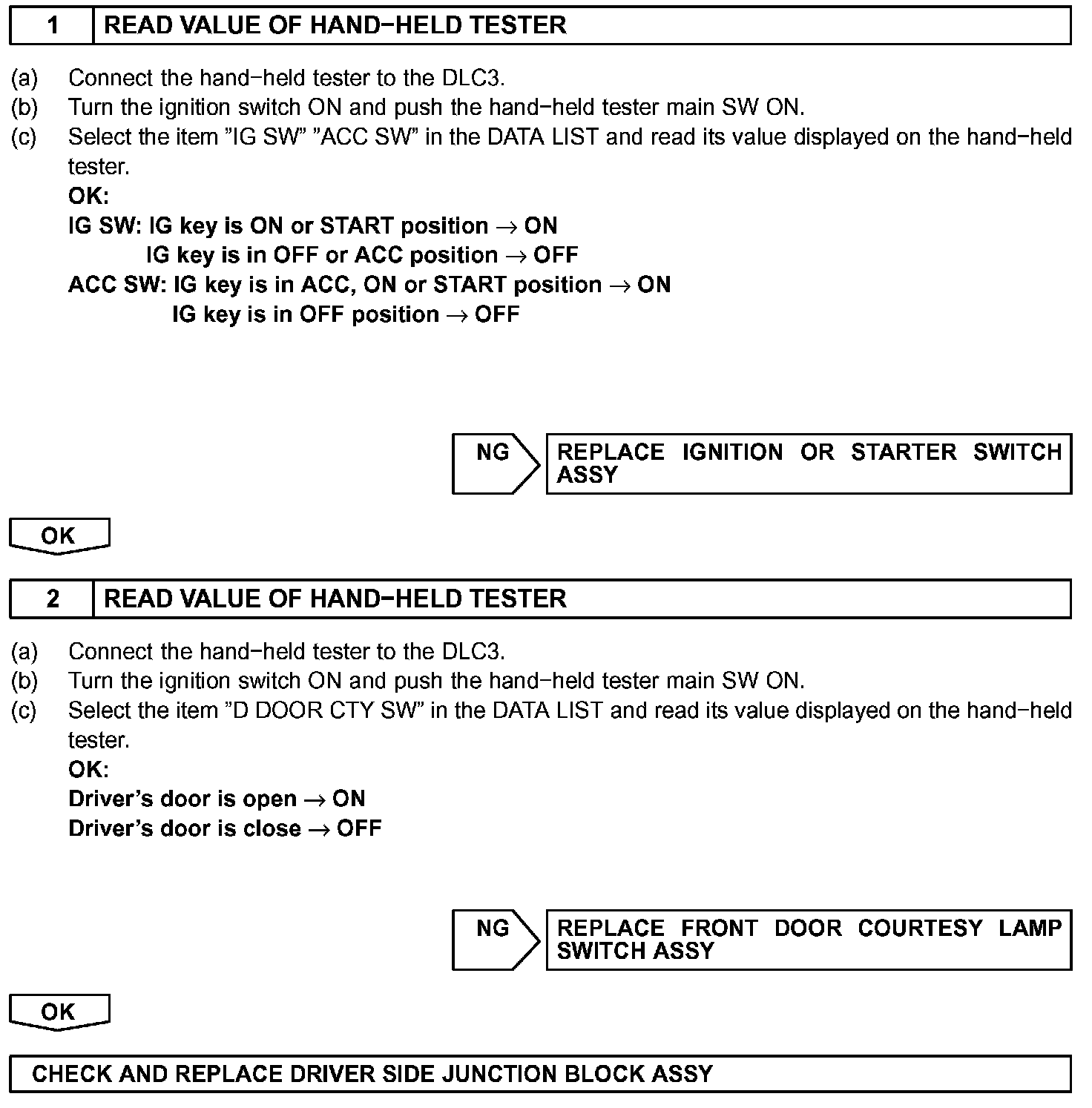

Step 1-2:
INSPECTION PROCEDURE
