Initial Set Control Function Operates, But Headlamp Aiming Does Not Operate (Warning Lamp Lights Up)

INITIAL SET CONTROL FUNCTION OPERATES, BUT HEADLAMP AIMING DOES NOT OPERATE (WARNING LAMP LIGHTS UP)

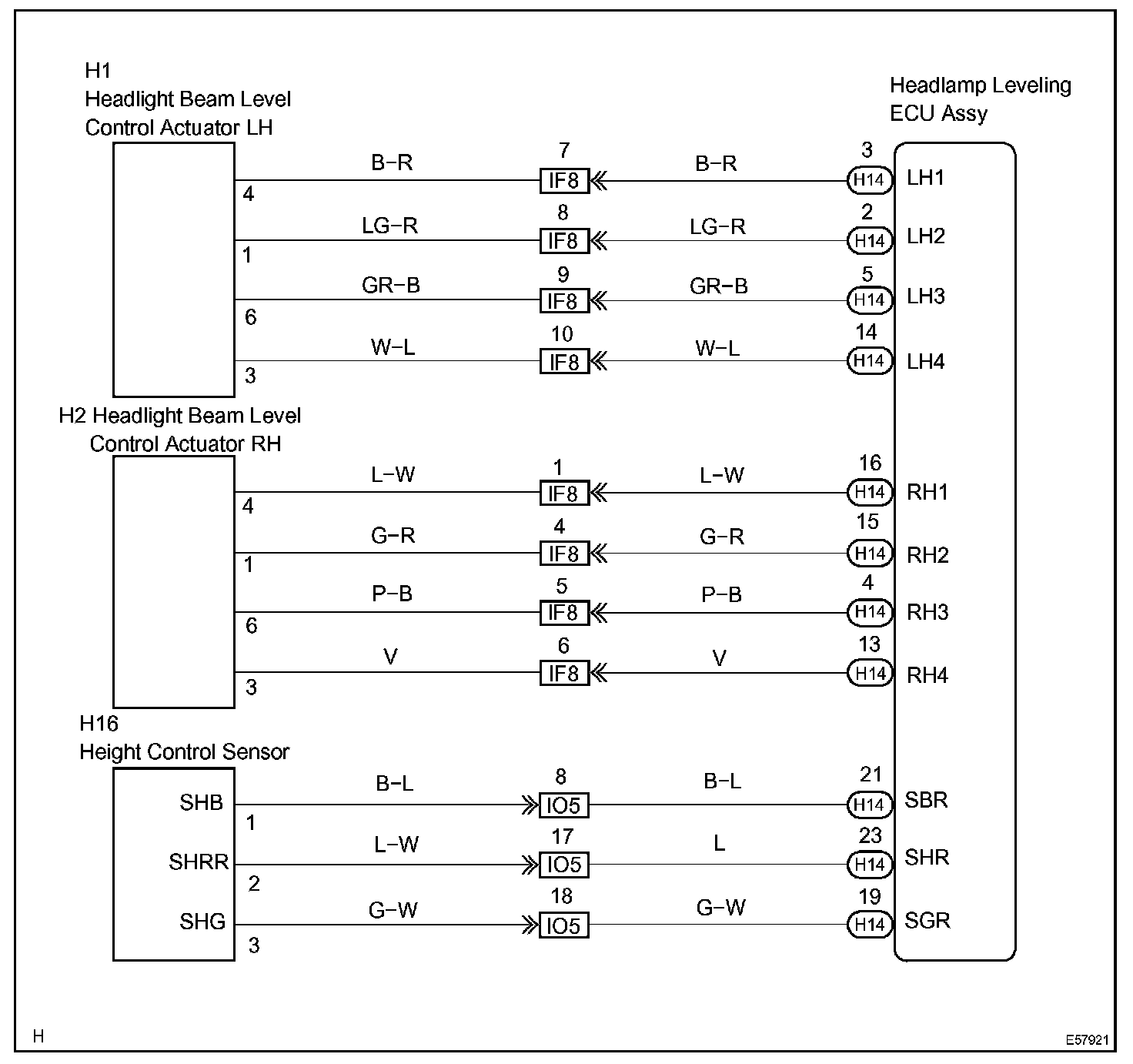

Wiring Diagram:

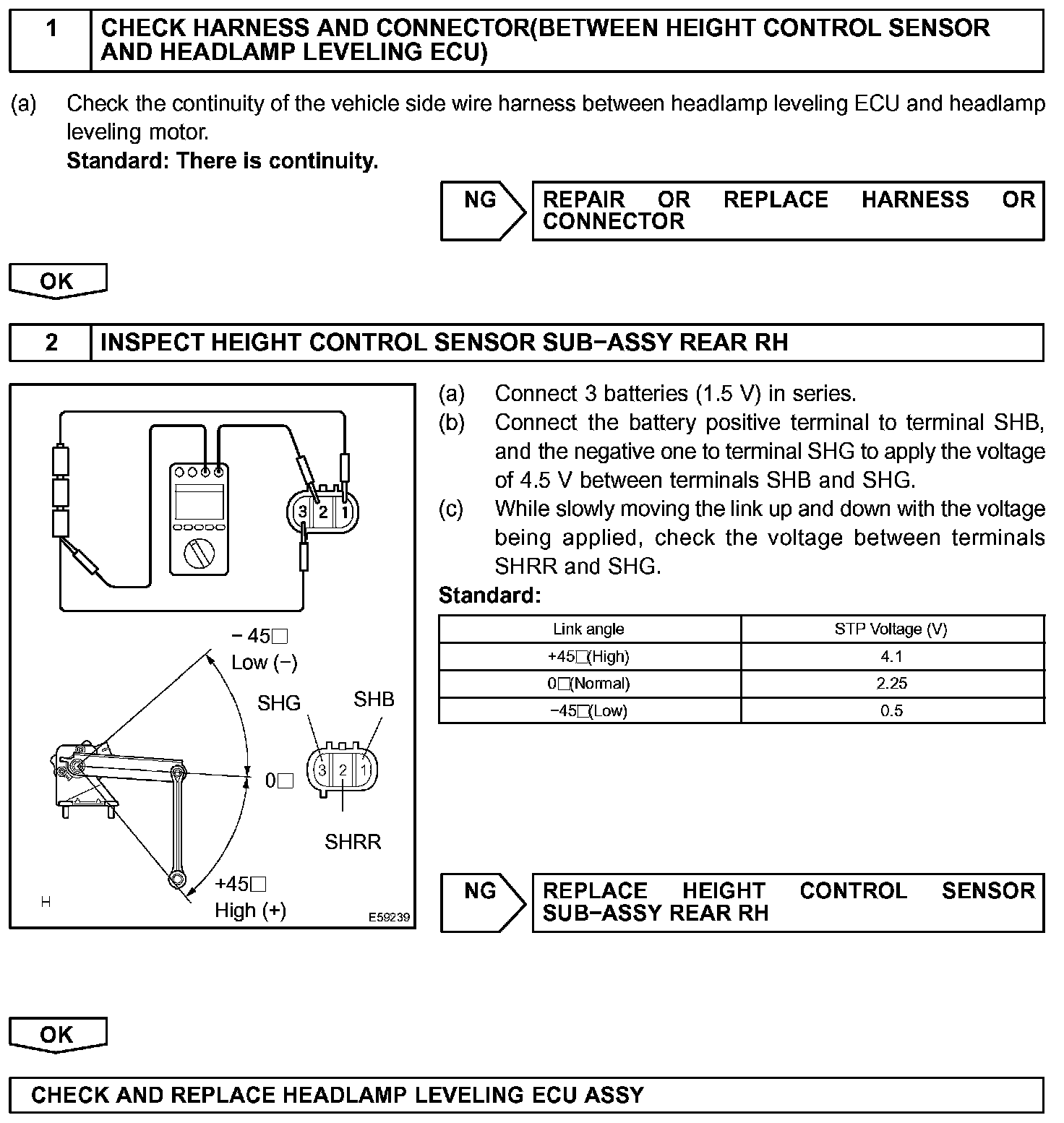

Step 1-2:




INSPECTION PROCEDURE
