Initial Set Control Function Does Not Operate (Warning Lamp Lights Up)
Initial Set Control Function Does Not Operate (Warning Lamp Lights Up)
INITIAL SET CONTROL FUNCTION DOES NOT OPERATE (WARNING LAMP LIGHTS UP)

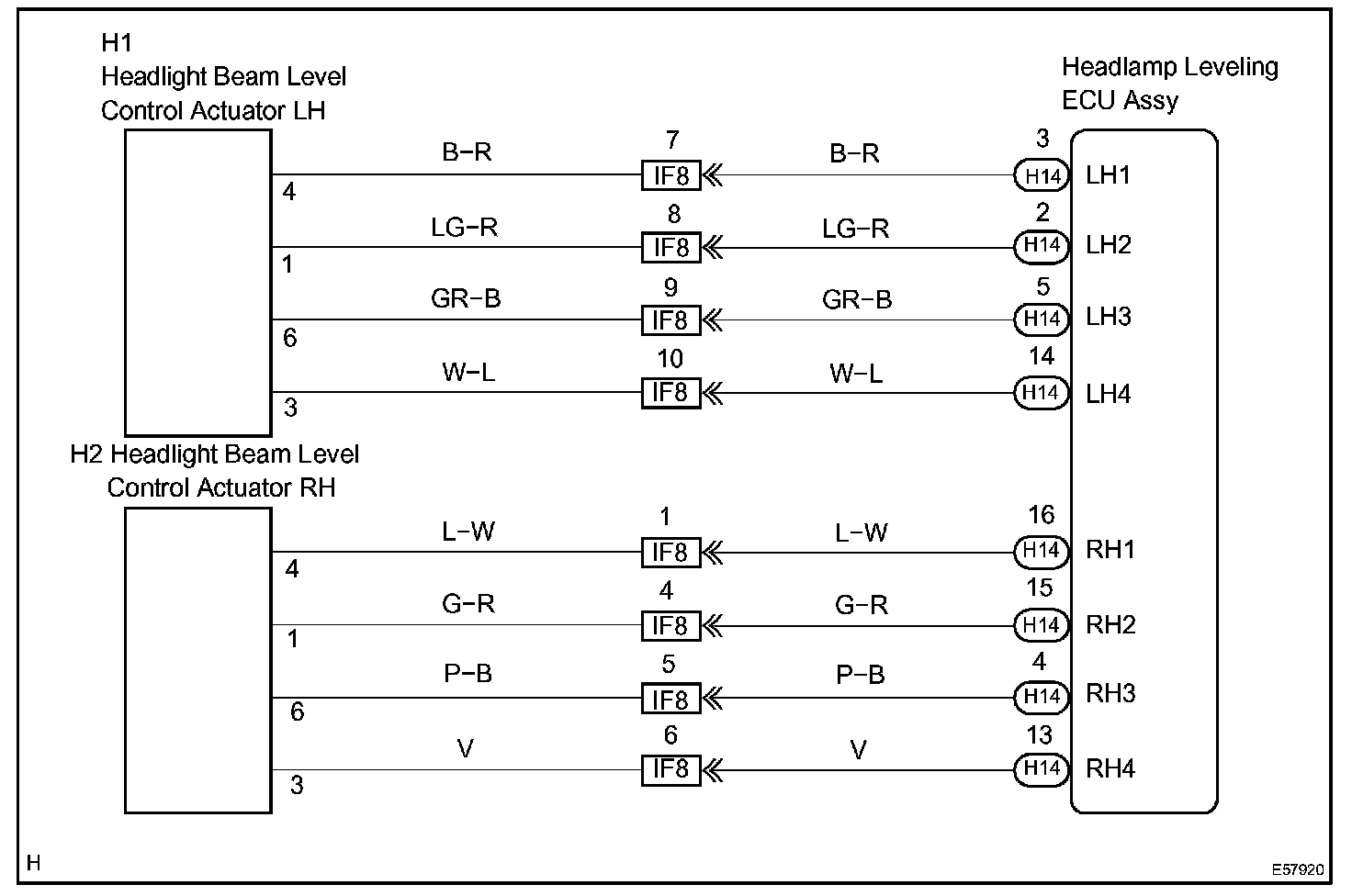

Wiring Diagram:

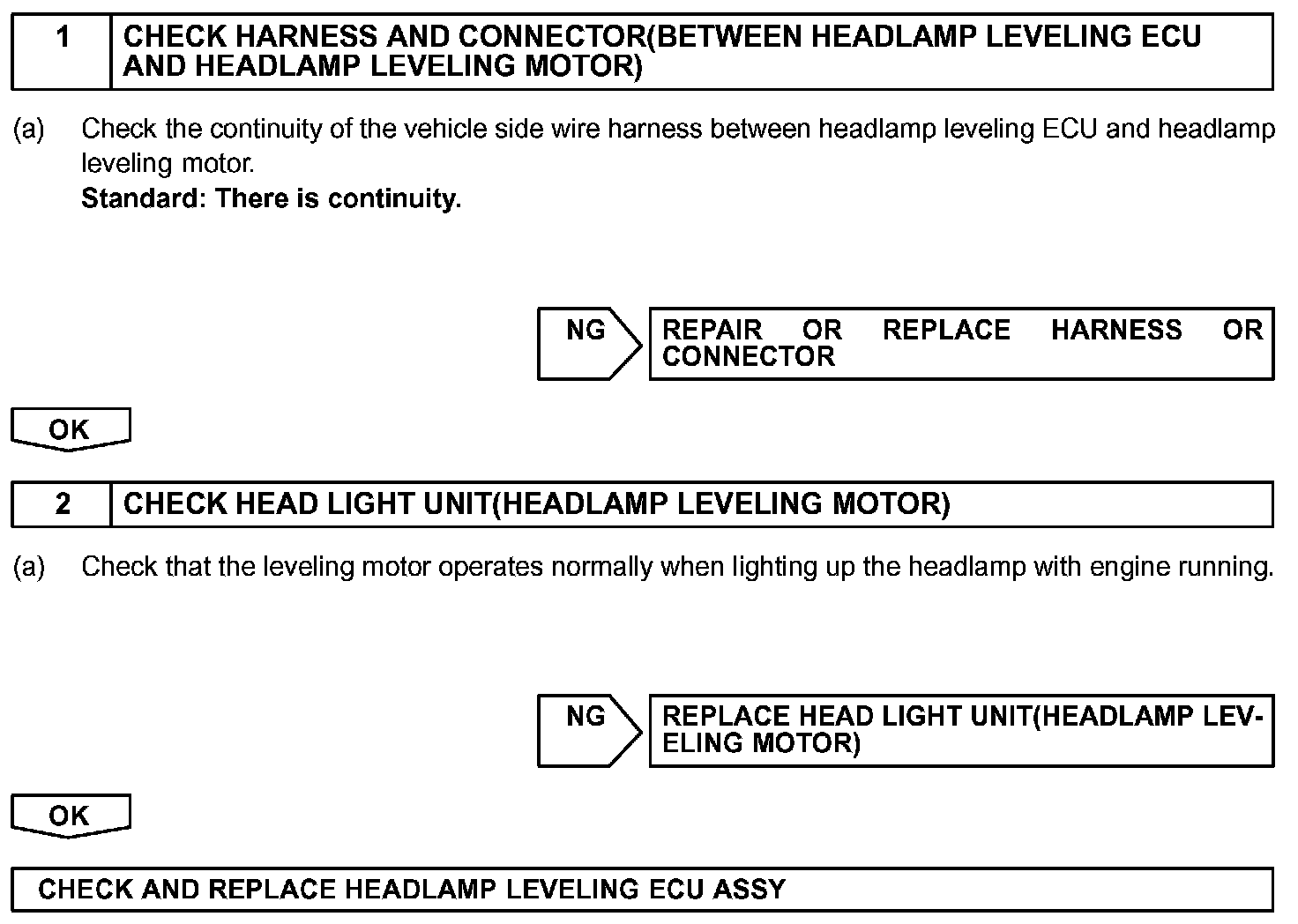

Step 1-2:
INSPECTION PROCEDURE
