Lexus
>>
2006
>>
ES 330 V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Headlamp (LO Beam, Discharge) Does Not Lights Up
Headlamp (LO Beam, Discharge) Does Not Lights Up
HEADLAMP
(LO BEAM, DISCHARGE) DOES NOT LIGHTS UP

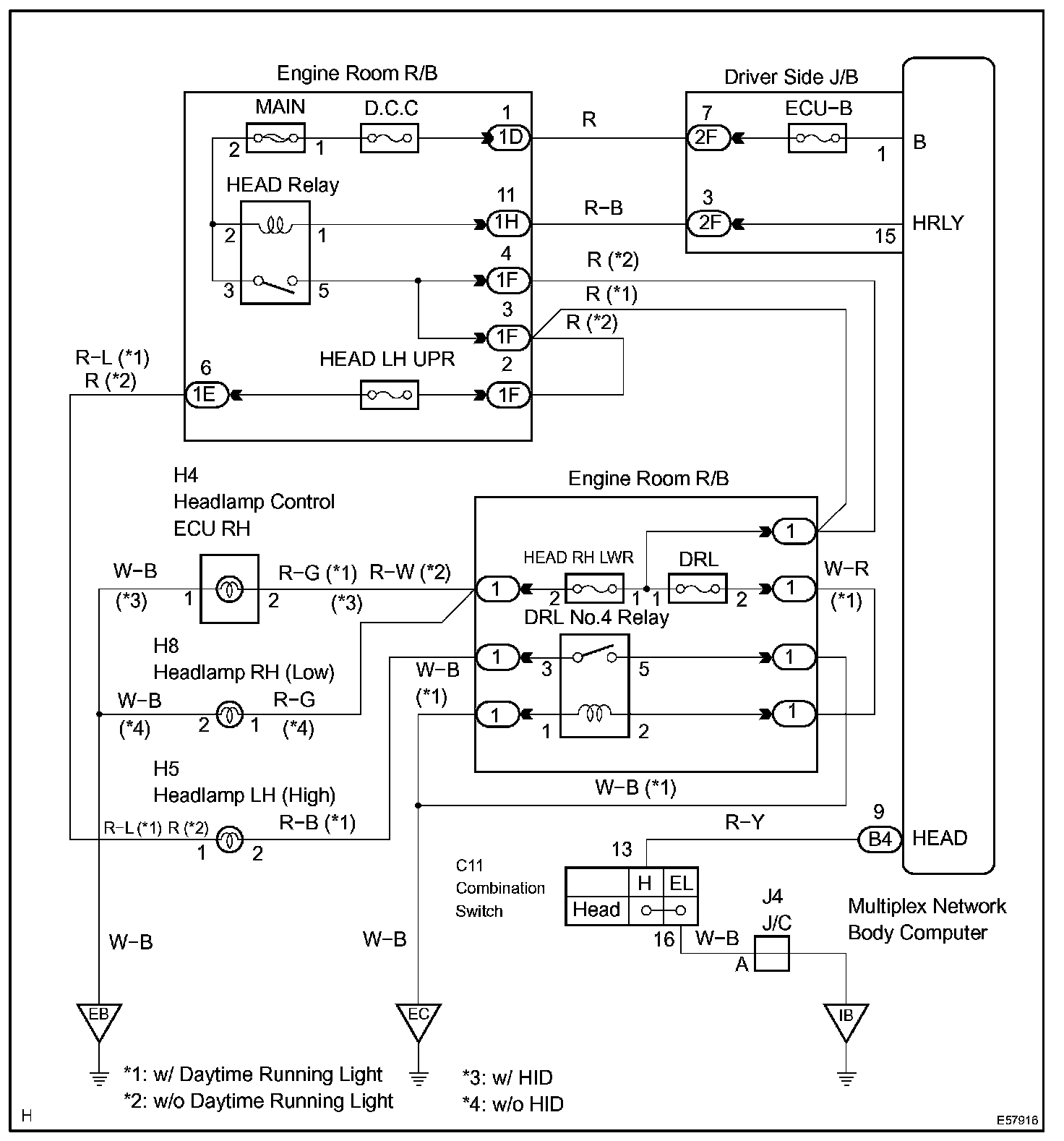

Wiring Diagram:

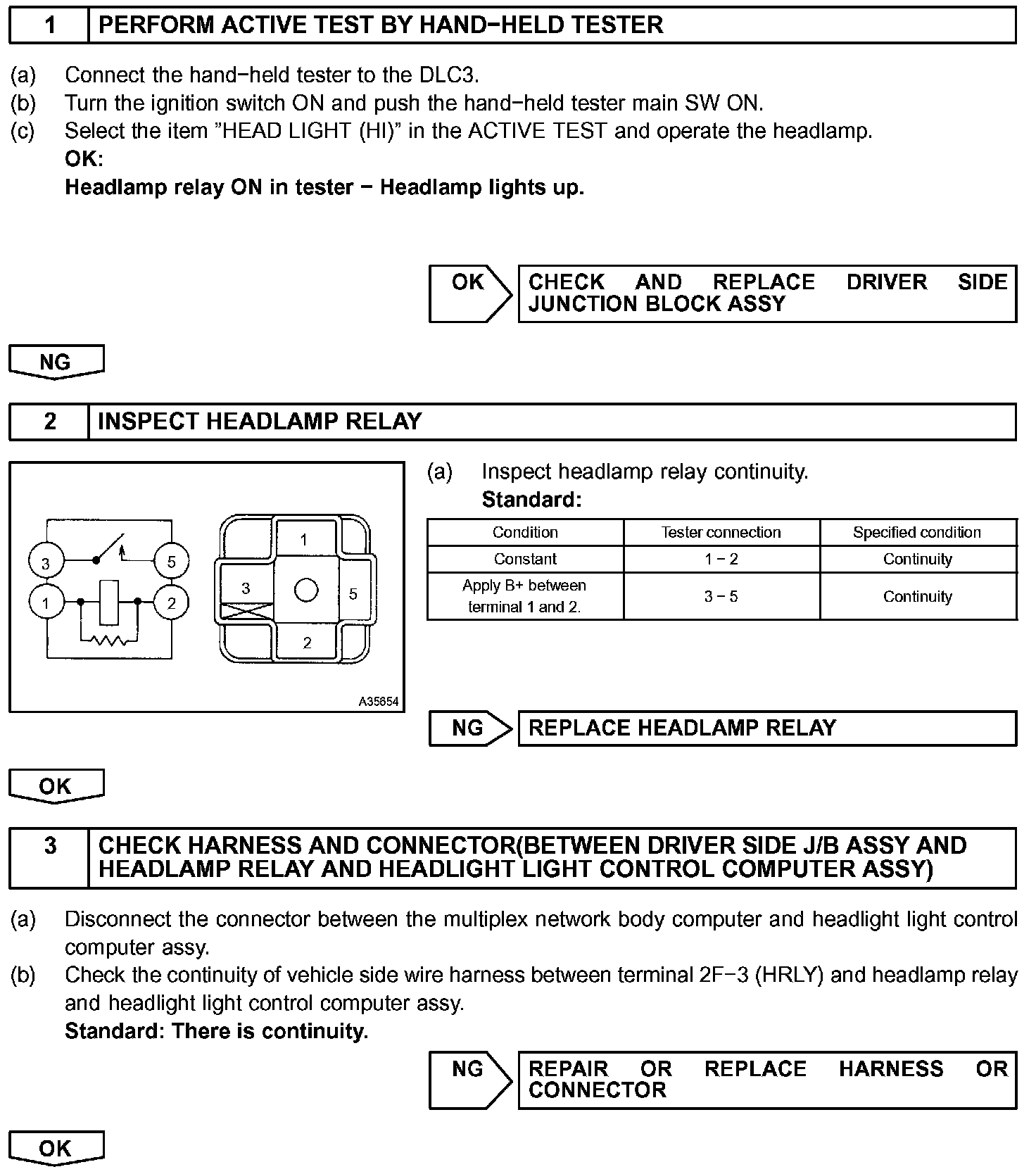

Step 1-3:

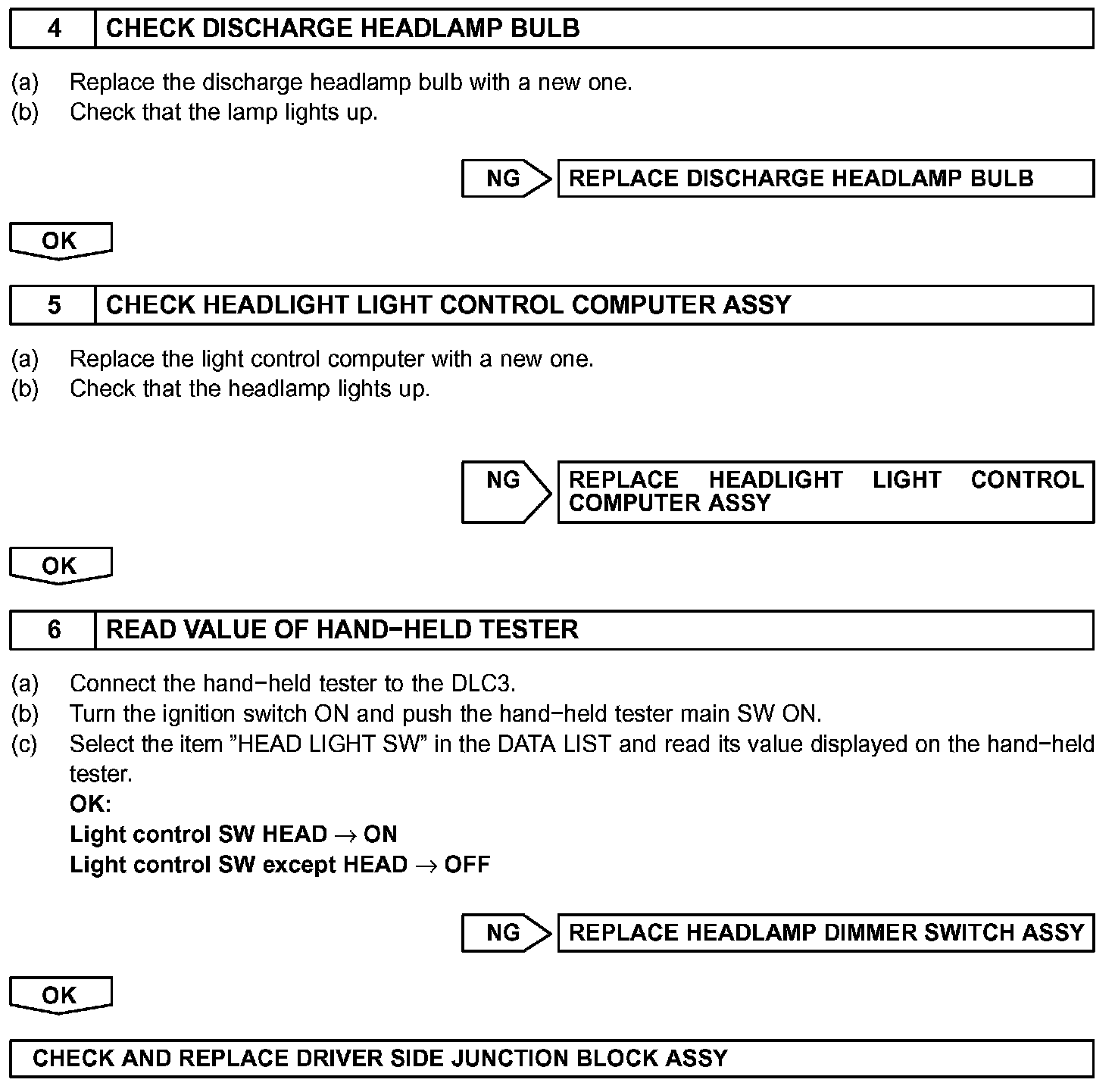

Step 4-6:
INSPECTION PROCEDURE
