Automatic Light Control System Does Not Operate
Automatic Light Control System Does Not Operate
AUTOMATIC LIGHT CONTROL SYSTEM DOES NOT OPERATE

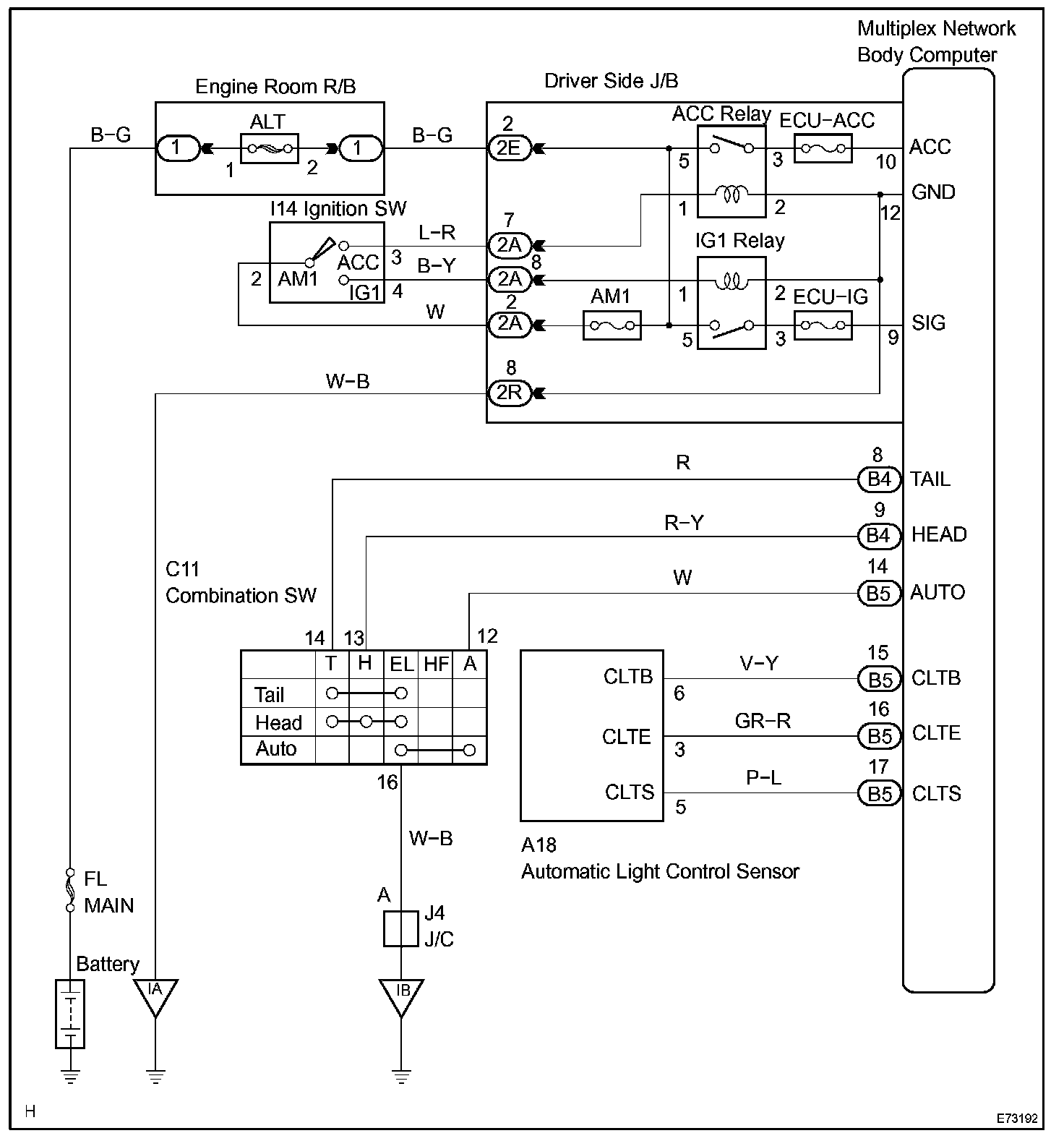

Wiring Diagram:

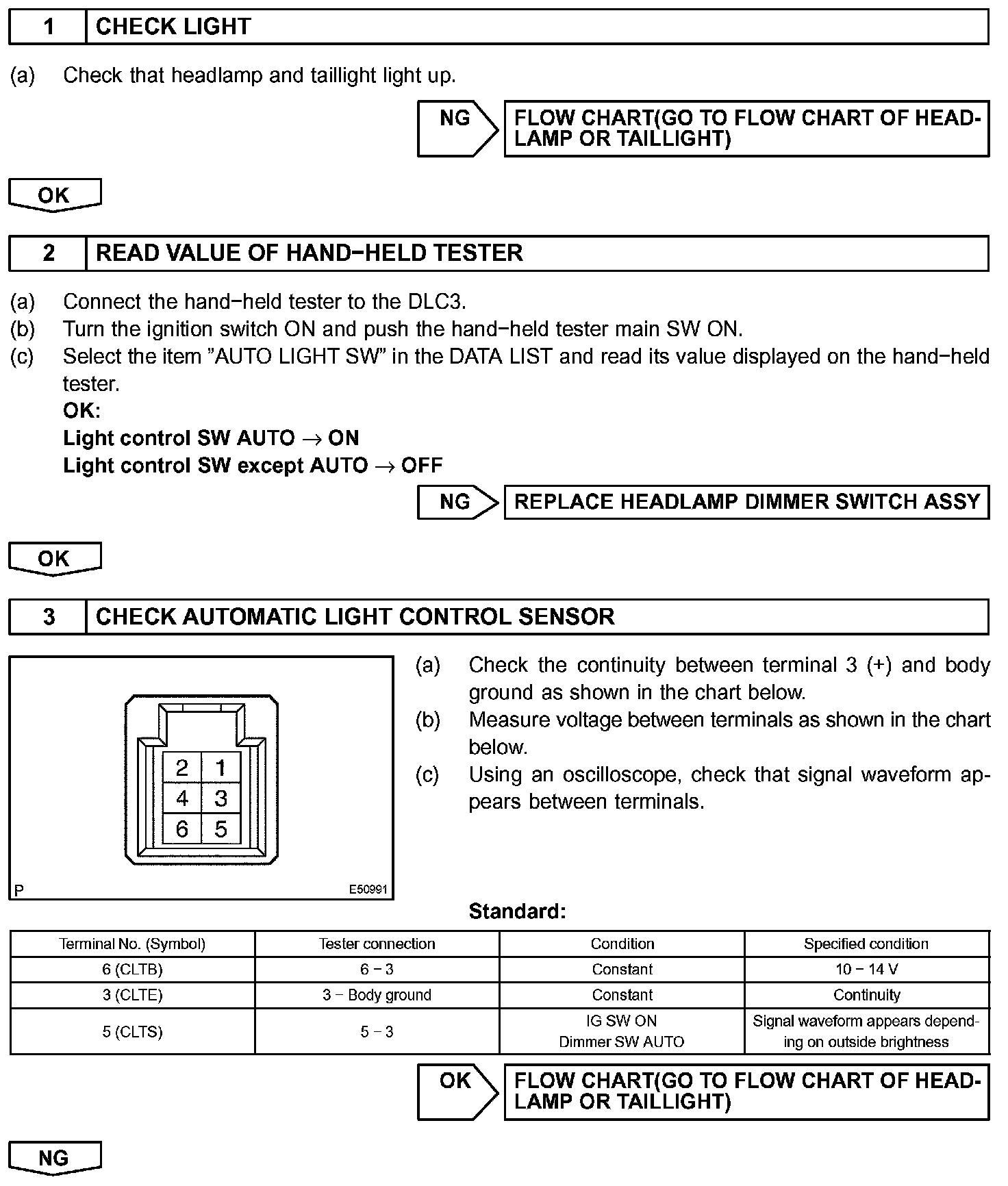

Step 1-3:

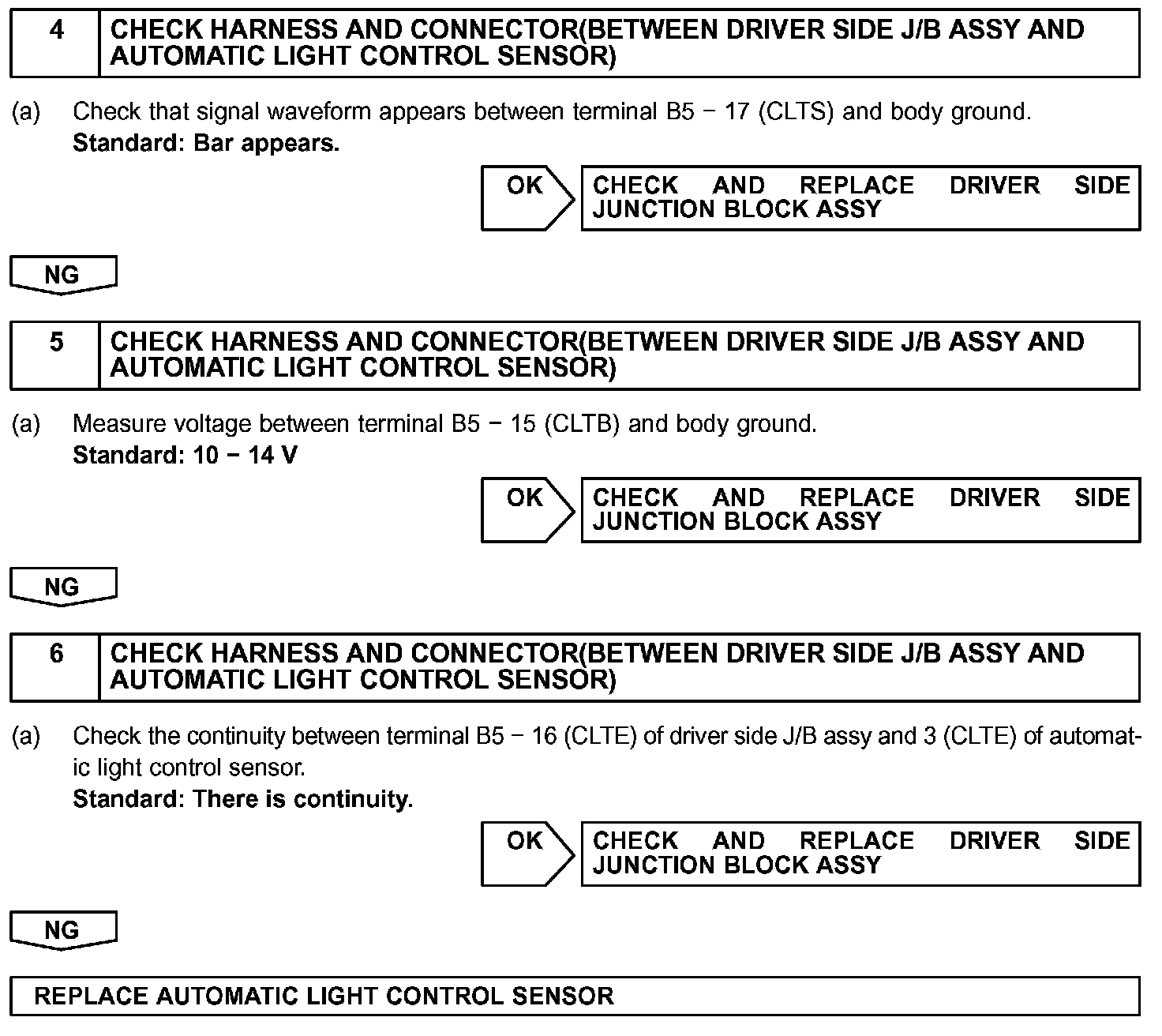

Step 4-6:
INSPECTION PROCEDURE
