Hazard Warning Flasher: Testing and Inspection

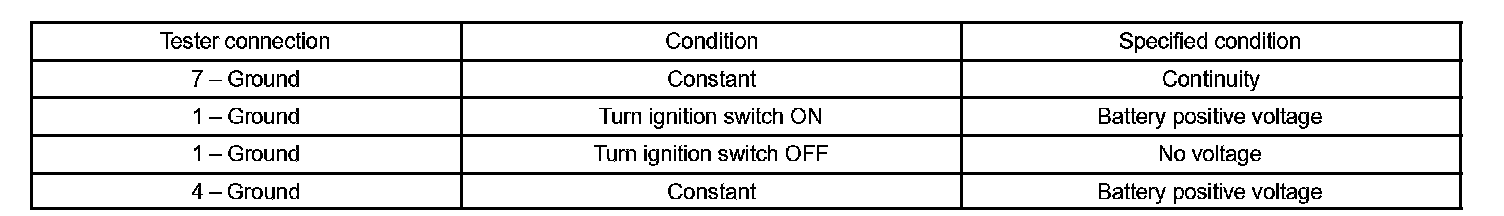

a. Measure voltage between terminals as shown in the chart.

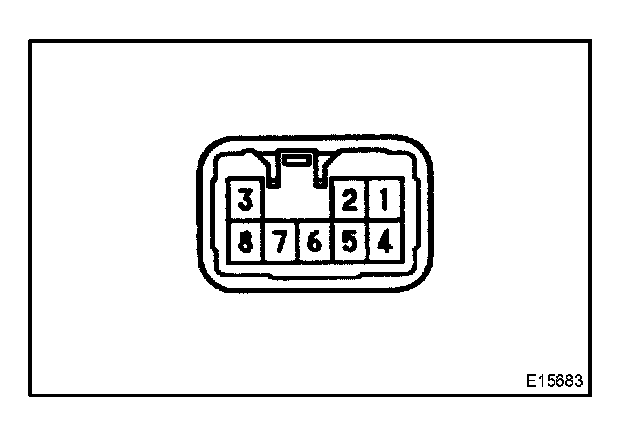

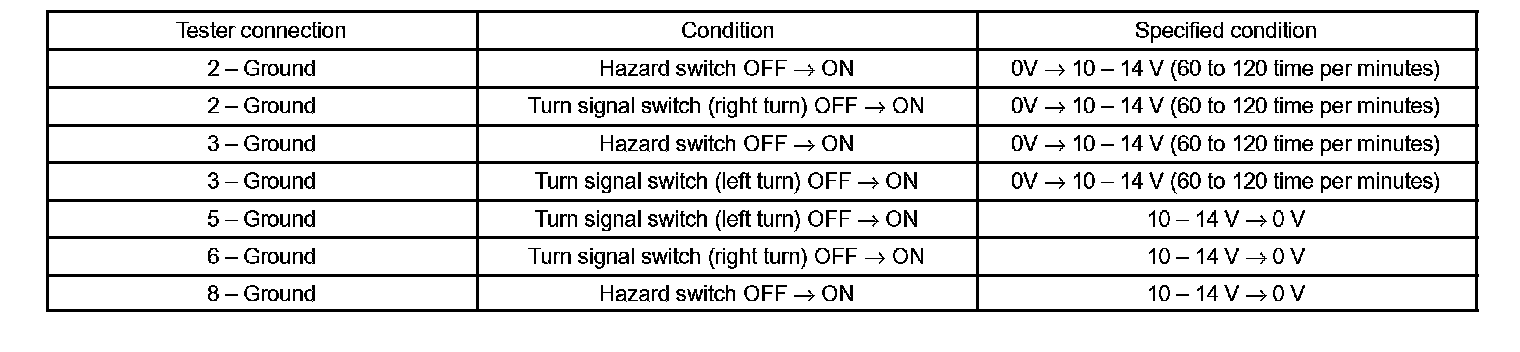

b. Connect the connector to turn signal flasher and inspect the wire harness side connector from the back side as shown in the chart.
