SEAT BELT WARNING LAMP FOR FRONT PASSENGER'S SEAT DOES NOT FLASH

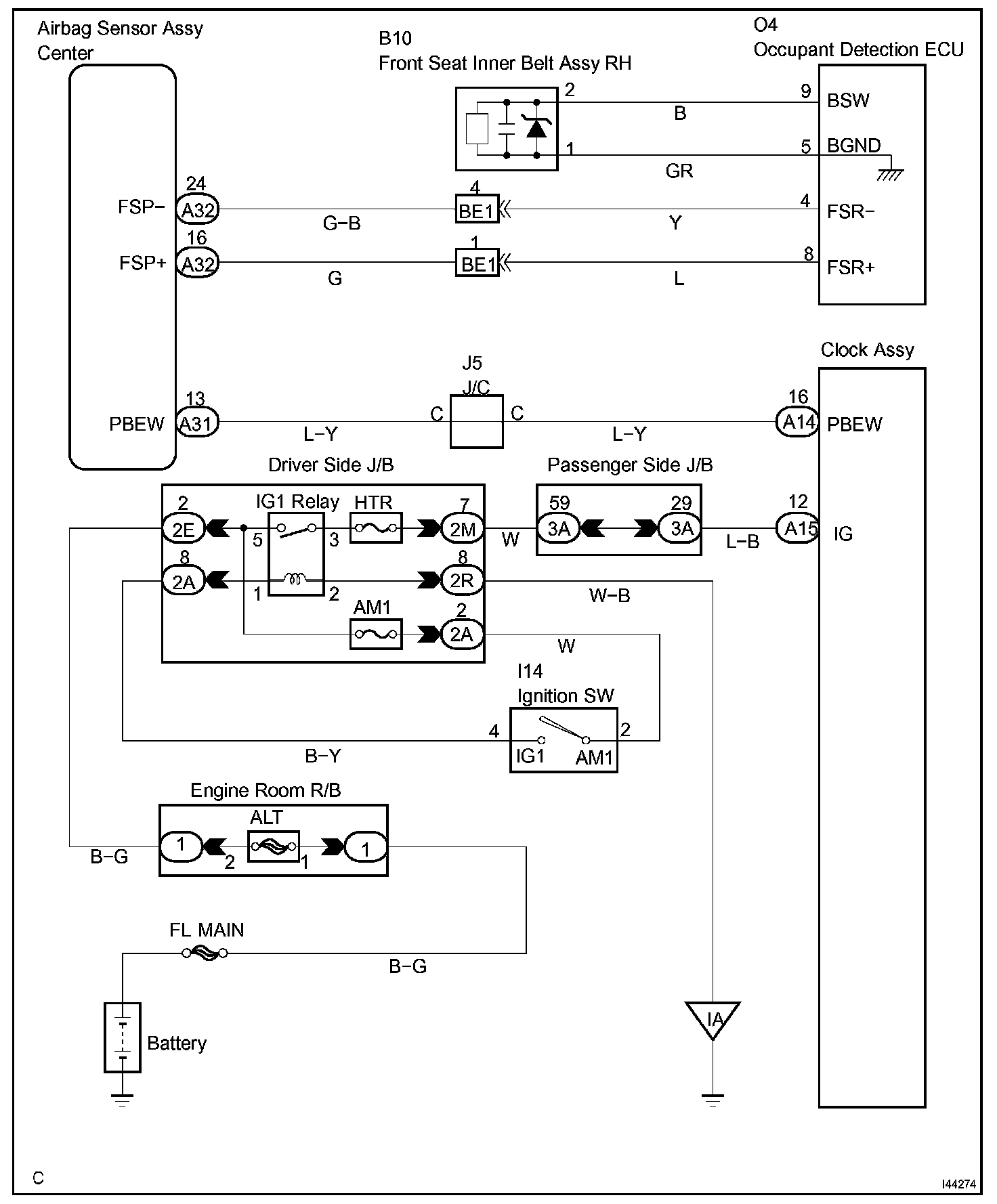

Wiring Diagram:

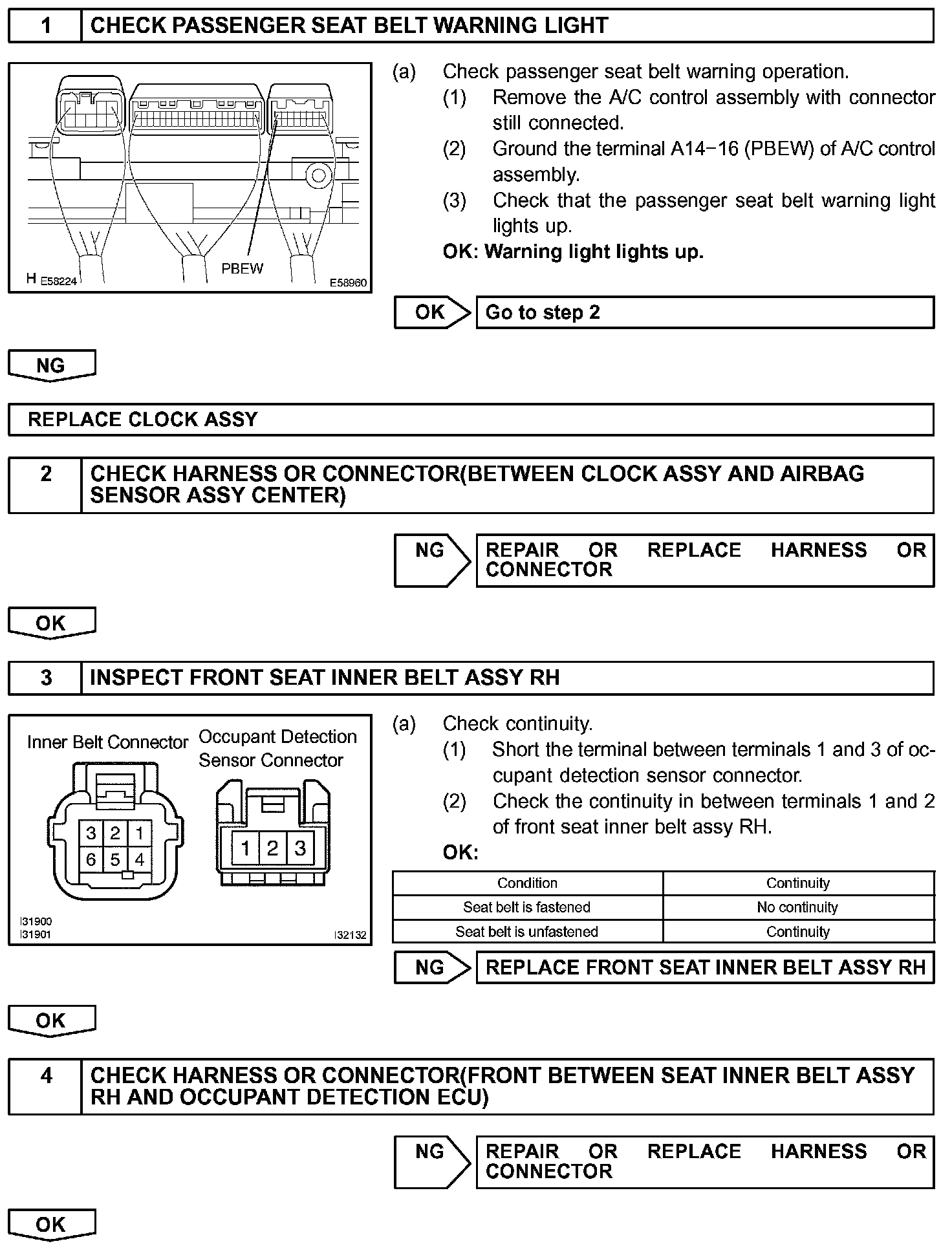

Step 1-4:

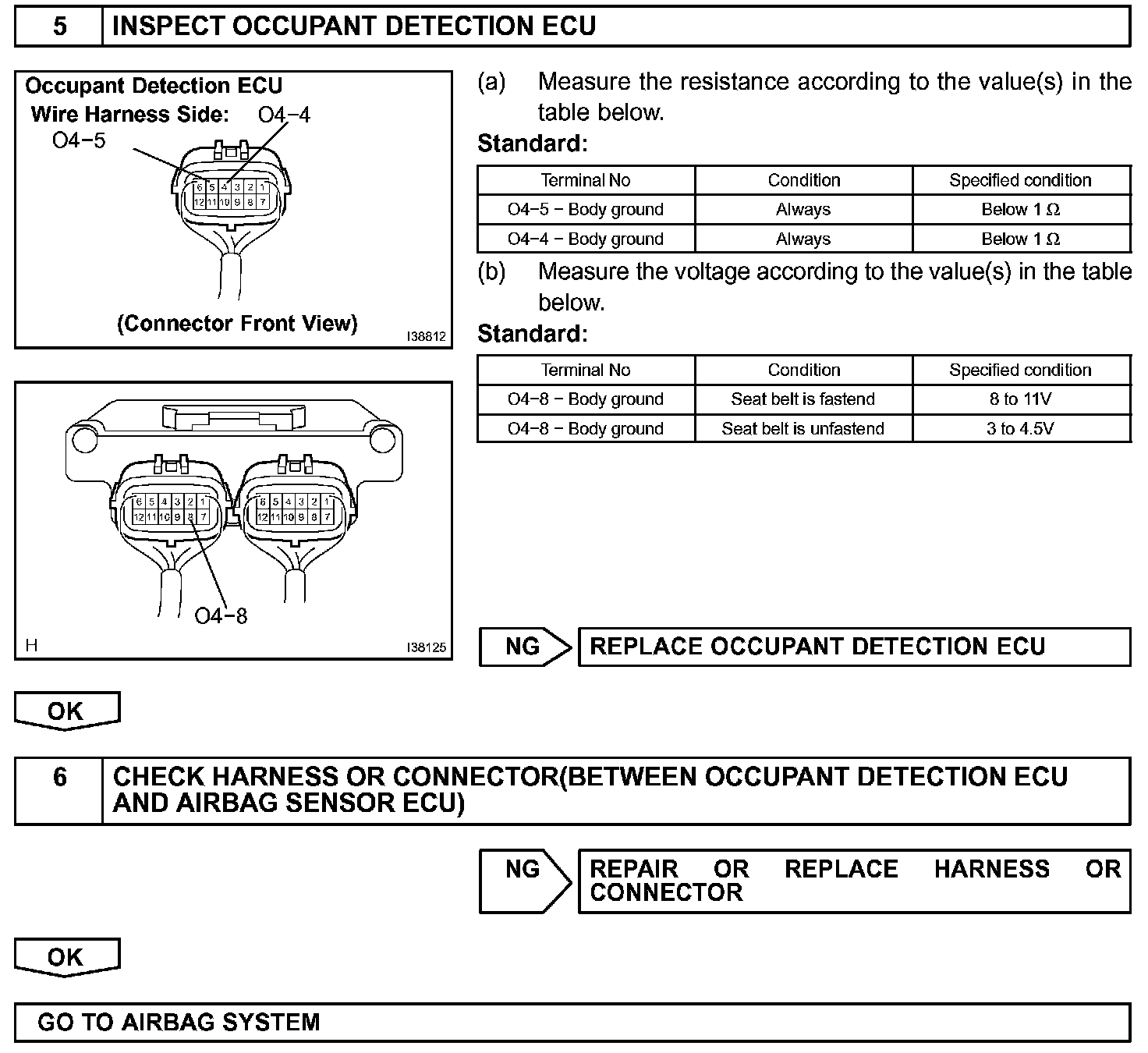

Step 5-6:
INSPECTION PROCEDURE
