Multi-Information Display Screen Does Not Change When Steering Pad Switch Is Operated

MULTI-INFORMATION DISPLAY SCREEN DOES NOT CHANGE WHEN STEERING PAD SWITCH IS OPERATED

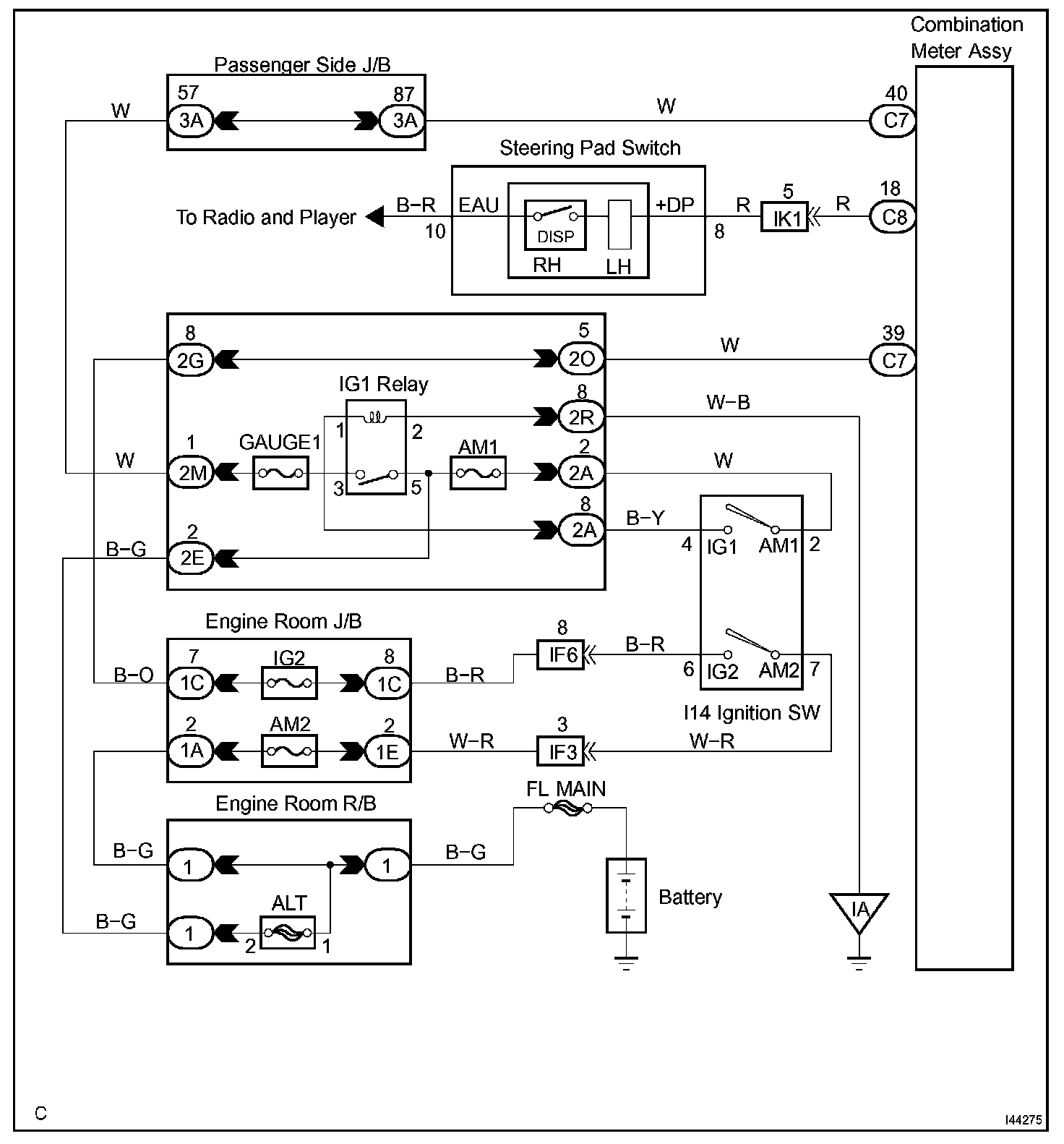

Wiring Diagram:

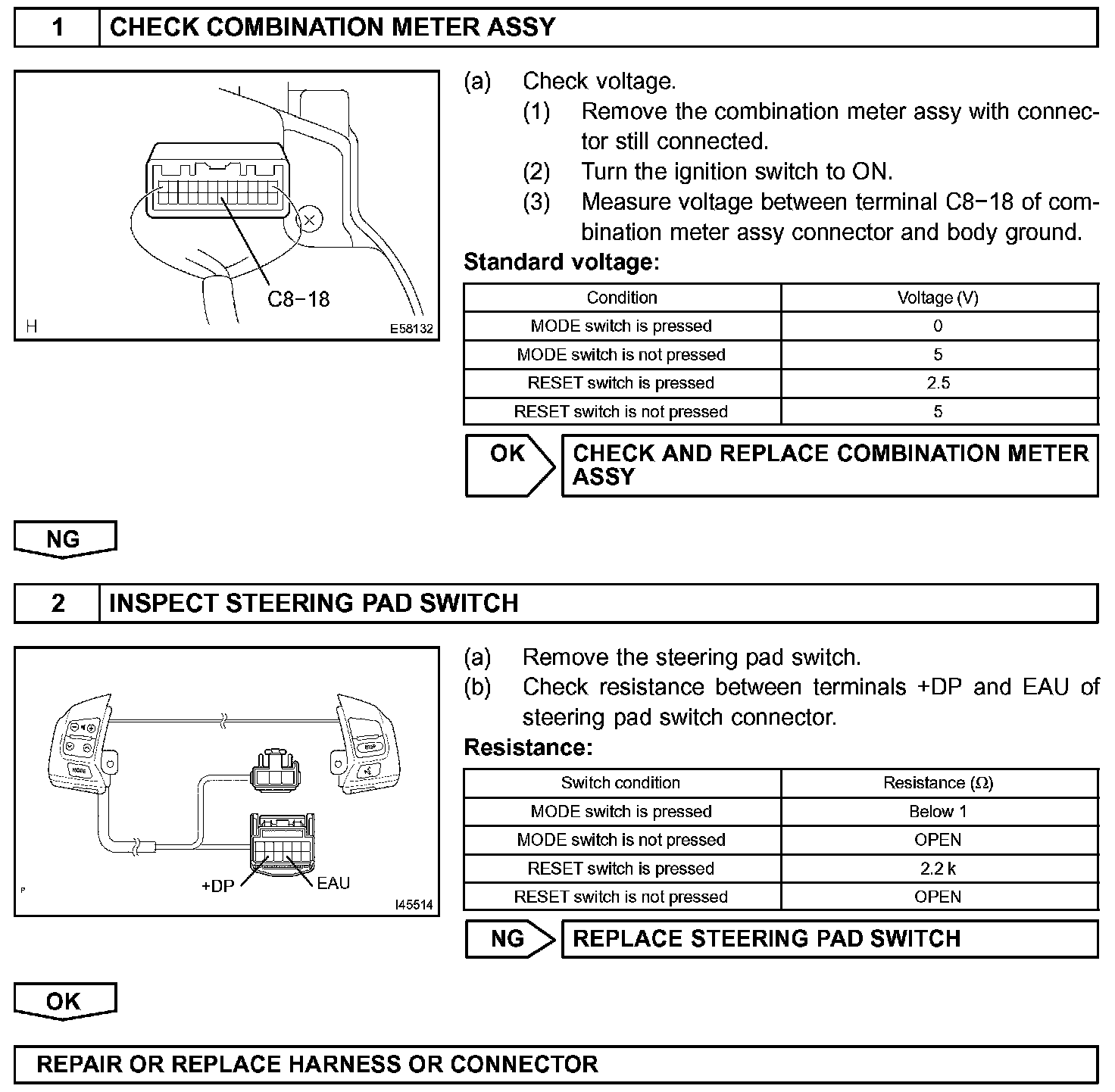

Step 1-2:




INSPECTION PROCEDURE
