Malfunction In Water Temperature Receiver Gauge

MALFUNCTION IN WATER TEMPERATURE RECEIVER GAUGE

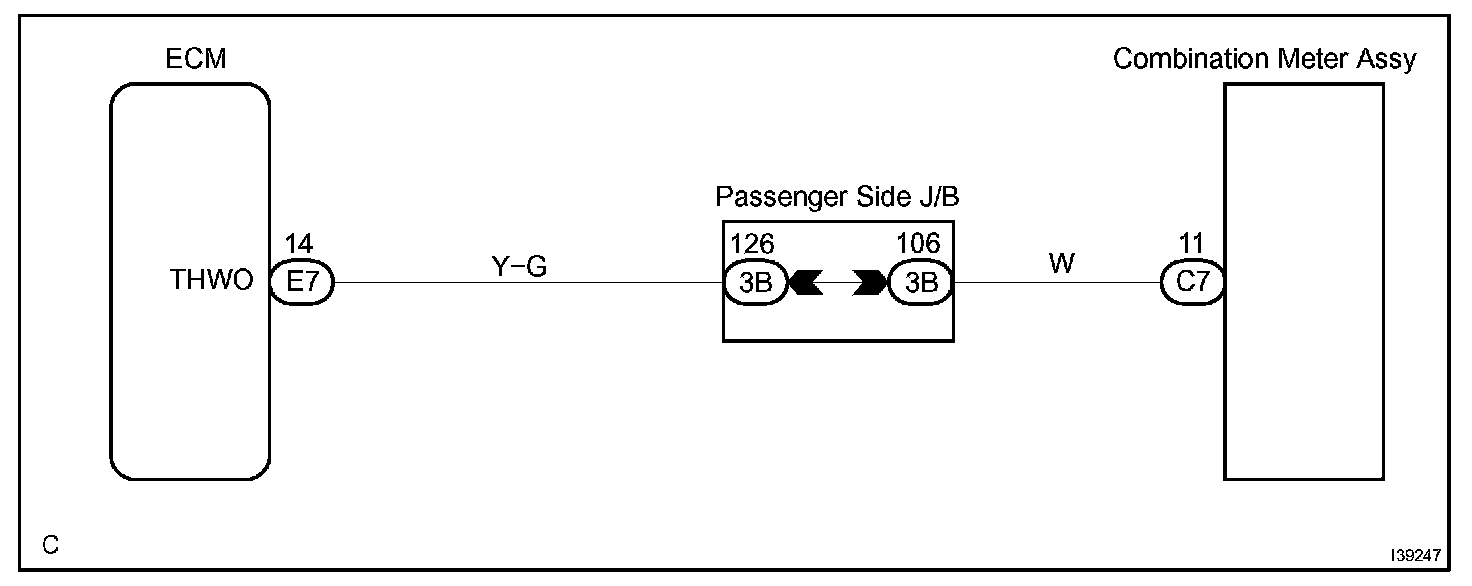

Wiring Diagram:

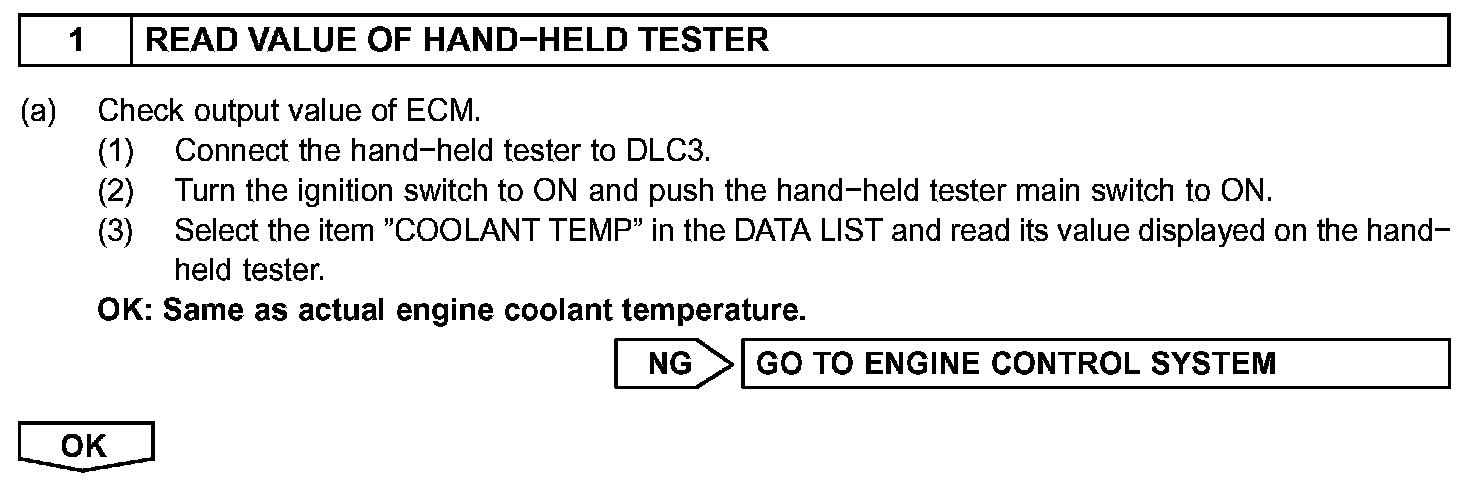

Step 1:




Step 2:




INSPECTION PROCEDURE
