Malfunction In Clock Display

MALFUNCTION IN CLOCK DISPLAY

Wiring Diagram:

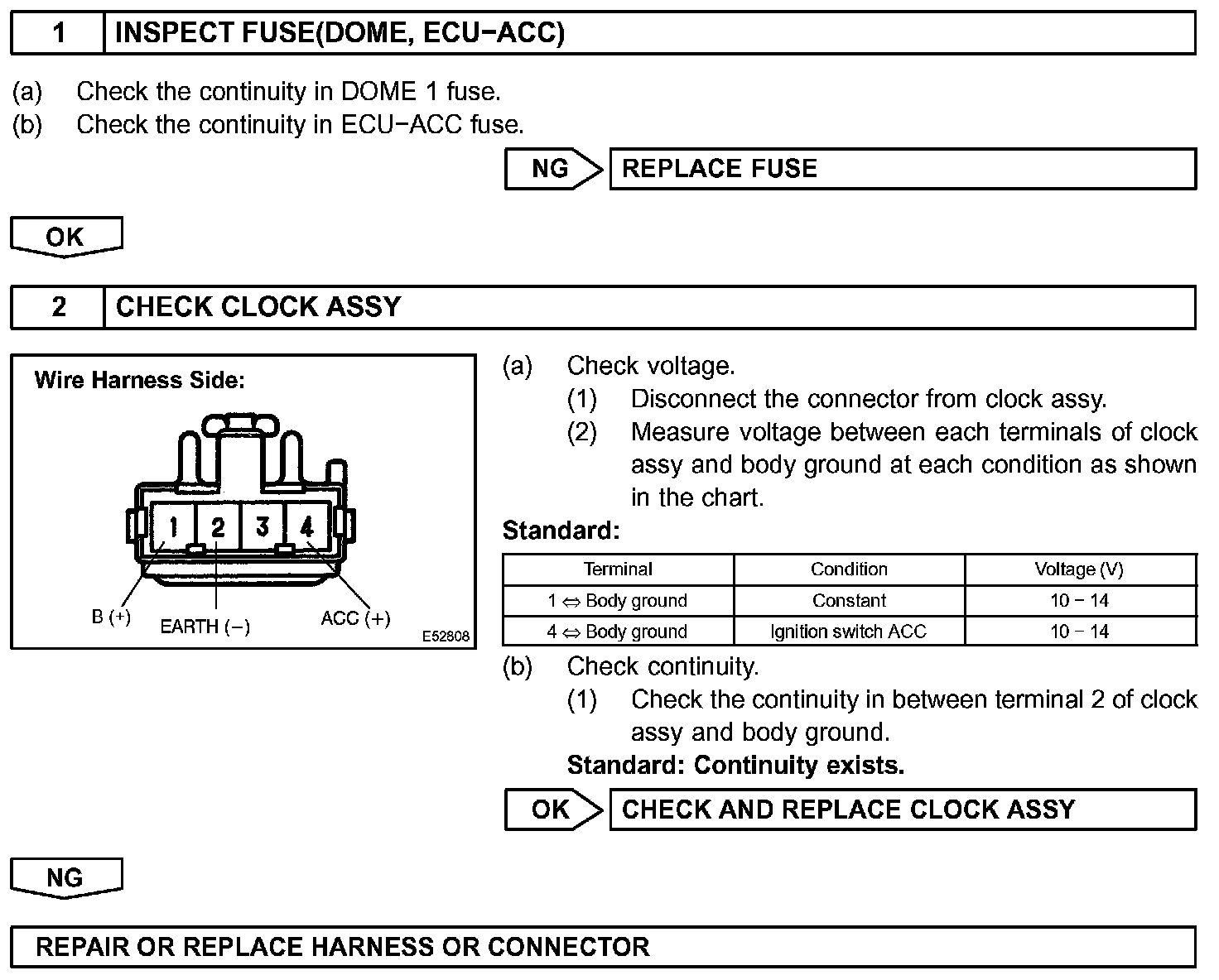

Step 1-2:




INSPECTION PROCEDURE
