Home >> Lexus >> 2006 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Tools and Equipment

Heating and Air Conditioning: Tools and Equipment

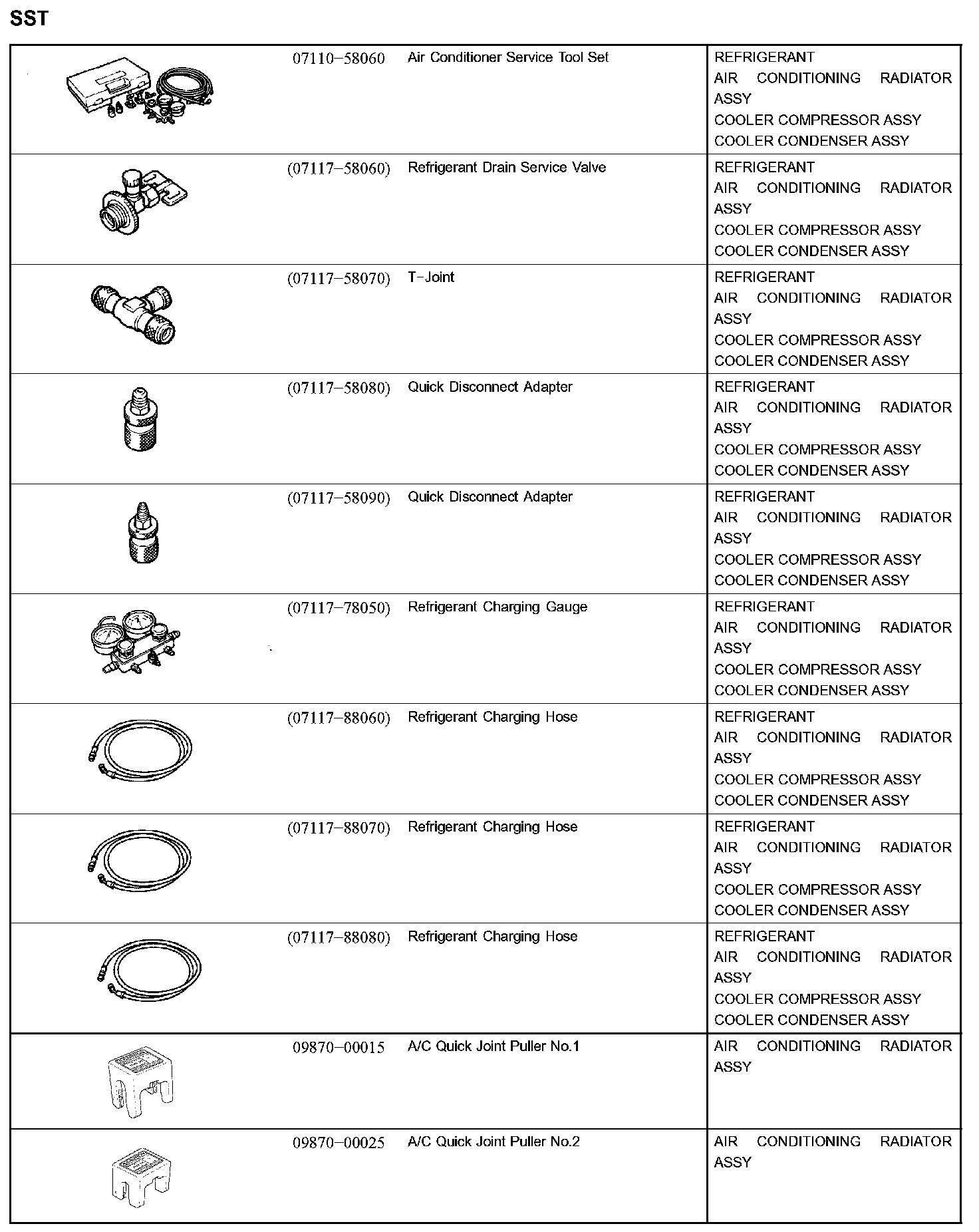

Heater & Air Conditioner-SST (Part 1):

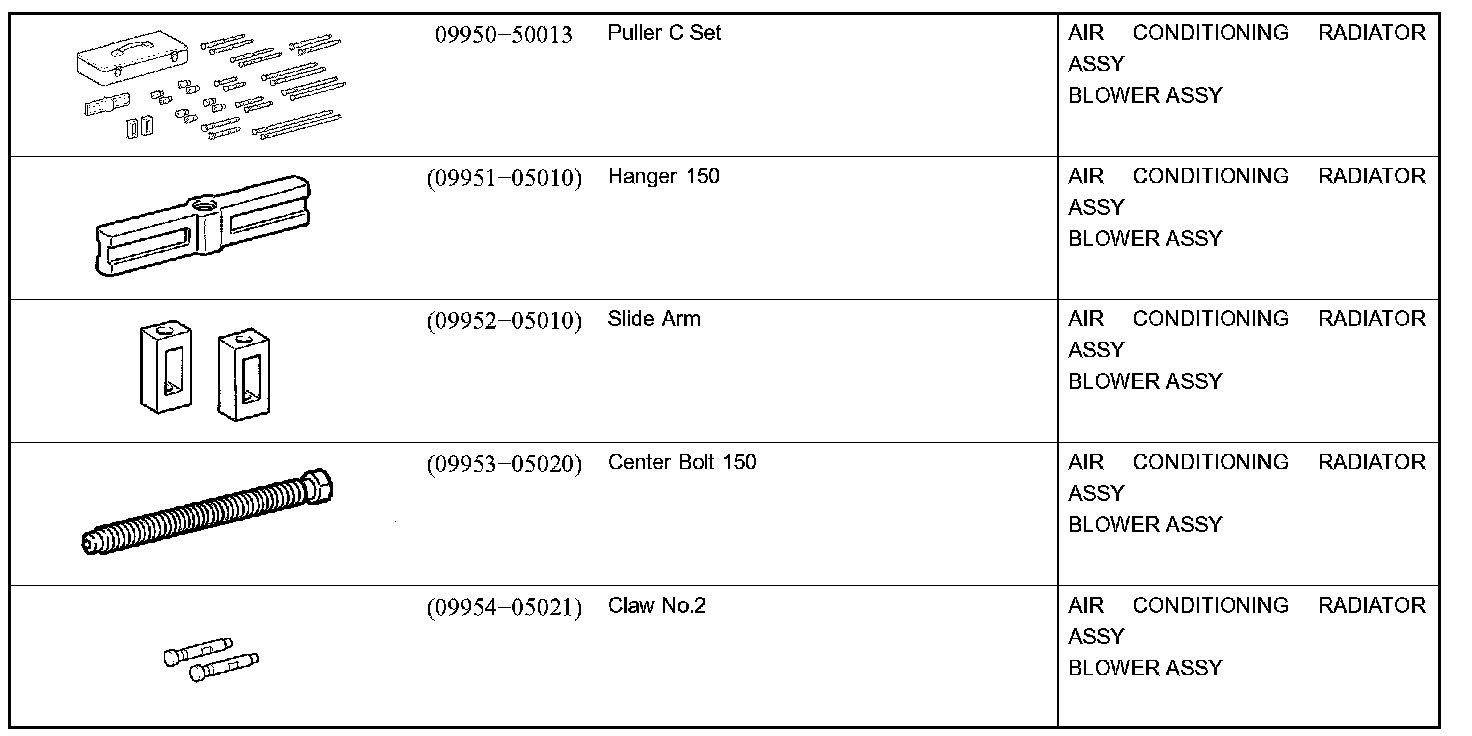

Heater & Air Conditioner-SST (Part 2):

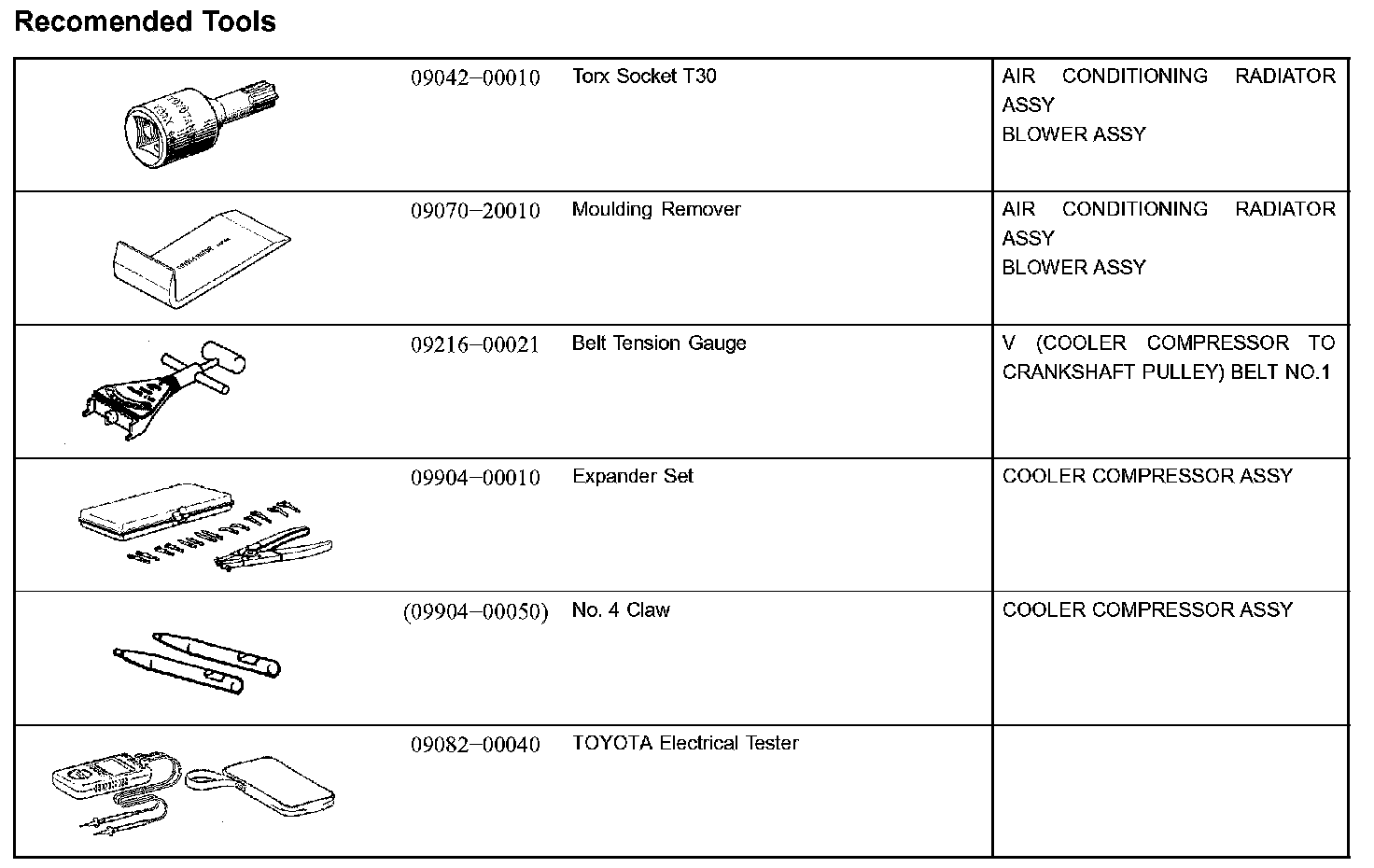

Heater & Air Conditioner-Recommended Tools:

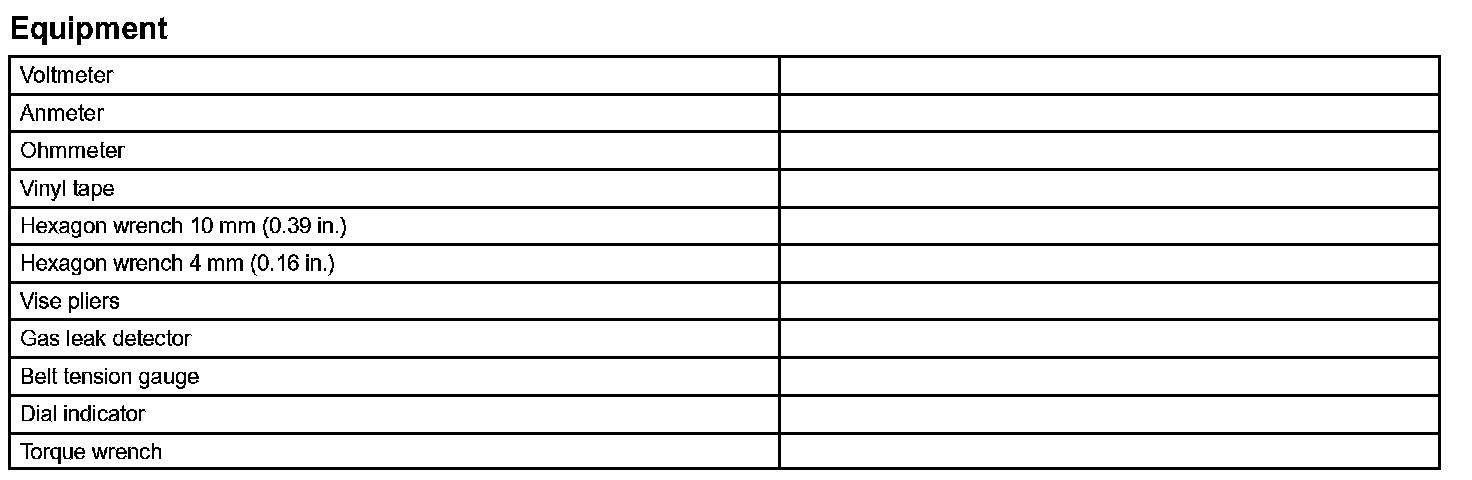

Heater & Air Conditioner-Equipment:
