Vehicle Speed Signal Circuit

VEHICLE SPEED SIGNAL CIRCUIT

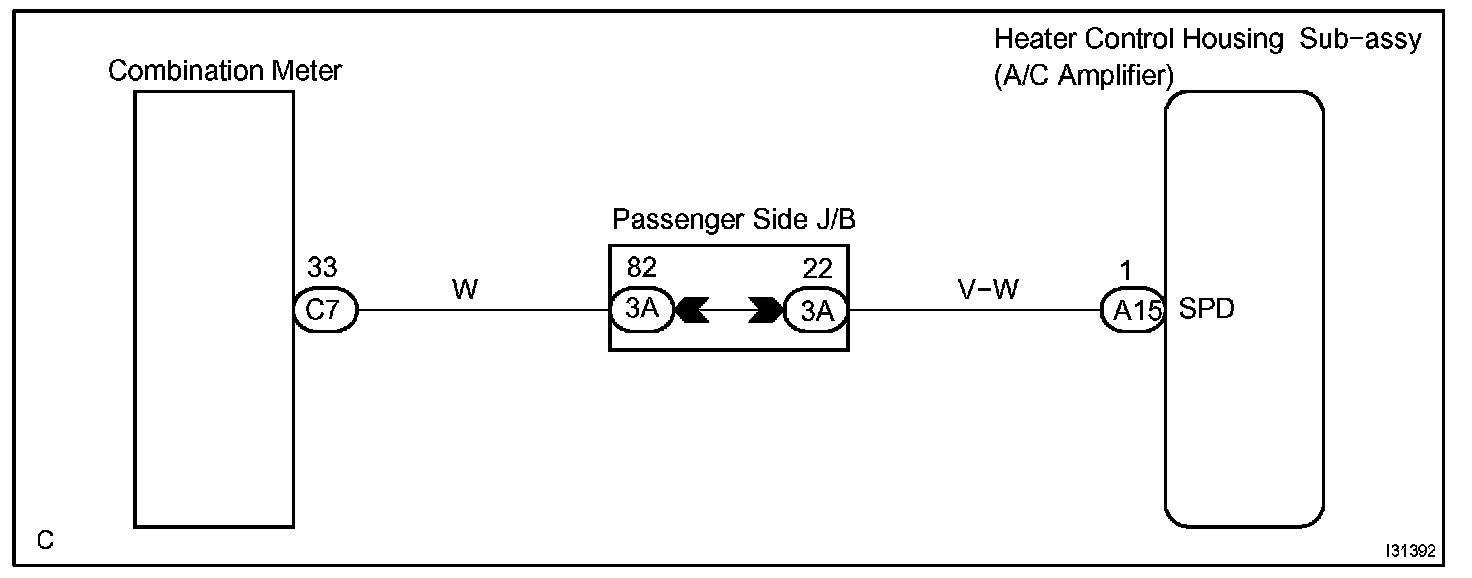

CIRCUIT DESCRIPTION
This A/C amplifier monitors signals from the speed sensor via the combination meter. The A/C amplifier assy uses these signals to revise the ambient temperature sensor signal.
