Seat Blower Control Circuit

SEAT BLOWER CONTROL CIRCUIT

CIRCUIT DESCRIPTION
The seat blower changes airflow volume according to a signal from the A/C amplifier.

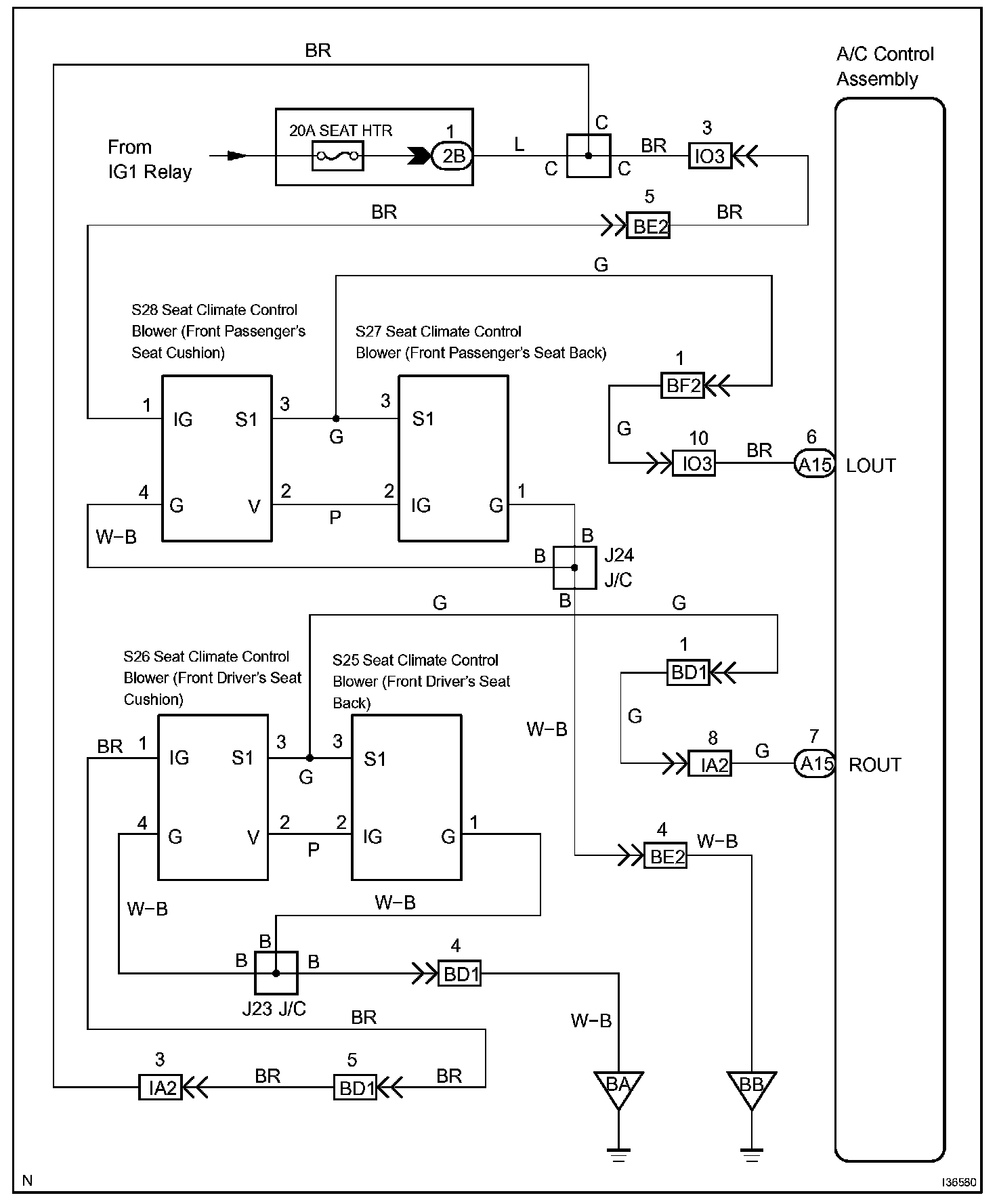

Wiring Diagram:

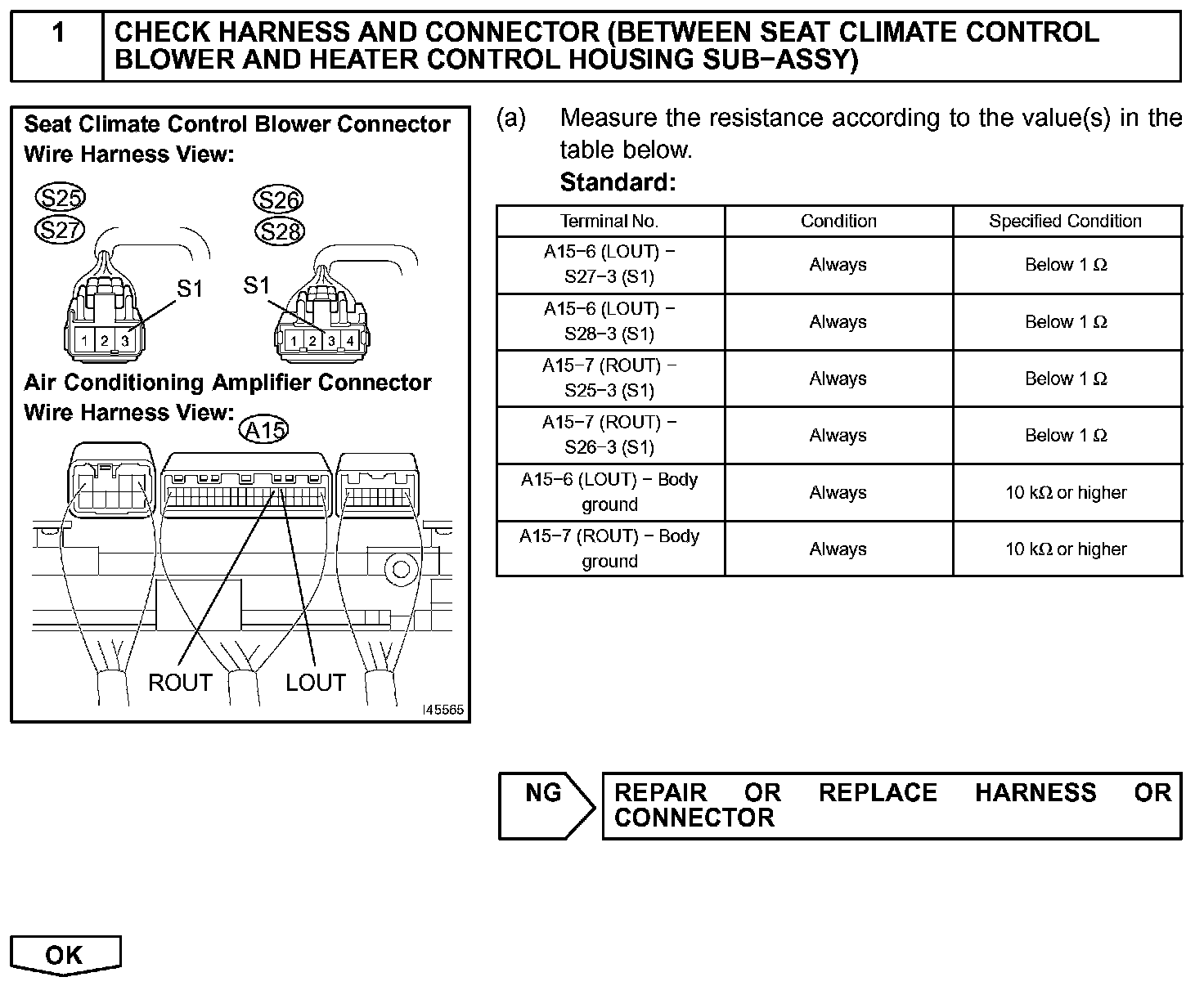

Step 1:

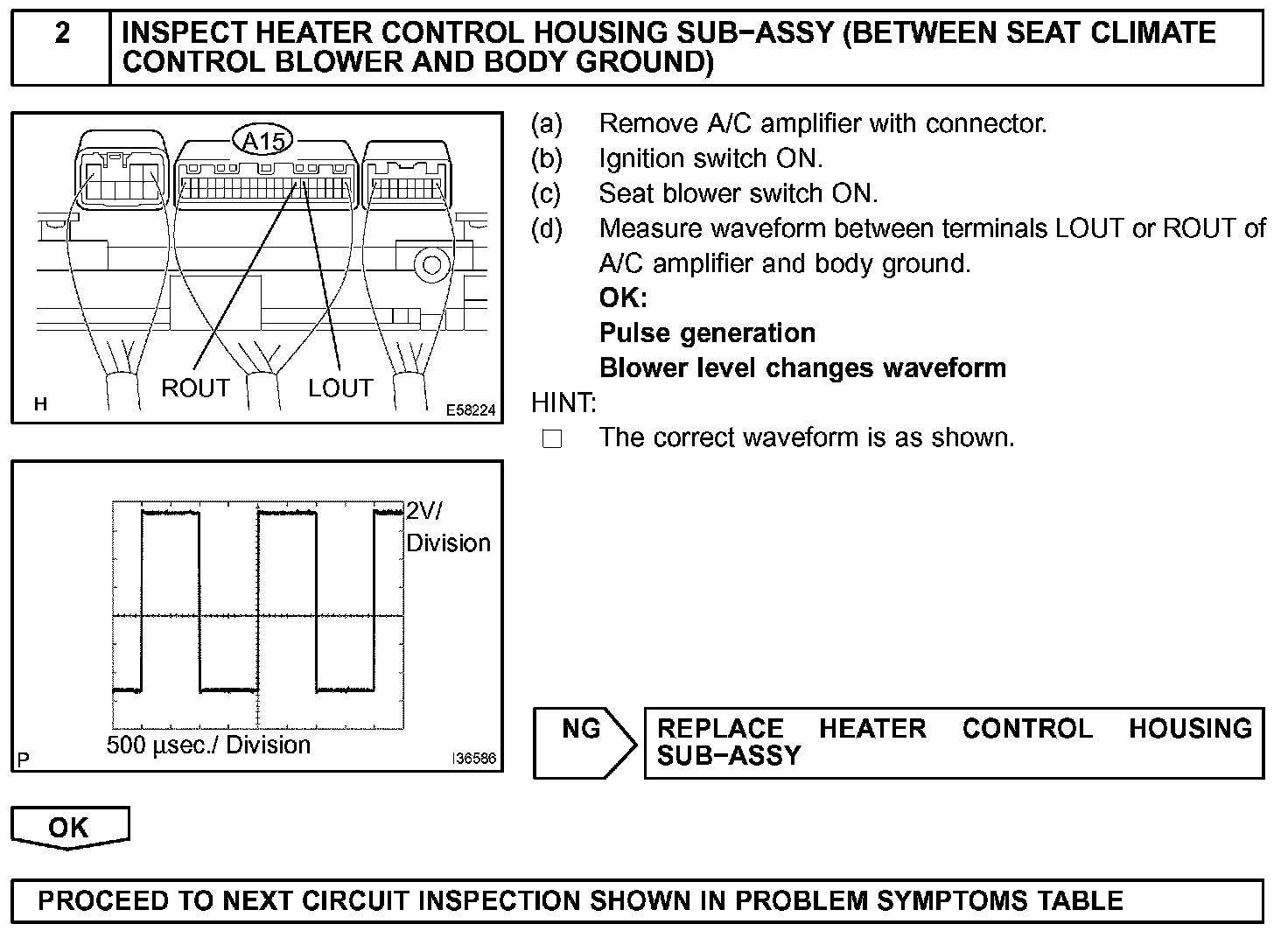

Step 2:




INSPECTION PROCEDURE
