Heater Relay Circuit

HEATER RELAY CIRCUIT

CIRCUIT DESCRIPTION
The heater relay is switched on by signals from the A/C amplifier. It supplies power to the blower motor.

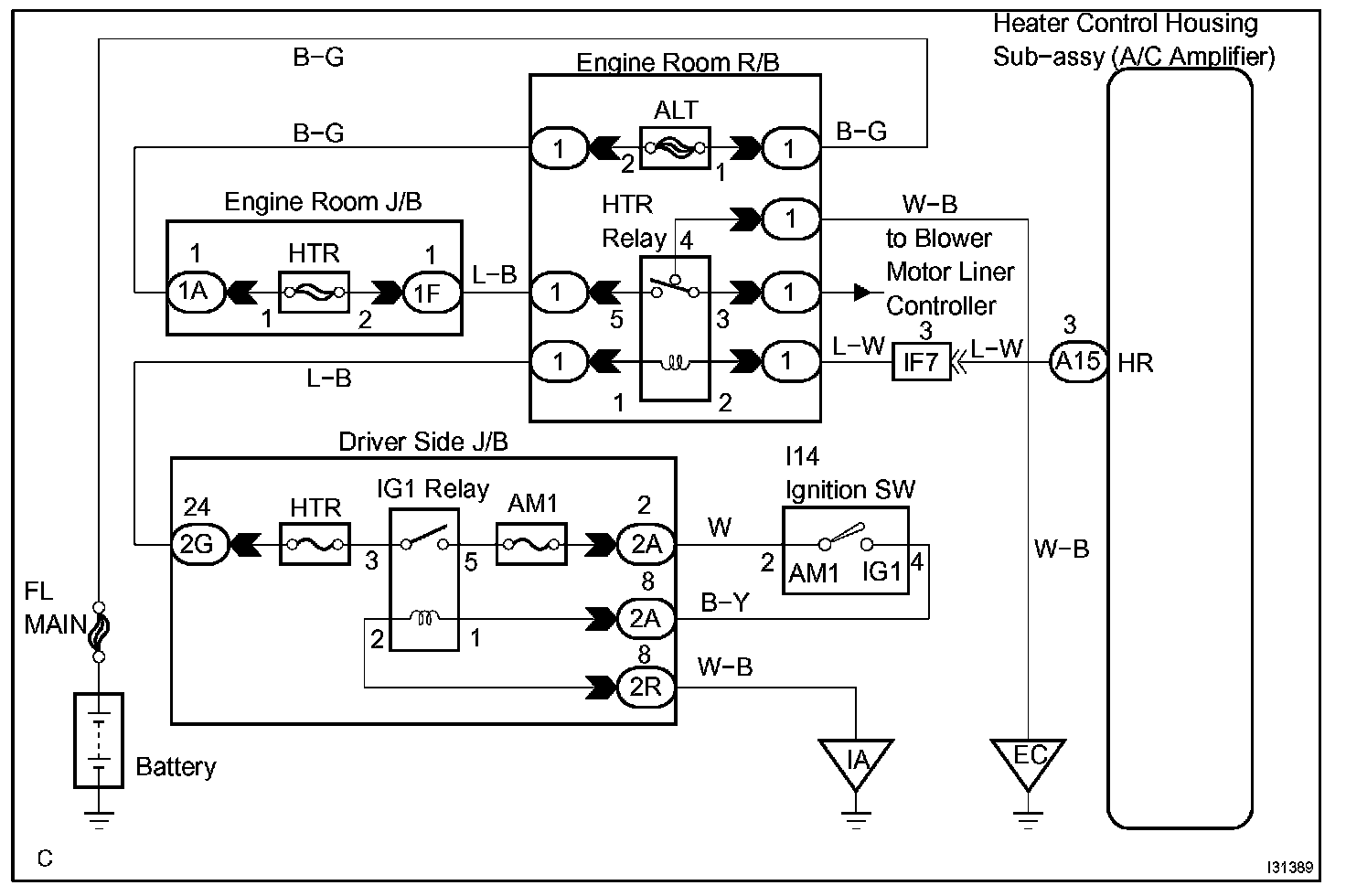

Wiring Diagram:

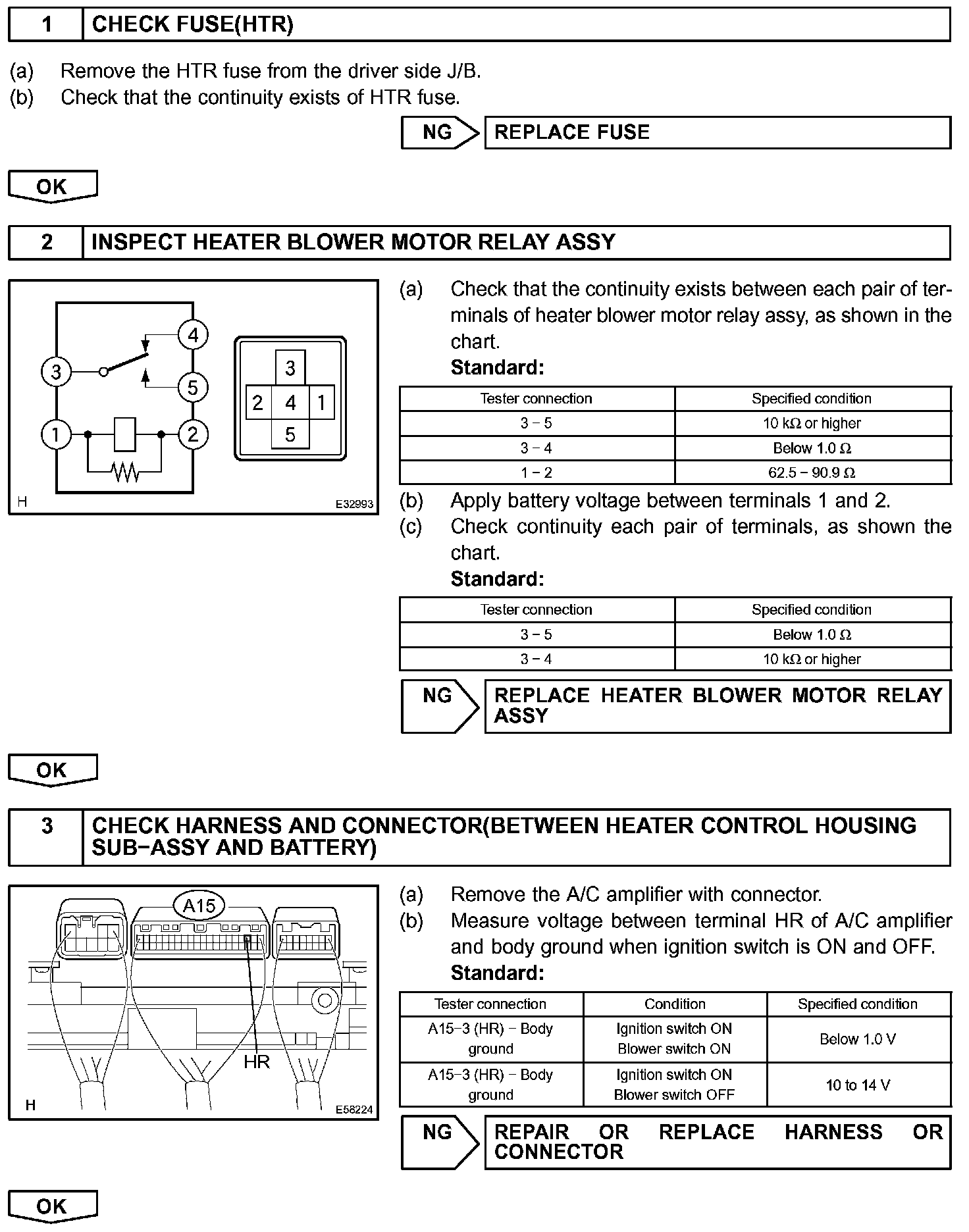

Step 1-3:

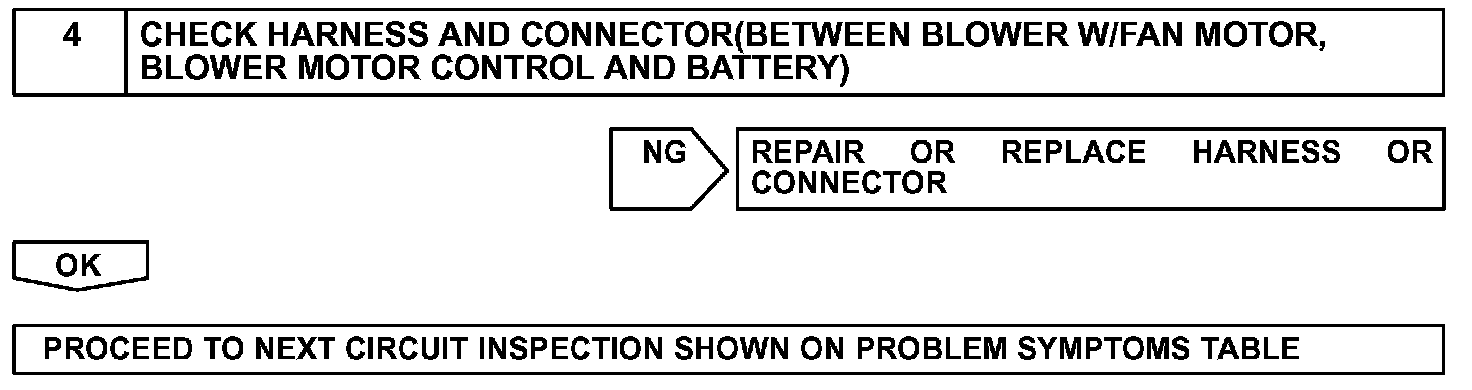

INSPECTION PROCEDURE
