Compressor Magnetic Clutch Circuit

COMPRESSOR CIRCUIT

CIRCUIT DESCRIPTION
The A/C amplifier outputs the magnetic clutch ON signal from terminal AC1 to the ECM receives this signal, it sends a signal from terminal ACMG and switches the magnetic clutch relay ON, thus turning on the magnetic clutch.

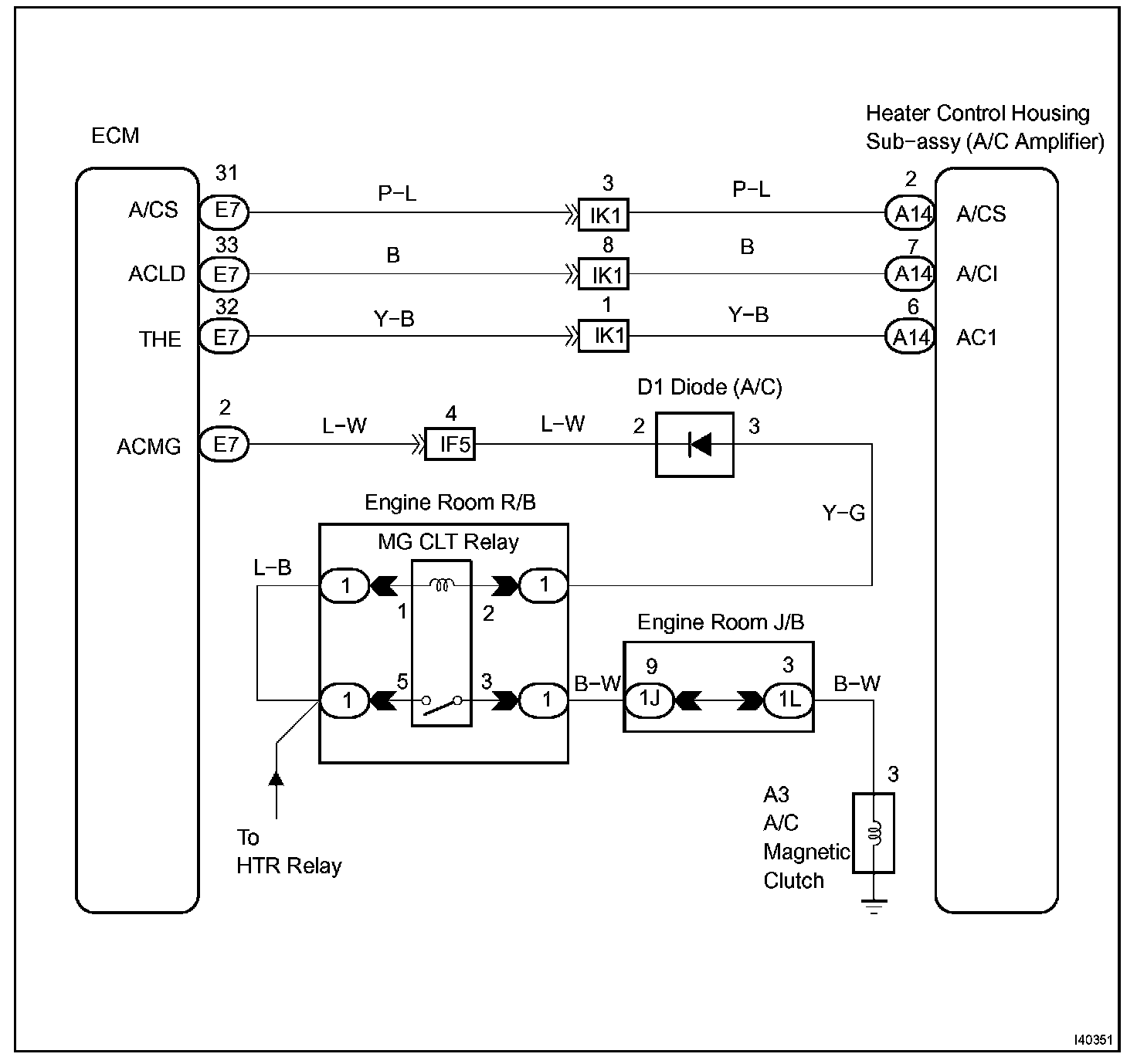

Wiring Diagram:

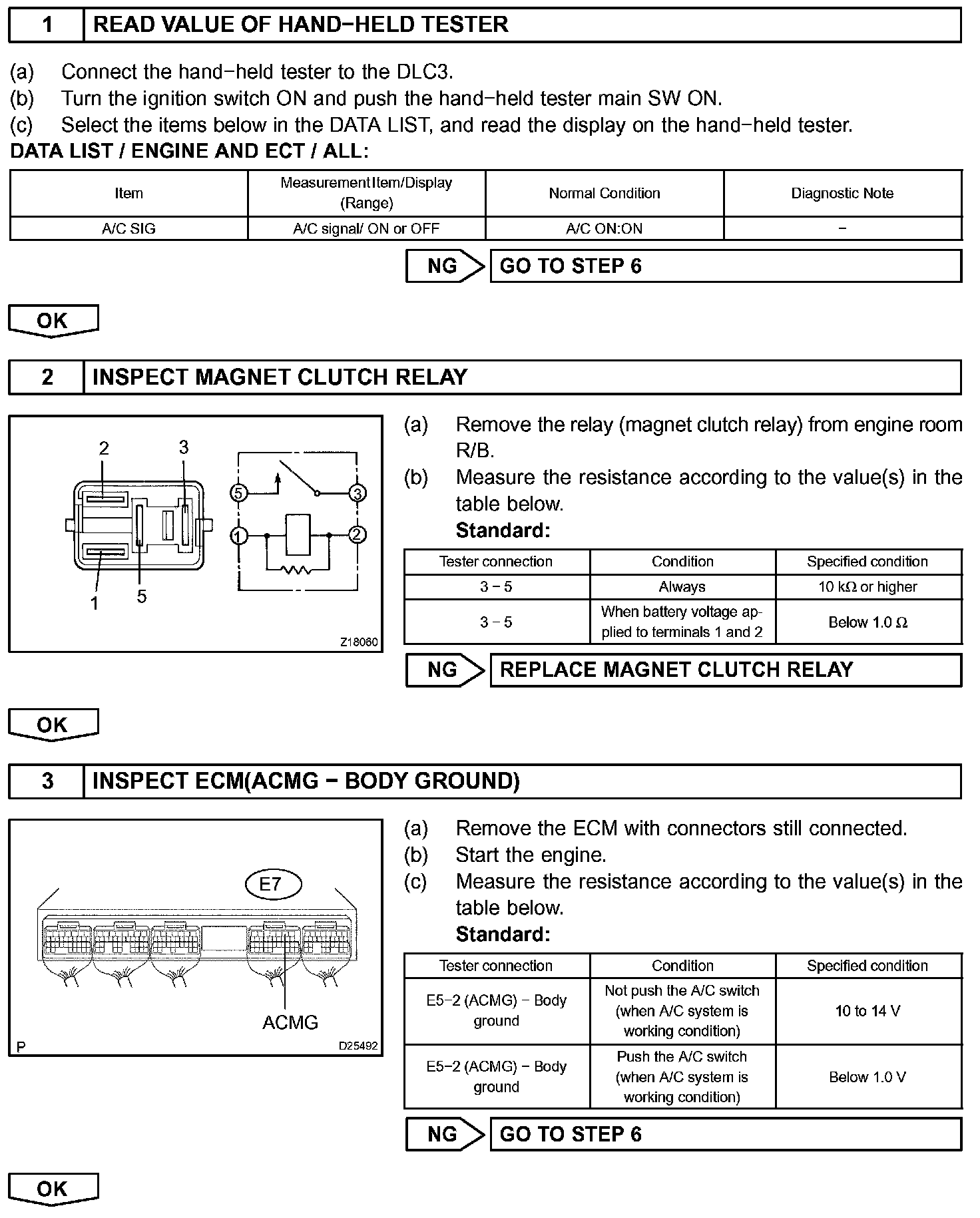

Step 1-3:

Step 4-6:

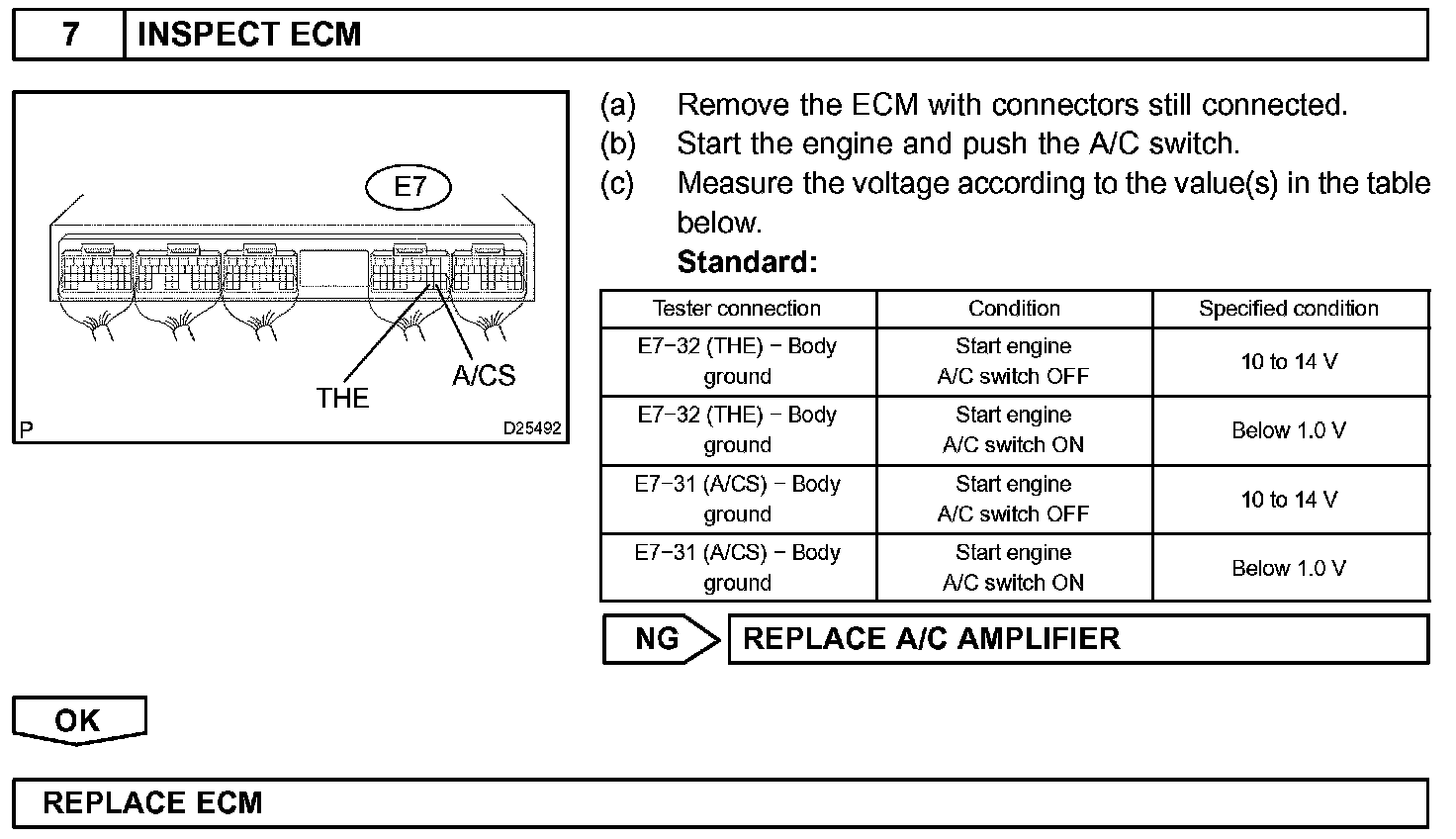

Step 7:

INSPECTION PROCEDURE

HINT: When using the hand-held tester, start inspection step 1 and when not using the hand-held tester, start from step 2.
