AC Back-up Power Source Circuit

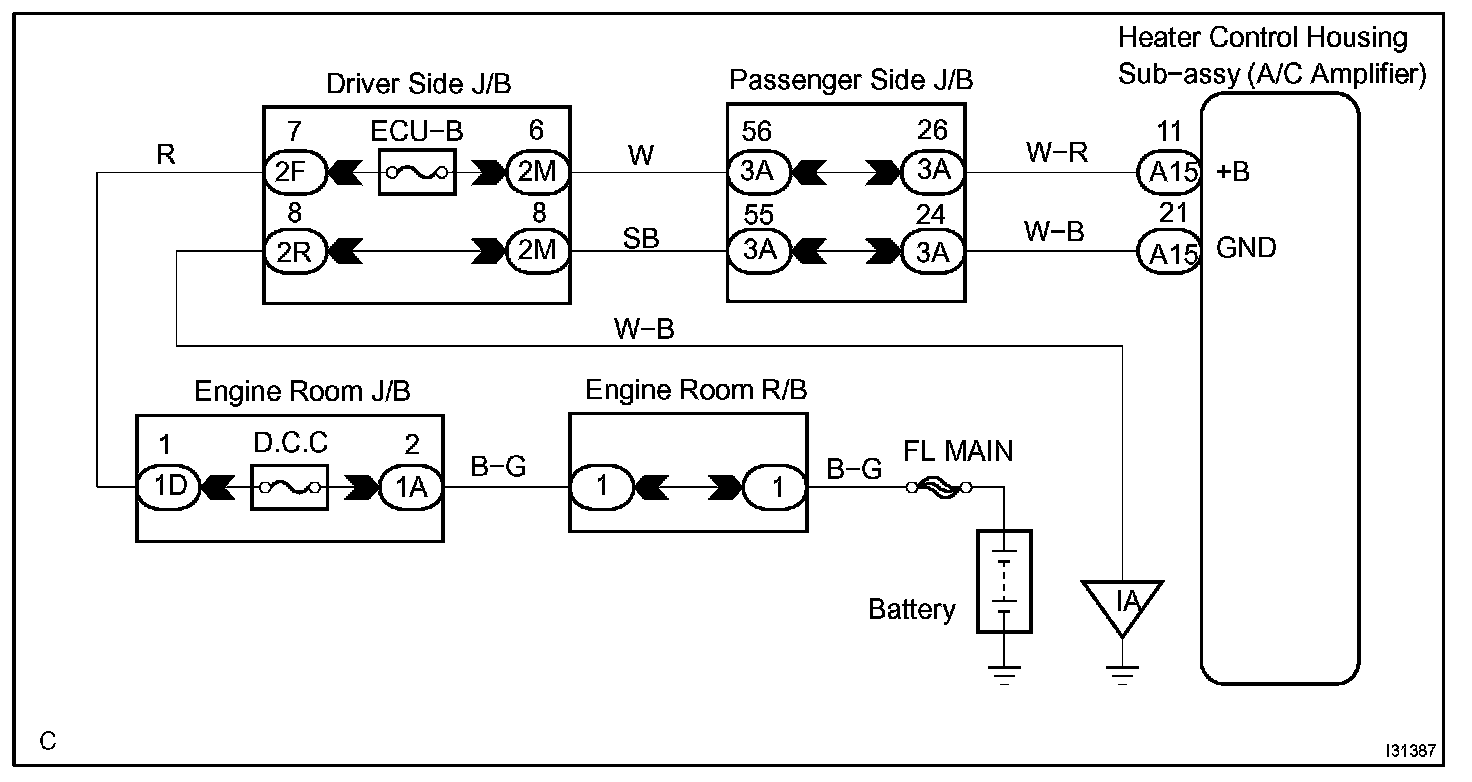

BACK-UP POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This is the back-up power source for the air conditioner amplifier. Power is supplied even when the ignition switch is off and is used for diagnostic trouble code memory, etc.
