Home
>>
Lexus
>>
2006
>>
ES 330 V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

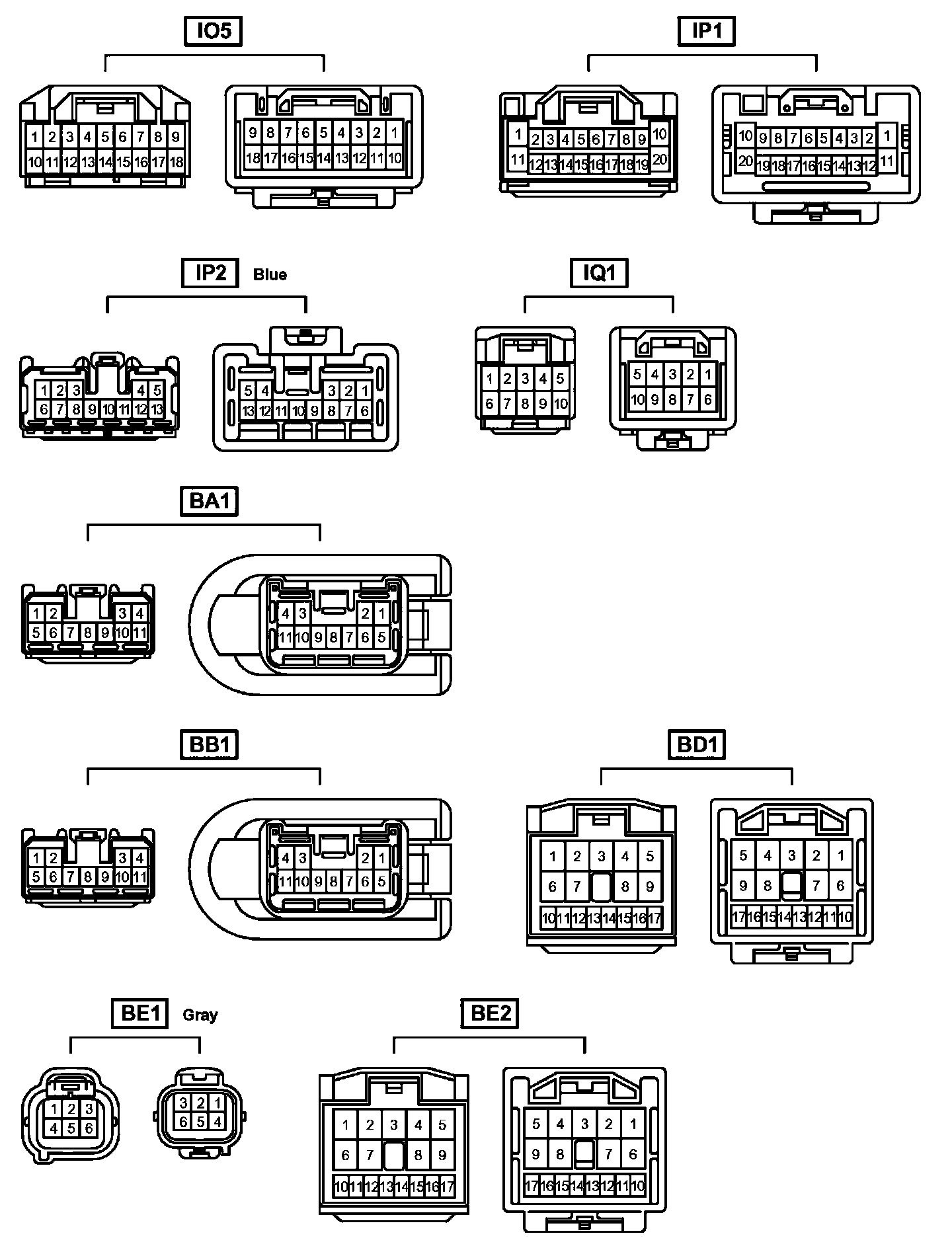

IO5 - BE2
IO5 - BE2
IO5 - BE2:
