Without Scan Tool

DTC CHECK USING SST CHECK WIRE

Check DTCs using SST check wire




1. Turn the ignition switch off.

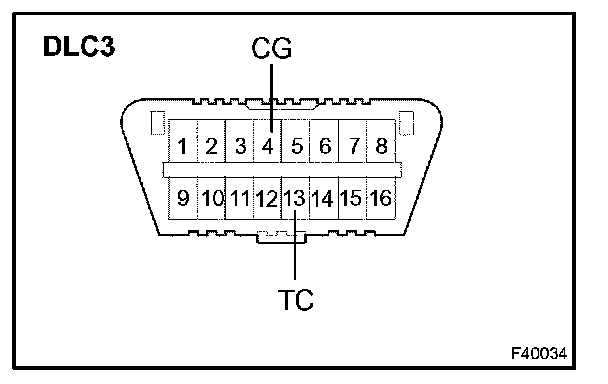

2. Using SST, short-circuit between terminals TC and CG of the DLC3.

SST 09843-18040

3. Turn the ignition switch to the ON position.

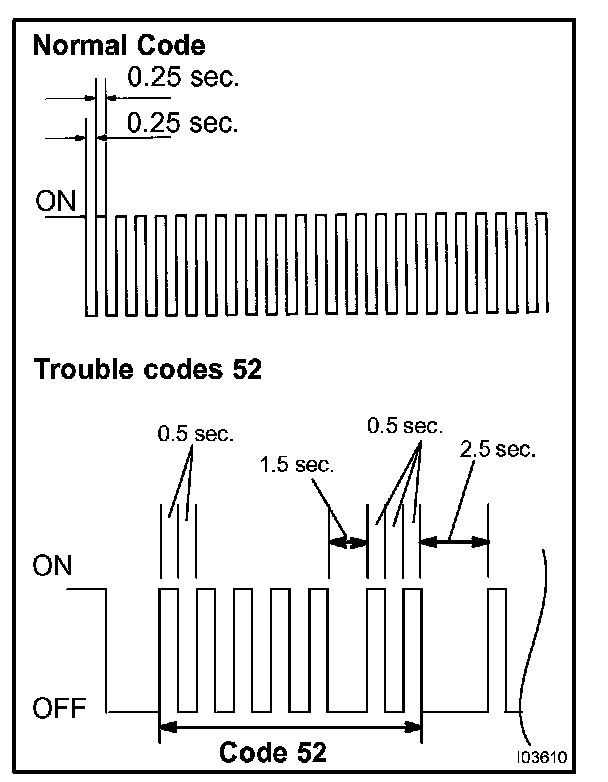

4. Read and record DTCs from the CRUISE main indicator light on the combination meter. As examples, refer to the chart for the blinking of the normal code and trouble code 52.

HINT: If the CRUISE main indicator light does not blink because of any DTC or in the normal code blinking pattern, inspect the following circuits.

Relevant circuit
TC and CG terminal circuit
CRUISE main indicator light circuit
