Cruise Control Switch Circuit

CRUISE CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit sends signals to the ECM depending on the cruise control main switch condition. Battery supplies positive (+) battery voltage to the cruise control main switch. Then terminal CCS of the ECM receives voltage as the signal according to the switch condition.

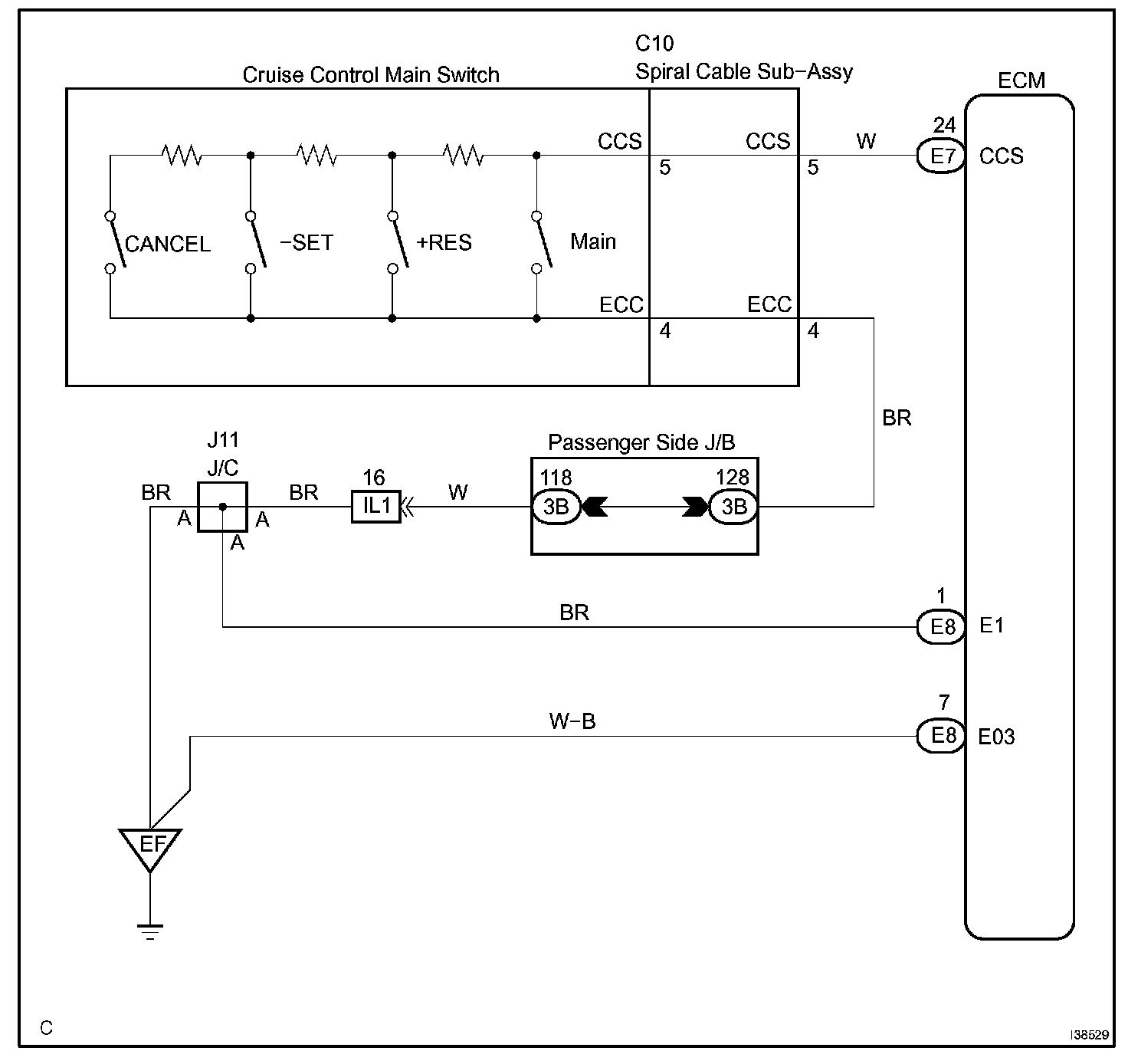

Wiring Diagram:

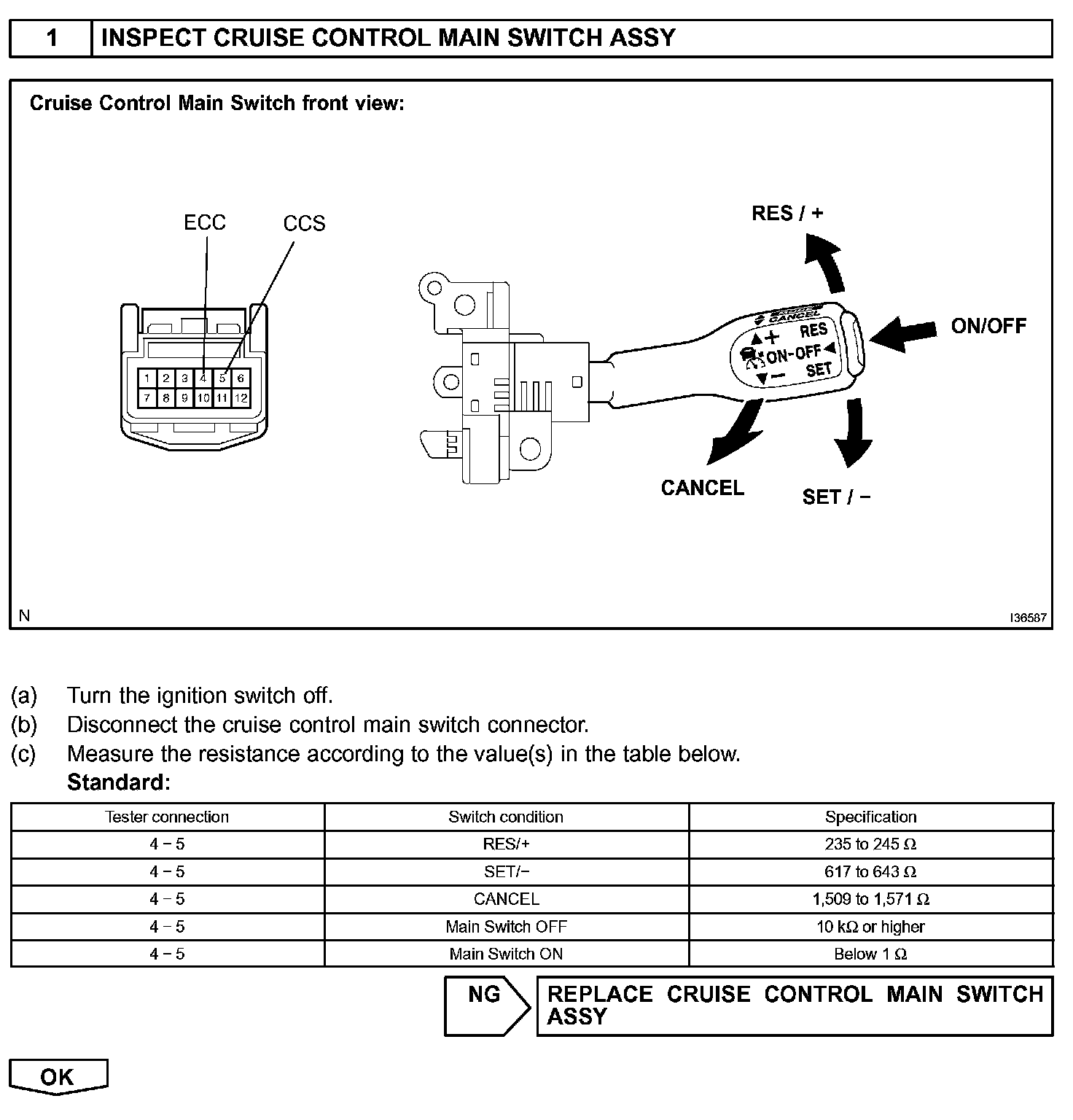

Step 1:

Step 2:

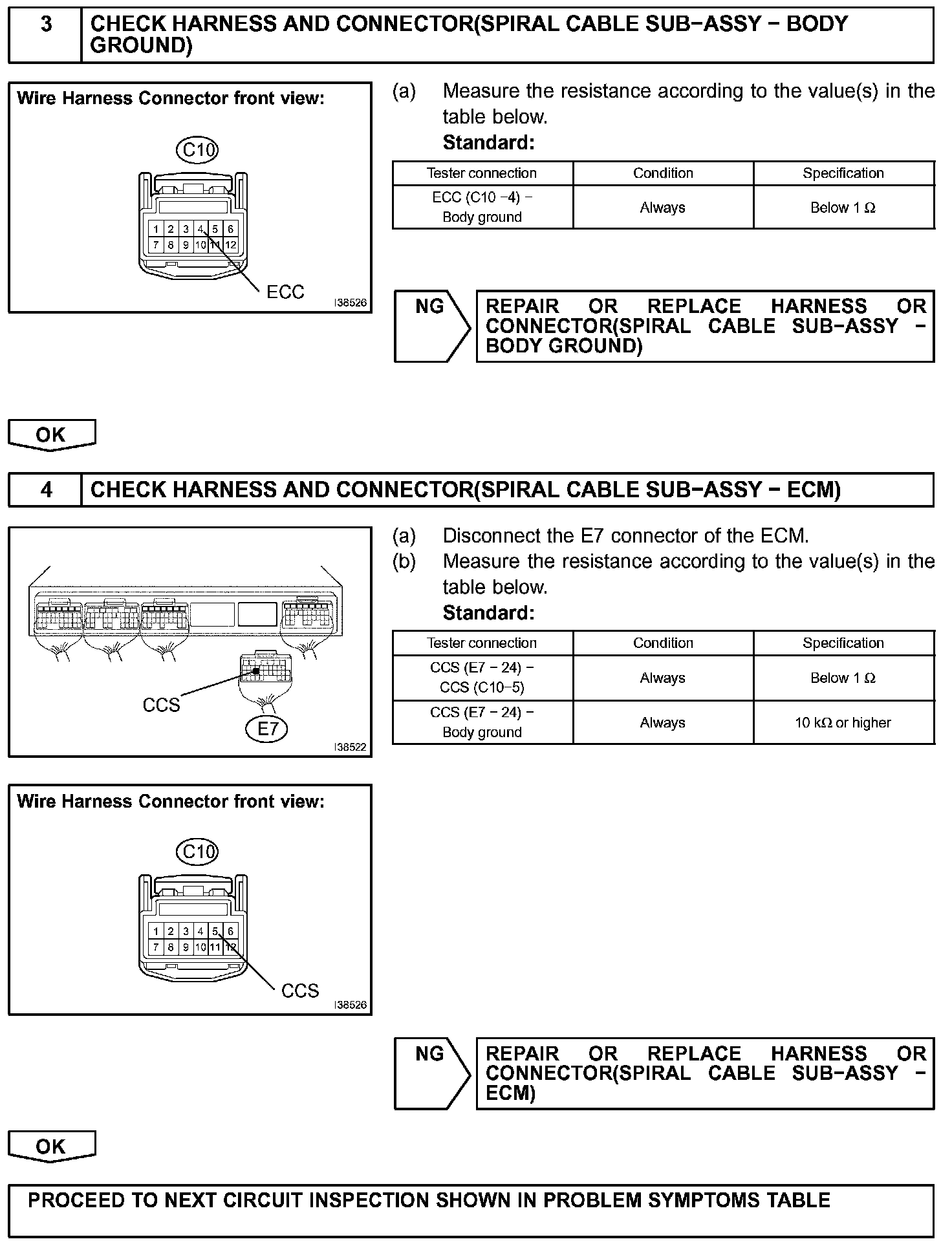

Step 3-4:

INSPECTION PROCEDURE
