Parking Brake Cable No. 4
REPLACEMENT1. REMOVE CONSOLE PANEL UPPER REAR
2. REMOVE CONSOLE BOX CARPET
3. REMOVE RR CONSOLE BOX
4. REMOVE CONSOLE BOX MOUNTING BRACKET NO. 2
a. Remove the 2 bolts and console box mounting bracket No. 2.
5. REMOVE YAWRATE SENSOR (W/ VSC)
6. REMOVE PARKING BRAKE CABLE ASSEMBLY NO. 4

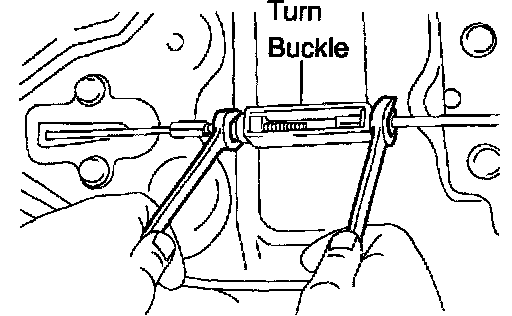

a. Loosen the turn buckle, disconnect the parking brake cable assembly No. 4 from the parking brake cable assembly No. 1.
b. Disconnect the parking brake cable assembly No. 4 from the parking brake equalizer.

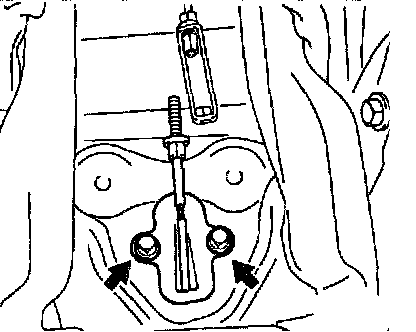

c. Remove the 2 bolts and parking brake cable assembly No. 4.
7. INSTALL PARKING BRAKE CABLE ASSEMBLY NO. 4
a. Install the parking brake cable No. 4 with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
b. Connect the parking brake cable assembly No. 4 to the parking brake equalizer.

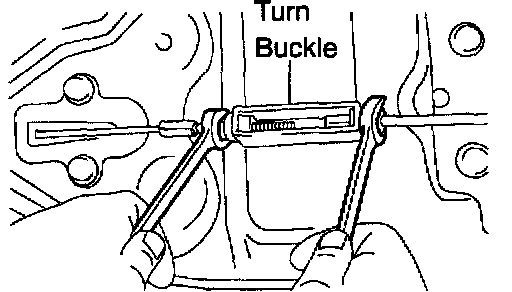

c. Tighten the turn buckle, connect the parking brake cable assembly No. 4 to the parking brake cable assembly No. 1.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
8. INSTALL YAWRATE SENSOR (W/ VSC)
9. INSTALL CONSOLE BOX MOUNTING BRACKET NO. 2
a. Install the console box mounting bracket No. 2 with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
10. INSTALL RR CONSOLE BOX
11. INSTALL CONSOLE BOX CARPET
12. INSTALL CONSOLE PANEL UPPER REAR
13. INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL
14. CHECK VSC SENSOR SIGNAL (W/ VSC)
